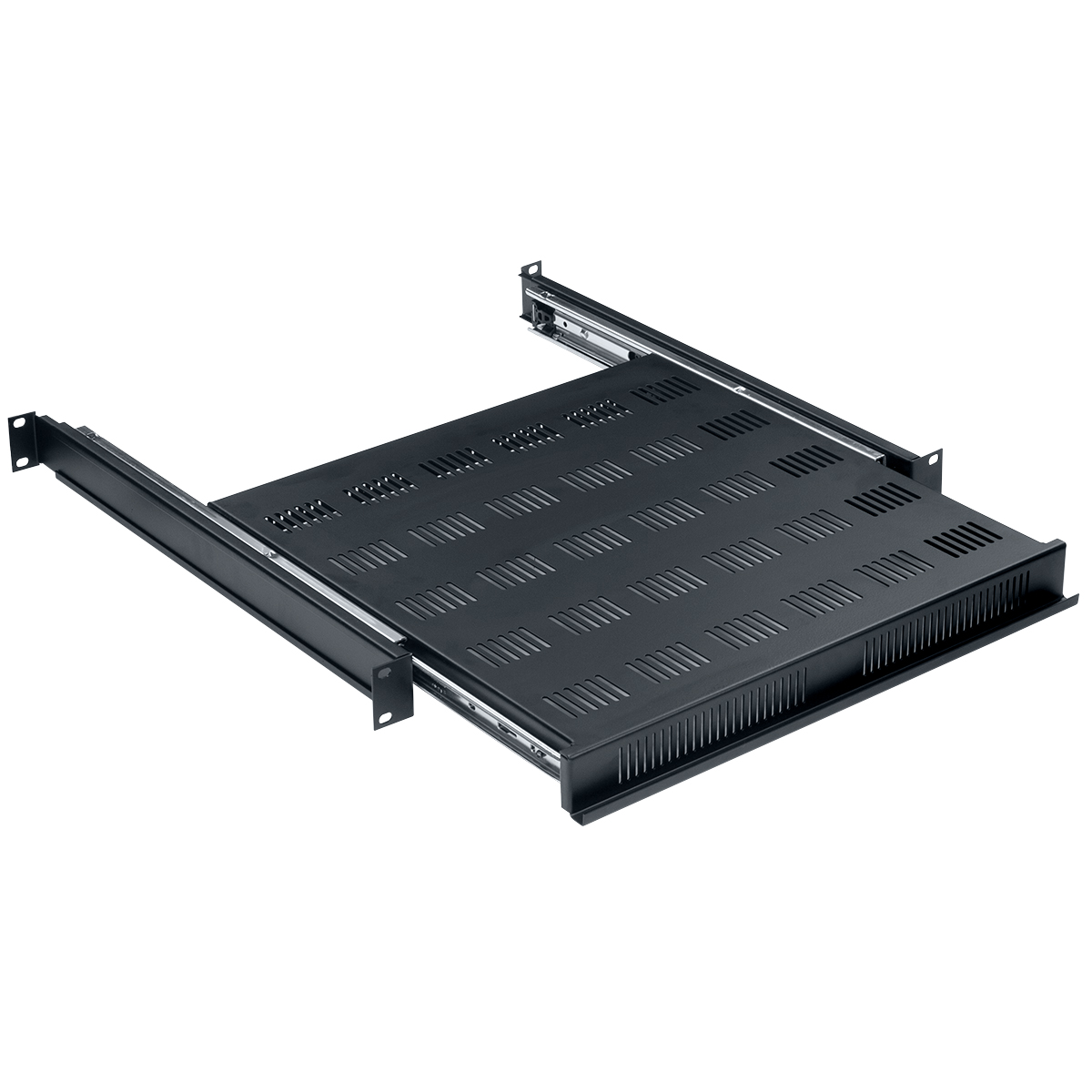

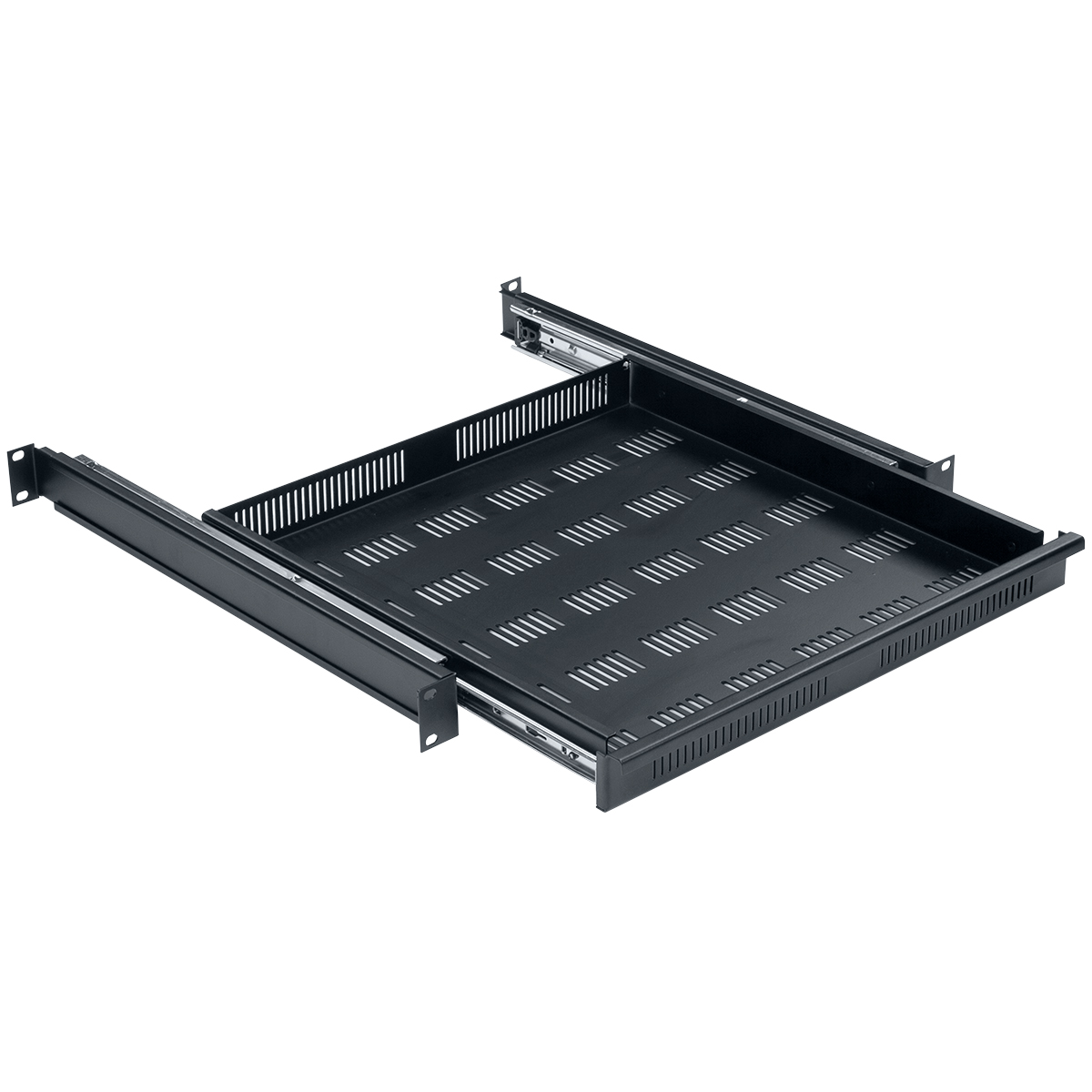

19 inch rack shelf can be installed as a shallow drawer or shelf with vented base. The unit requires front and rear mounting rails and ships ready-to-install.

---

FEATURES

• Width:  19 in. (writing surface = 15.56 in., drawer width = 15.45 in.)
• Rear supports can be extended to 33 inches deep
• Sturdy 16-gauge steel with front/rear vents
• Fully vented base for passive ventilation
• Mounts to front and rear mounting rails—requires rear rail support.
• Integral handle
• Smooth black powder epoxy finish
• Load Capacity:  80 lbs.
• Special feature: Installs as a shelf or drawer

---

COMPLIANCE & CERTIFICATION

• Made in Missouri, U.S.A.
• Certified U.S. steel

---

TECHNICAL DOWNLOADS

• Spec Sheet:  [lwl_spec_sheet_link id="2313-RSD116V"]

---

A&E SPECIFICATIONS

• The vented shelf or drawer for 19"W rackmount use shall be Lowell Model No. RSD-116V, which shall be 16-gauge U.S. steel with a smooth black powder epoxy finish. It shall measure 1U x 19.00"W x 18"–33"D (including rear support brackets which extend). The unit shall mount to front and rear rack rails and have a load capacity of 80 lbs.
