RS8-AW contoured aluminum speaker grille

Aluminum Screw-mount Grille

Name: Aluminum Screw-mount Grille
SKU: RS8-AW
Price: 46.80 USD
Availability: InStock

For 8 inch driver

$46.80 MSRP

Model RS8-AW

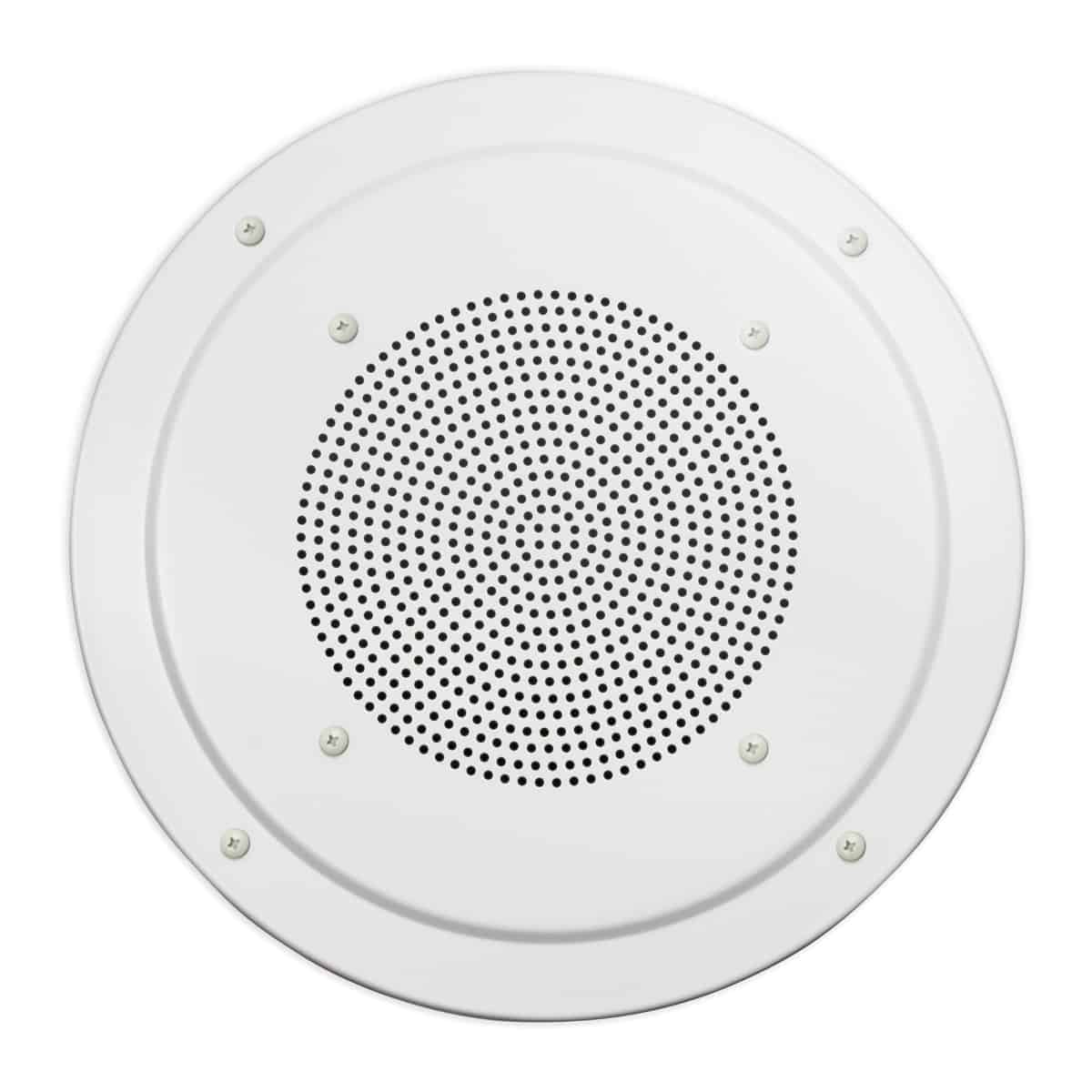

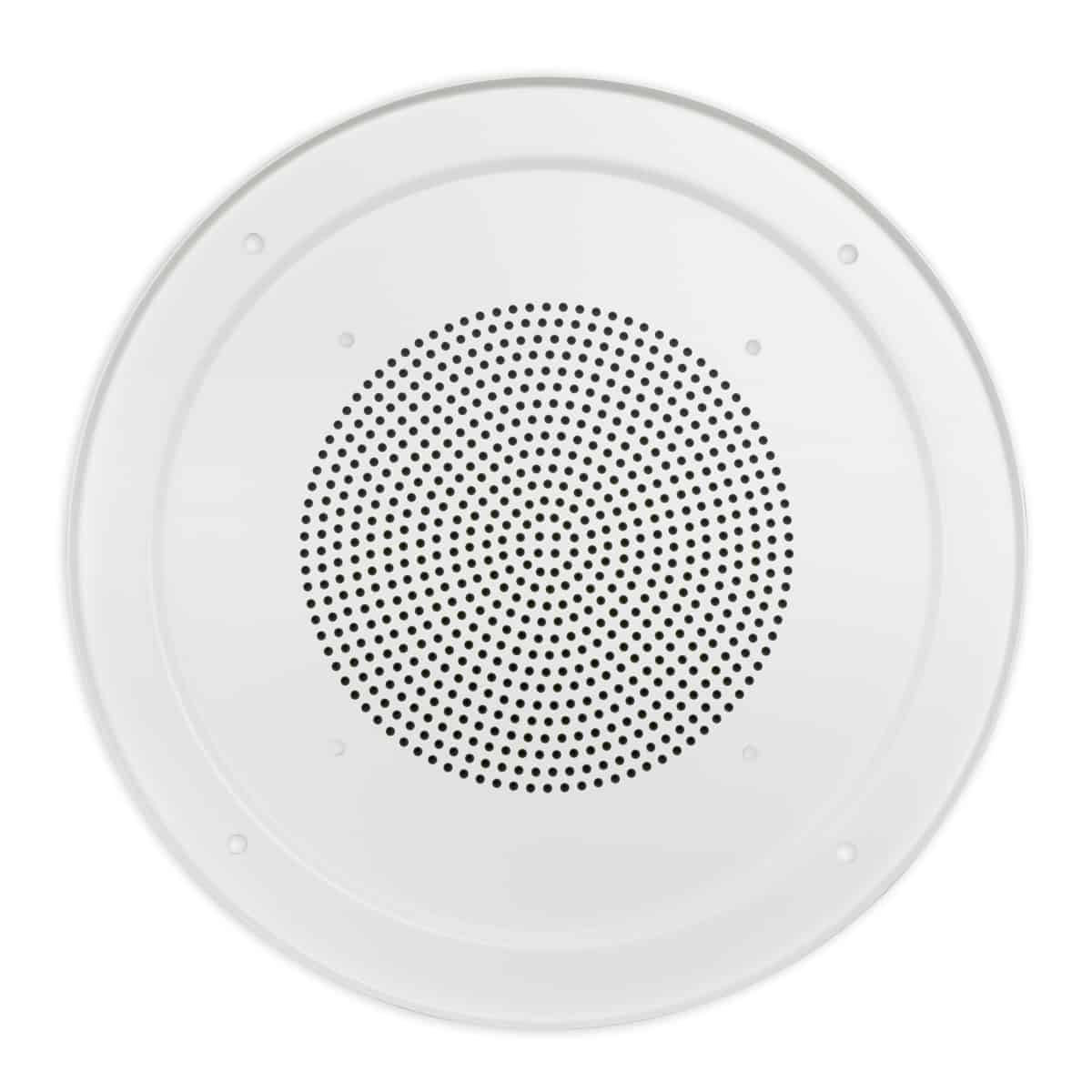

Contoured aluminum speaker grille with contoured edge is a two-step stamped design with a circular perforation pattern made for use with an 8 in. driver.

Add to Favorites

Compare

Style: Screw-mount
Material: Precision formed .032 aluminum with contoured edge, two-step stamped design, circular perforation pattern. White.
Overall Dimensions: 12.625 in. diameter
Mounting Bolt Circle: 11.25 in. diameter
Mounting Projection: 0.437 in.
Speaker Bolt Circle: 7.687 in. diameter
Mounting Provisions: 8 screws (white)

Spec Sheet: 1683-RS8AW

Made in the U.S.A.

The contoured aluminum speaker grille for 8 inch speakers shall be Lowell Model RS8-AW. It shall be fabricated one-piece 0.032 aluminum with a multi-level finished surface with a peripheral flange of 60-degrees. The grille diameter shall be 12.625 in. with mounting projection of 0.437 in. The grille shall have four 0.218 in. holes spaced at 90-degree intervals for screw mounting the specified 8 in. speaker. It shall also have four .25 in. holes spaced at 90-degree intervals on a 11.25 in. bolt circle for mounting specified backbox or mounting ring. The grille shall be finished in white powder epoxy and include matching screws for speaker and backbox mounting.

Drivers (8 in.): 810, 8A50, 8C10MRB, CT830A
Backboxes: CP84, CP87, CP810, DX108, XCP84, XCP84-S, XCP87, XCP810, 8XD4, 8PSBX, BME84, BME87, 8XD4-S, 8XD4-P
Tile-Bridges: LBS8, LBS8-CP, LBS8-RI
Mounting Rings: PR8-1624, RMP8
