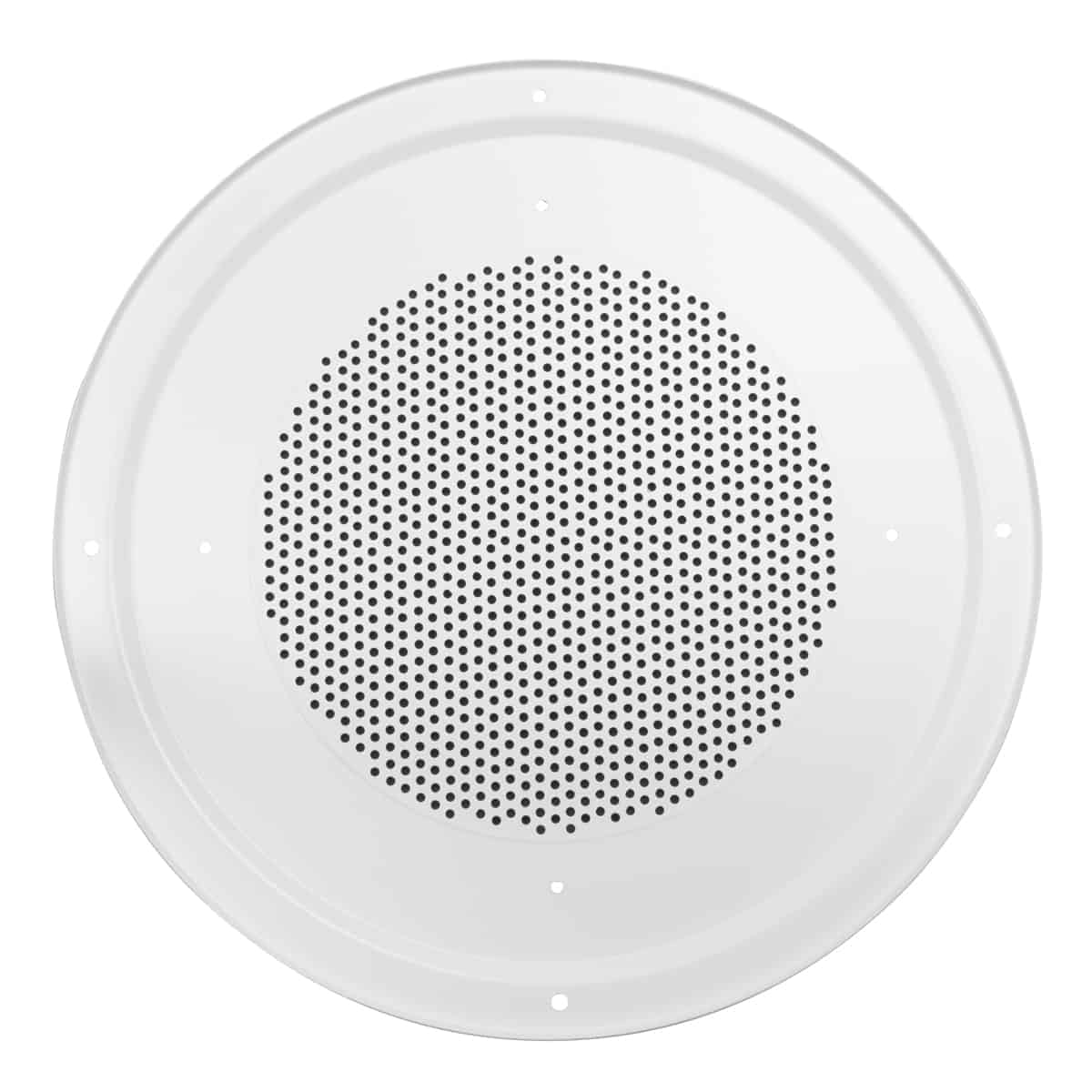

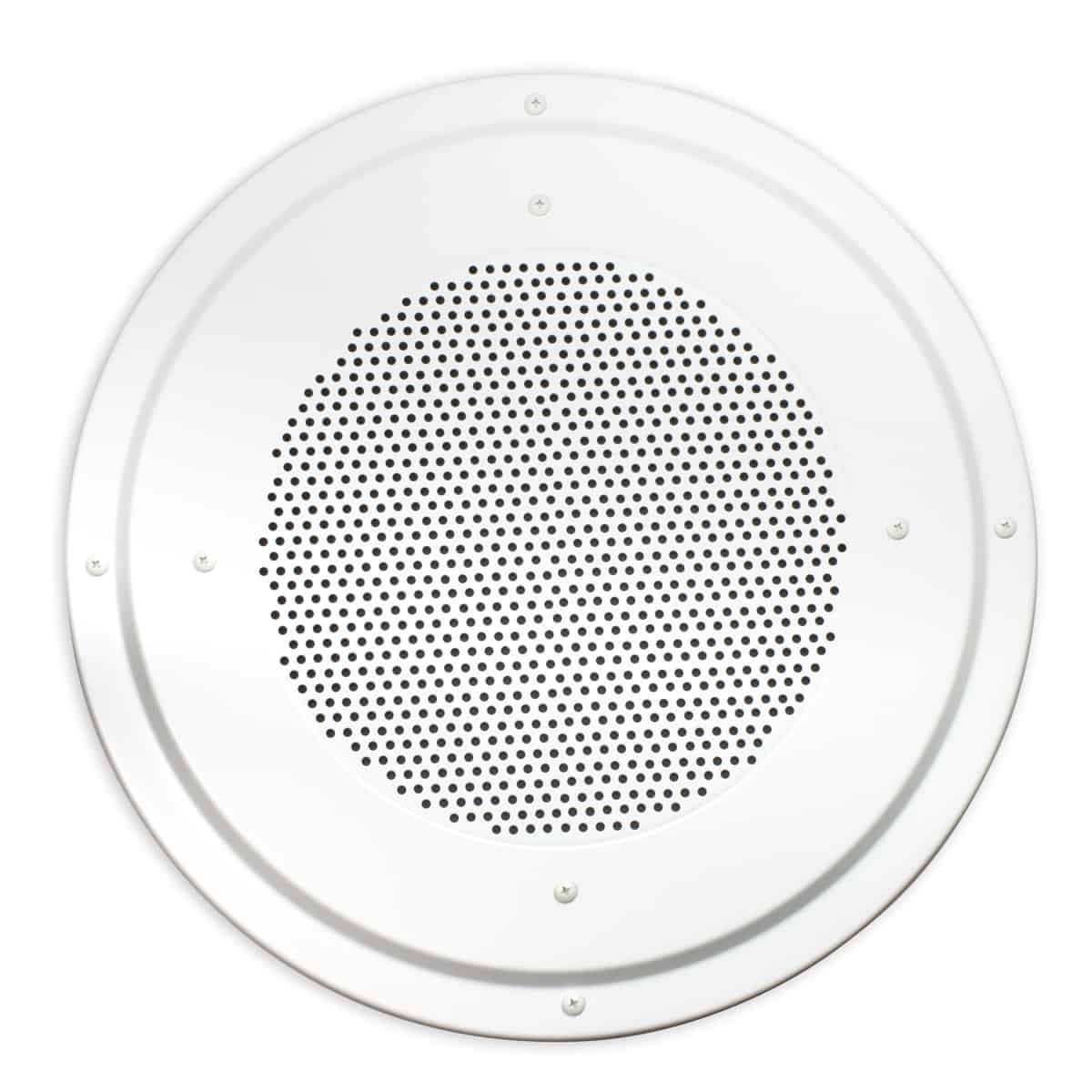

Aluminum Screw-mount Grille

Name: Aluminum Screw-mount Grille
SKU: RS12-AW
Price: 89.20 USD
Availability: InStock

For 12 inch driver

$89.20 MSRP

Model RS12-AW

A contoured aluminum grille for use with a 12 inch driver, features a two-step design for commercial applications where visual depth is preferable.

Add to Favorites

Compare

Style: Screw-mount
Material: Precision formed .04 aluminum with 2-step stamped design, contoured edge, circular perforation pattern
Finish: White
Size: 16.625 in. diameter
Mounting Projection: 0.5 in.
Mounting Bolt Circle: 15.47 in.
Mounting Provisions: 8 screws (white), 4 hex nuts

Spec Sheet: 1684-RS12AW

Made in the U.S.A.

The contoured aluminum speaker grille for 12 inch drivers shall be Lowell Model RS12-AW. It shall be fabricated one-piece .04 aluminum with a multi-level finished surface with a peripheral flange of 60-degrees. The grille diameter shall be 16.625 in. with mounting projection of 0.5 in. The grille shall have four (.218 in.) holes spaced at 90-degree intervals for screw mounting the specified speaker. It shall also have four (.25 in.) holes spaced at 90-degree intervals on a 15.47 in. bolt circle for mounting specified backbox or mounting ring. Model RS12-AW shall be finished in white powder epoxy and shall include matching screws for speaker and backbox mounting.

Driver (12 in.): 12P150
Recessed Backbox: XCP1210
Tile Bridge (for infinite baffle): LBS12
