Standalone remote power control, eight 15A, classic connections

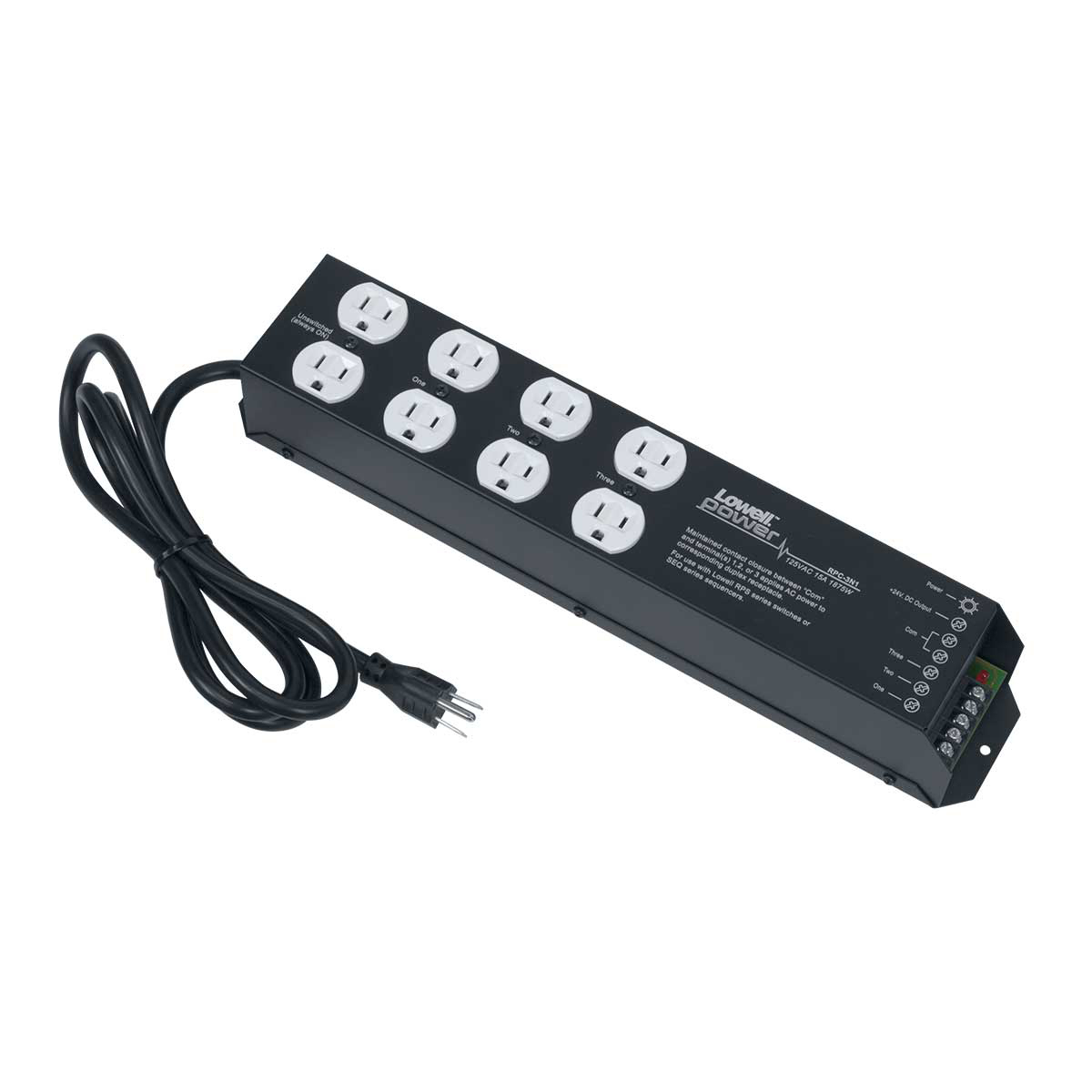

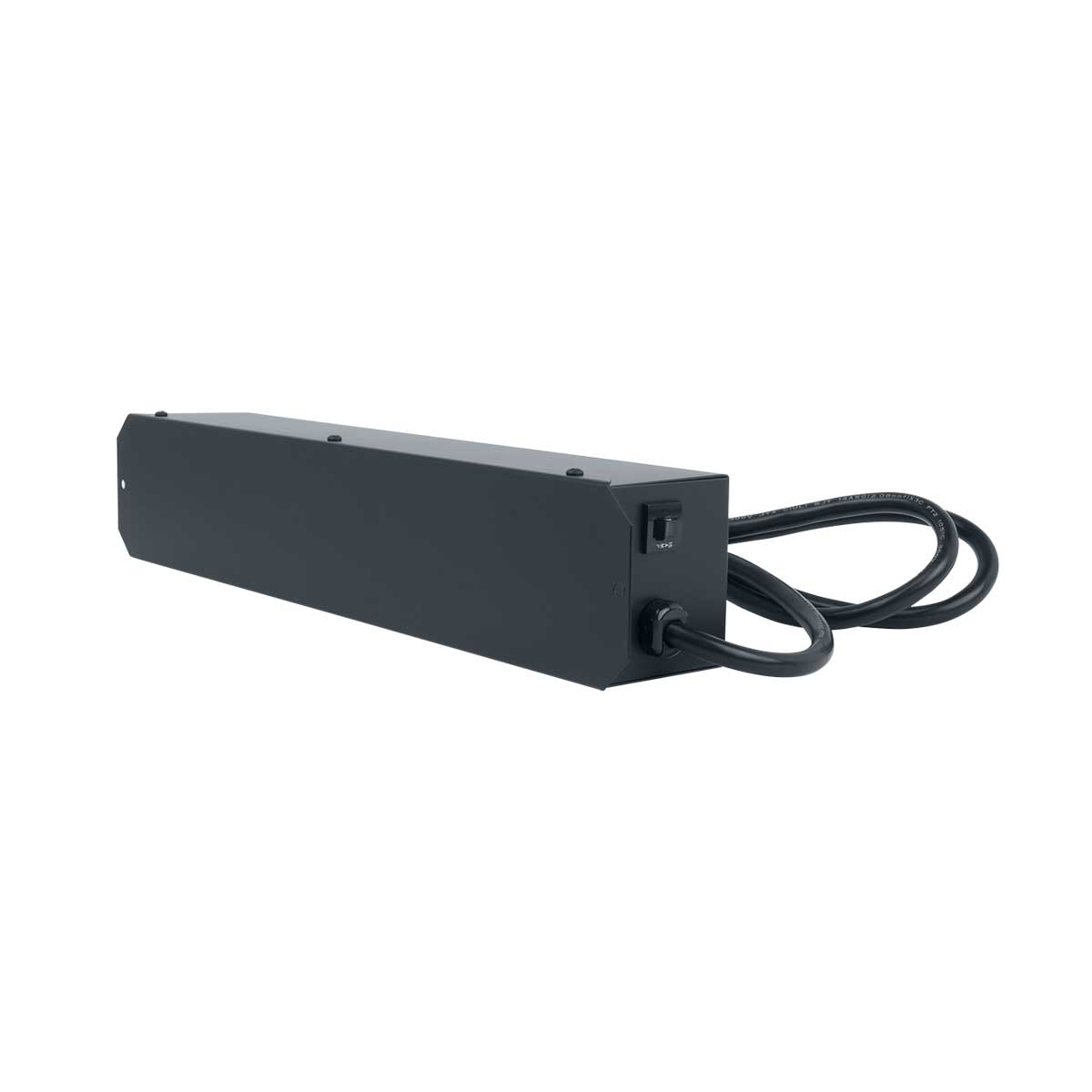

Remote Power Control with NEMA 5-15R Outlets

Name: Remote Power Control with NEMA 5-15R Outlets
SKU: RPC-3N1
Price: 419.96 USD
Availability: InStock

Classic wire connections

$419.96 MSRP

Model RPC-3N1

Remote Power Control may be combined with a variety of switches, modules, and/or sequential control devices to provide a versatile low-voltage method of activating and deactivating equipment from a remote location. This unit requires a remote trigger for activation.

Add to Favorites

Compare

Chassis: Steel with black finish, 16 in. x 3 in. x 2.5 in
Circuit breaker with power supply and relay
Outlets 8 (15A)
Barrier strip connections
24VDC output
Activation of the three individually controlled duplex outlets is accomplished via contact closures between the common terminal and the numbered control terminals.
Termination: 6-ft. attached cord with NEMA 5-15 molded plug

Spec Sheet: 1778-RPC3N1

RoHS Compliant
Made in U.S.A. with global components

The device for remotely controlling AC power shall be Lowell Model RPC-3N1, which shall include a power supply and relay housed within a 16 in. x 3 in. x 2.5 in. steel chassis. It shall have four duplex outlets (3 switched, 1 un-switched) with power rating of 15A. The unit shall terminate with a 6 foot cord and NEMA 5-15 plug. It shall include over-current protection for 15A.

RPS Series: SPST maintained and momentary switches
SEQ Series: Low-voltage sequencers
