Standalone remote power control, 15A, surge suppression, classic connections

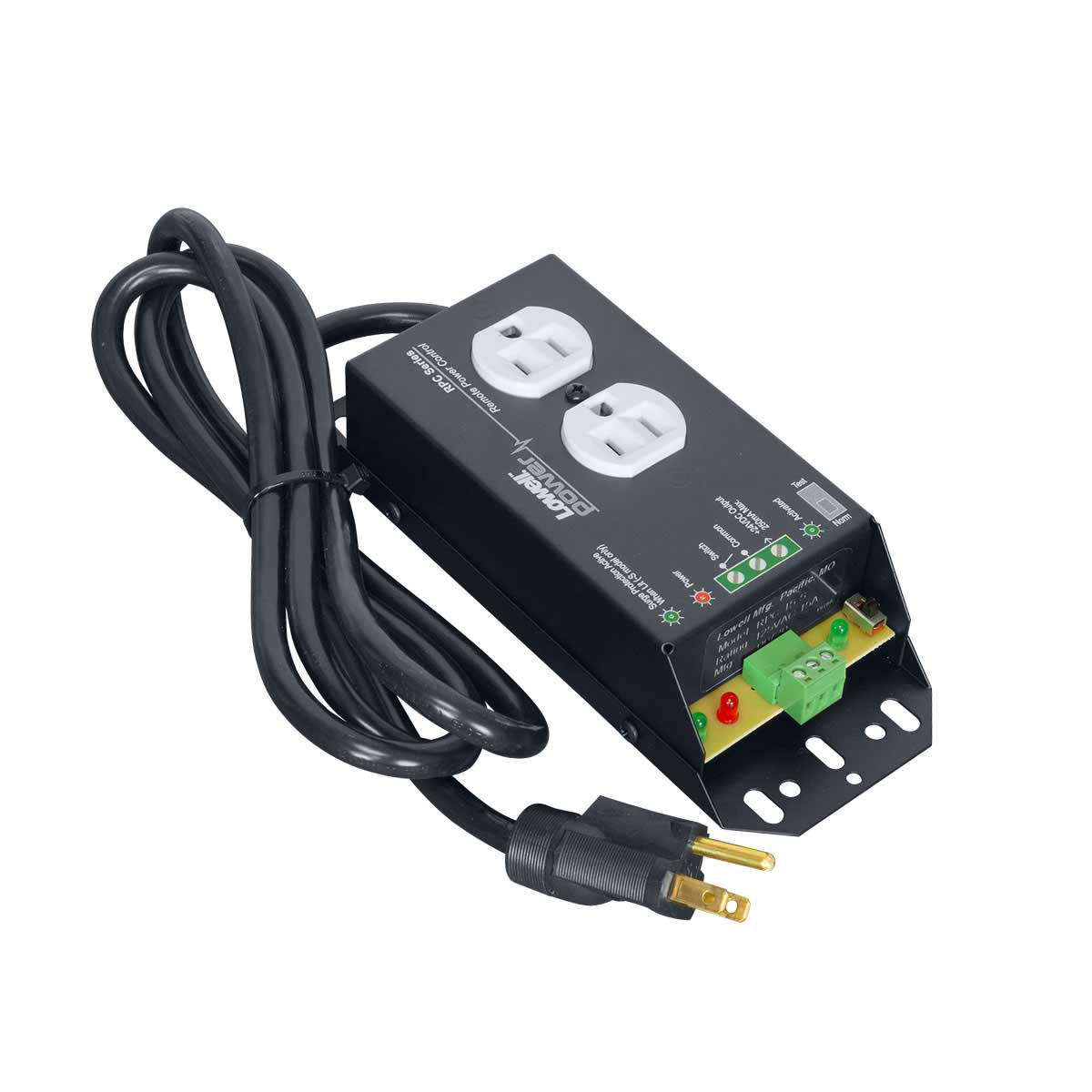

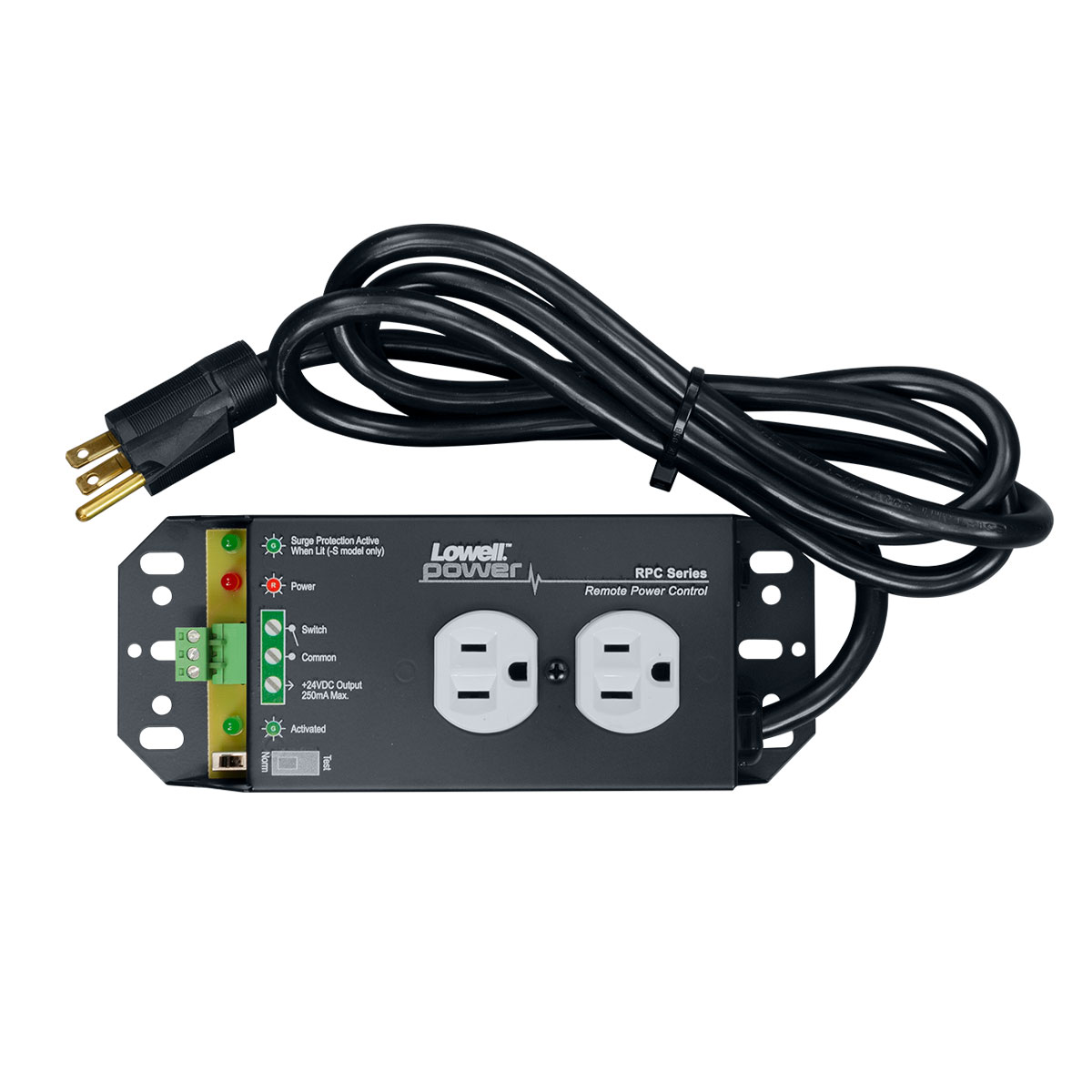

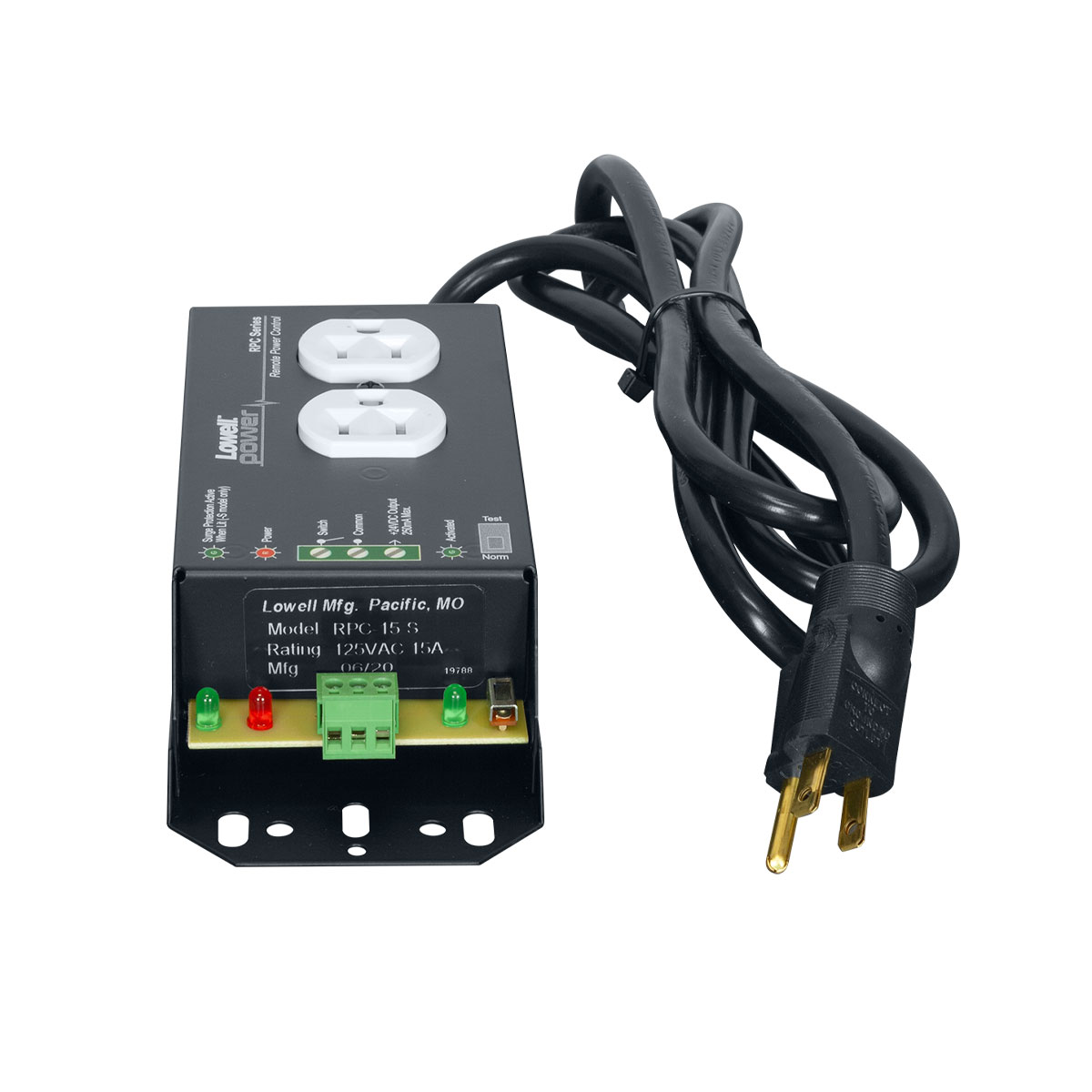

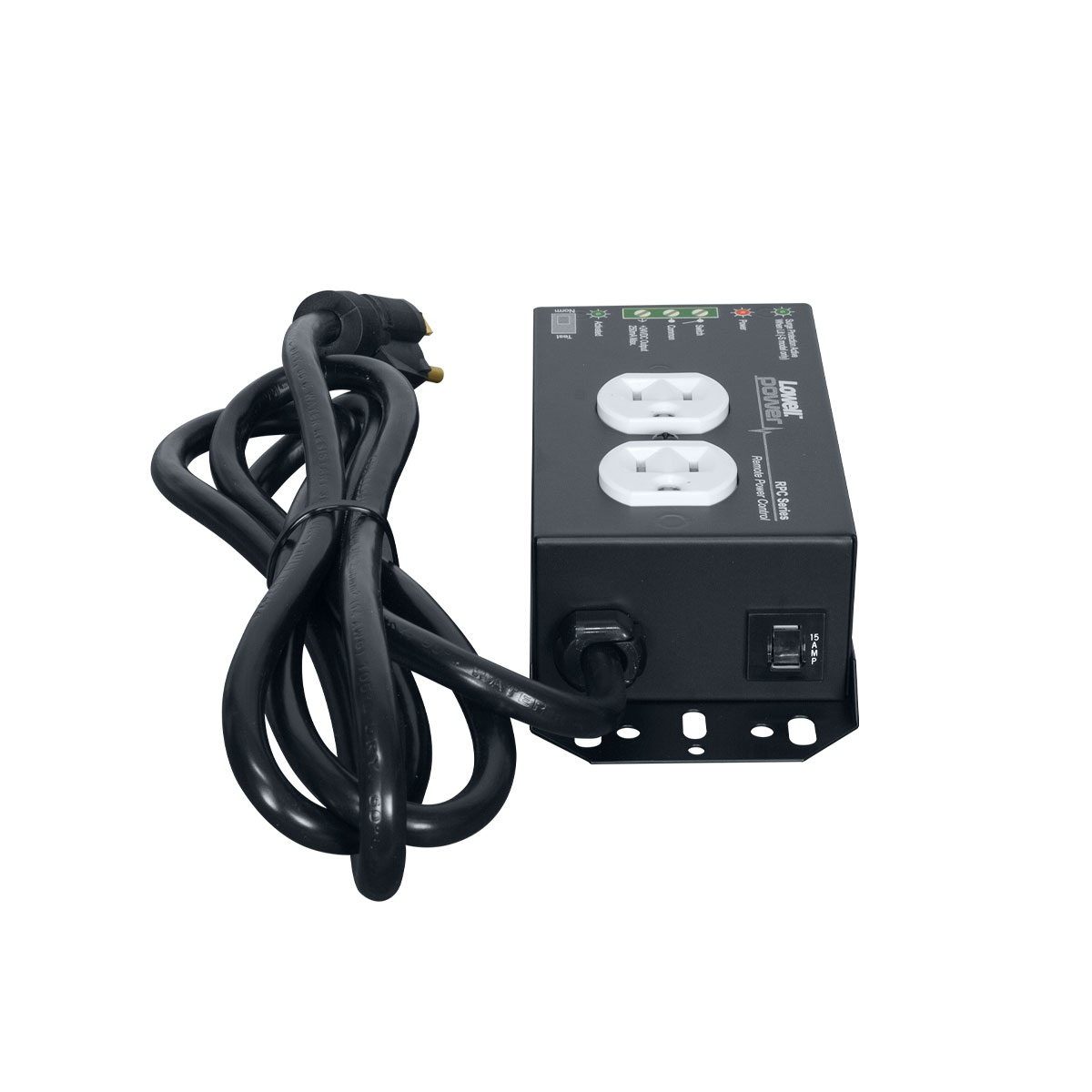

Remote Power Control with NEMA 5-15R Outlets, Basic Surge Protection

Name: Remote Power Control with NEMA 5-15R Outlets, Basic Surge Protection
SKU: RPC-15-S
Price: 213.66 USD
Availability: InStock

Classic wire connections

$213.66 MSRP

Model RPC-15S

The Remote Power Control (RPC Series) is ready to combine with a variety of switches or power sequencers that provide a dry contact closure for an intrinsically safe low voltage method of controlling AC power to activate and deactivate equipment at remote locations. This unit uses classic wire connections and requires an external trigger for activation.

Add to Favorites

Compare

Steel Chassis: 7.5 in. x 3.25 in. x 1.75 in
Power Rating: 15A, 125VAC
Outlets: 2 (15A)
Switch Type: Dry contact
Termination: 6-ft. attached cord with NEMA 5-15 plug
Surge Protection: Up to 20,000A

Spec Sheet: 2041-RPC15S

RoHS Compliant
ETL Listed (U.S., Canada)
Made in U.S.A. with global components

The device for remotely controlling AC power shall be Lowell Model RPC-15-S, which shall include a power supply and relay housed in a 7.5”L x 3.25”W x 1.75” steel chassis with a black powder epoxy finish. The unit shall include one duplex outlet with 15A power rating and six-ft. cord with NEMA plug. It shall include surge protection up to 20,000A.
