36″H Two-bay Consolidation Cabinet (2U+2U)

Name: 36"H Two-bay Consolidation Cabinet (2U+2U)
SKU: RCC-2236
Price: 703.72 USD
Availability: InStock

5"D x 25"W

$703.72 MSRP

Model RCC-2236

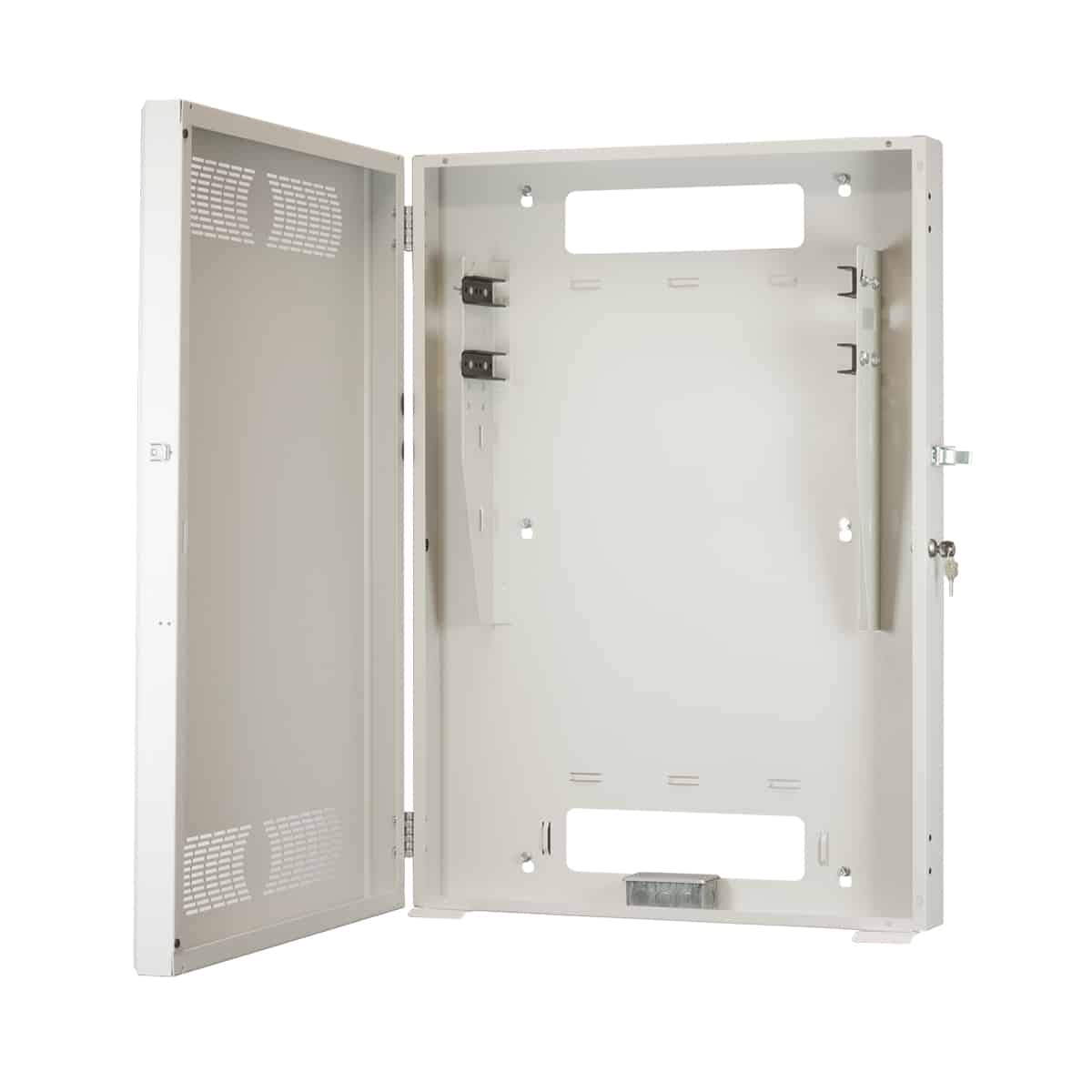

A low profile wall cabinet secures 19" E.I.A. network equipment with minimal intrusion into the room, maximizing internal space with 2 mounting bays with separate rail sets. Made in the U.S.A. with 16-gauge certified U.S. steel with Network Grey powder epoxy finish. The 2U upper bay has pivoting rails for easy access, while the 2U lower bay mounts equipment vertically. Door is reversible (left or right swing).

Add to Favorites

Compare

16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.
11-gauge rails in the 2U top section will accommodate a shallow patch panel. Rails pivot down for access.
11-gauge rails in the 2U bottom section will vertically-mount 19” equipment.
Dual-punch rails: All rails have holes tapped 10-32 (for use with included screws) plus square openings for alternate hardware (12-24 or 6mm screws, not included).

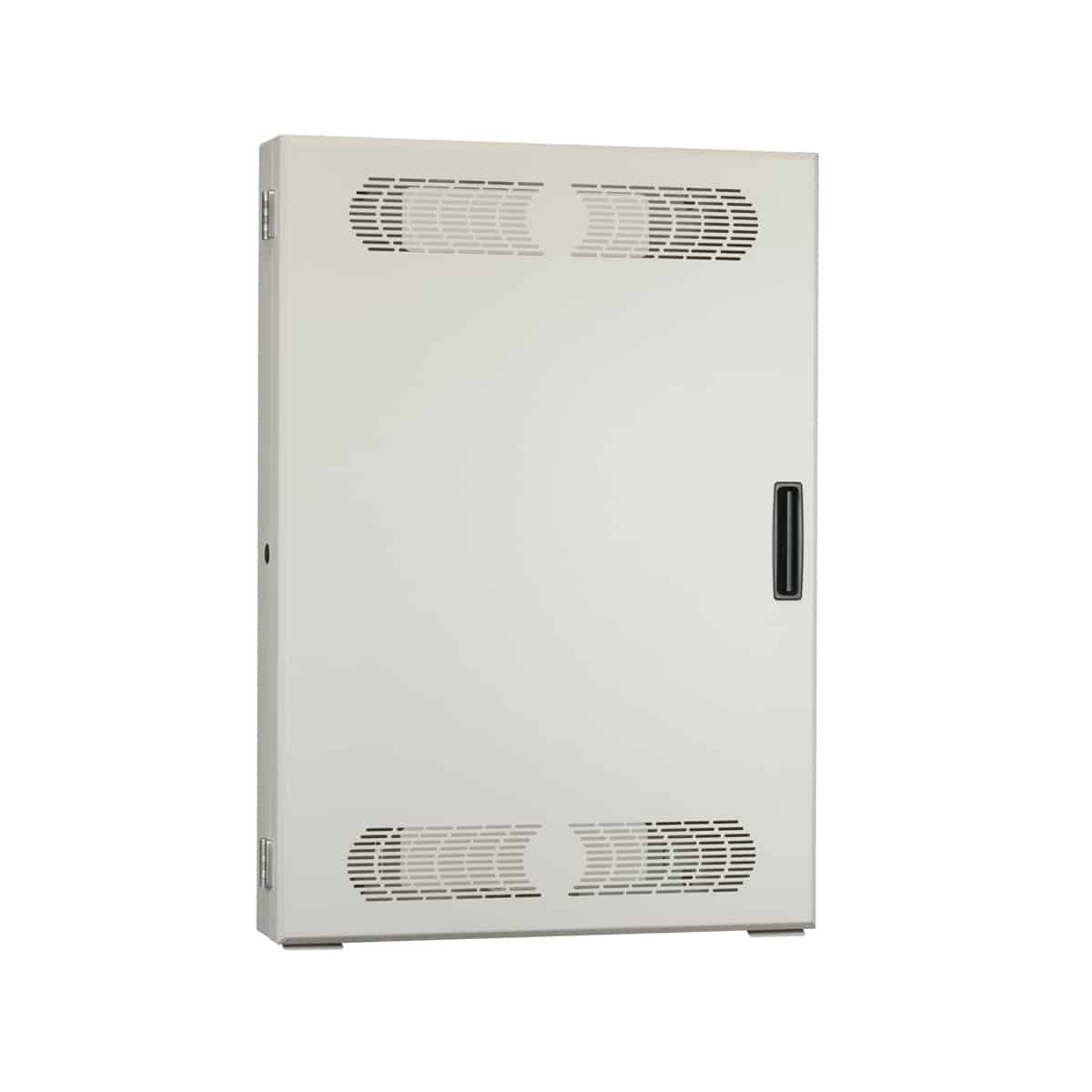

Vented front door with beveled edges and inset handle

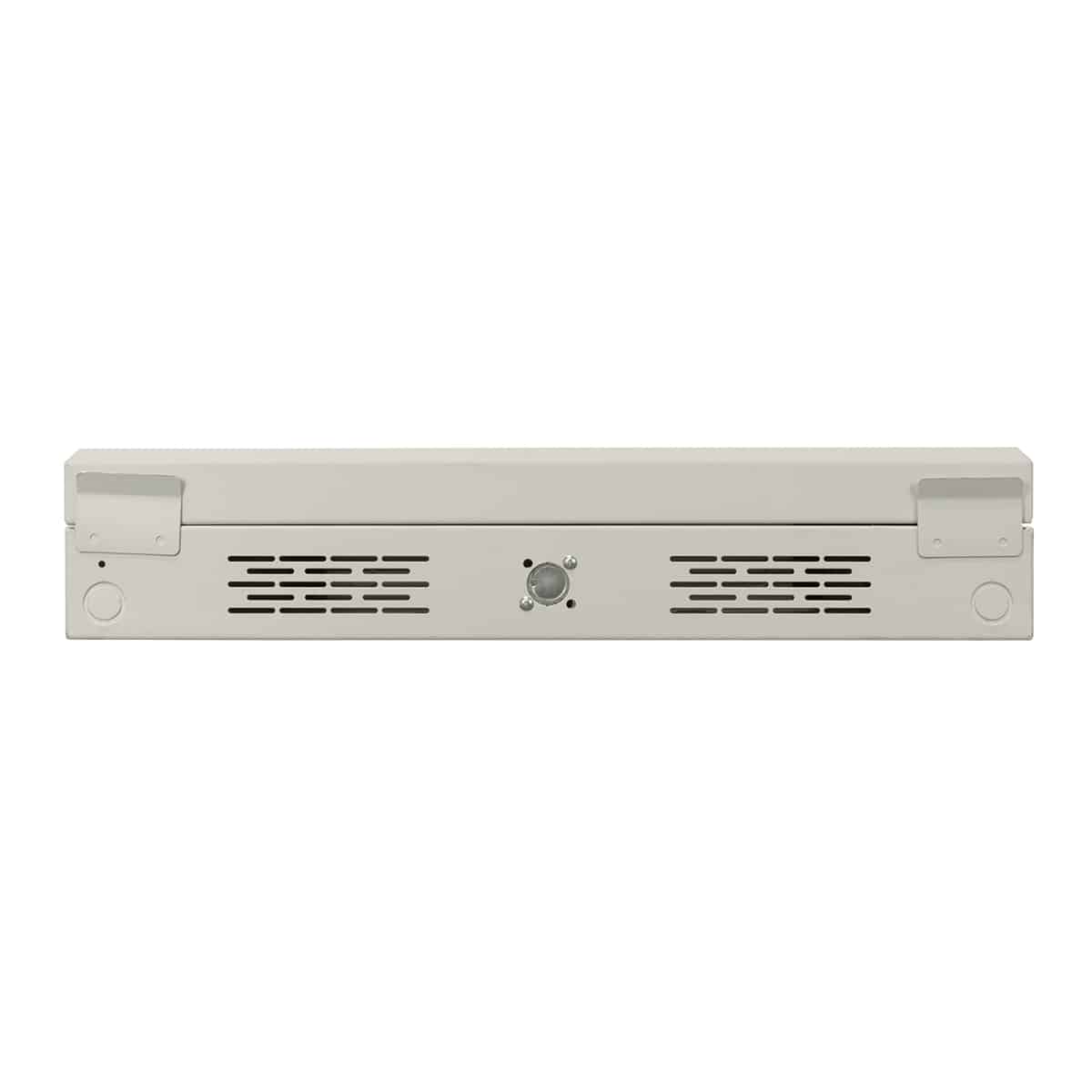

Knockouts in top and base
Multiple bridge lances
Vents in base accommodate (optional) single fan kits
Includes E.O. box in base
Side key lock
Network Grey powder epoxy finish

Rack Space: 2U horizontal plus 2U vertical
Measurements: 25.5”W x 36”H (30.2”D usable) x 5”D
Load Capacity: 150 lbs.

Spec Sheet: 1896-RCC2236
CAD drawings: RCC-2236

EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The wall cabinet shall be Lowell Model RCC-2236, which shall feature two mounting areas. Overall measurements shall be 25.5 x 36 x 5 inches. The 2U top section shall have 11-gauge rails that allow pivot-down access for a horizontally-mounted shallow panel (not included). The 2U bottom section shall have 11-gauge adjustable rails to vertically-mount 19” equipment up to 30.2 inches deep. The cabinet shall feature knockouts and bridge lances for cable management. The shallow front door shall have vents, beveled edges and an inset handle. The door shall be field-reversible for left or right-hand swing. The cabinet shall be made in the U.S.A. with certified U.S. steel with Network Grey powder epoxy finish. It shall include an E.O. box in the base and a side lock.
