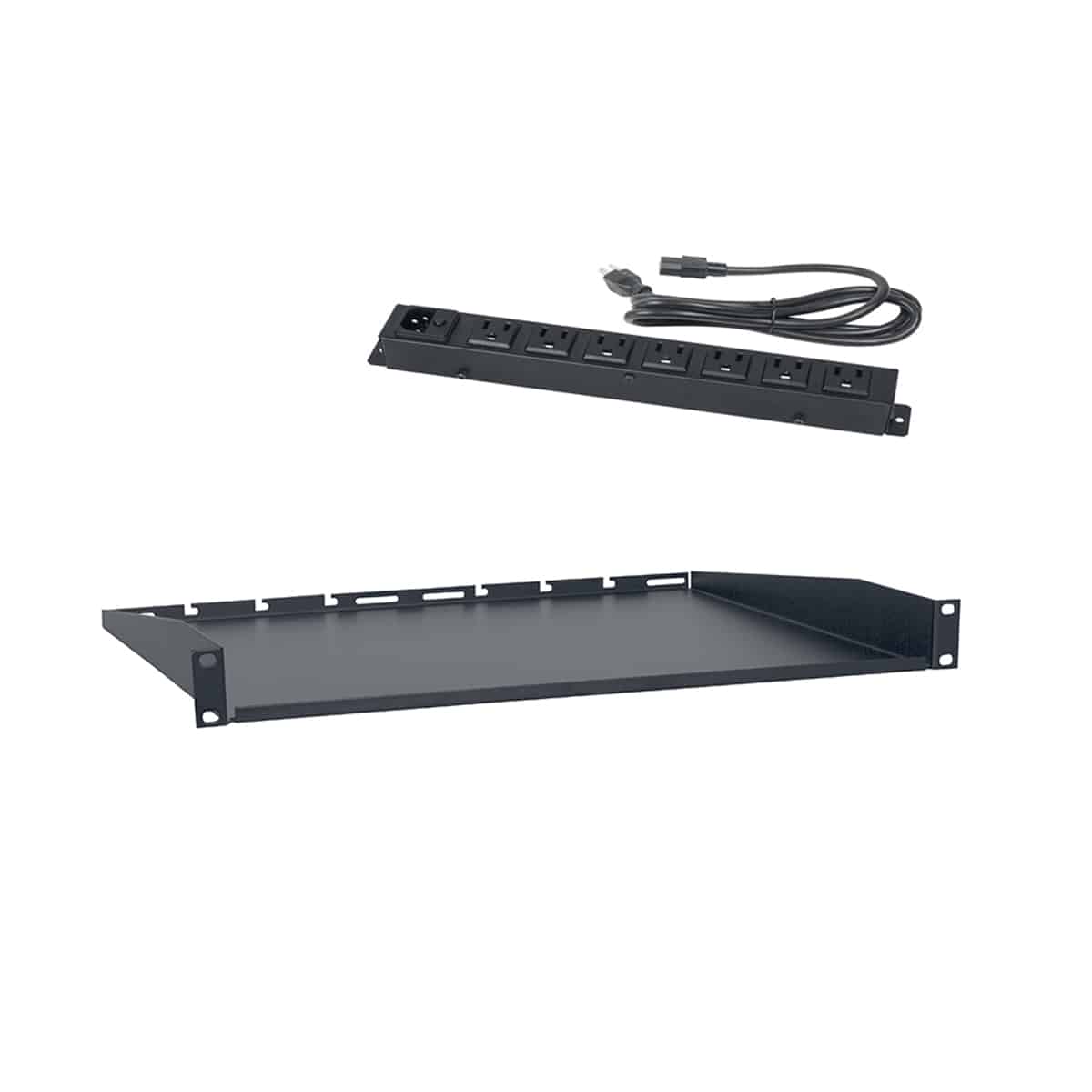

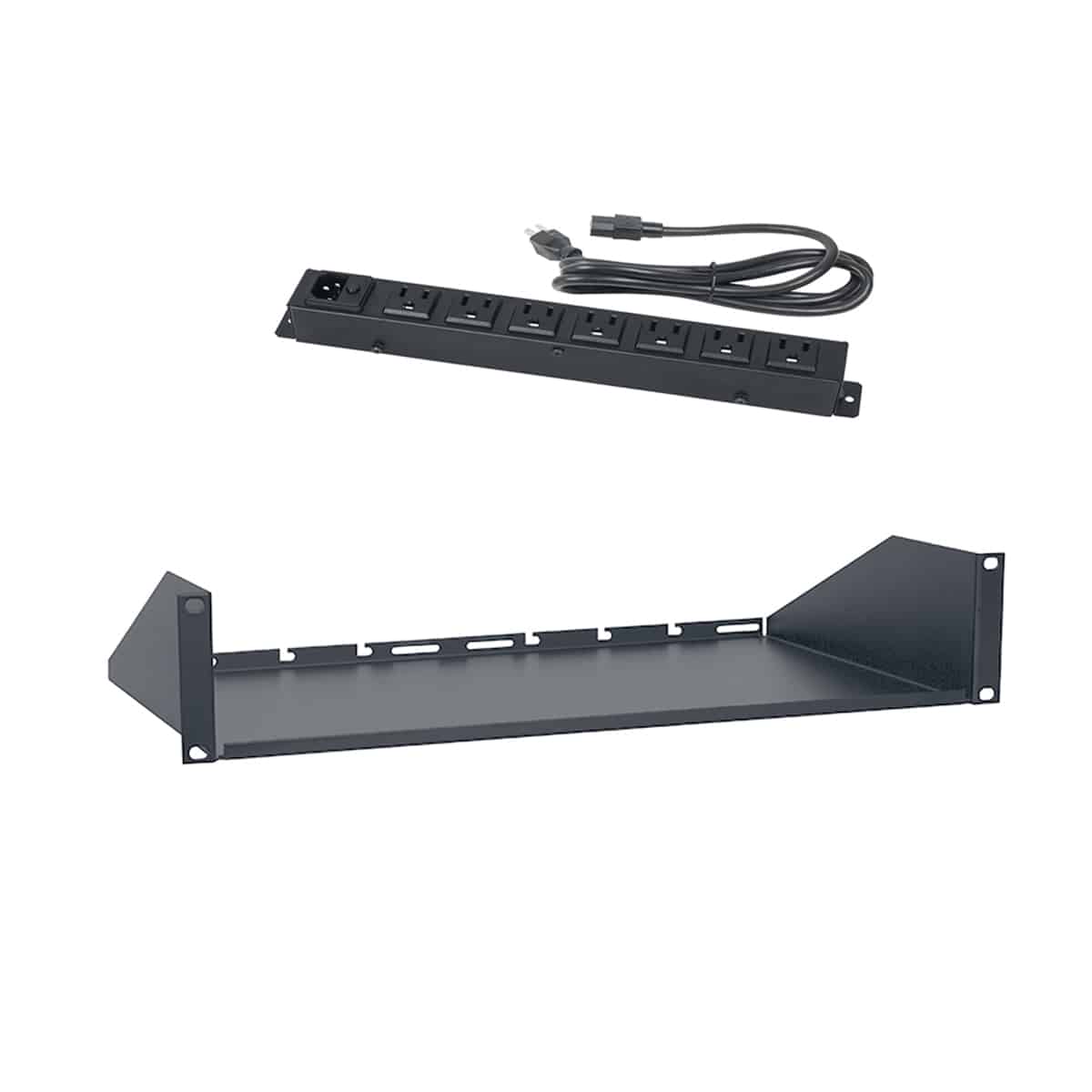

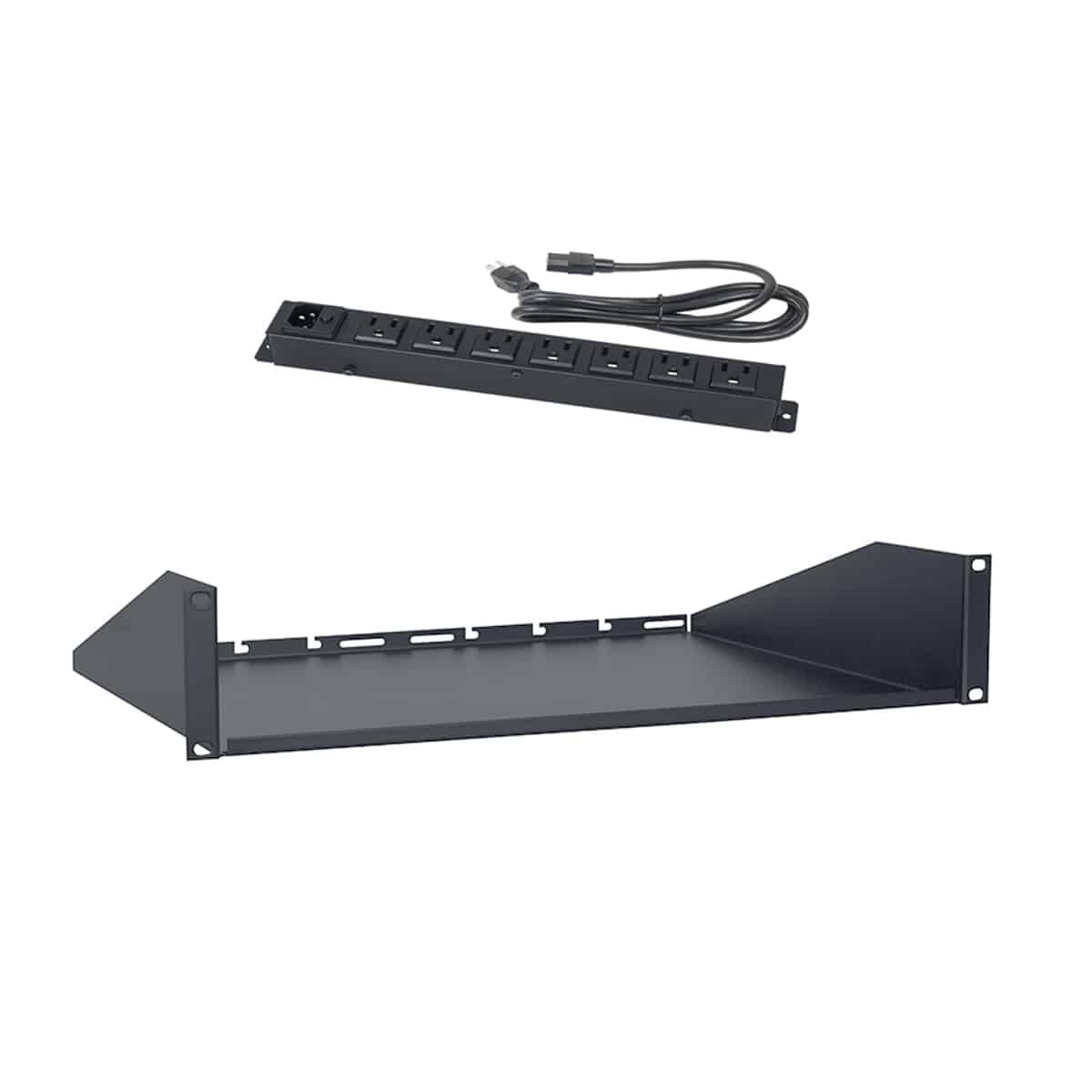

USAC bundles include a rackmount shelf (solid base) with rear notches to hold a short power strip (included) so you can save rack space while powering equipment. Made in U.S.A.

---

BUNDLE INCLUDES

SHELF:

• Size: 1U or 2U (10.75 in. or 14 in.D)
• Single piece 16-gauge U.S. steel with smooth black powder epoxy finish
• Front Flange: (0.375 in.) adds strength and helps equipment remain in place.
• Rear Flange: (0.56 in.) features tie-off points for cables, plus notches to quickly mount the power strip.
• Load Capacity: 50 lbs.

POWER STRIP:

• Chassis: 12 in. x 1.5 in. x 1.625 in.
• Power Outlets: Seven (7) NEMA 5-15R receptacles
• Power rating: 120VAC 15A 60Hz
• Cord: Detachable 6 ft. IEC power cord with NEMA 5-15P molded plug
• ETL Listed

---

TECHNICAL DOWNLOADS

• 1U x 10.75"D:  [lwl_spec_sheet_link id="2096-USAC110"]
• 1U x 14.00"D:  [lwl_spec_sheet_link id="2097-USAC114"]
• 2U x 10.75"D:  [lwl_spec_sheet_link id="2098-USAC210"]
• 2U x 14.00"D:  [lwl_spec_sheet_link id="2099-USAC214"]

---

A&E SPECIFICATIONS

• The rackmount shelf/power strip bundle shall be Lowell model _______, which shall include a ____RU x ____"D x 19"W certified U.S. steel shelf with solid base, smooth black powder epoxy finish, front/rear flanges, tie-off points for cables, and notches to mount the included power strip. The shelf shall have a load capacity of 50 lbs. The 12"L ETL Listed power strip shall feature seven (7) 15A NEMA receptacles, circuit breaker, and detachable 6 ft. IEC cord with molded plug. It shall have a power rating of 120VAC 15A 60Hz. The shelf and power strip shall be made in the U.S.A.
