8U Pivot Frame Rack

Name: 8U Pivot Frame Rack
SKU: PFR-818
Price: 401.80 USD
Availability: InStock

18"D x 19"W

$401.80 MSRP

Model PFR-818

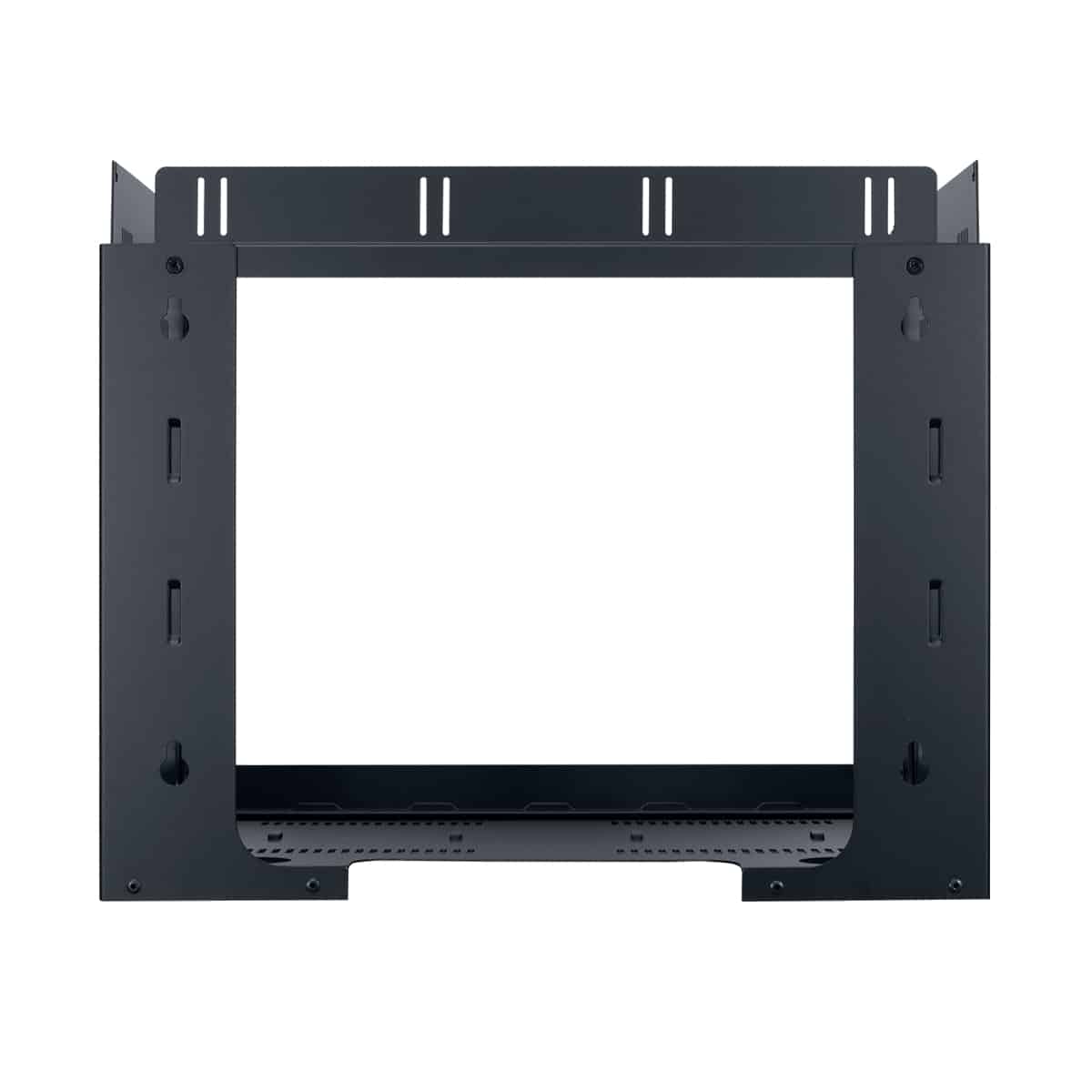

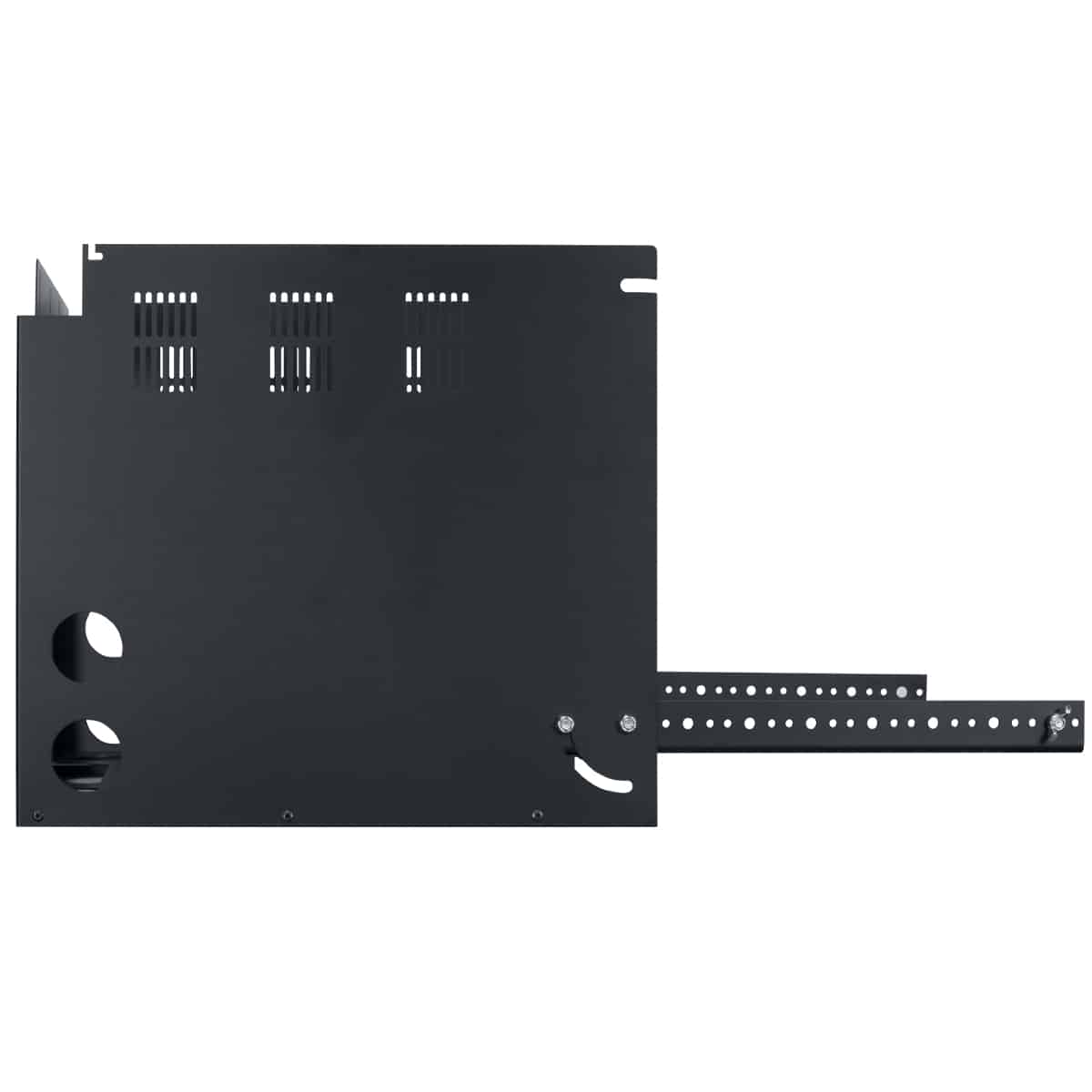

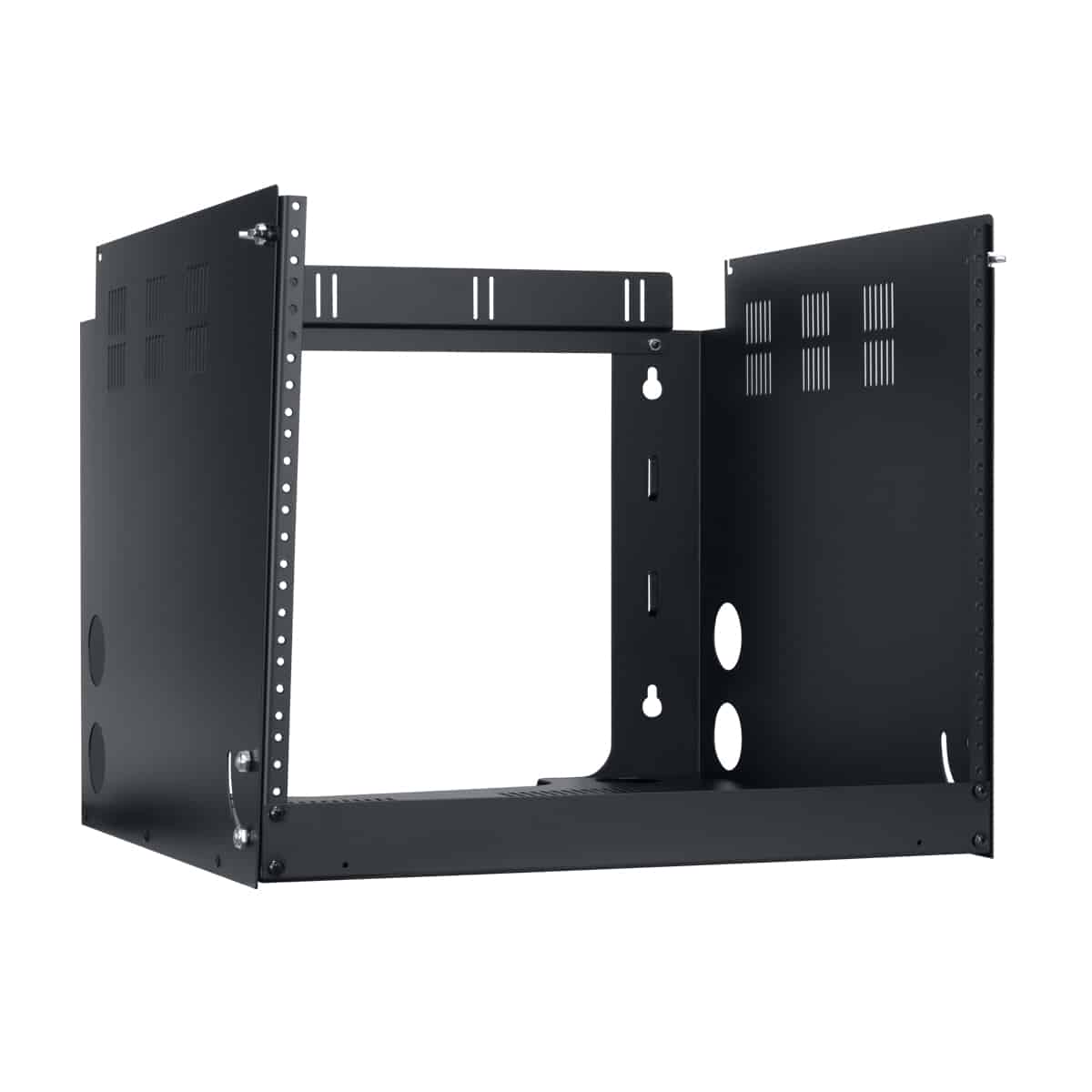

Platform for voice/data equipment (patch panels, routers, hubs, network switches) to create a structured, organized cabling system. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.

Add to Favorites

Compare

Heavy gauge steel
Integral tie loop points for cinch straps or wire ties
Removable rear panel mounts over wall obstructions
Vented base and sides
One-pair fixed position mounting rails tapped 10-32
Black semi-gloss powder epoxy finish
Pilot Point rack screws

Rack Space: 8U
Height: 16.25 in.
Width: 19.30 in.
Depth: 18.00 in. (17.97 usable)
Load Capacity: 60 lbs.

Spec Sheet: 1753-PFR818
CAD drawings: PFR-818

E.I.A./T.I.A. compliant
RoHS compliant
Certified U.S. steel
Made in U.S.A.

The 19” rack shall be Lowell Model PFR-818, which shall measure 16.25″H x 19.30″W x 18.00″D and provide 8 rack units of panel space. The hinged panel mounting frame shall pivot to 90 degrees with an absolute stop providing rear access to equipment for punch-down interconnects while in the fully open position. The rack shall be constructed of heavy duty certified U.S. steel with a black semi-gloss powder epoxy finish and load capacity of 60 lbs. It shall feature one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing, integral tie loop points, and a removable rear panel to facilitate mounting over and around existing wall obstructions.

Cable management
Hardware
Top cover: PFR-TC18
Front panel(requires top cover): PFR-FP8
