6U Pivot Frame Rack

Name: 6U Pivot Frame Rack
SKU: PFR-612
Price: 265.28 USD
Availability: InStock

12"D X 19"W

$265.28 MSRP

Model PFR-612

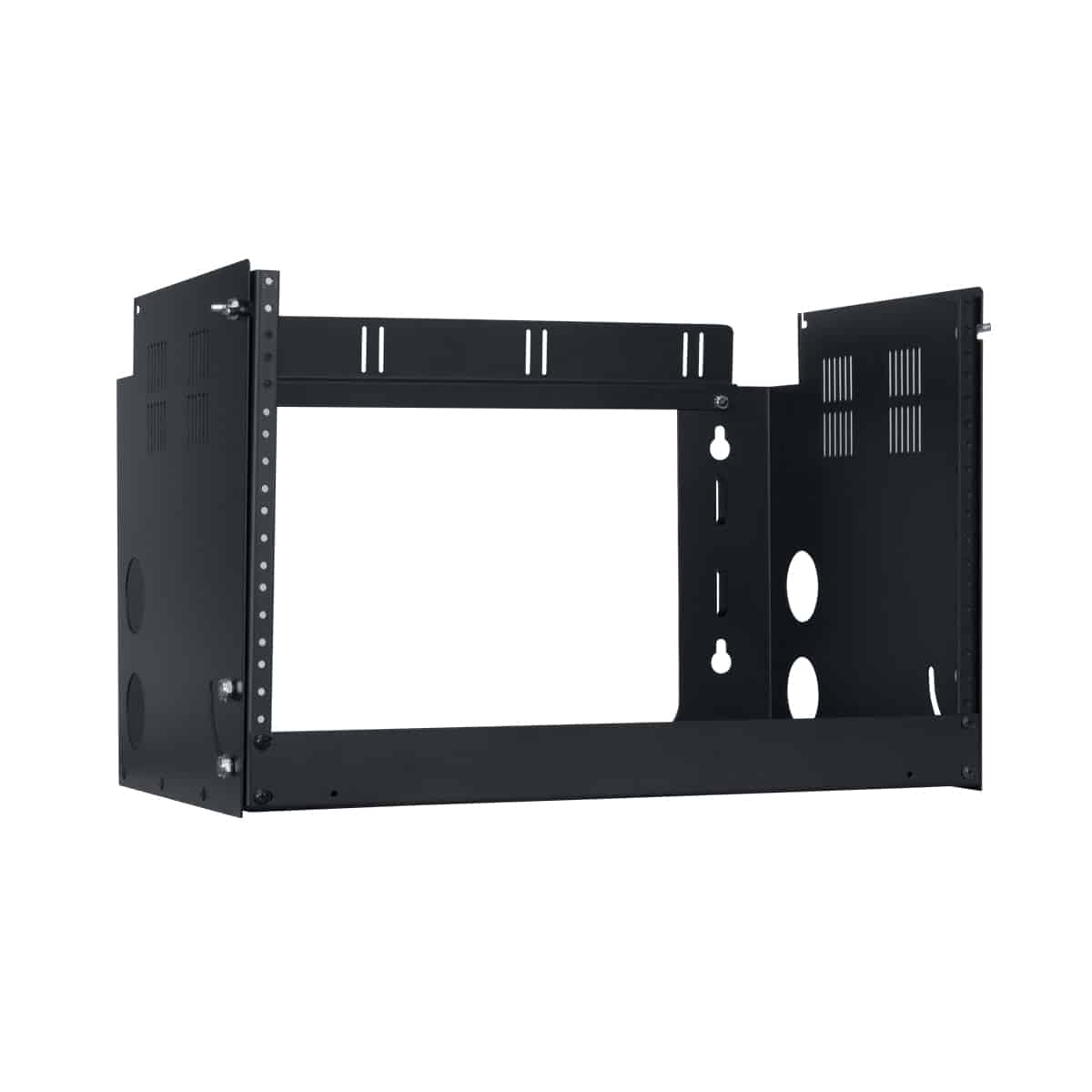

Wall rack for networking is a great platform for voice/data equipment (patch panels, routers, hubs, and network switches) to create a structured, organized cabling system. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.

Add to Favorites

Compare

Heavy gauge steel
Integral tie loop points for cinch straps or wire ties
Open base
Solid sides
One-pair fixed position mounting rails tapped 10-32
Black semi-gloss powder epoxy finish
Pilot Point rack screws
Load capacity 40 lbs.

Rack Space: 6U
Height: 12.75 in.
Width: 19.30 in.
Depth: 12.00 in. (11.97 usable)

Spec Sheet: 1751-PFR612
CAD drawings: PFR-612

E.I.A./T.I.A. compliant
RoHS compliant
Certified U.S. steel
Made in U.S.A.

The rack shall be Lowell Model PFR-612, which shall measure 12.75″H x 19.30″W x 12.00″D and provide 6 rack units of panel space. The hinged panel mounting frame shall pivot to 90 degrees with an absolute stop providing rear access to equipment for punch-down interconnects while in the fully open position. The rack shall be constructed of heavy duty certified U.S. steel with a black semi-gloss powder epoxy finish and load capacity of 40 lbs. It shall feature one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing, integral tie loop points, and an open rear to facilitate mounting over and around existing wall obstructions.

Cable management
Hardware
Top cover: PFR-TC12
Front panel (requires top cover): PFR-FP6
