Recessed Enclosure for 8 inch driver, w/slots

Name: Recessed Enclosure for 8 inch driver, w/slots
SKU: P875X-4
Price: 33.58 USD
Availability: InStock

For screw-mount grille

$33.58 MSRP

Model P875X-4

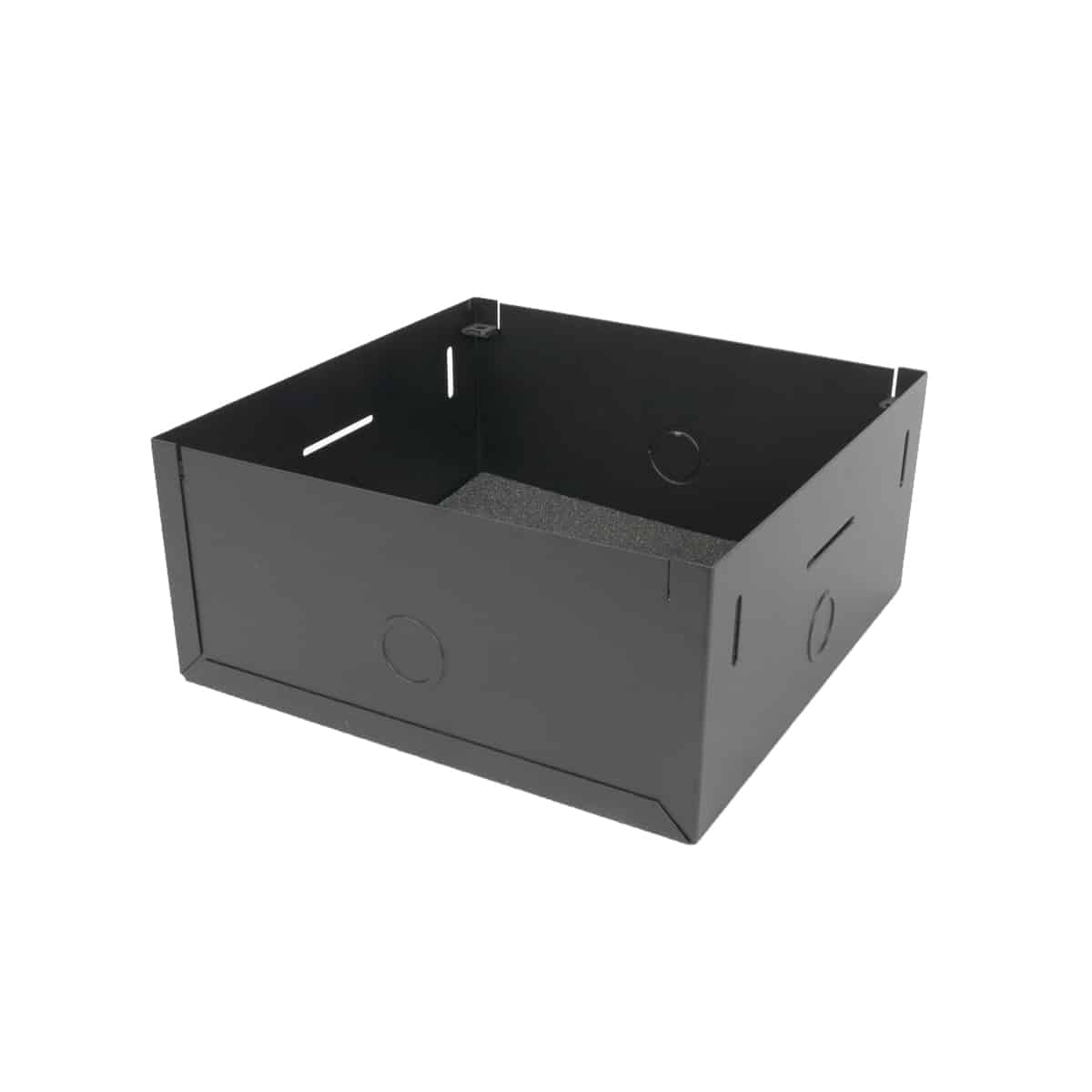

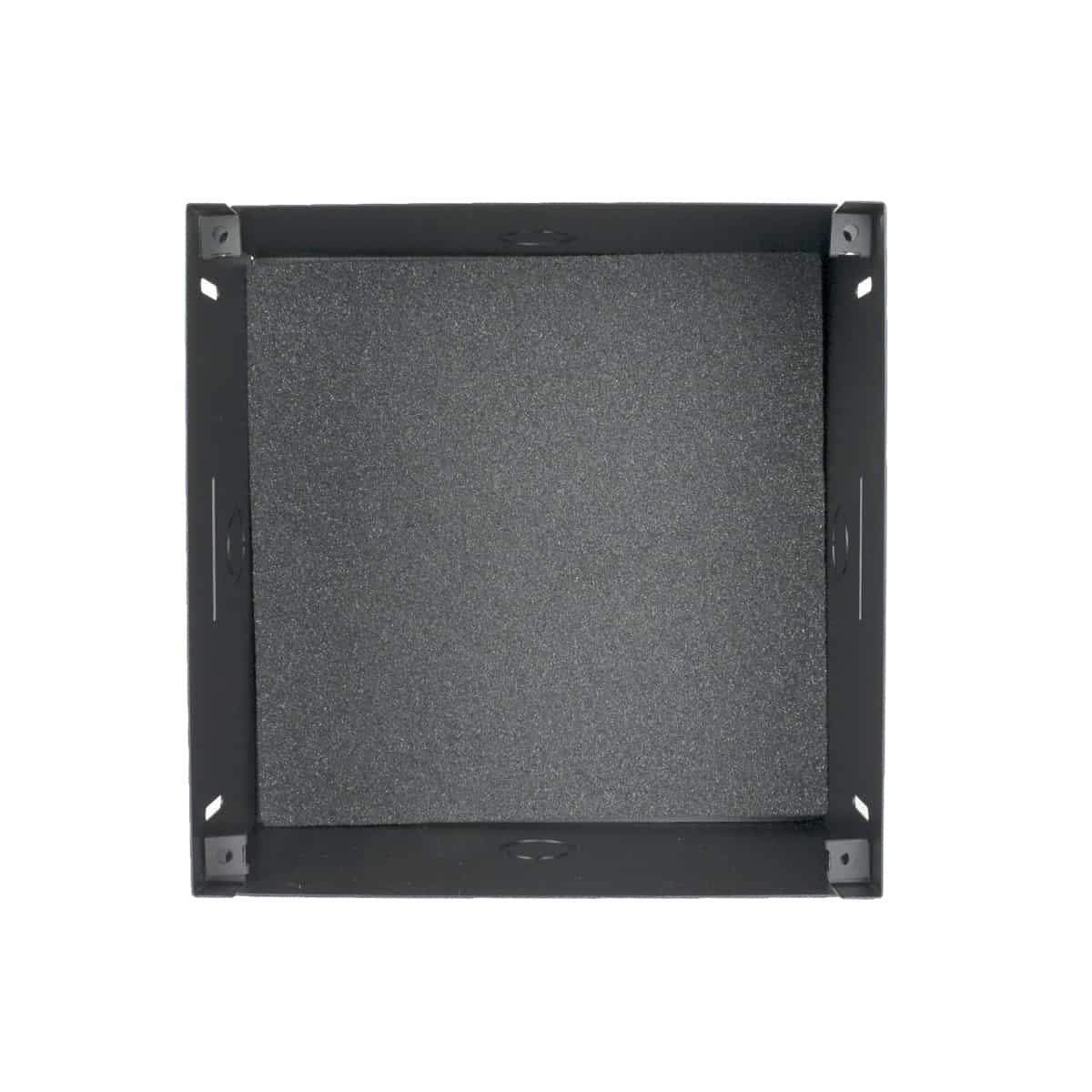

Steel enclosure for use with 8 inch speakers in recessed installations (ceiling or wall) is made in the USA with certified US steel and has a black powder epoxy finish. Note: This model has been retired and is available in limited quantities.

Add to Favorites

Compare

Material: 20-gauge steel
Finish: Black
Height: 8.81 in.
Width: 8.81 in.
Depth: 4.00 in.
Volume: 0.18 cu.ft.
Acoustical Treatment: Undercoated, foam pad
Mounting Aids: Mounting tabs, 8-32 U-clips, knockouts, slots for depth adjustment
For Grille Type: Screw-mount

Spec Sheet: 1343-P875X4

Made in U.S.A.
Certified U.S. steel

The backbox for recessed installation of 8 in. speakers shall be Lowell Model P875X-4, which shall measure 8.813 in. square x 4 in. deep. It shall be formed from 20-gauge steel, welded and finished in black powder epoxy paint. It shall be undercoated and have a foam pad to eliminate acoustic and mechanical resonance. It shall feature .5–.75 in. knockouts for conduit on four sides and slots for depth adjustment on two sides. It shall have recessed mounting tabs with 8-32 U-clips for grille installation.

Screw-Mount Grilles: FW-8, JG-8X, SQLK-8L
Drivers: 8 inch
Horn: LUH-15T (must use Grille No. SQLK-8L)
Channel Rails: SS24, SS30
