150W Indoor/Outdoor Two-Way Speaker

Name: 150W Indoor/Outdoor Two-Way Speaker
SKU: OS-150TB
Price: 439.50 USD
Availability: InStock

Includes driver, transformer, enclosure, grille, mounting aids

$439.50 MSRP

Model OS-150-TB

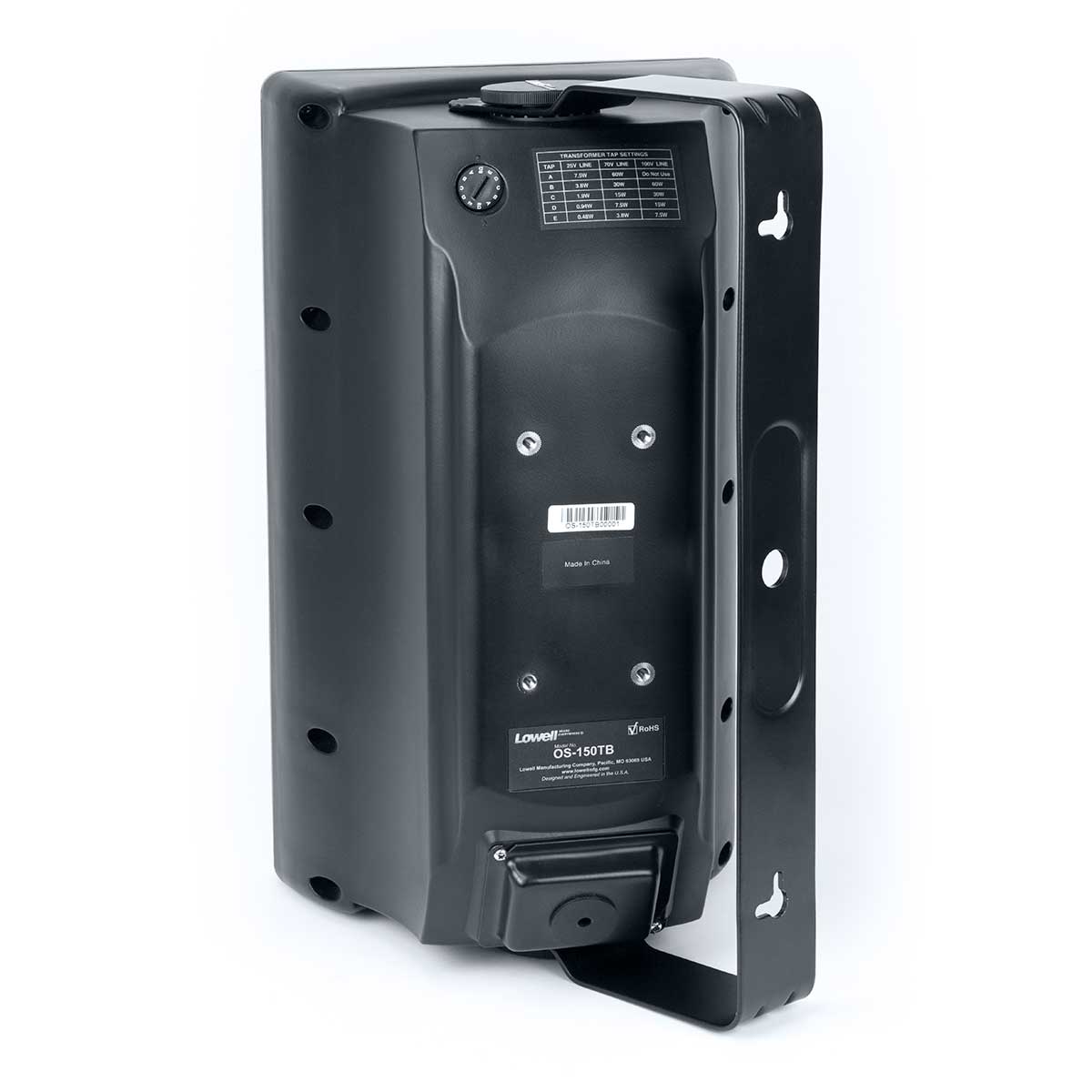

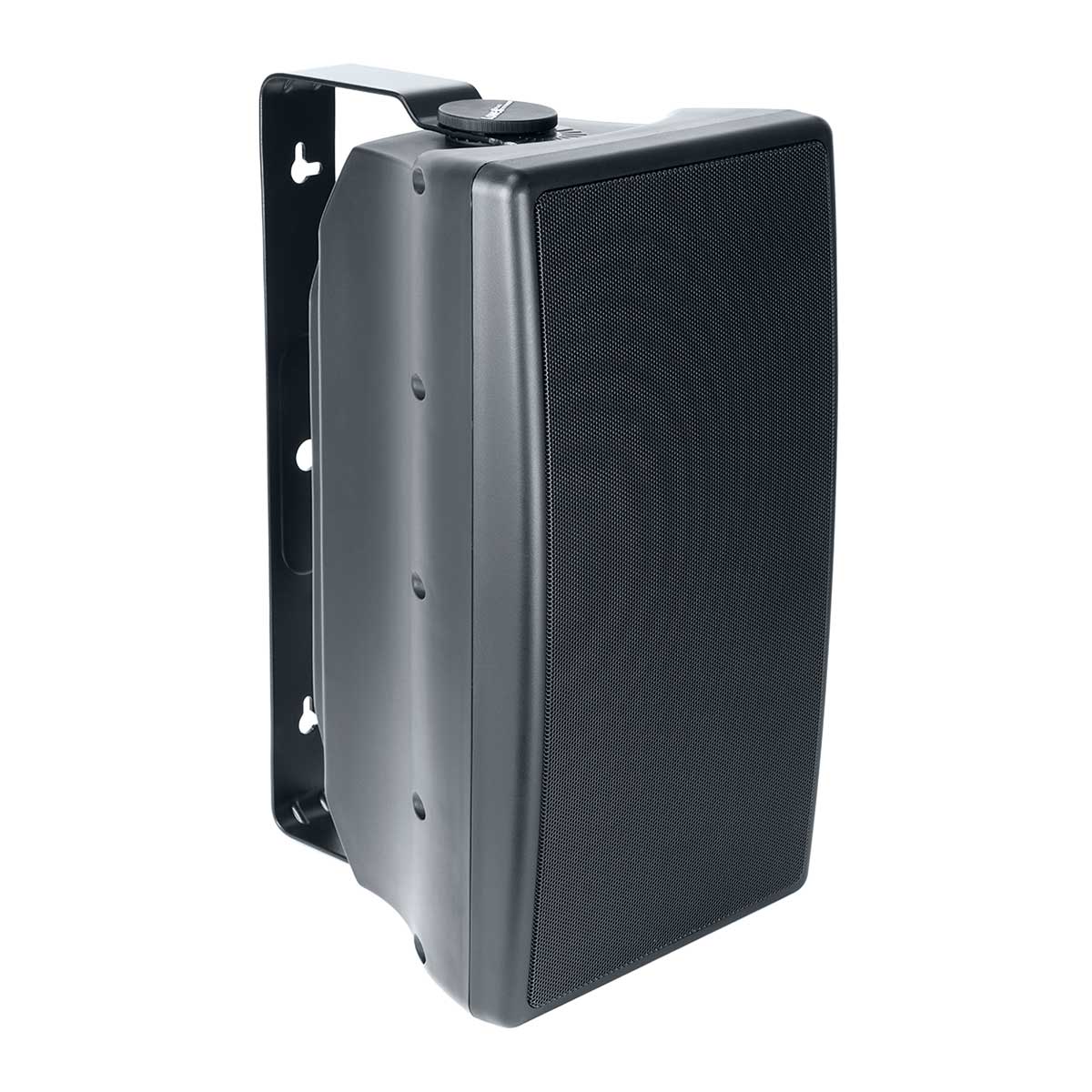

The OS-150-TB two-way speaker is made for installations requiring pattern control. It features a horn loaded compression driver that controls high frequency dispersion for longer throws or systems using live microphones. The back of the speaker has an 8ohm/transformer selector switch. The unit includes a UV-resistant polypropylene enclosure and powder coated aluminum mesh grille. The U-bracket allows 90-degree rotation. Connections are made to terminals protected by weather-resistant cover and rubber grommet. Black.

Add to Favorites

Compare

High-fidelity music
For indoor or protected outdoor installations
For systems requiring longer throws or using live microphones

Driver: Woofer is 8 inch polymer-coated paper composite cone with cloth surround. Frequency response 65Hz–20kHz (±6dB). Average sensitivity 91.0dB at 8ohms (1W/1M). 150W. 80 degrees conical dispersion. Input selector switch. Rear cover plate. 16 in. x 9 in. x 8.3 in. (without bracket).
Transformer: 25V/70V/100V
Enclosure: Weather-resistant, UV-resistant polypropylene. Paintable.
Grille: Weather and UV-resistant powder coated aluminum mesh grille. Black.
Mounting Aids: Adjustable U-shaped bracket for horizontal or vertical installation allows speaker to rotate 90 degrees, depending on install orientation. Black.

Spec Sheet: 1205-OS150TB
Instructions: Install-OS150
Revit Models: OS-150TB

The loudspeaker for indoor or protected outdoor application shall be Lowell Model OS-150TB, which shall have a horn loaded compression driver and 150W power rating with screwdriver adjustable switch for direct 8ohm or distributed 70V, 25V or 100V application. It shall have a frequency response of 65Hz–20kHz (±6dB) and a sensitivity of 91.0dB measured 1W/1M. The housing shall be molded plastic and mesh aluminum grille with black finish. The assembly shall include an adjustable U-bracket for vertical or horizontal installation. Each assembly shall weigh 18 lbs. [8.165 kg] and measure 16.3 in.H x 9 in.W x 10 in.D with included bracket. Housing shall include 1/4”–20 threaded inserts.
