- Power Rating: 1500VA (1450W)
- Receptacles: (8) NEMA 5-15R
- Line Cord: 6-ft. (5-15P)

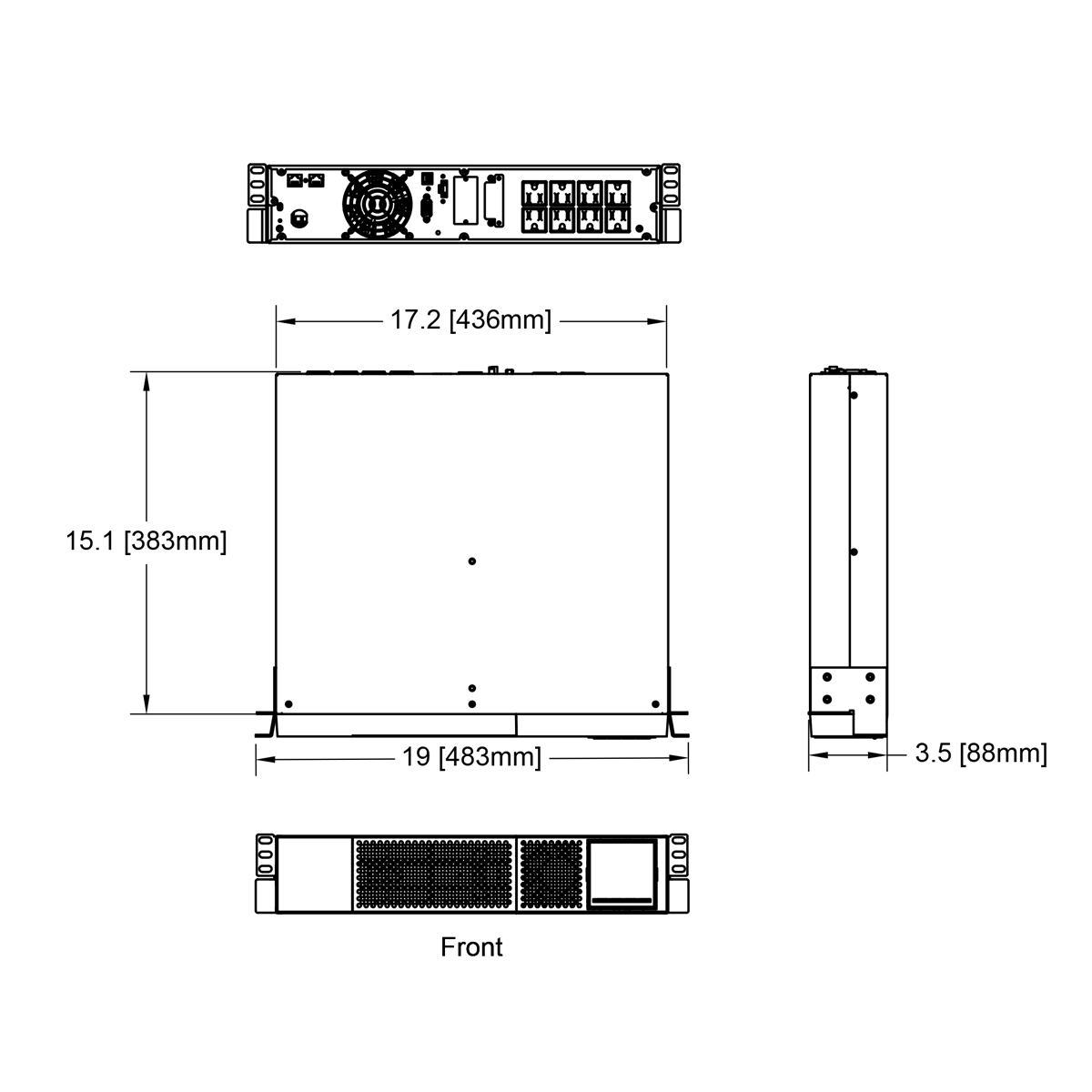

- Chassis: 17.2 x 15.1 x 3.5 in. (2U)
- Weight (approx.): 34.2 lbs.
- Battery Quantity/Size: (3) 12V 9AH
- Battery Run Times: 10 minutes (50% load); 3 minutes (100% load).
Note: Battery run times vary based on condition, age, cycles, and ambient temperature.
- Output Voltage: 120VAC nominal (100/110/115/127 selectable, capacities based on highest selectable voltage)
- Waveform: Pure sine wave
- Efficient operation: Up to 98% (ECO mode)
- Hot swappable battery
- 4-point rackmount rail kit and tower pedestals
- 3-year warranty on electronics and battery
- UL
- RoHS
- TAA compliant (UPS only)
- FCC B

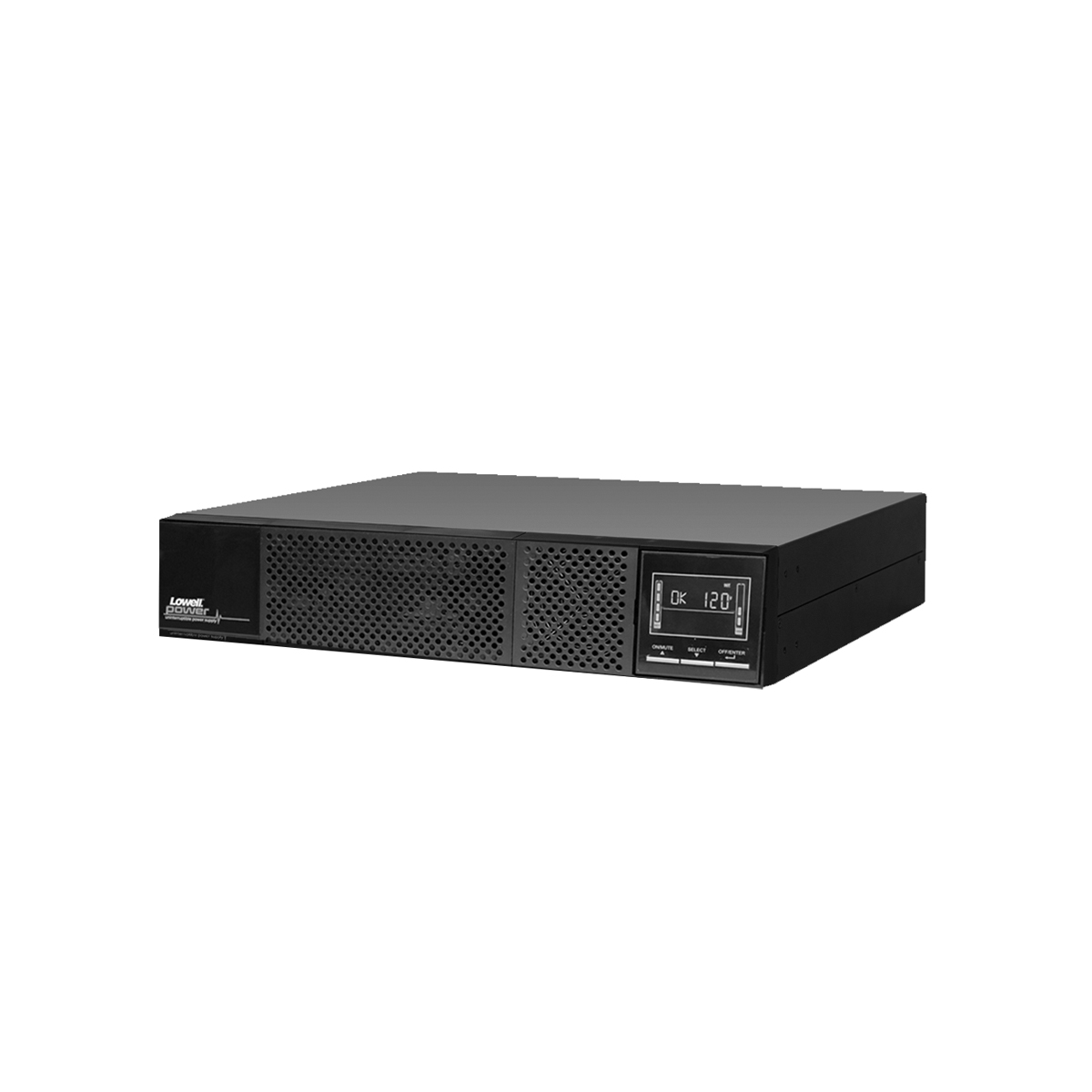

The uninterruptible power supply (UPS) shall be Lowell model UPS9A-1500, which shall include a 4-point rackmount rail kit and tower pedestals. The chassis shall measure 17.2″ x 15.1″ x 3.5″. The UPS shall feature output voltage of 120VAC nominal (100/110/115/127 selectable, capabilities based on highest selectable voltage). The power rating shall be 1500VA (1450W). The unit shall feature three (8) NEMA 5-15R receptacles and include a six-ft. (5-15P) power cord. The UPS shall have a run time of 10 minutes (half load) or 3 minutes (full load).
- Dry Contact Card: UPS-RELAY
- SNMP Card: UPS-SNMP
- Environmental Sensor: (requires SNMP card) UPS-SNMP-EMP
- 5 Year Extended Warranty (must purchase simultaneously w/UPS): UPS-EW Series
- Expansion Battery Pack (extended run times): UPS-XBP Series
- Maintenance Bypass (corded): UPS-XBDM-20RCD
- Maintenance Bypass (hardwired): UPS-XBDM-H
UPS9A-1500-IP: UPS + SNMP card
