Mixer/Preamplifier

Name: Mixer/Preamplifier
SKU: MIX2
Price: 562.50 USD
Availability: InStock

$562.50 MSRP

Model MIX2

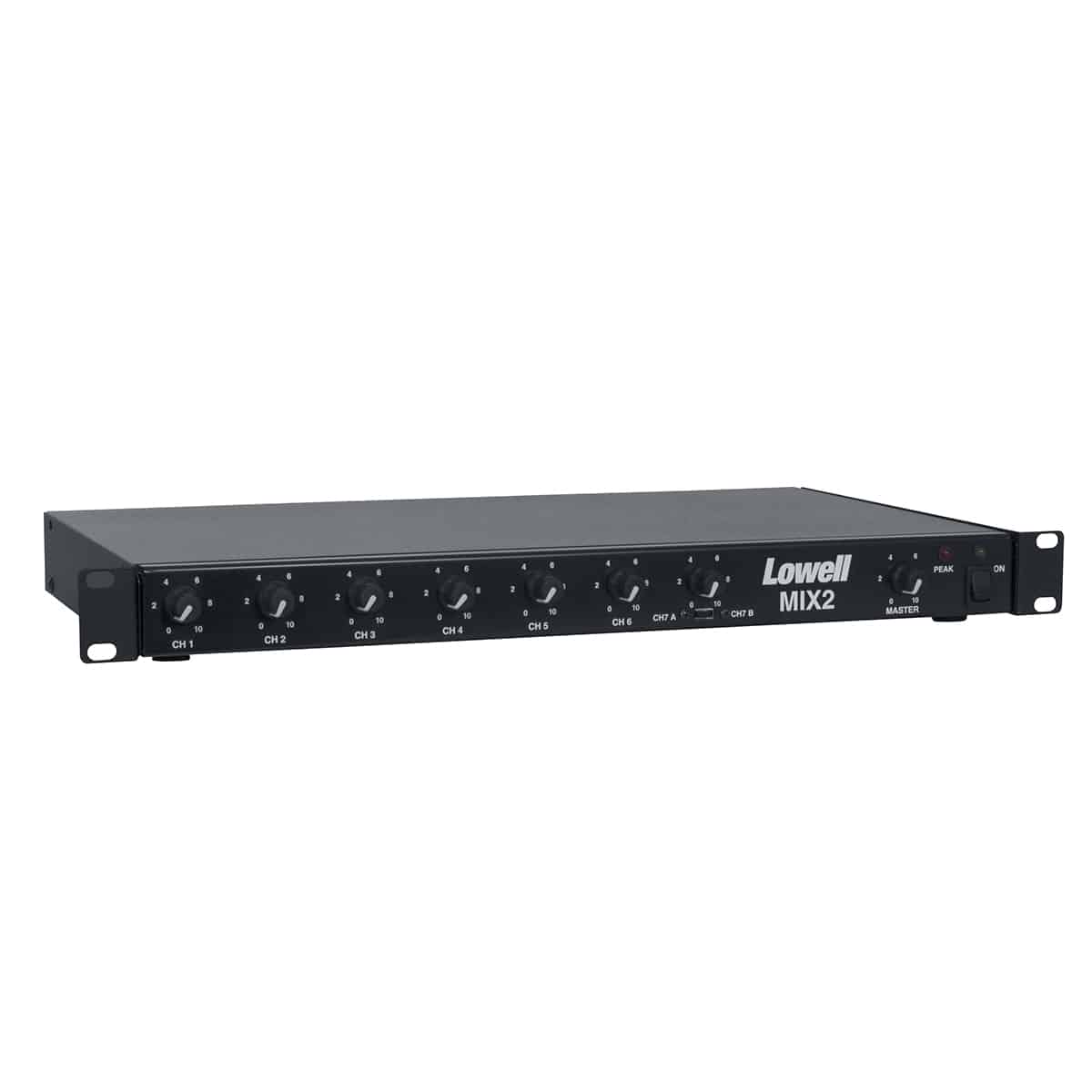

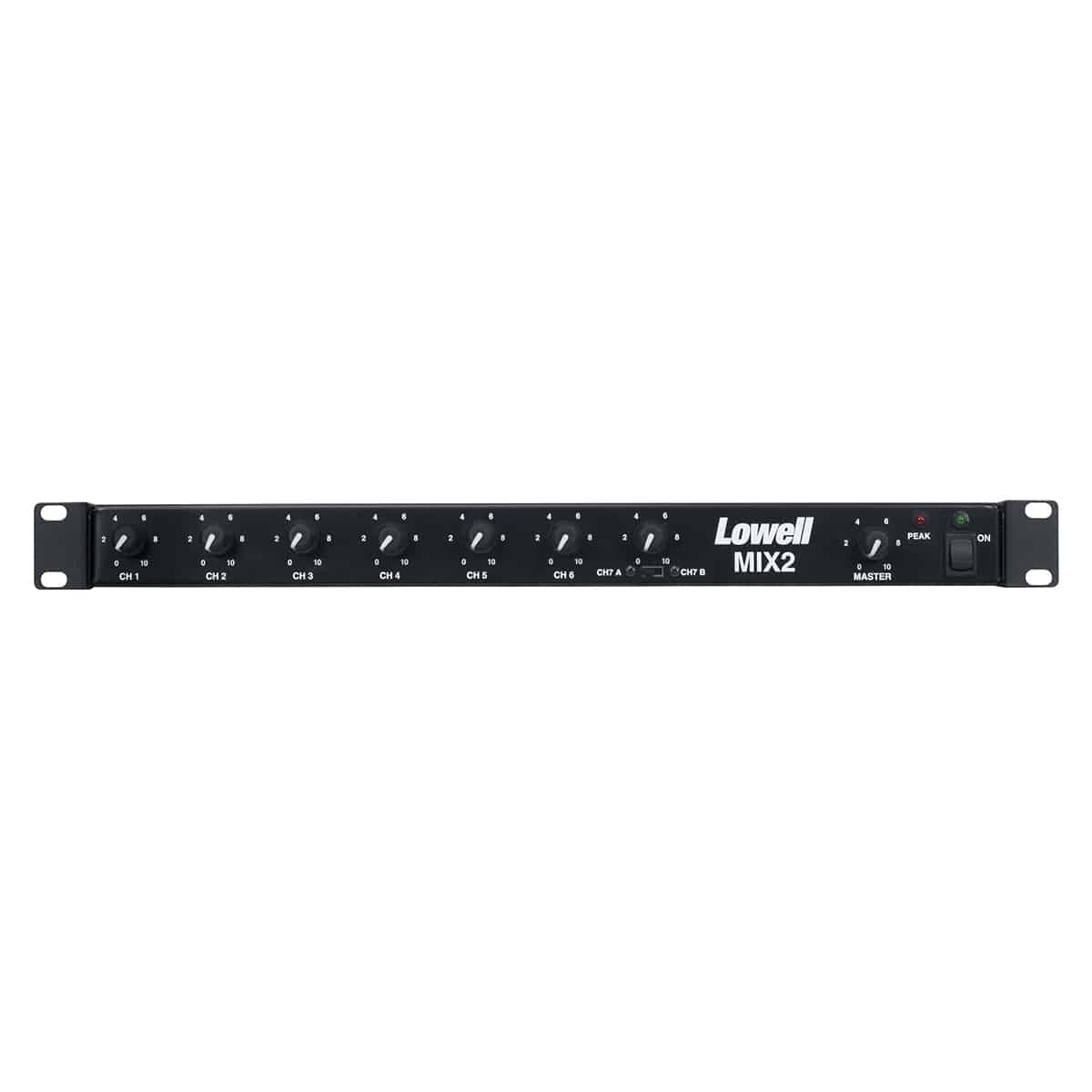

The mixer/preamplifier features six channels, each with a microphone input at a removable Phoenix connector, and an AUX input at an RCA jack. The seventh channel (AUX only) has a front panel switch to select one of two AUX input jacks in the rear panel. Includes brackets to mount to a 19-in. rack.

Add to Favorites

Compare

Six channels, each with a microphone input at a removable Phoenix connector, and an AUX input at an RCA jack.
Seventh channel (AUX only) has a front panel switch to select one of two rear panel AUX input jacks.
Includes rackmount brackets
Mute switch allows Channel 1 (MIC or AUX input) to mute all other channels, or Channels 1-6 to mute Channel 7 (AUX only) input.

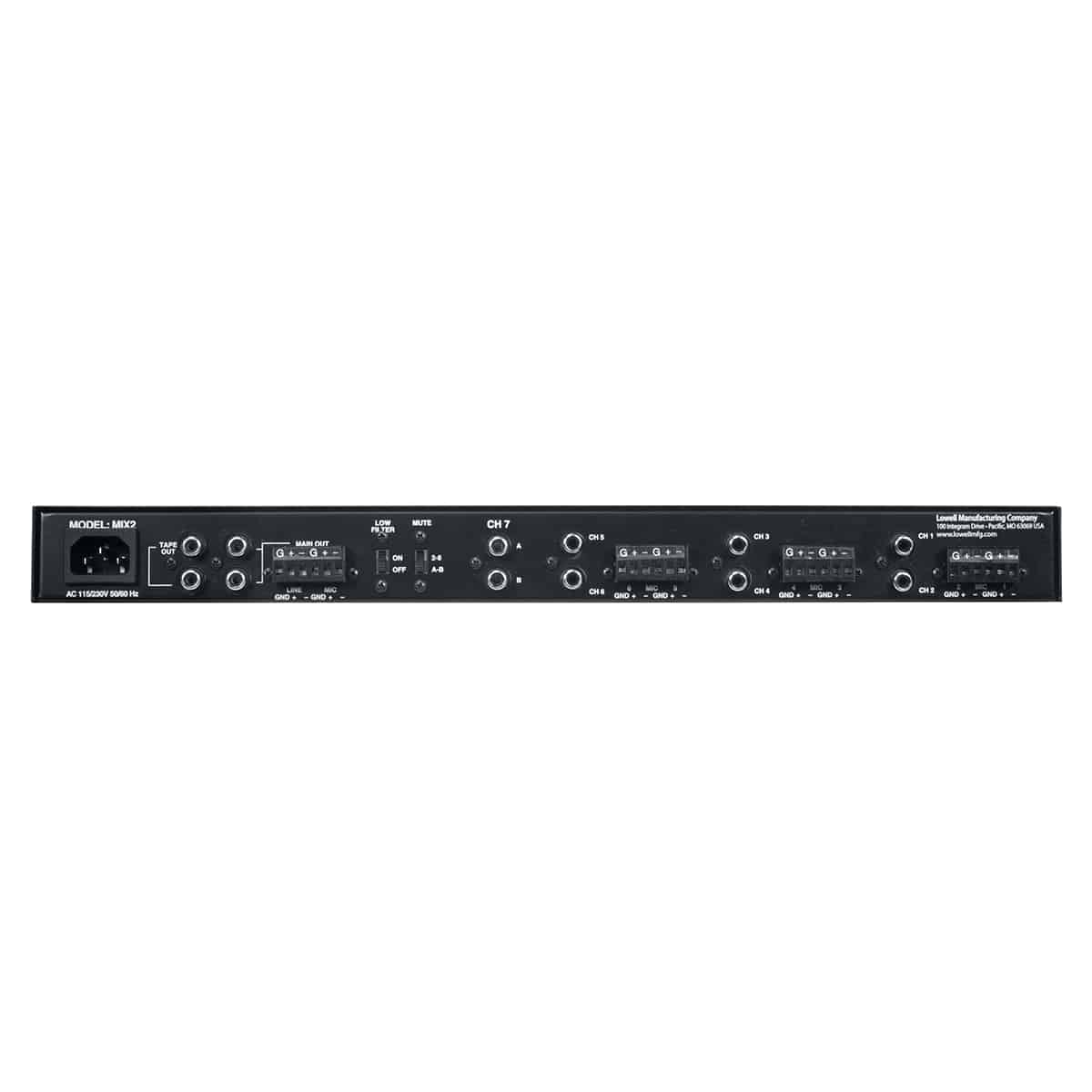

Post-master volume control outputs: Balanced line level output at Phoenix connector, Balanced MIC level output at Phoenix connector, Unbalanced main output at dual parallel RCA jacks
Pre-master volume control tape output at dual parallel RCA jacks.
Low cut filter switch can reduce bass response in reverberant spaces (like gyms) and act as a horn protection filter (trumpet protection) when paging horns are used.
Frequency Response 20Hz–20kHz ±1dB
Chassis is 19″W x 1.80″H x 9.875″D with black finish
Includes rack mounting brackets

Spec Sheet: 1849-MIX2
Instructions: Install-MIX2

The mixer/pre-amplifier shall be Lowell Model No. MIX2 which shall feature six channels, each with microphone input at a removable Phoenix connector and AUX input at an RCA jack. A seventh channel (AUX only) shall have a front panel switch to select one of two rear panel AUX jacks. The unit shall include a mute switch. Overall measurements shall be 19 in. x 1.8 in. x 9.875 in.
