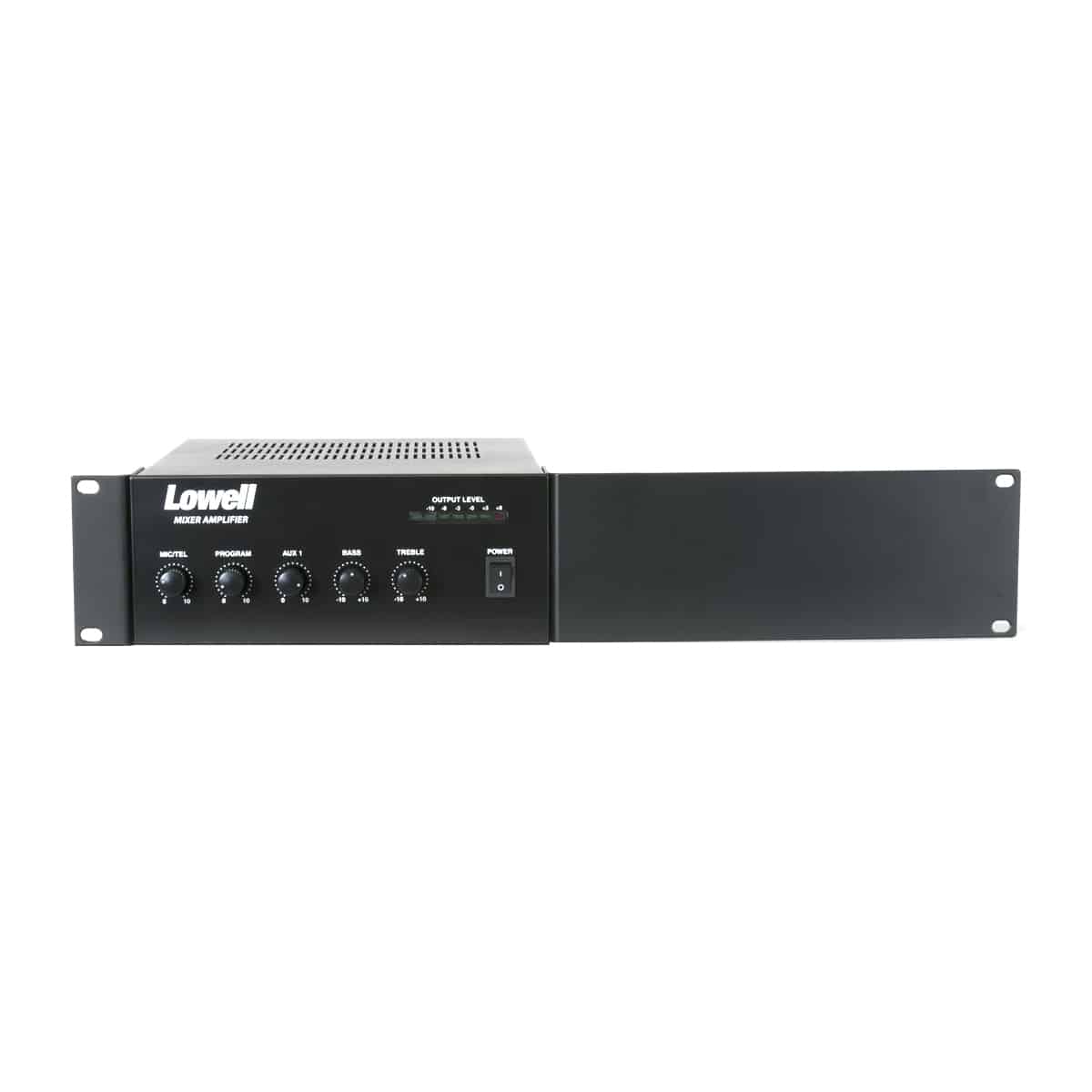

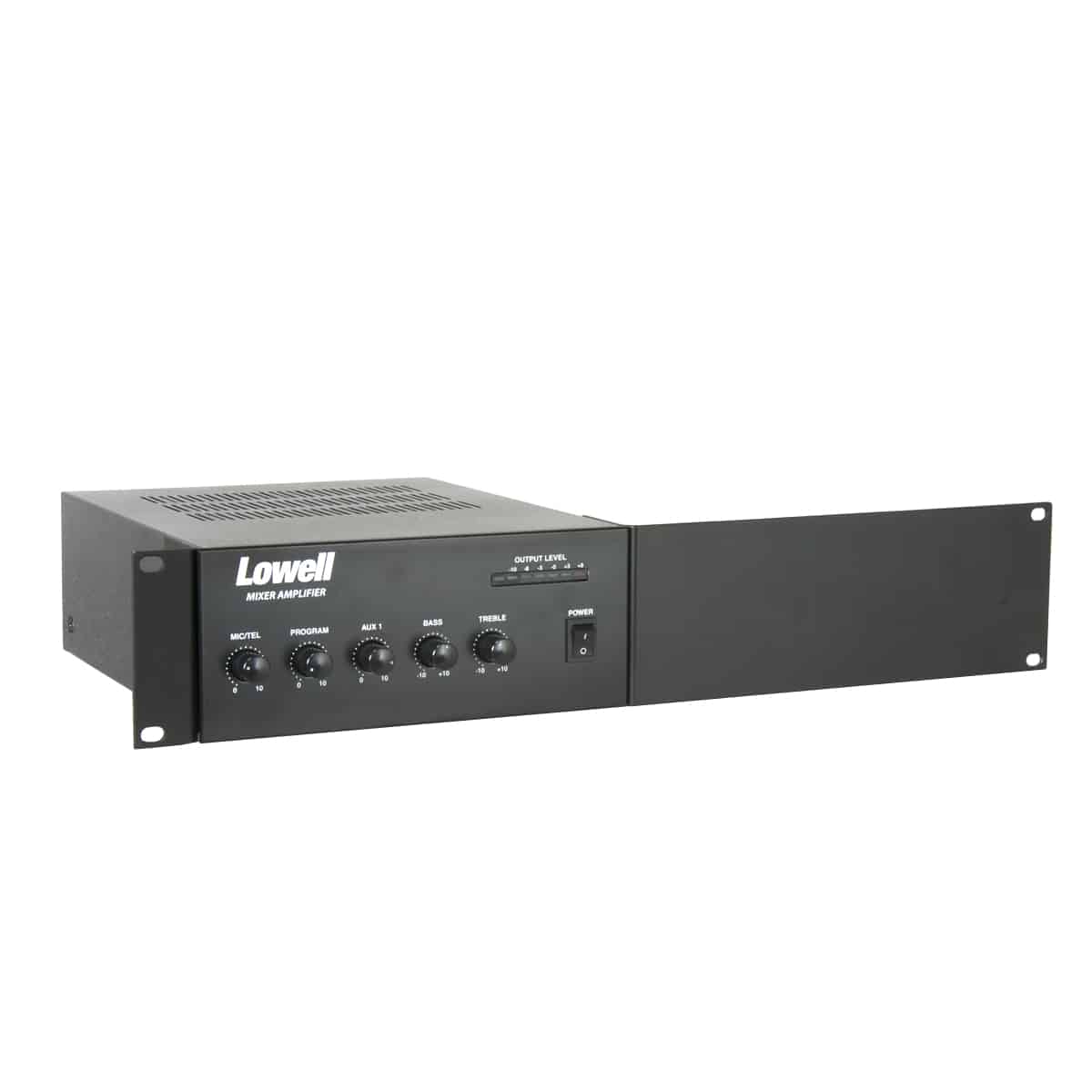

30W Mixer/Amplifier with Rackmount Brackets

Name: 30W Mixer/Amplifier with Rackmount Brackets
SKU: MA30-RK
Price: 508.70 USD
Availability: InStock

$508.70 MSRP

MA30-RK

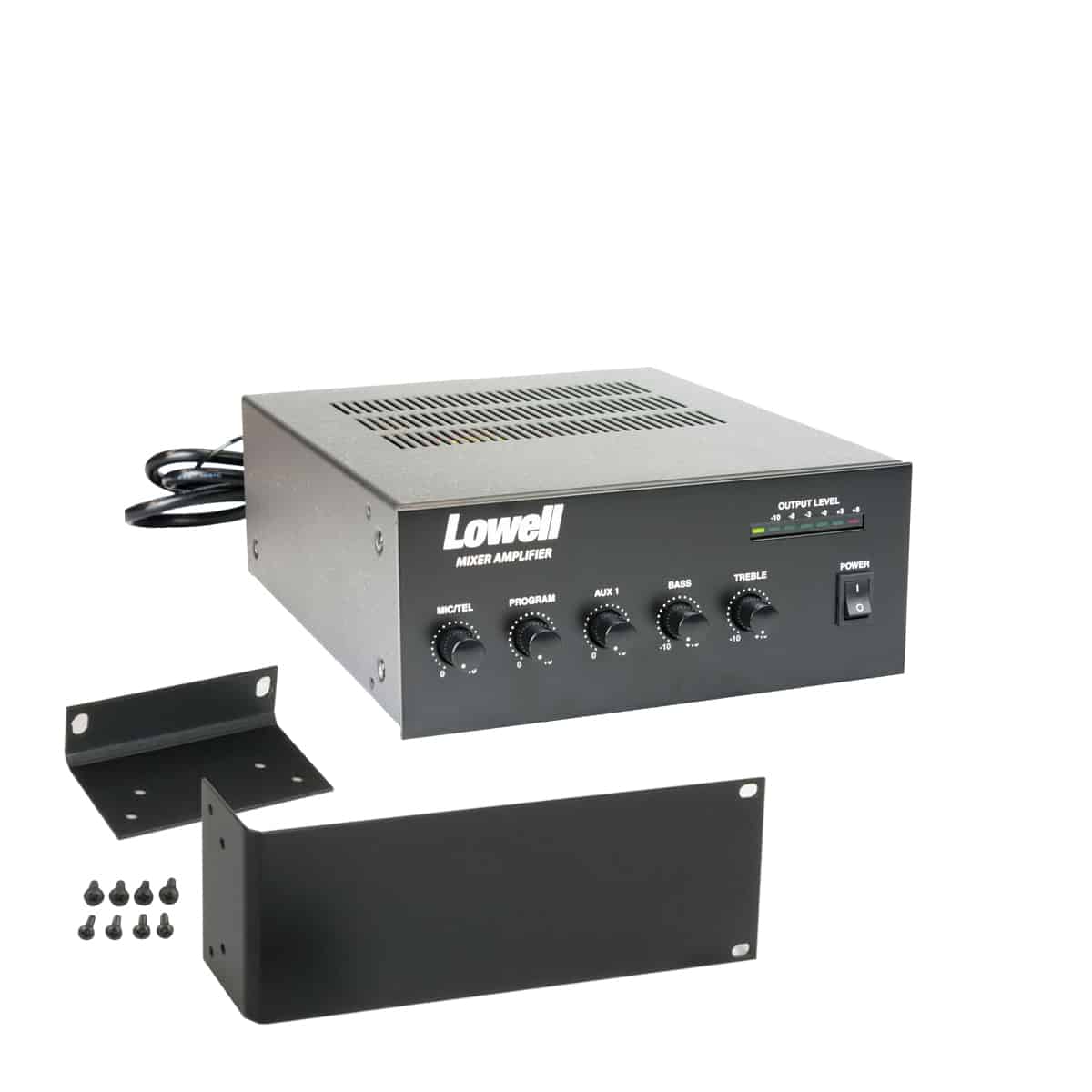

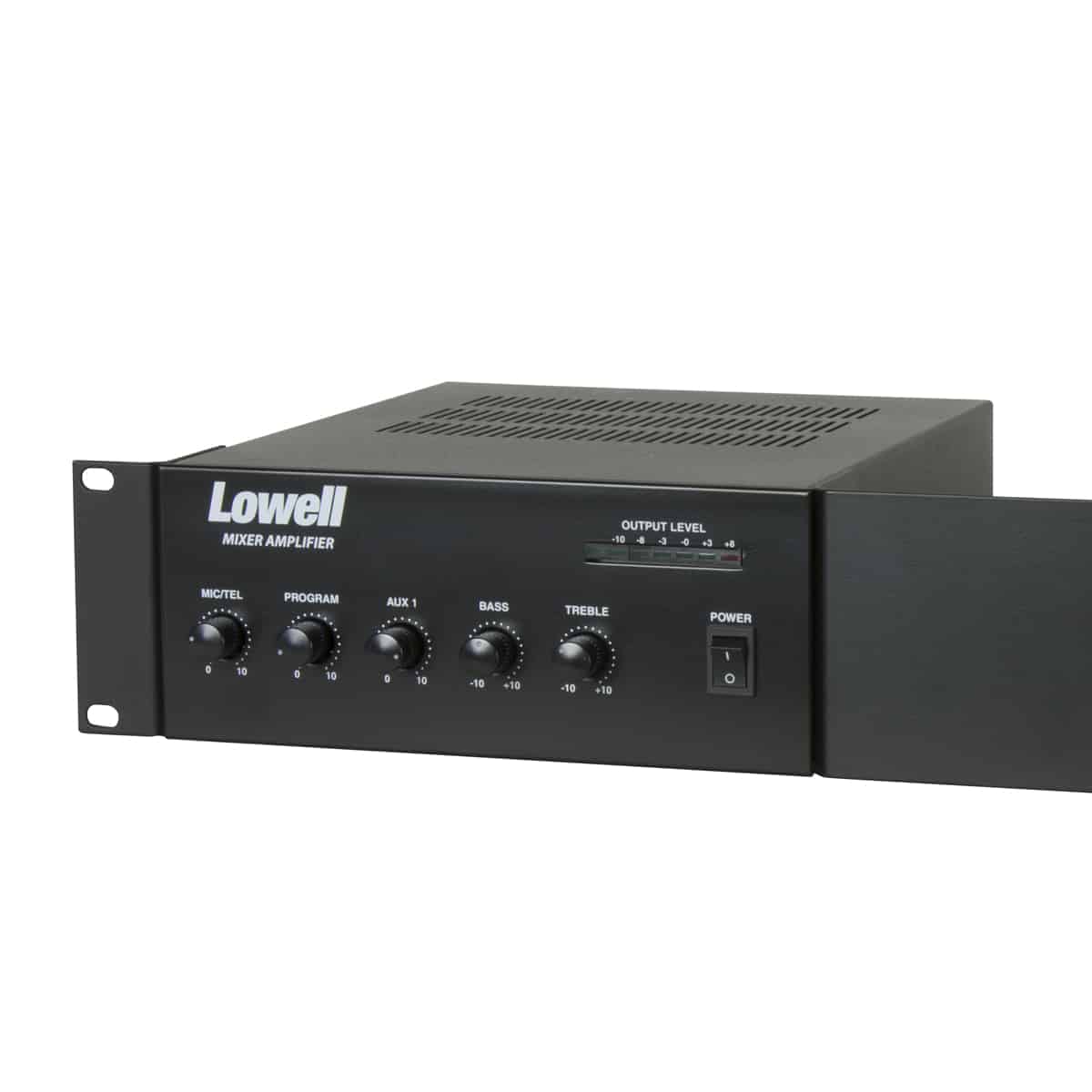

The mixer with 30W power amplifier features 4ohms, 8ohms, 25V, and 70V speaker outputs at screw terminals. Powered by 120VAC 60Hz, the main AC input is protected by a circuit breaker in back (rear receptacle is protected by a separate circuit breaker). The front panel features three input channels (MIC/TEL, PROGRAM, AUX1), plus BASS control, TREBLE control, power active LED, and output level LED. Brackets mount to standard 19" E.I.A. rack. Includes rackmount brackets.

Add to Favorites

Compare

Mixer with 30W amplifier and rackmount brackets
Main AC input is protected by a circuit breaker
30W maximum power output
Single NEMA receptacle in rear (unswitched, always on)
First channel (MIC/TEL) is switchable for microphone or telephone inputs
Second channel (PROGRAM) is switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
Third channel (AUX 1) is for AUX 1 dual combining RCA–phono connectors.
AC Supply Voltage: 120VAC 60Hz ±10%
First channel (MIC/TEL): Switchable for microphone or telephone inputs. When the mute switch is turned on, a dynamic microphone or telephone input will mute the Aux 1, Aux 3, or Program inputs.
Second channel (PROGRAM): Switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
Third channel (AUX 1): For AUX 1 dual combining RCA–phono connectors.
AC Supply Voltage: 120VAC 60Hz (±10%)
Power Consumption: 90W @ Rated Power
Dimensions: 8.35 in. x 3.46 in. x 10.82 in.
Speaker Level Outputs: Screw terminal strips, Main Output: 4 ohms, 8 ohms, 25V, 70V, 30W RMS, Music-On-Hold (MOH): 1W @ 8 ohms
Mic Input: Screw terminals, 1mV @ 600 ohms balanced. (Phantom power not available.)
Telephone Input: Screw terminals, (switchable, same terminals as mic input), 100mV @ 10k ohms balanced
Program Input: Screw terminals, 100mV @ 10k ohms balanced
AUX Inputs 1-3 Dual parallel unbalanced RCA-phono jacks, stereo converted to mono, 150mV @10k ohms
Frequency Response: 50Hz–20kHz (±3dB). Test signal inserted at AUX input.

Spec Sheet: 2204-MA30RK

The mixer/amplifier shall be Lowell Model MA30-RK which shall have a 30W power amplifier with 4 ohms, 8 ohms, 25V and 70V speaker outputs at screw terminals. It shall feature three channels (microphone/telephone channel [switchable], program input channel and AUX 1 channel—dual-combining RCA/phono connectors), bass control, treble control, power active LED and output level LED. The unit shall measure 8.35 in.W x 3.46 in.H x 10.82 in.D. Unit shall include mounting brackets for a standard 19 in. E.I.A. rack.
