30W Mixer/Amplifier

Name: 30W Mixer/Amplifier
SKU: MA30
Price: 470.40 USD
Availability: InStock

$470.40 MSRP

Model MA30

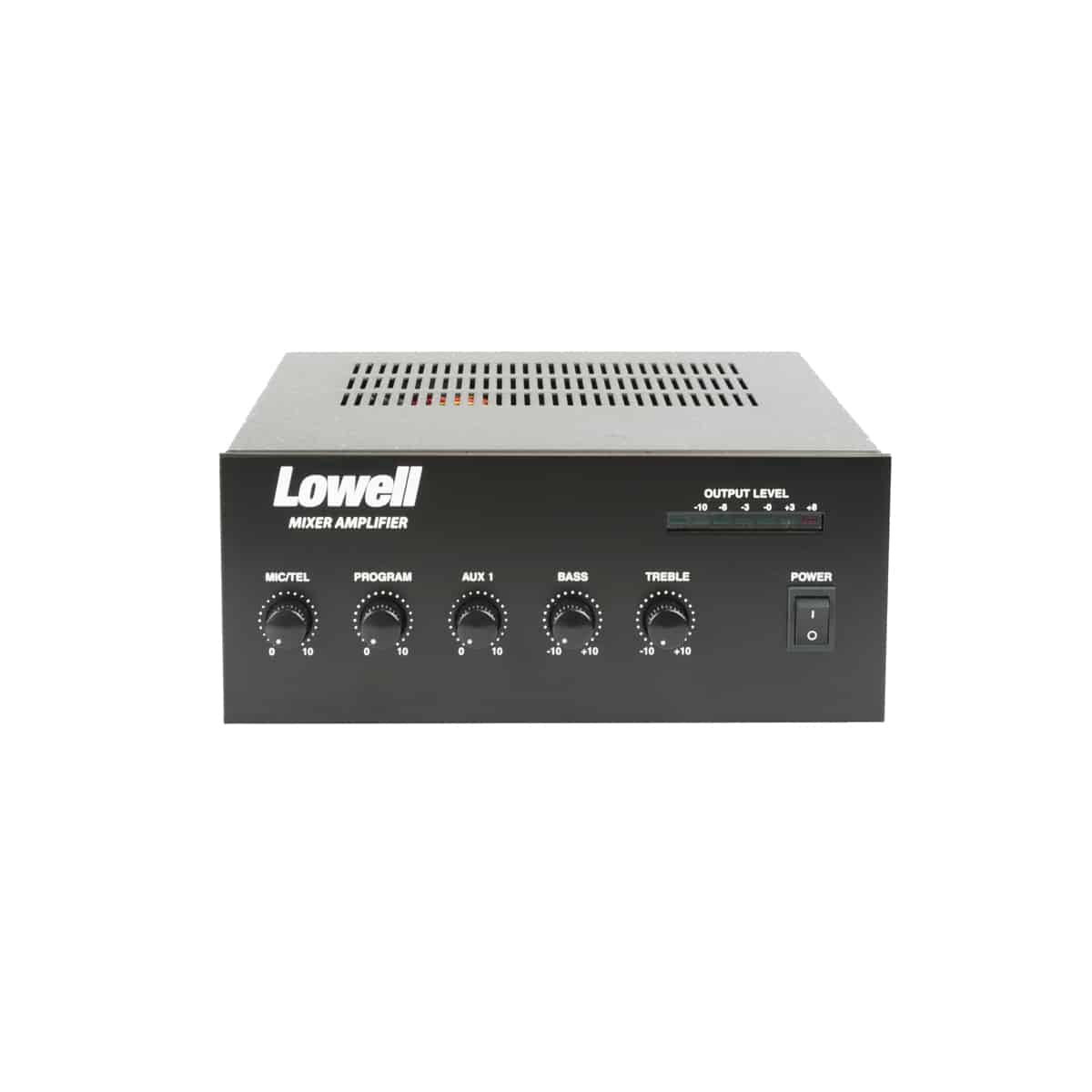

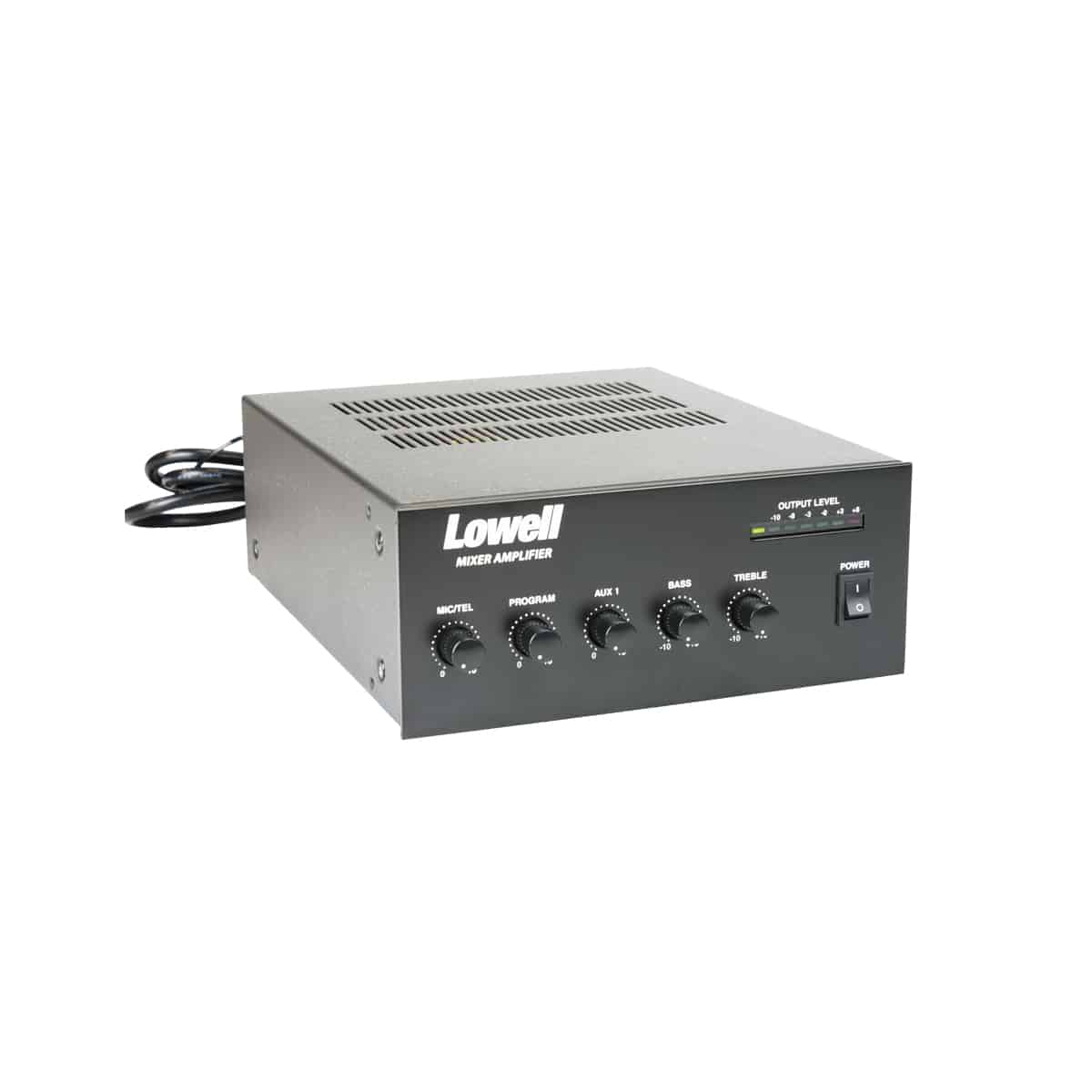

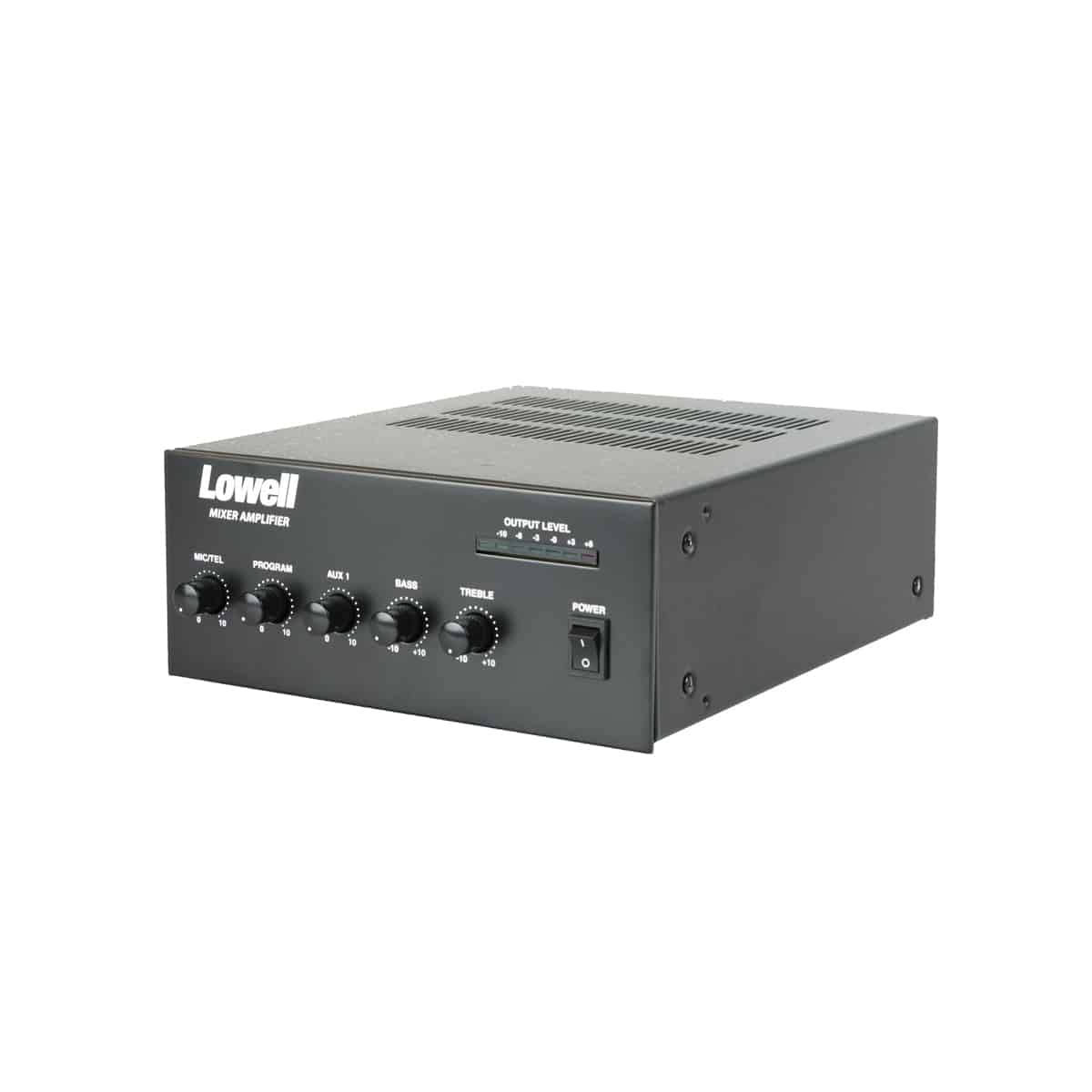

Standalone mixer with 30W power amplifier features 4ohms, 8ohms, 25V, and 70V speaker outputs at screw terminals. Powered by 120VAC 60Hz, the main AC input is protected by a circuit breaker in back (rear receptacle is protected by a separate circuit breaker). The front panel features three input channels (MIC/TEL, PROGRAM, AUX1), plus BASS control, TREBLE control, power active LED, and output level LED. Optional mounting brackets are available.

Add to Favorites

Compare

Compact (8″ x 3-1/2″ x 11″) mixer with 30W amplifier
Main AC input is protected by a circuit breaker
30W maximum power output
Single NEMA receptacle in rear (unswitched, always on)
First channel (MIC/TEL) is switchable for microphone or telephone inputs
Second channel (PROGRAM) is switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
Third channel (AUX 1) is for AUX 1 dual combining RCA–phono connectors.
AC Supply Voltage: 120VAC 60Hz ±10%
First channel (MIC/TEL): Switchable for microphone or telephone inputs. When the mute switch is turned on, a dynamic microphone or telephone input will mute the Aux 1, Aux 3, or Program inputs.
Second channel (PROGRAM): Switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
Third channel (AUX 1): For AUX 1 dual combining RCA–phono connectors.
AC Supply Voltage: 120VAC 60Hz (±10%)
Power Consumption: 90W @ Rated Power
Dimensions: 8.35 in. x 3.46 in. x 10.82 in.

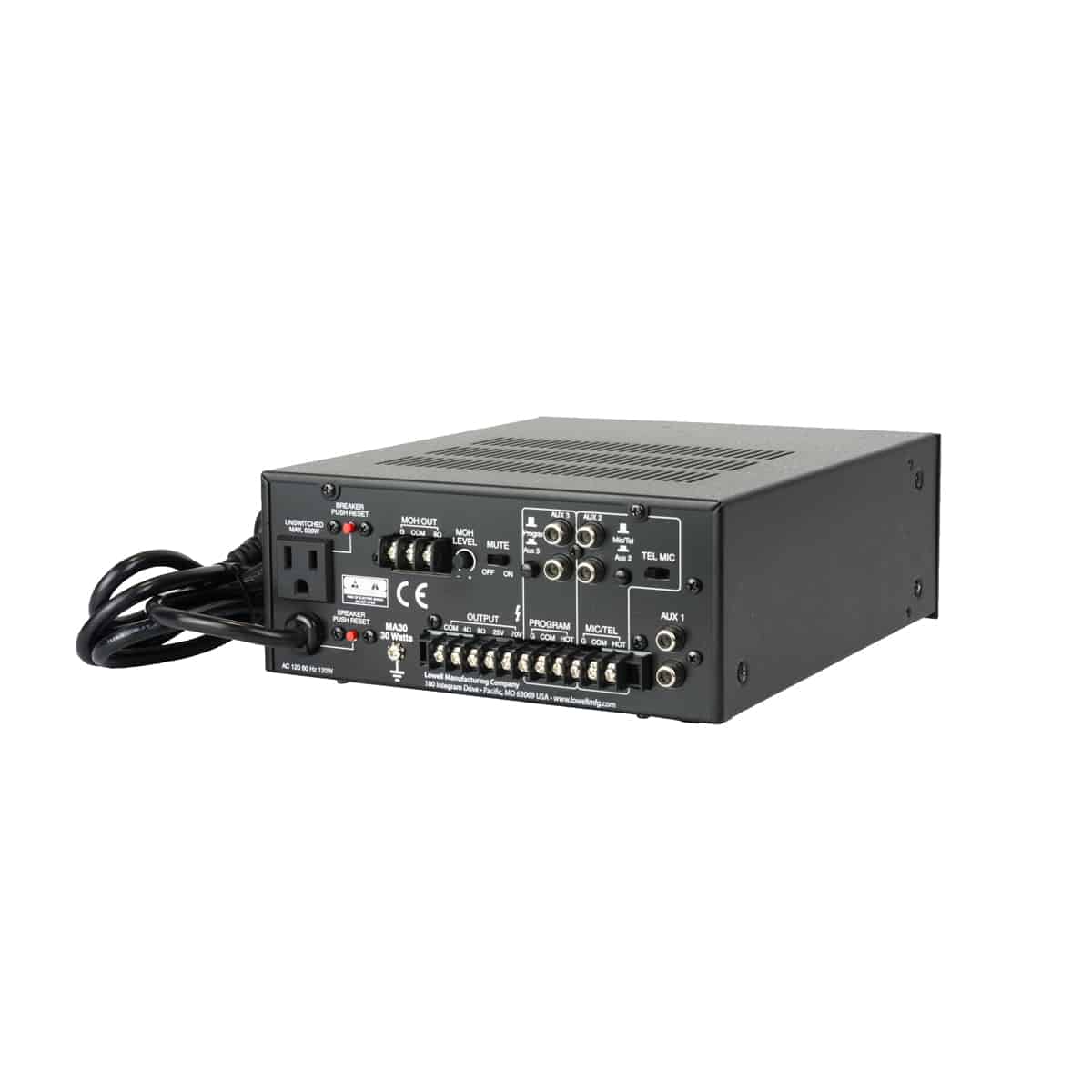

Speaker Level Outputs: Screw terminal strips, Main Output: 4 ohms, 8 ohms, 25V, 70V, 30W RMS, Music-On-Hold (MOH): 1W @ 8 ohms
Mic Input: Screw terminals, 1mV @ 600 ohms balanced. (Phantom power not available.)
Telephone Input: Screw terminals, (switchable, same terminals as mic input), 100mV @ 10k ohms balanced
Program Input: Screw terminals, 100mV @ 10k ohms balanced
AUX Inputs 1-3Dual parallel unbalanced RCA-phono jacks, stereo converted to mono, 150mV @10k ohms
Frequency Response: 50Hz–20kHz (±3dB). Test signal inserted at AUX input.

Spec Sheet: 1206-MA30
Instructions: Install-MA30

The mixer/amplifier shall be Lowell Model MA30 which shall have a 30W power amplifier with 4 ohms, 8 ohms, 25V and 70V speaker outputs at screw terminals. It shall feature three channels (microphone/telephone channel [switchable], program input channel and AUX 1 channel—dual-combining RCA/phono connectors), bass control, treble control, power active LED and output level LED. The unit shall measure 8.35 in.W x 3.46 in.H x 10.82 in.D.

30RK: Brackets to mount the MA30 to a 19 in. rack
30HRK: Brackets to mount the MA30 to Lowell’s half width rack (LHFR Series)
30WK: Brackets to mount the MA30 to a wall
TSM-ISO: Signal Isolation Transformer
