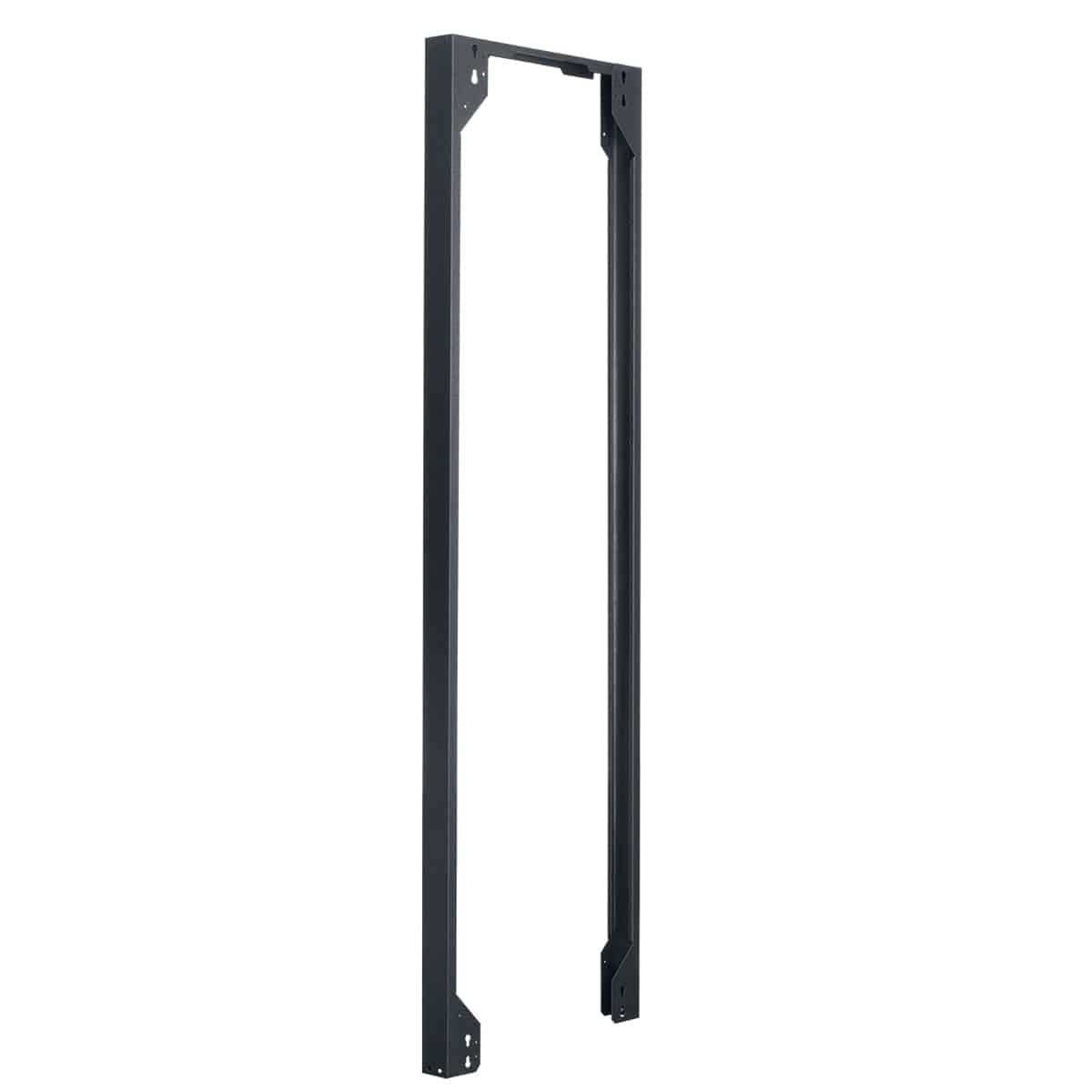

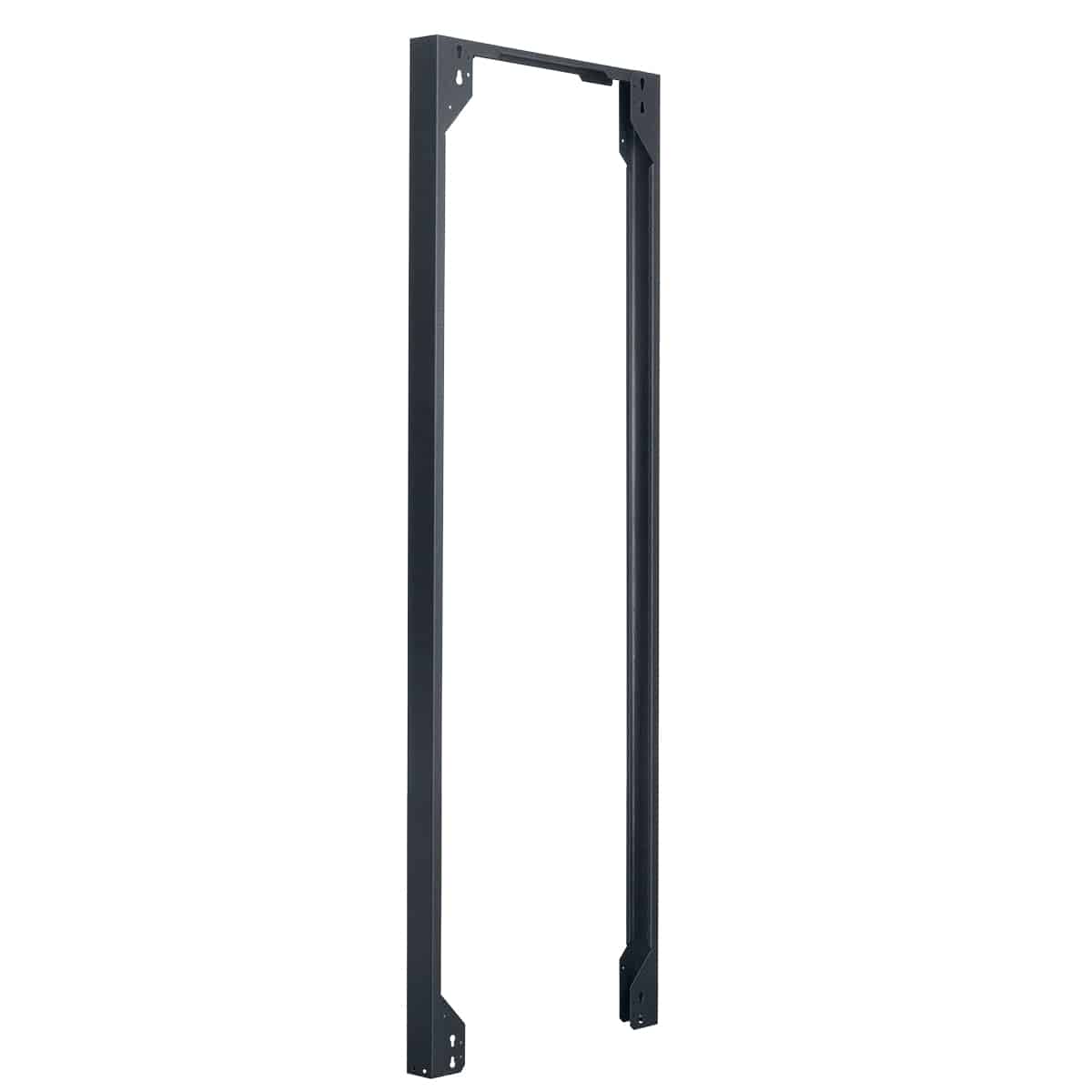

Cable chase for slim frame racks, 44U x 21"D

Cable Chase for LXR Series Racks

$246.22 – $256.48 MSRP

LXR--CC Series

Three inch wide cable chase or raceway provides extra wiring space for 44U slim LXR Series racks. It can also be used on the LVR Series Vari-Rack if set to specified (21 inch or 26 inch) depth.

Rack Units

For Rack Depth

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Material: 16-gauge steel
Finish: Smooth black
Top knockouts
Assembles without field-drilling using 10-32 nuts/bolts (provided)
Channel Depth: 3 in.
Overall Height: 80.65 in.

Spec Sheet: 1685-LXR4426CC3
Spec Sheet: 2079-LXR4421CC3

Made in the U.S.A.
Certified U.S. steel

The cable chase shall be Model _________ which shall provide 3 inches of cable space on the side of the specified slim frame rack. Field-mounting shall be accomplished without drilling using 10-32 nuts and bolts provided. The channel shall be steel with a black powder epoxy finish and shall feature compound knockouts on top.
