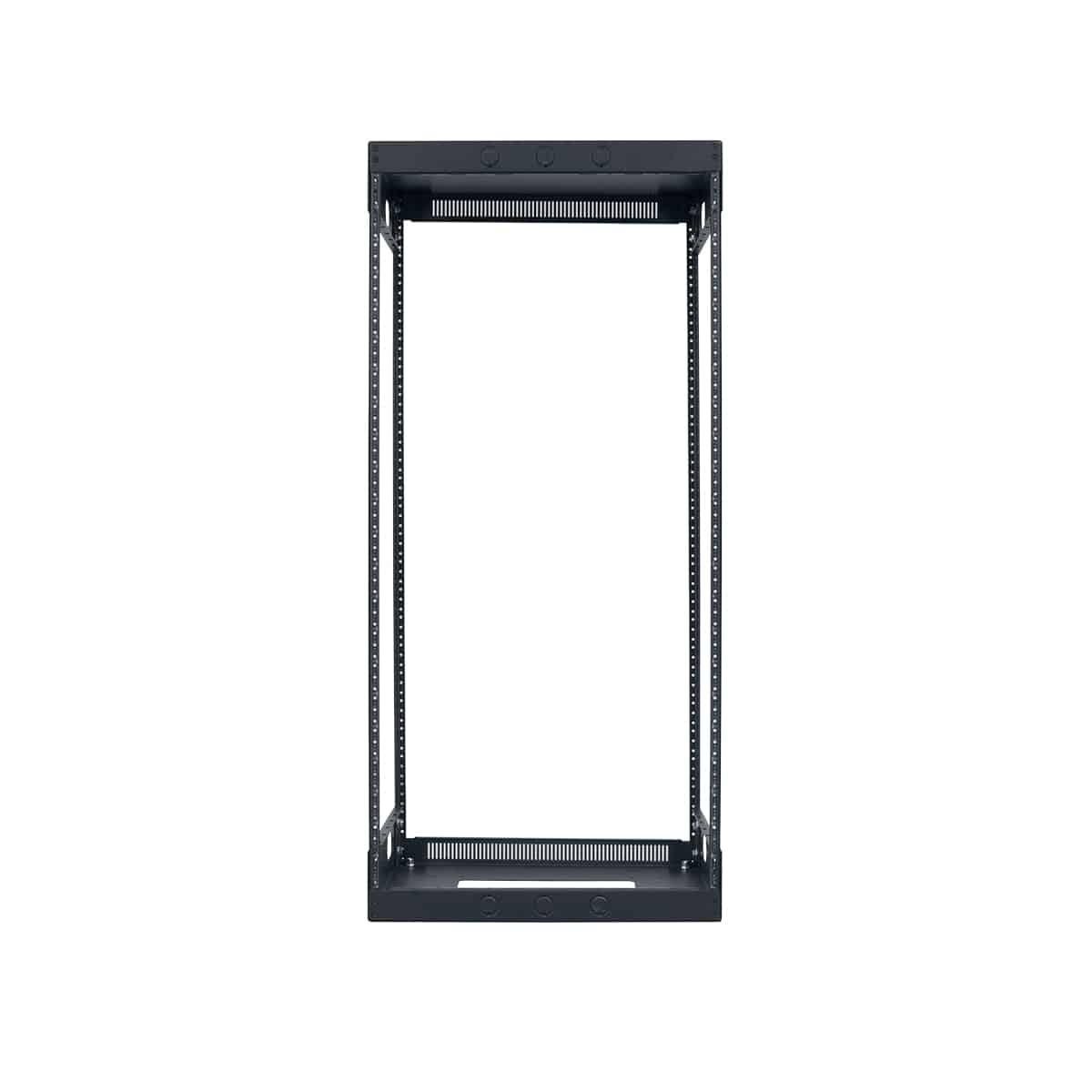

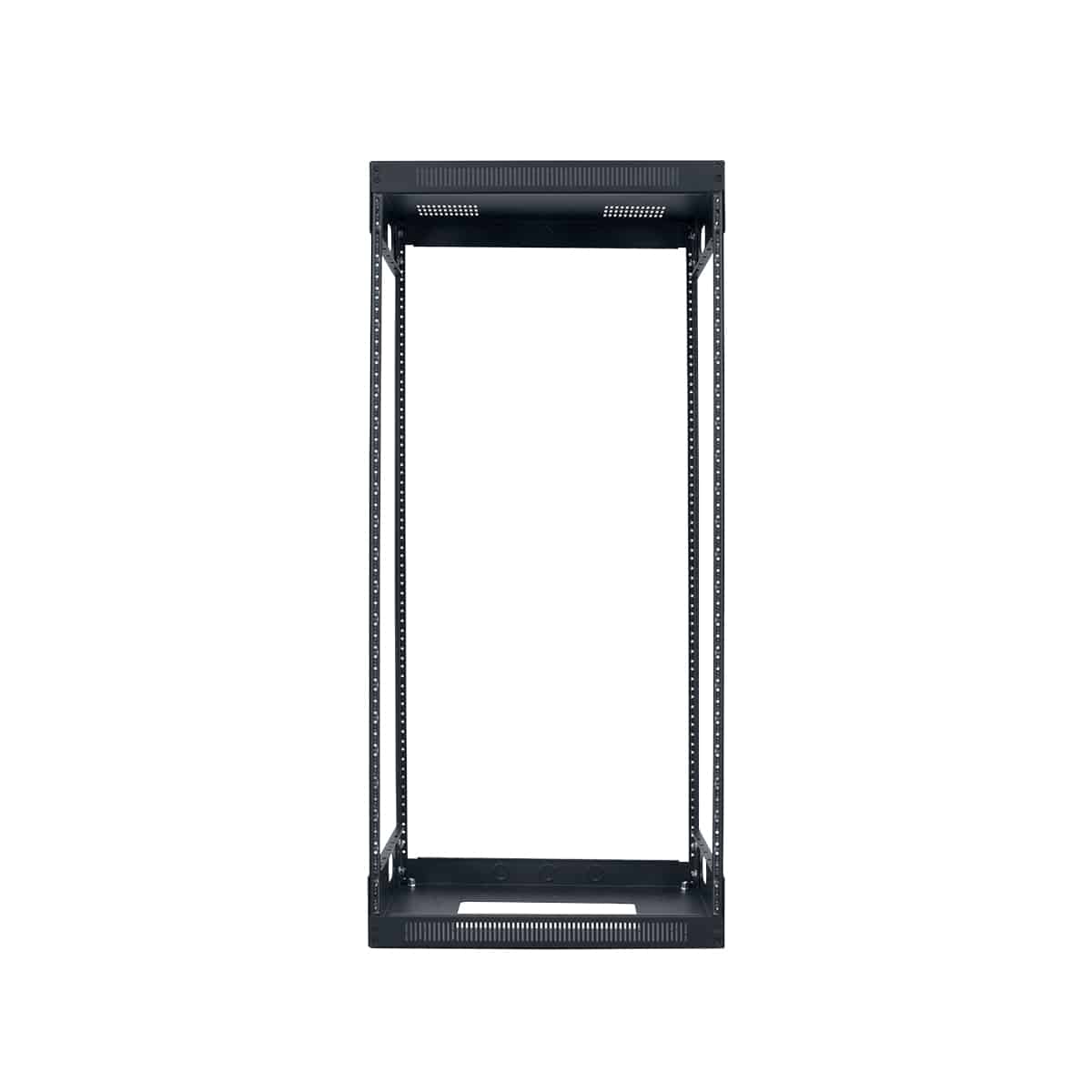

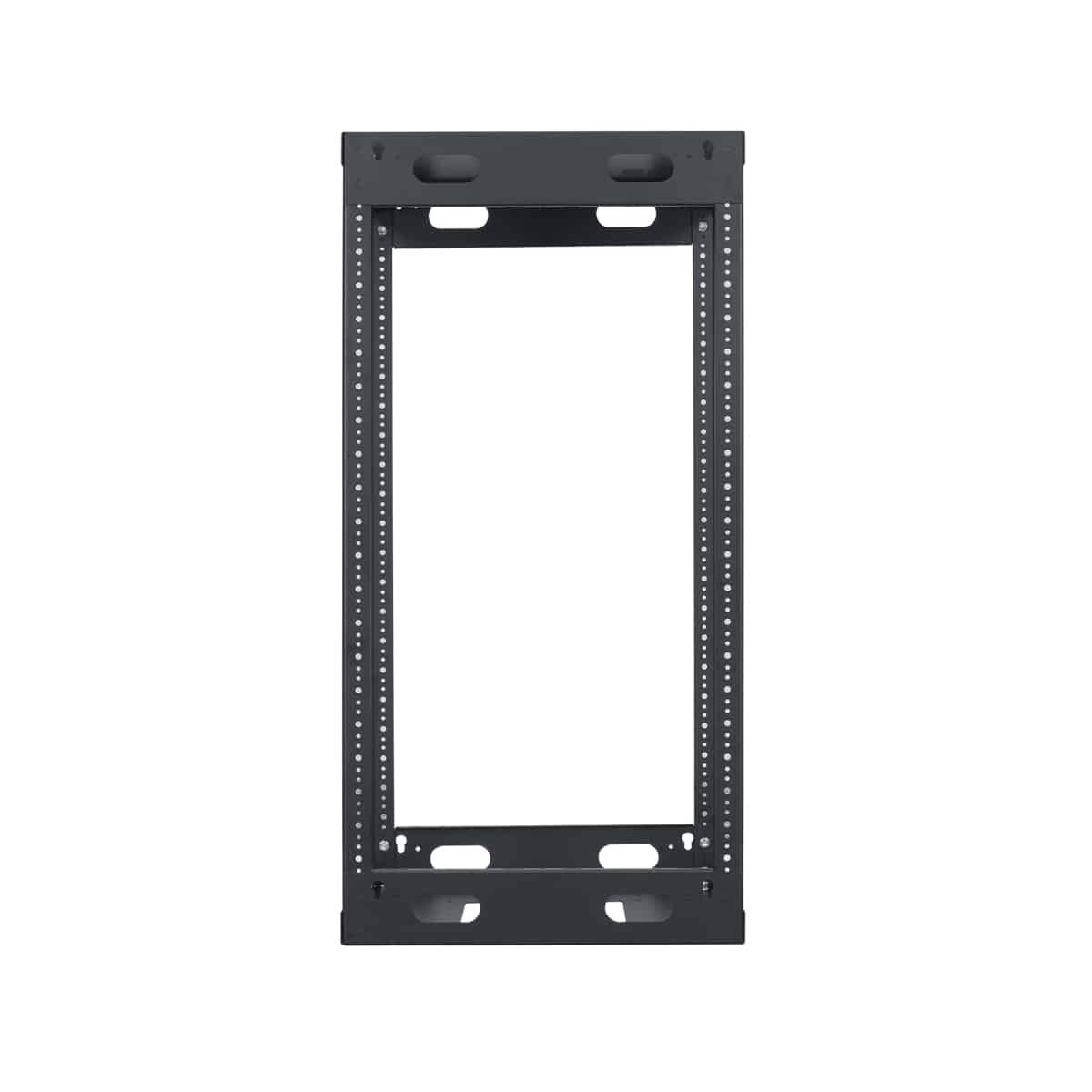

22U Slim Rack

Name: 22U Slim Rack
SKU: LXR-2221
Price: 698.40 USD
Availability: InStock

21"D x 19"W

$698.40 MSRP

Model LXR-2221

The LXR slim open frame rack is ideal for use in cabinets, closets or credenzas where space is at a premium, but it can also serve as a standalone or gangable floor rack. An assortment of accessories are offered separately to build the rack in a variety of profiles. Ships unassembled.

Add to Favorites

Compare

14-gauge steel top/base
11-gauge steel corner post rails tapped 10-32, printed RU scale

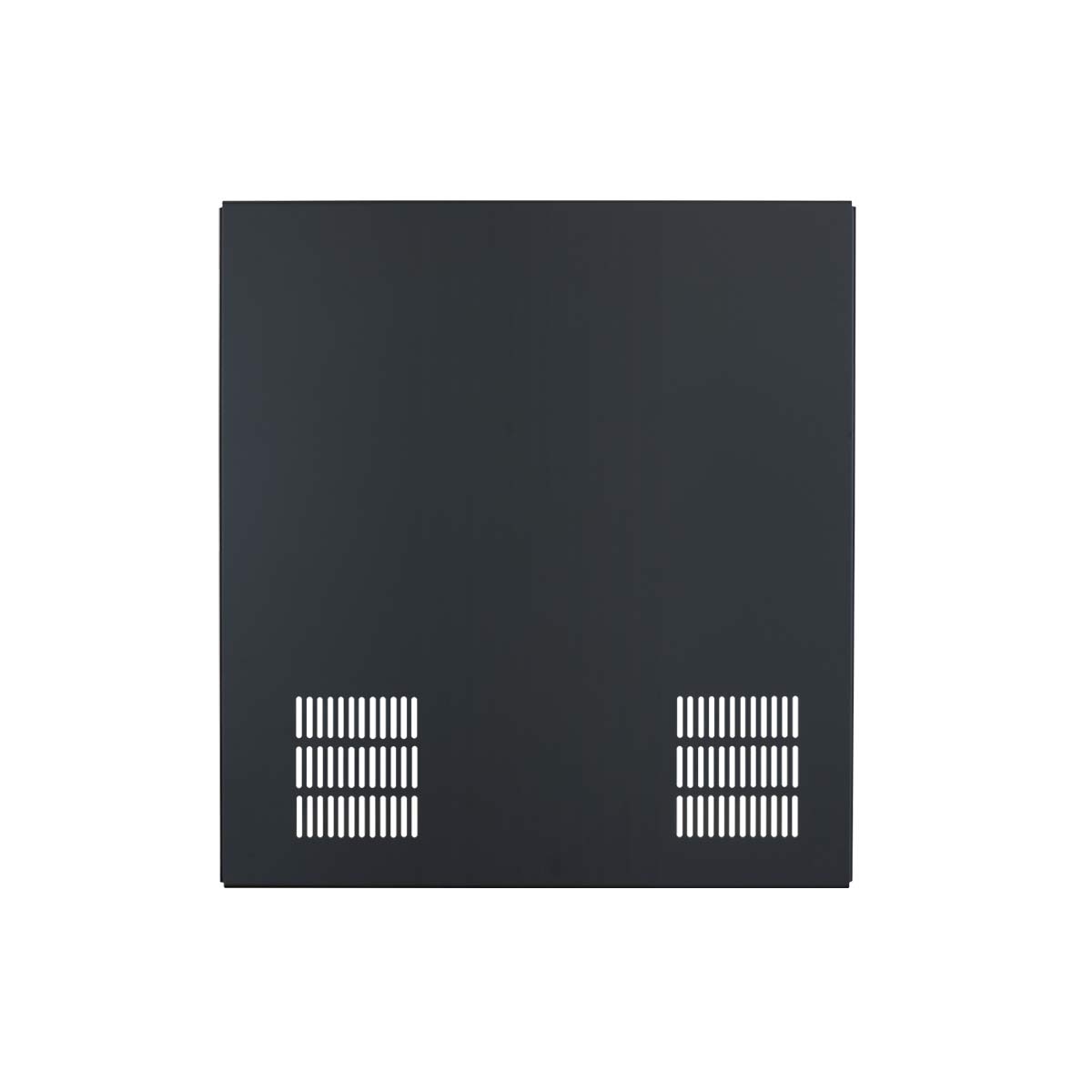

Steel top with vents and knockouts
Base with large center opening, vents, and knockouts
Open sides with obrounds for cable management
Smooth black powder epoxy finish
Hardware
Ships unassembled

Rack Space: 22U
Height: 42.34 in.
Width: 19.21 in.
Depth: 21.00 in.
Load Capacity: 400 lbs.

Spec Sheet: 1325-LXR2221
CAD drawings: LXR-2221

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The rack shall be Lowell Model LXR-2221 which shall ship unassembled. Overall measurements shall be 42.34″H x 21″D x 19.21″W when set up. Panel space shall be 22 rack units. The rack shall feature corner post mounting rails of 11-gauge steel and printed with rack unit increments. The rack shall include assembly/panel-mounting hardware and have a black powder epoxy finish.

LXR-FD22: Solid steel front door
LXR-FD22P: Smoked plexiglass front door
LXR-RAC22: Rear access cover. Solid.
SDV-2221: Pair of steel side panels
LXR-MB21: Mobile base
LXR-MB21F: Mobile base with fine-floor casters
LXR-C3S: Set of 4 swivel casters OR LXR-C3SL: Set of 4 swivel casters (2 locking)
LXR-C3SF: Set of 4 swivel casters for fine floors OR LXR-C3SFL: Set of 4 swivel casters for fine floors (2 locking)
PRK: Protective runner kit (for slide-in applications)
LXR-NS21: Zero space shelf (for wide equipment)
LXR-SB21: Side support brackets (1 pr)
