12U Wall-mount Swing Rack

Name: 12U Wall-mount Swing Rack
SKU: LWSR-1222
Price: 891.20 USD
Availability: InStock

22"D x 23"W

$891.20 MSRP

Model LWSR-1222

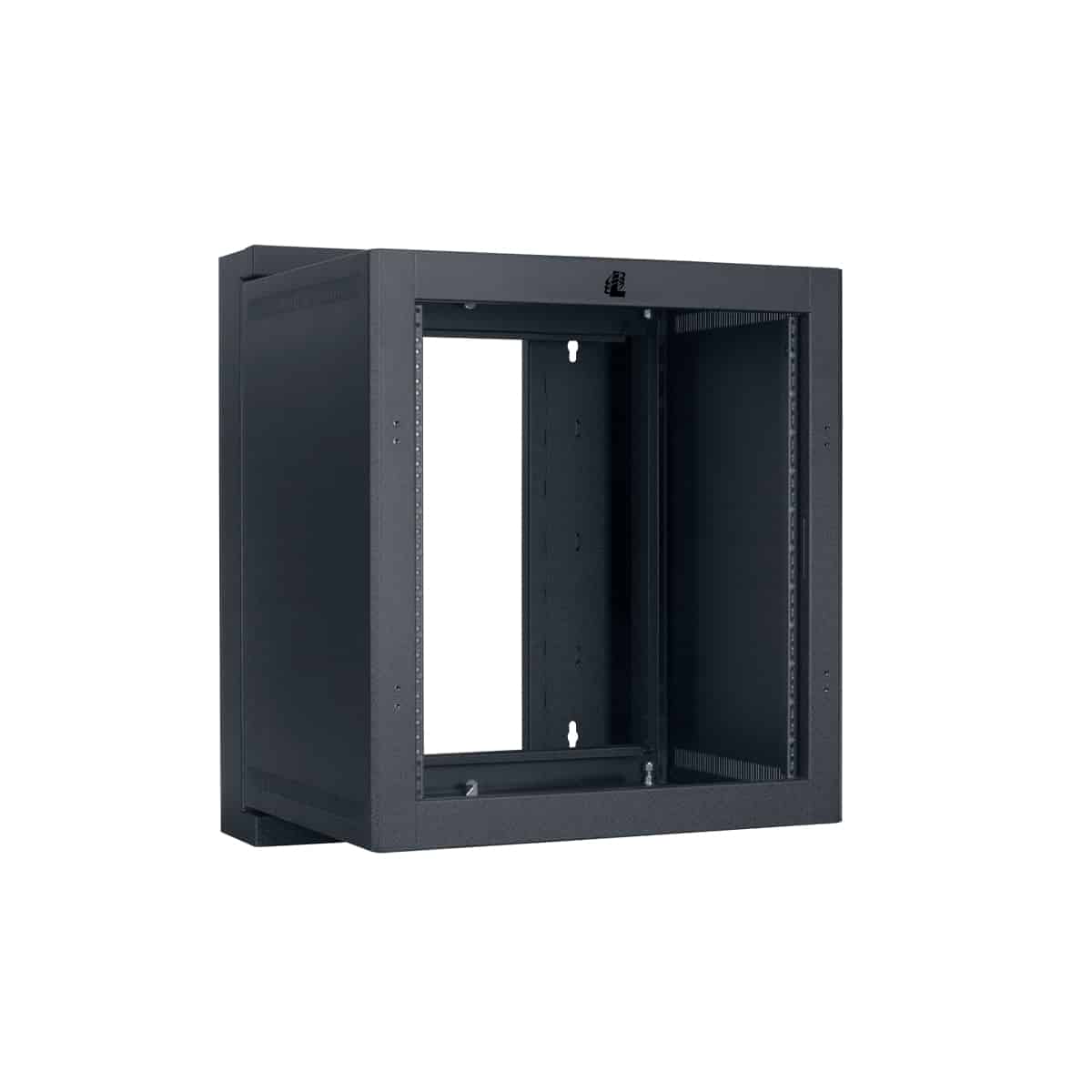

An economical, two-part wall rack features a 16-gauge steel backbox and a front mounting section that attaches with heavy-duty bolts through steel fasteners and securing nuts. The front mounting section swings open up to 90 degrees to access cables and equipment connections. Includes one pair fixed-position rails, tapped 10-32. Optional front door.

Add to Favorites

Compare

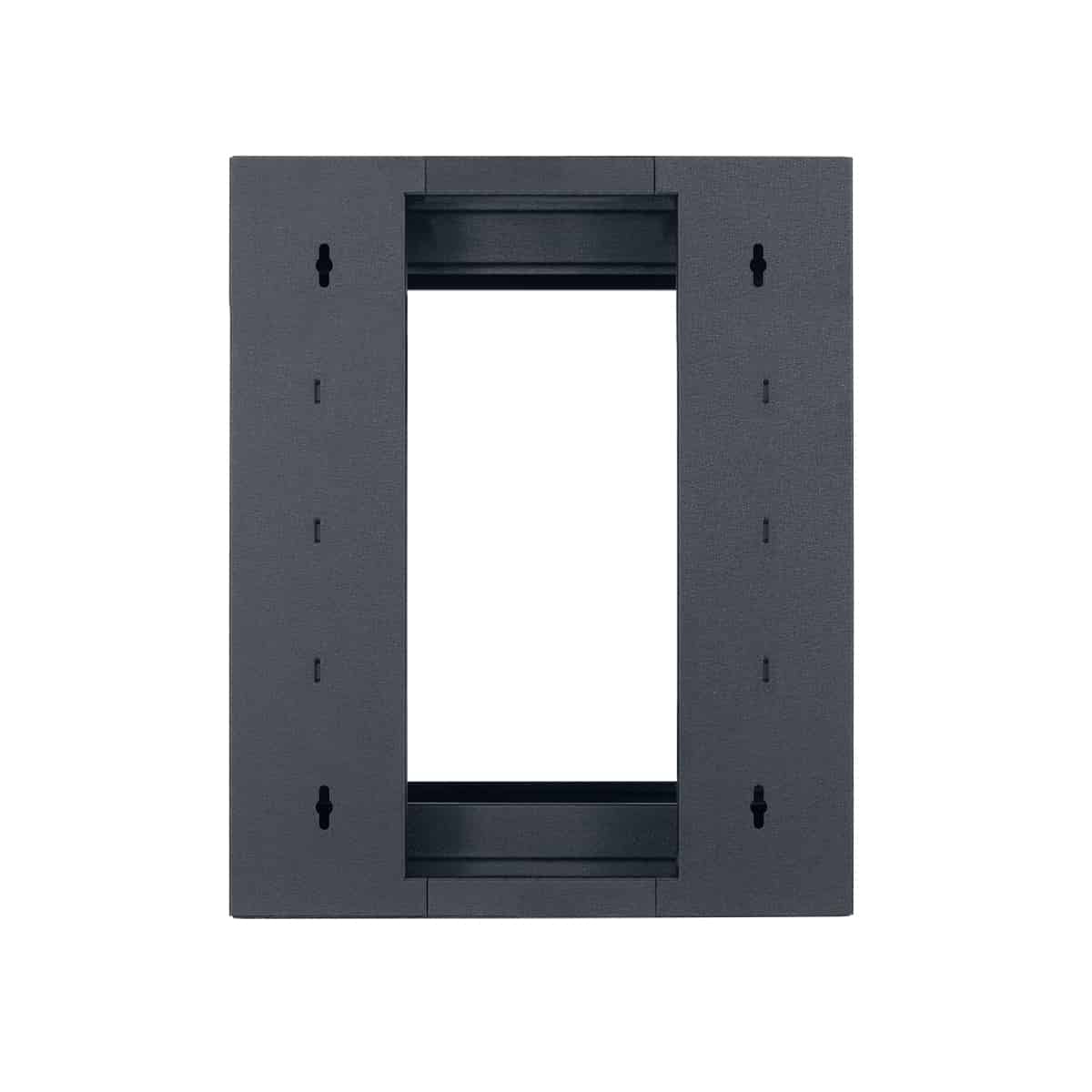

Backbox has two center locks, 16 in. mounting centers, 10 in. wide center wiring path, and integral laser-cut section with knockout panels on top/bottom.

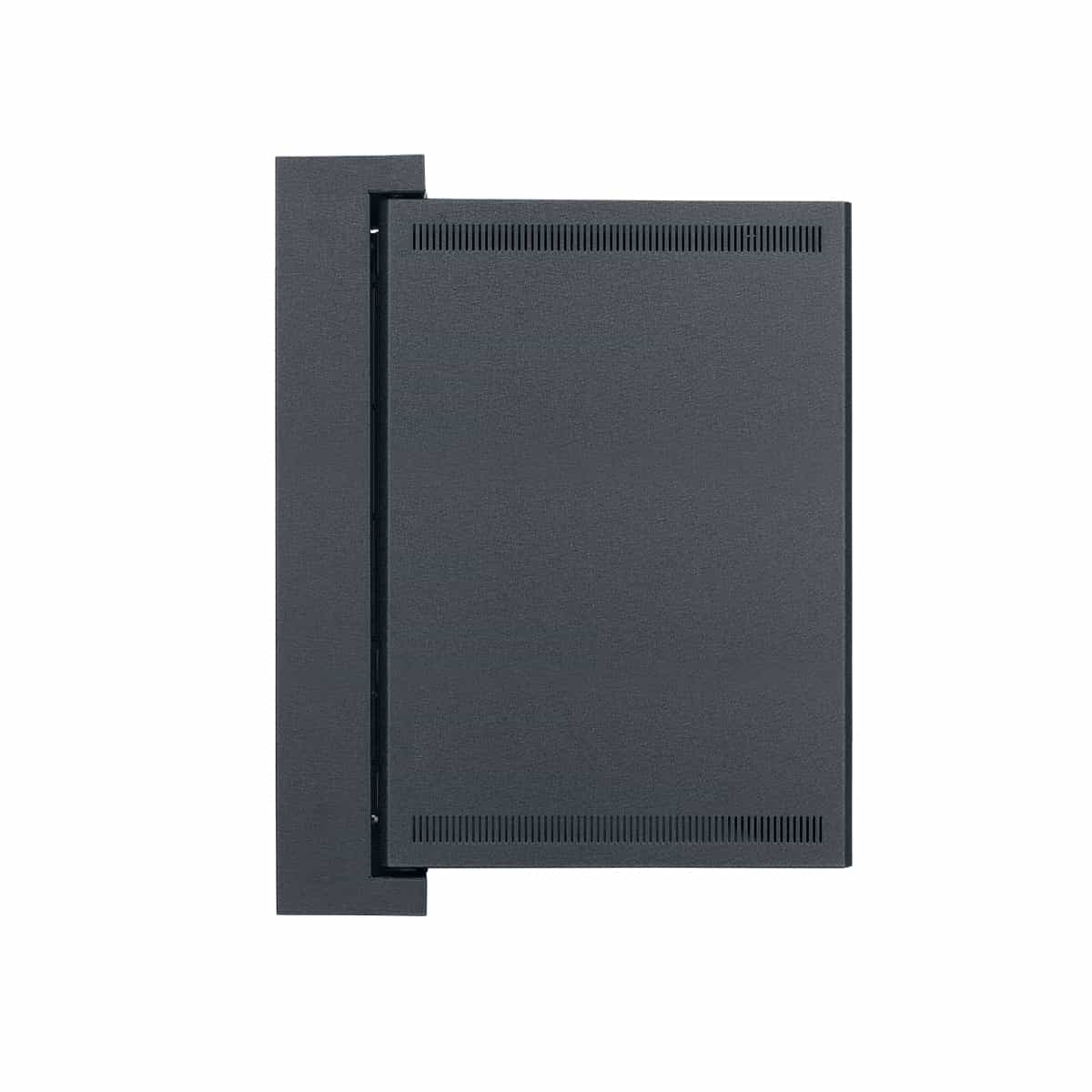

Mounting section connects to backbox with right or left-hand swing and features welded sides with top/bottom vents
One pair fixed position mounting rails tapped 10-32
Pilot Point screws with captive washers
Beveled corners
Black wrinkle powder epoxy finish

Rack Space: 12U
Height: 28.825 in.
Width: 23.06 in.
Depth: 21.92 in.
Load capacity 150 lbs.

Spec Sheet: 1591-LWSR1222
CAD drawings: LWSR-1222
Assembly: LWSR-18059

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The wall-mount rack shall be Lowell Model LWSR-1222 which shall feature a backbox and mounting section. Overall measurements shall be 28.825″H x 21.92″D x 23.06″W with 12 rack units of panel space. The mounting section shall have top/bottom side vents and one pair of fixed position front mounting rails tapped 10-32 and marked with rack unit increments. It shall attach to the backbox with heavy duty bolts that can be moved to the opposite side to change swing orientation.The backbox shall measure 3.65″D and be formed from 16-gauge certified U.S. steel with keyhole mounting slots on 16″ centers. It shall feature a 10″W center wiring path, integral laser-cut section with knockout panels on top/bottom, lacing points on back plane, and keyed locks at top and bottom. Knockout panels shall have 1/2″ knockouts for wireless antennas; 3/4-1/2″ and 1-1/2″-1″ compound knockouts for conduit. The rack shall have a black wrinkle textured powder epoxy finish.

Thermal management
Cable management
Hardware
Front door: LFD-12 (solid) | LFD-12P (plexiglass) | LFD-12FV (full vent)
Rack rails: RRTF-12
Rail conversion bracket: RRTBF
