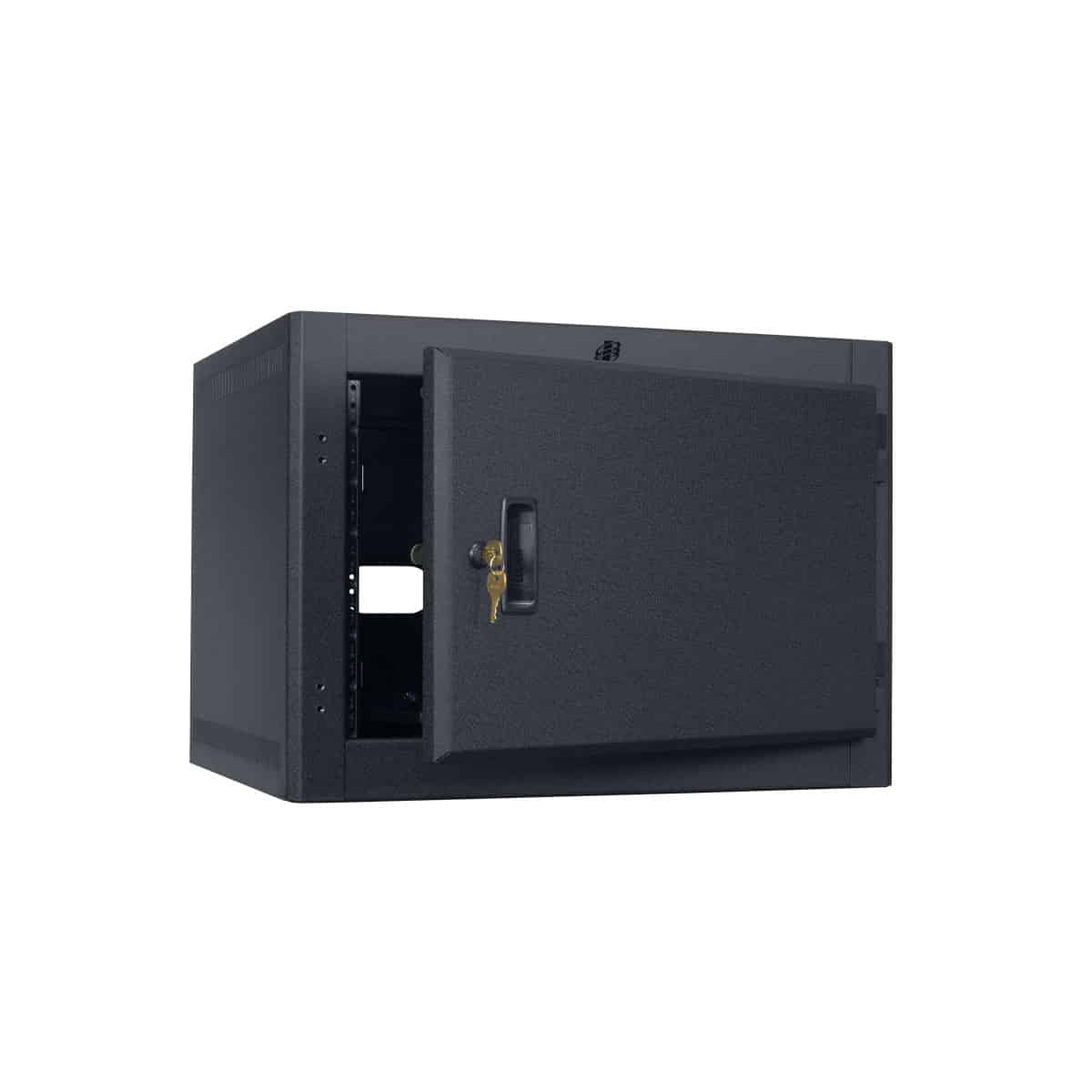

7U Wall-mount Efficiency Rack

Name: 7U Wall-mount Efficiency Rack
SKU: LWER-718
Price: 458.02 USD
Availability: InStock

18"D x 23"W

$458.02 MSRP

Model LWER-718

The economical stationary wall rack is welded 16-gauge U.S. steel construction with separate wall bracket. The rack features vented sides, knockouts in the top and base to accommodate cable bundles, and a pair of fixed-position mounting rails (tapped 10-32). This rack includes a reversible front door with key lock.

Add to Favorites

Compare

Welded 16-gauge steel
Solid steel surface-mount front door with integral handle and key lock
One pair, fixed-position mounting rails

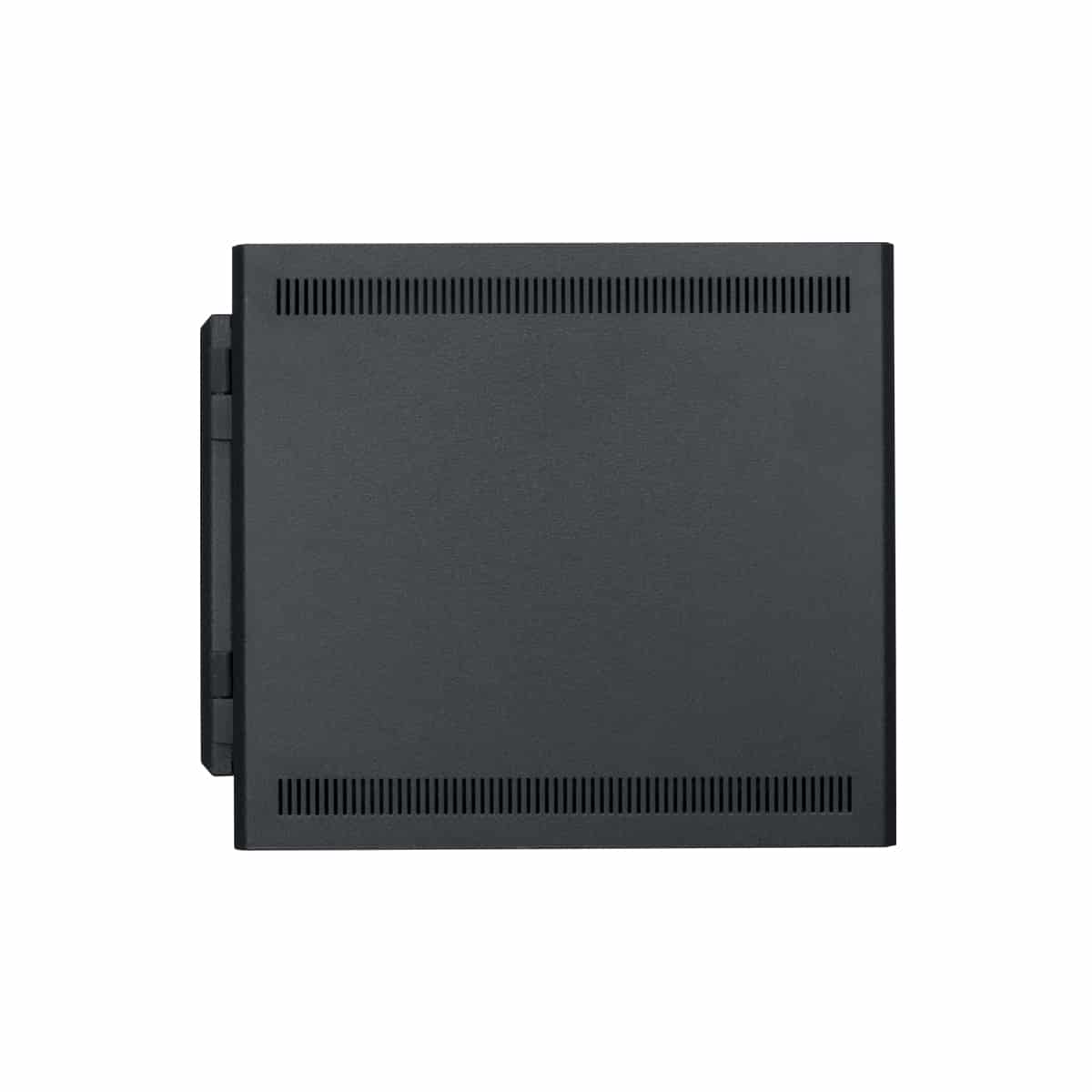

Welded side panels vented at top/bottom
Removable knockout panels
Pilot Point screws with captive washers
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 7U
Height: 16.73 in.
Width: 23.06 in.
Depth: 18.18 in. (17.20 usable)
Load Capacity: 150 lbs.

Spec Sheet: 1593-LWER718
CAD drawings: LWER-718
LWER Assembly: LWER-20219

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The UL Listed wall mount rack shall be Lowell Model LWER-718, which shall measure 16.73“H x 18.18”D (without door) x 23.06”W and have 7 rack units of panel space. It shall include a solid, 1”D surface-mount front door with integral handle and key lock. The welded assembly shall be 16-gauge certified US steel with 11-gauge fixed-position mounting rails tapped 10-32. The rack shall feature welded sides with top/bottom vents and a wall-mount bracket. Load capacity shall be 150 lbs. It shall have a black wrinkle textured powder epoxy finish.

Thermal management
Cable management
Hardware
Rail conversion bracket: RRTBF
Rack rails: RRTF-7 (7U)
