10U Wall-mount Efficiency Rack

Name: 10U Wall-mount Efficiency Rack
SKU: LWER-1018
Price: 637.28 USD
Availability: InStock

18"D x 23"W

$637.28 MSRP

Model LWER-1018

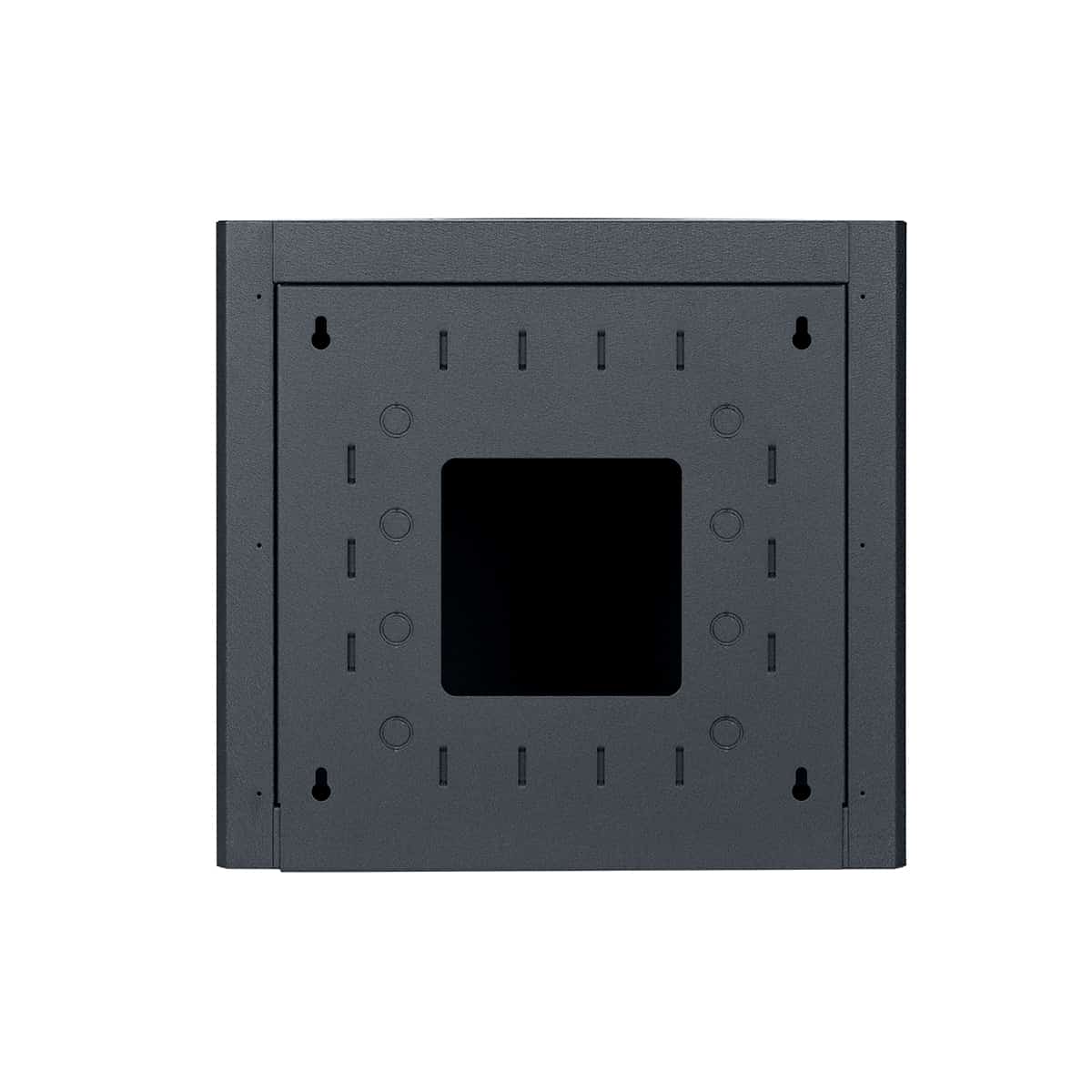

The economical stationary wall rack is welded 16-gauge U.S. steel construction with separate wall bracket. The rack features vented sides, knockouts in the top and base to accommodate cable bundles, and a pair of fixed-position mounting rails, tapped 10-32. This rack includes a reversible front door with key lock.

Add to Favorites

Compare

Welded 16-gauge steel

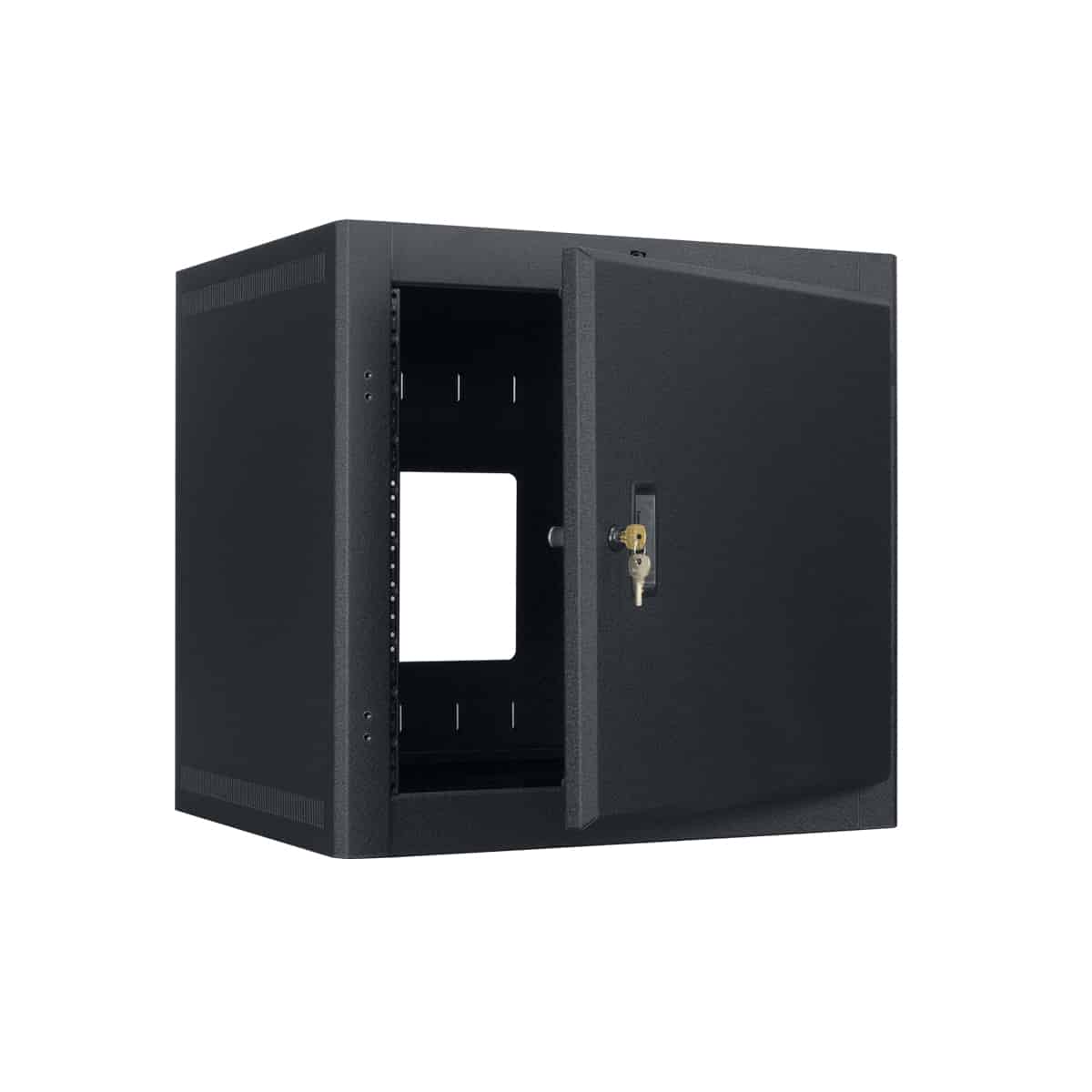

Solid steel surface-mount front door with integral handle and key lock
One pair, fixed-position mounting rails with printed RU scale

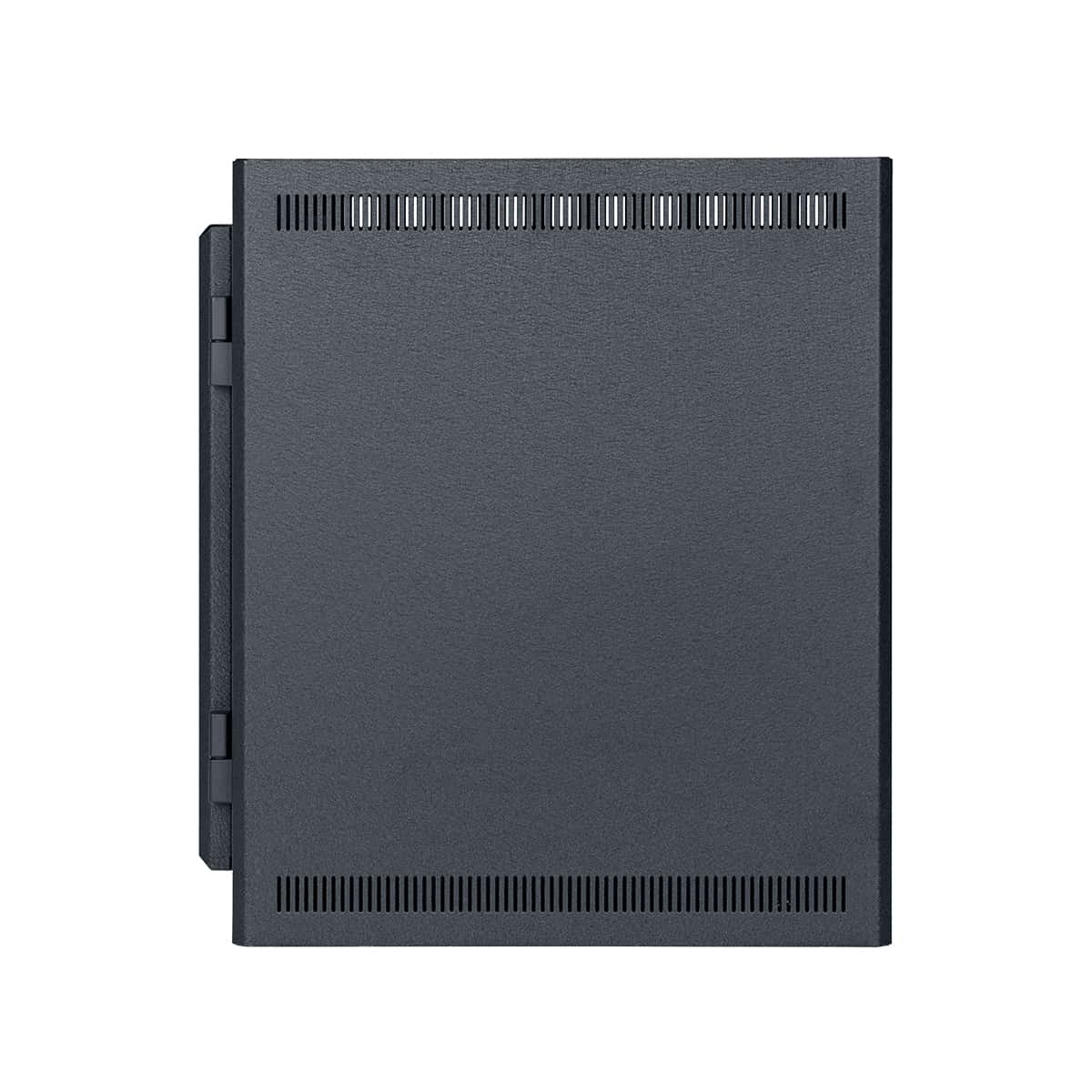

Welded side panels vented at top/bottom
Removable knockout panels
Pilot Point screws with captive washers
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 10U
Height: 21.88 in.
Width: 23.06 in.
Depth: 18.18 in. (19.18 with door, 17.20 usable)
Load Capacity: 150 lbs.

Spec Sheet: 1594-LWER1018
CAD Drawings: LWER-1018
Assembly: LWER-20219

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The UL Listed wall-mount rack shall be Lowell Model LWER-1018, which shall measure 21.88“H x 18.18”D (without door) x 23.06”W and have 10 rack units of panel space. It shall include a solid, 1”D surface-mount front door with integral handle and key lock. The welded assembly shall be 16-gauge certified US steel with 11-gauge fixed-position mounting rails tapped 10-32. The rack shall feature welded sides with top/bottom vents and a wall-mount bracket. Load capacity shall be 150 lbs. The rack shall have a black wrinkle textured powder epoxy finish.

Thermal management
Cable management
Hardware
Rail conversion bracket: RRTBF
Rack rails: RRTF-10 (10U)
