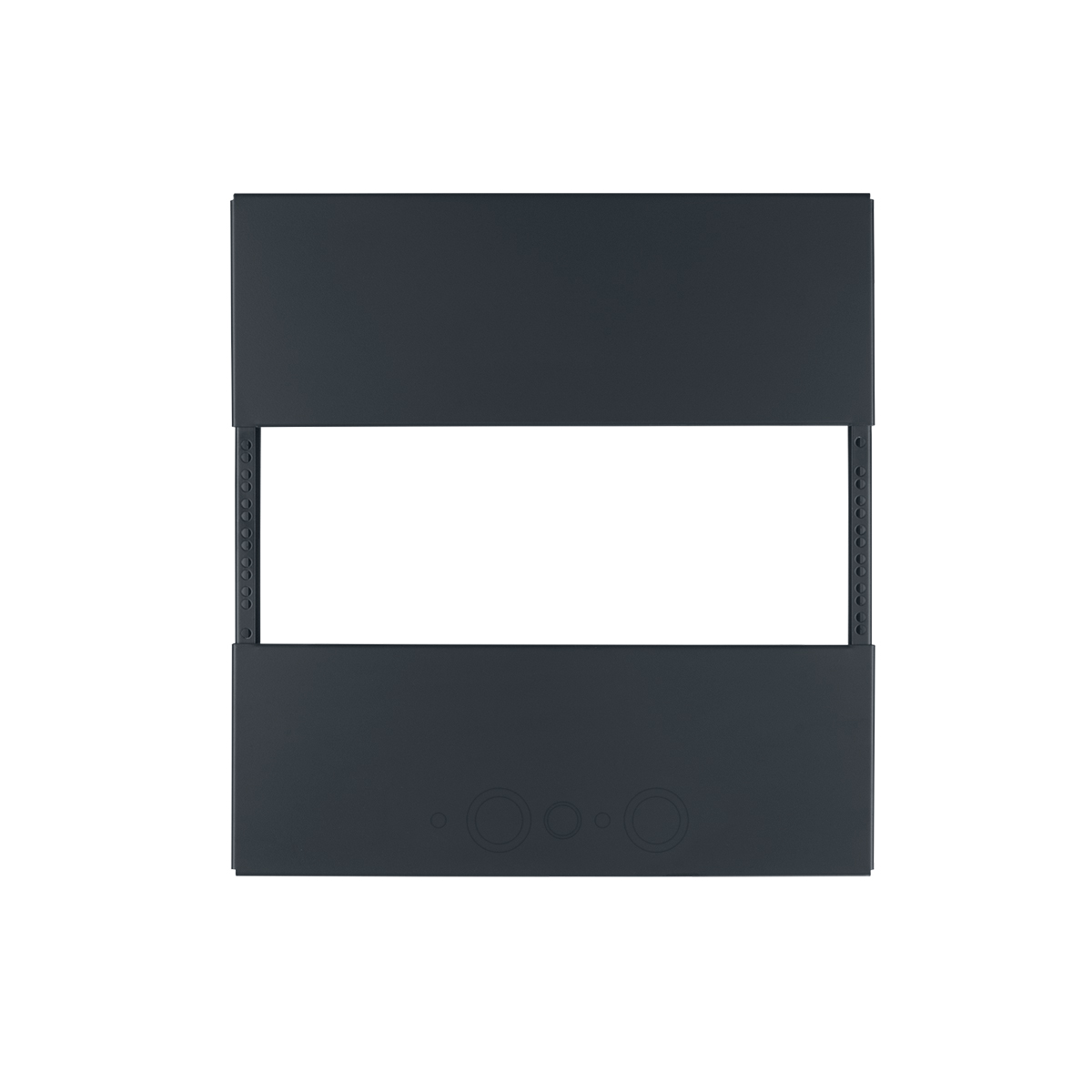

- 14-gauge steel top/base (center opening varies according to depth selected)
- Front vents, cutouts with covers for optional low voltage devices
- Rear vents and holes for cable/wire management
- Top knockouts for wireless antennas and conduit
- Obround opening in base
- 11-gauge steel corner post rails tapped 10-32
- Smooth black powder epoxy finish
- Ships unassembled (top/base are factory assembled except for depth setting)
- Rack Space: 14U
- Height: 28.34 in.
- Width: 19.21 in.
- Depth: 14.00–21.00 in. (adjustable)
- Load Capacity: 400 lbs.
- EIA/TIA compliant
- RoHS compliant
- Certified U.S. steel
- Made in Missouri, U.S.A.
The rack shall be Lowell Model LVR14-1421, which shall provide 14 rack units of panel space and measure 19.21″W x 28.34″H and have a depth that can be set anywhere between 14″ to 21″ during assembly. Base and top components shall ship pre-assembled except for the depth selection. Corner post mounting rails shall be 11-gauge steel tapped 10-32 with a printed rack unit scale. Rack finish shall be smooth black powder epoxy paint.
Note: Some accessories require a specific depth setting.
- LXR-FD14: Solid steel front door
- LXR-FD14P: Smoked plexiglass front door
- LXR-RAC14: Rear access cover (opens from top)
- SDV-1421: Pair of steel side panels (21″D)
- LXR-MB21: Mobile base (21″D)
- LXR-C3S: Set of 4 swivel casters OR LXR-C3SL: Set of 4 swivel casters (2 locking)
- LXR-C3SF: Set of 4 swivel casters for fine floors OR LXR-C3SFL: Set of 4 swivel casters for fine floors (2 locking)
- PRK: Protective runner kit (for slide-in applications)
- LXR-NS21: Zero space shelf (for wide equipment)
