Two-bay Rack w/Controlled Tilt-down Door (Surface, 3U+3U)

Name: Two-bay Rack w/Controlled Tilt-down Door (Surface, 3U+3U)
SKU: LTCR-3320S
Price: 1567.80 USD
Availability: InStock

6.8"D x 25"W

$1,567.80 MSRP

Model LTCR-3320S

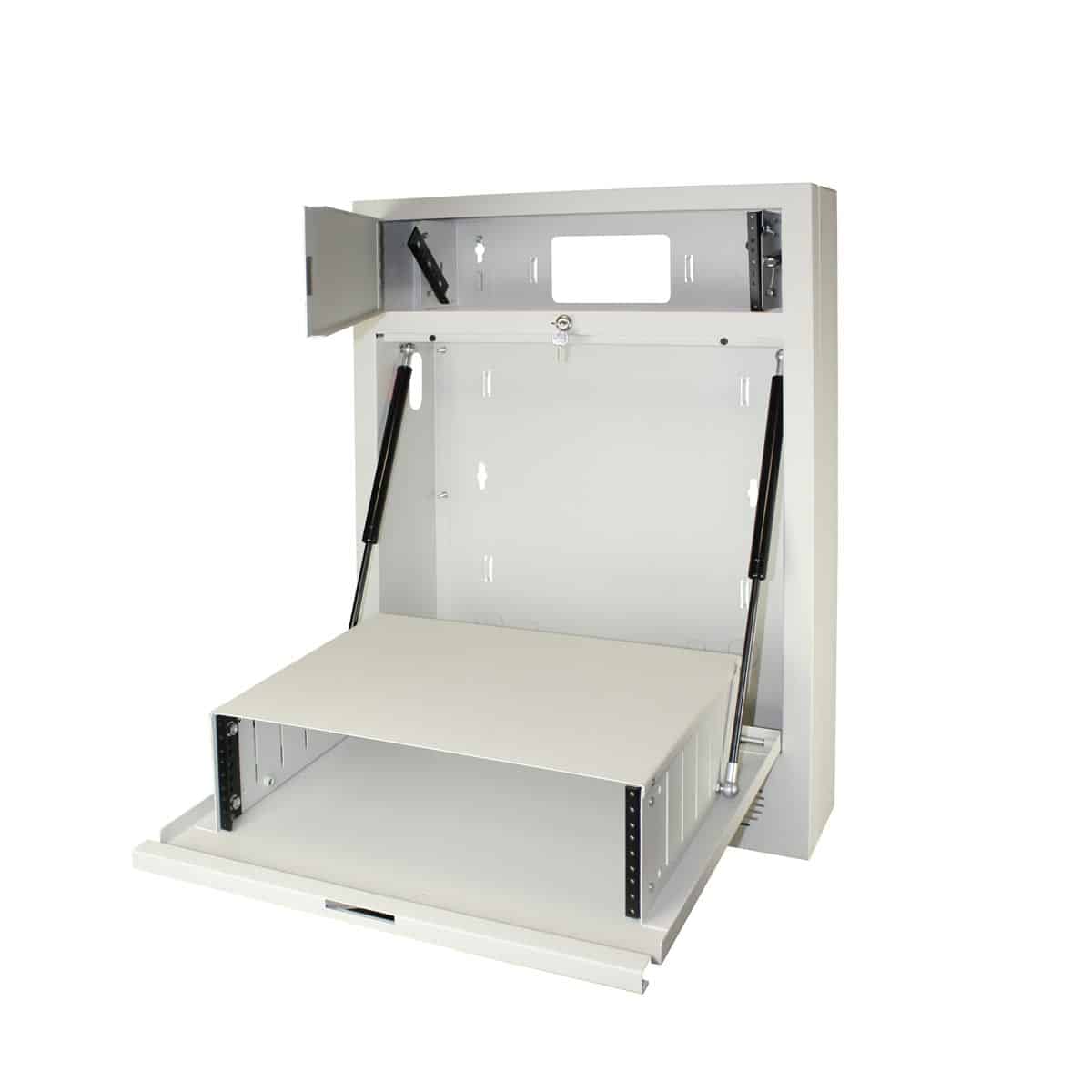

Ideal for amplifiers, small mixers, PA systems or consumer electronics, the LTCR features oil-filled dampers that control the opening of the main compartment (lower bay), ensuring a slow lowering of the vertically-mounted equipment to the service position. The top compartment (upper bay) is designed to mount a horizontal panel, such as a control panel, and is hinged for swing-out access to wiring. This surface-mount model has a Neutral Network Grey powder epoxy finish. Includes electrical box in base.

Add to Favorites

Compare

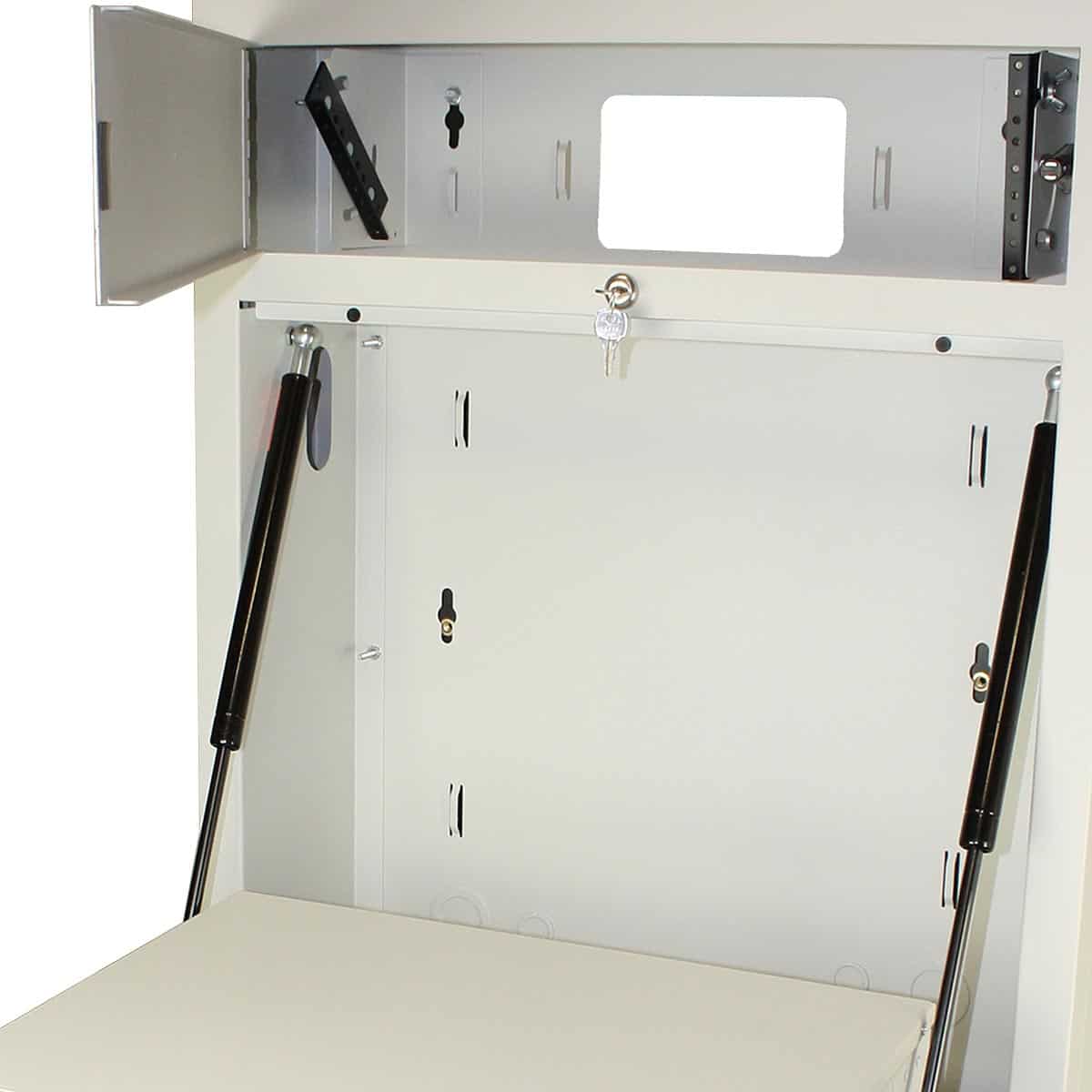

3U top compartment (horizontal hold) is ideal for a 19 in. panel. Hinge on door allows swing-open access. Fixed rails pivot down for easier access to cables.

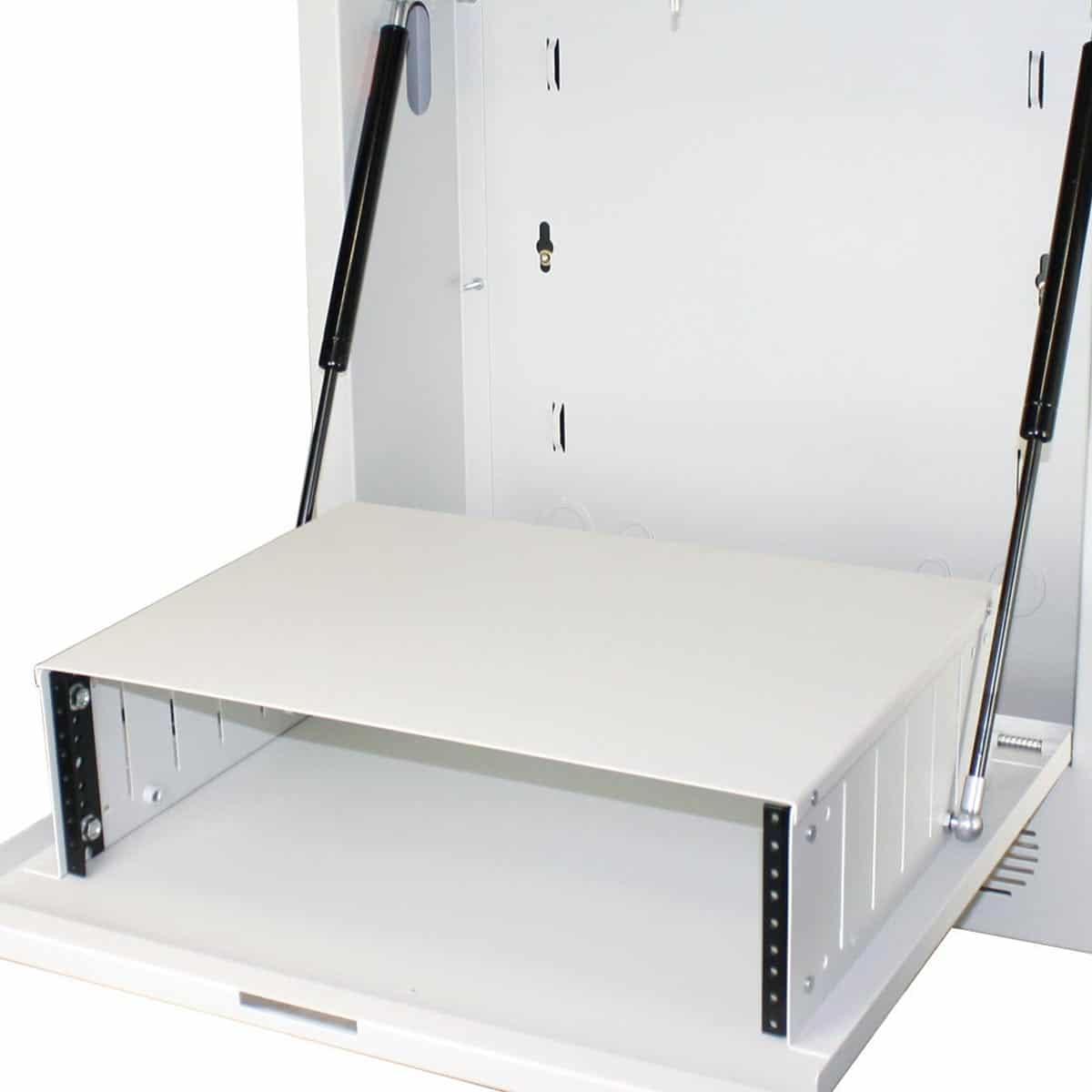

3U main compartment (vertical hold) for equipment up to 5.25 in. x 15.3 in. x 19 in. Opens with dampers to control rate of descent. Includes fixed rails and a removable shelf.

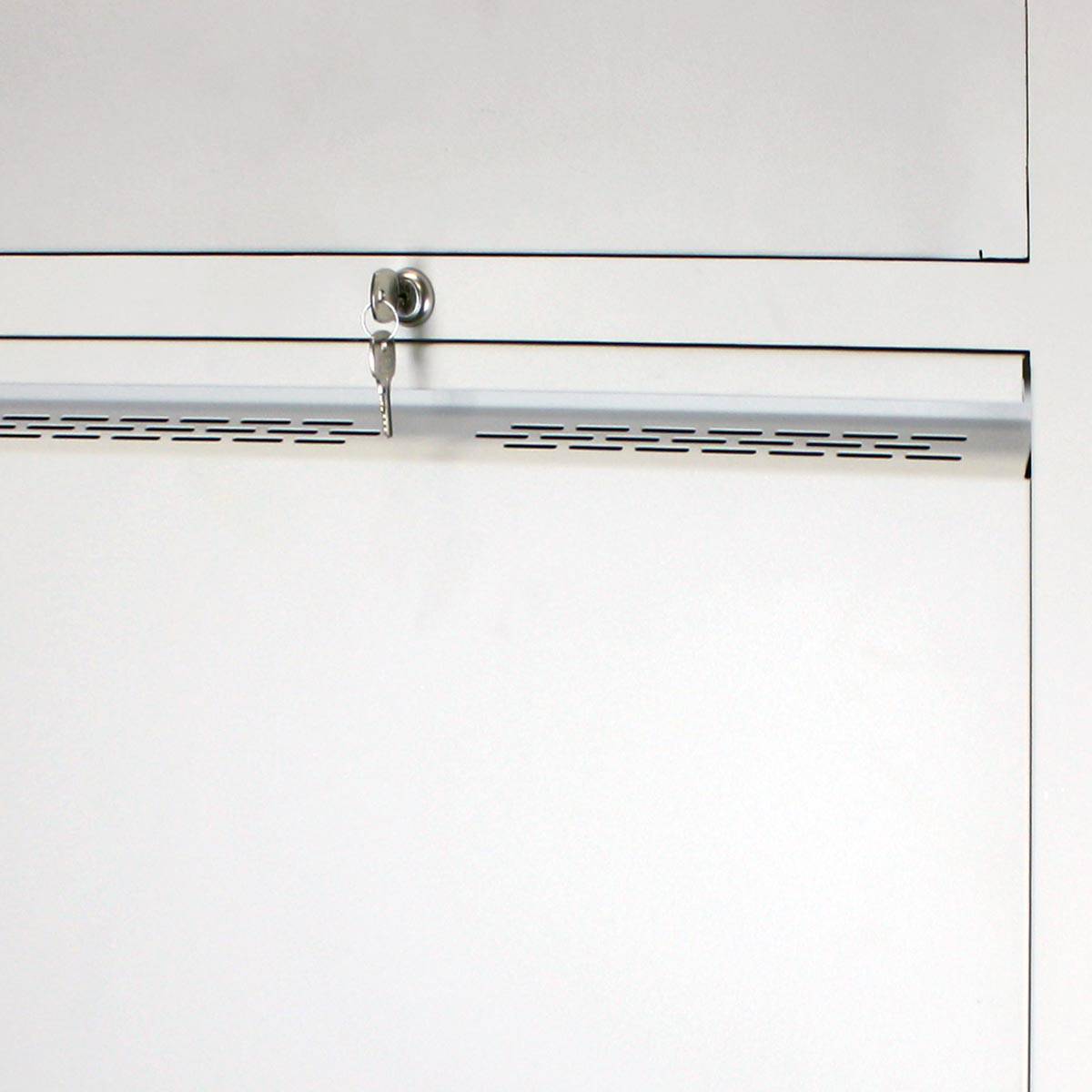

Both compartments secure with a single lock
Backbox with keyholes on 16 in. centers
Knockouts in top, bottom, rear
Vents at bottom and along integral formed handle
1 in. cable raceway on each side

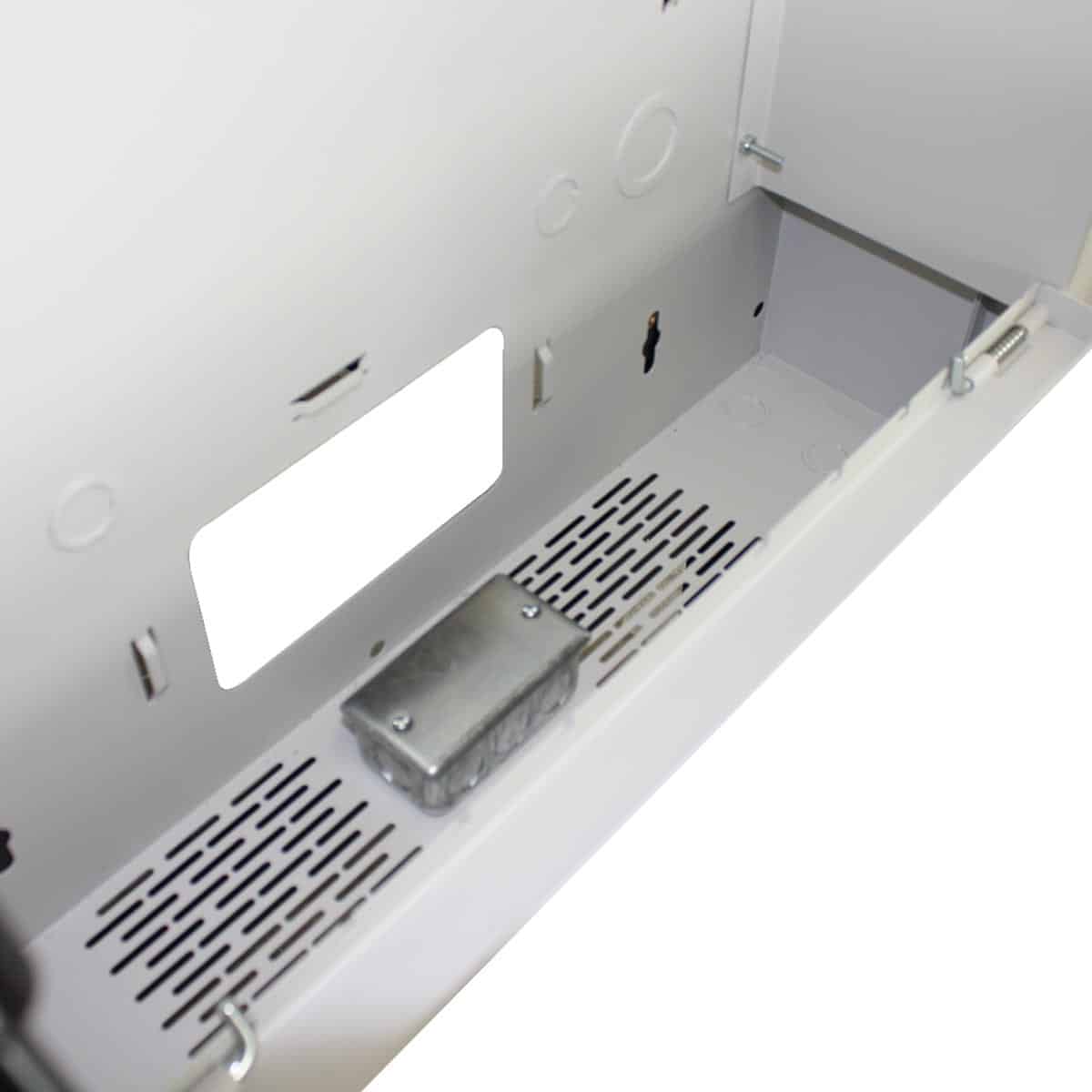

E.O. box in base
Load capacity 50 lbs.
Network Grey finish

Rack Space: 3U (top) + 3U (main)
Height: 34.06 in.
Width: 25.00 in.
Depth: 6.015 in.

Spec Sheet: 1902-LTCR3320S

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The surface-mount wall rack with tilt-out operation shall be Lowell Model LTCR-3320S which shall measure 25.00”W x 34.06”H and project 6.015 in. from wall. Construction shall be steel with front/bottom vents and a neutral Network Grey powder epoxy finish. The assembly shall include a backbox and two compartments to mount 19″ equipment. The backbox shall feature knockouts in top, bottom, and rear. Oil-filled dampers shall control lowering of equipment when opened. A removable shelf shall be included. The main compartment shall mount equipment measuring up to 5.25″ (3U) x 15.3″ deep and store it in a vertical position. The top compartment shall mount equipment up to 5.25″ (3U) x 4.3″ deep. The assembly shall have a load capacity of 50 lbs. and include a single gang EO box in the base.

Hardware
Panel for up to 8 devices: D8P-ID-3
Panel for up to 9 devices: D9P-ID-3
