LT28ATM32Vb, LT2830TM870Vb, or LT2830TM16Vb

2×2 Lay-in-tile Ceiling Speaker with 8 inch Coaxial Driver

Name: 2x2 Lay-in-tile Ceiling Speaker with 8 inch Coaxial Driver
SKU: LT2-830-TM16-VB
Price: 351.36 USD
Availability: InStock

FOREGROUND MUSIC – includes driver, 25/70V transformer, enclosure, grille

$351.36 MSRP

Model LT2-830-TM16-Vb

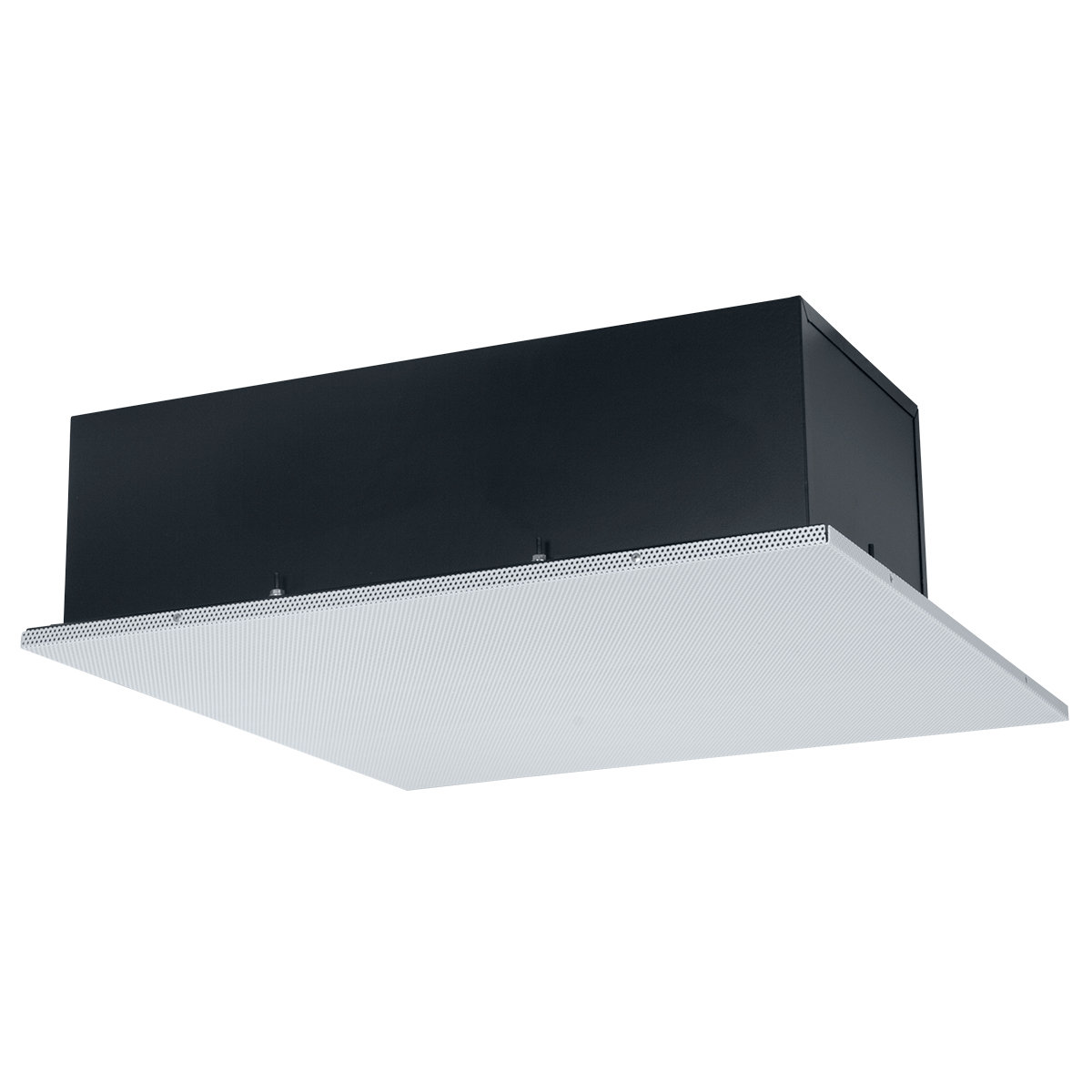

Quick install suspended ceiling pro speaker features premium 8 in. 20W coaxial driver, 70V transformer, fine perforation grille, and .8 cu.ft. volume backbox in a 2x2 assembly to quickly replace a non-tegular (2x2) ceiling tile.

Add to Favorites

Compare

Driver (CT830A): 8 in. 20W coaxial driver with 12 oz. magnet, frequency response of 57Hz-14kHz (±6dB), 44Hz-20kHz (±7.6dB) and sensitivity of 97.0dB avg. measured 1W/1M.
Transformer: 70V transformer has primary taps at 4, 8, 16W.

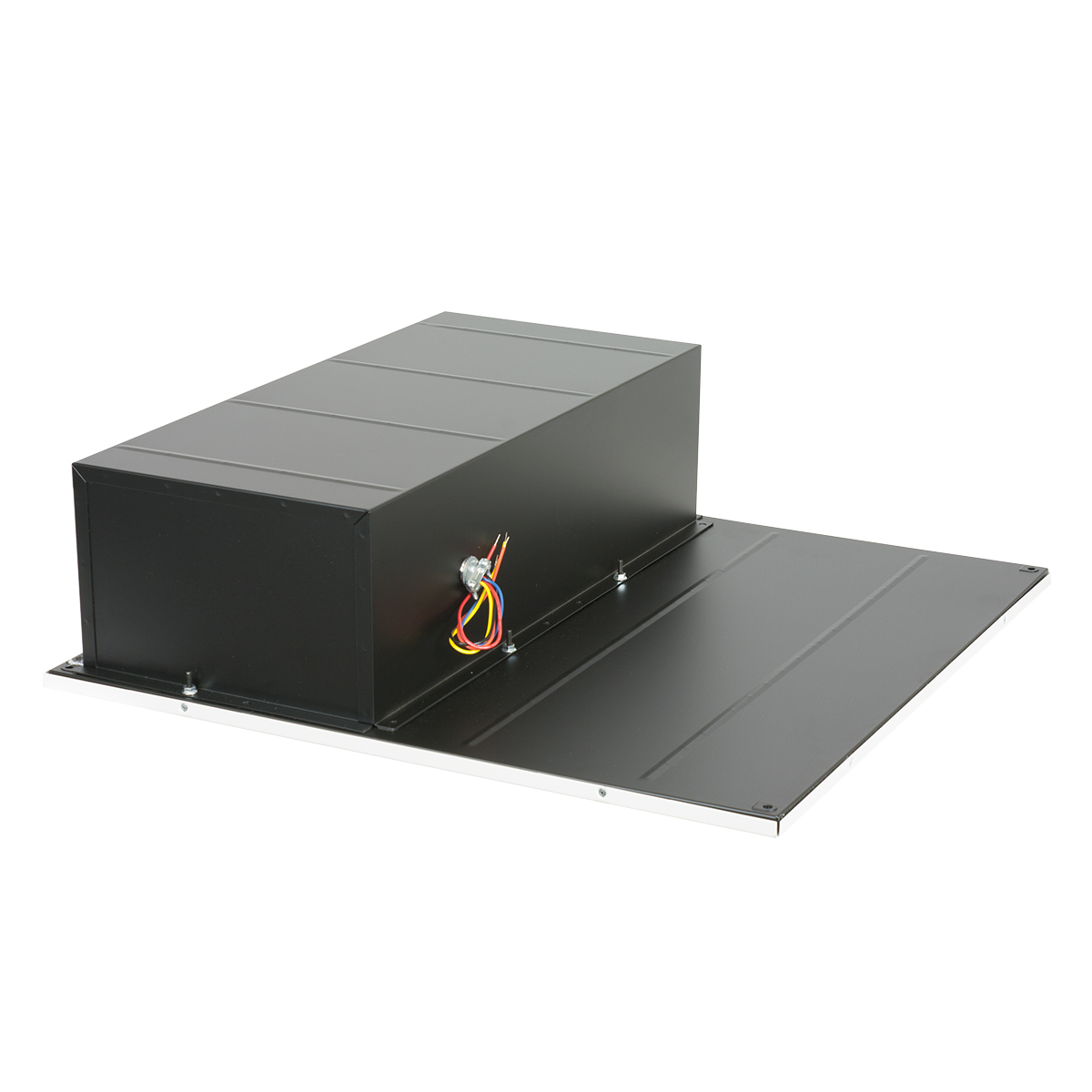

Enclosure (.8 cu.ft.): Steel backbox with 1.5 in. thick acoustic lining. Driver leads exit through metal clamp. Backbox is offset to fit around plenum obstructions.
Grille with Subplate (2 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.
Mounting Aids: Restraint tabs

Spec Sheet: 1391-LT2830TM16VB
Revit Models: LT Series (Music)

Made in the U.S.A. with global components.
Note: This model is not third-party listed

The suspended ceiling pro speaker shall be Lowell Model LT2-830-TM16-Vb. The 2’x2′ system shall directly replace a 2’x2′ ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a sub-plate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 inch coaxial with a power rating of 20W. It shall have a magnet weight of 12 ozs., frequency response of 57Hz-14kHz (±6dB) and 44Hz-20kHz (±7.6dB) and average sensitivity of 97.0dB measured 1W/1M. The mounted transformer shall be 70V with primary taps at 4, 8, and 16W. The system shall include a steel backbox (0.8 cu.ft.) with acoustic lining. Driver leads exit through a metal clamp.
