2×2 Lay-in-tile Ceiling Speaker with 8 inch Dual Cone Driver

Name: 2x2 Lay-in-tile Ceiling Speaker with 8 inch Dual Cone Driver
SKU: LT2-810-BB
Price: 179.92 USD
Availability: InStock

BKG MUSIC/PAGING – includes driver, enclosure, grille

$179.92 MSRP

Model LT2-810-BB

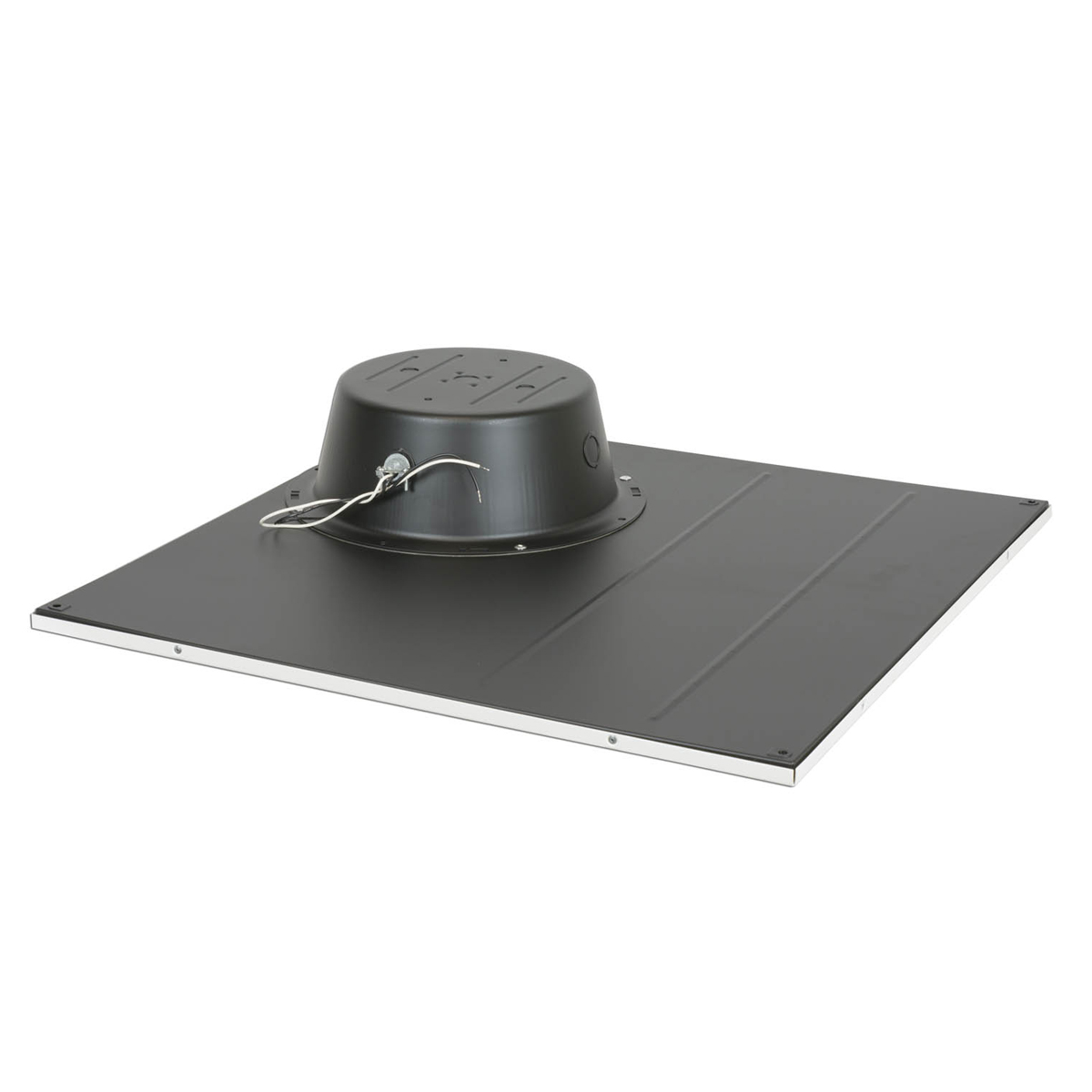

Quick install 2x2 drop ceiling speaker for suspended tile ceilings features 8 in. 15W dual cone driver, fine perforation grille, and .147 cu.ft. enclosure.

Add to Favorites

Compare

Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet. Frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
Enclosure (8XD4): .147 cu.ft. steel backbox with speaker leads that exit through a metal clamp for fast connection. Black.
Grille with Subplate (2 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.
Mounting Aids: Restraint tabs.

Spec Sheet: 1384-LT2810BB
Revit Models: LT Series (Music/Paging)

Made in the U.S.A. with global components.
Note: Model is not third-party listed

The quick install 2×2 drop ceiling speaker for suspended tile ceilings features 8 in. 15W dual cone driver, fine perforation grille, and .147 cu.ft. enclosure. for suspended tile ceilings shall be Lowell Model No. LT2-810-BB. The 2’x2′ system shall directly replace a 2’x2′ ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a subplate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 inch dual cone with a power rating of 15W. It shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. The system shall include a steel backbox (.147 cu.ft.) with leads exiting through a metal clamp.
