2×2 Lay-in-tile Ceiling Speaker with 8 inch Dual Cone Driver

Name: 2x2 Lay-in-tile Ceiling Speaker with 8 inch Dual Cone Driver
SKU: LT2-810-72-BB
Price: 187.58 USD
Availability: InStock

BKG MUSIC & PAGING – includes driver, 25/70V transformer, enclosure, grille

$187.58 MSRP

Model LT2-810-72-BB

Quick install 2x2 ceiling tile speaker features 8 in. dual cone driver, fine perforation grille, and .147 cu.ft. enclosure. 2x2 assembly.

Add to Favorites

Compare

Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
Transformer: Dual voltage 25V/70V transfomer with taps at .25, .5, 1, 2, 5W

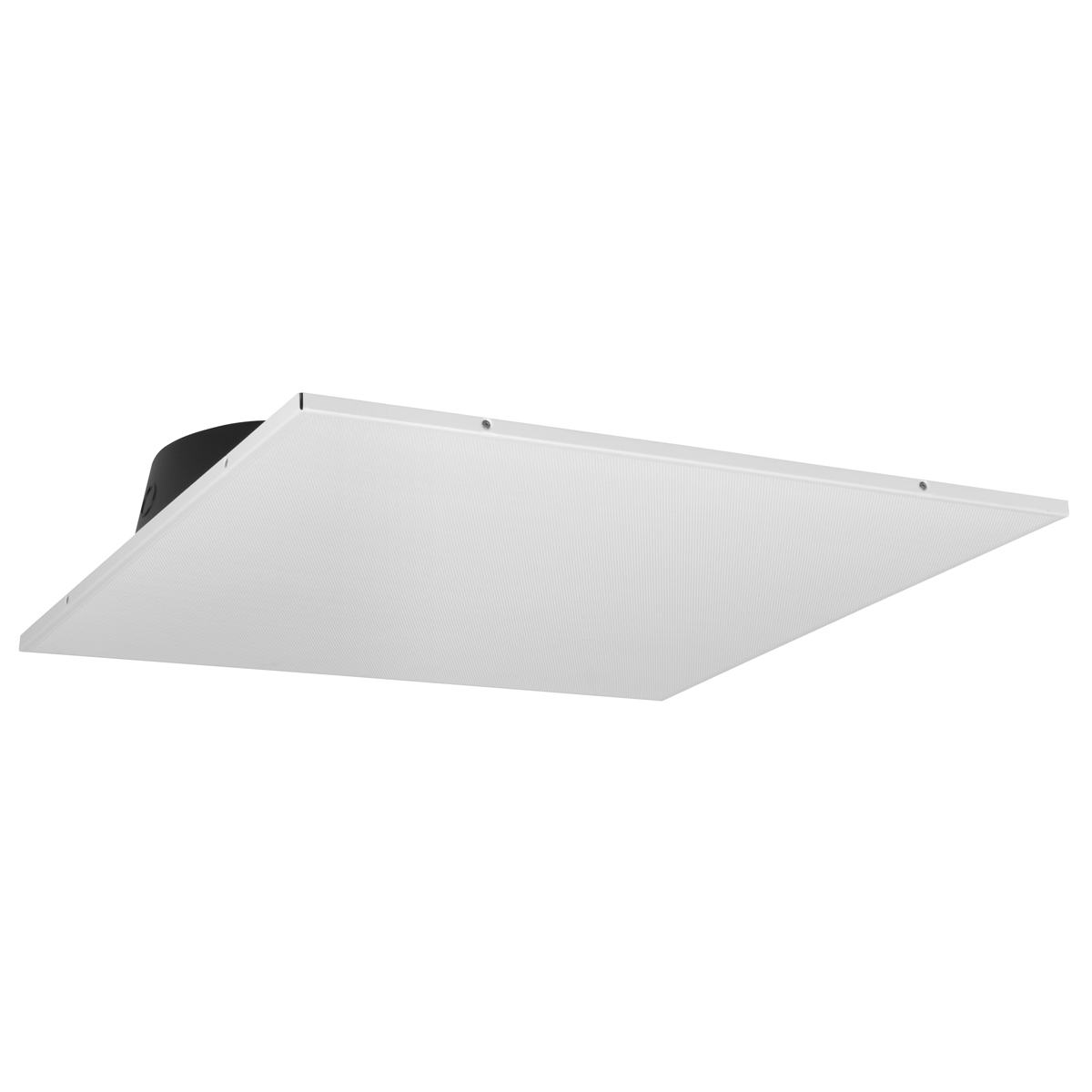

Grille with Subplate (2×2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

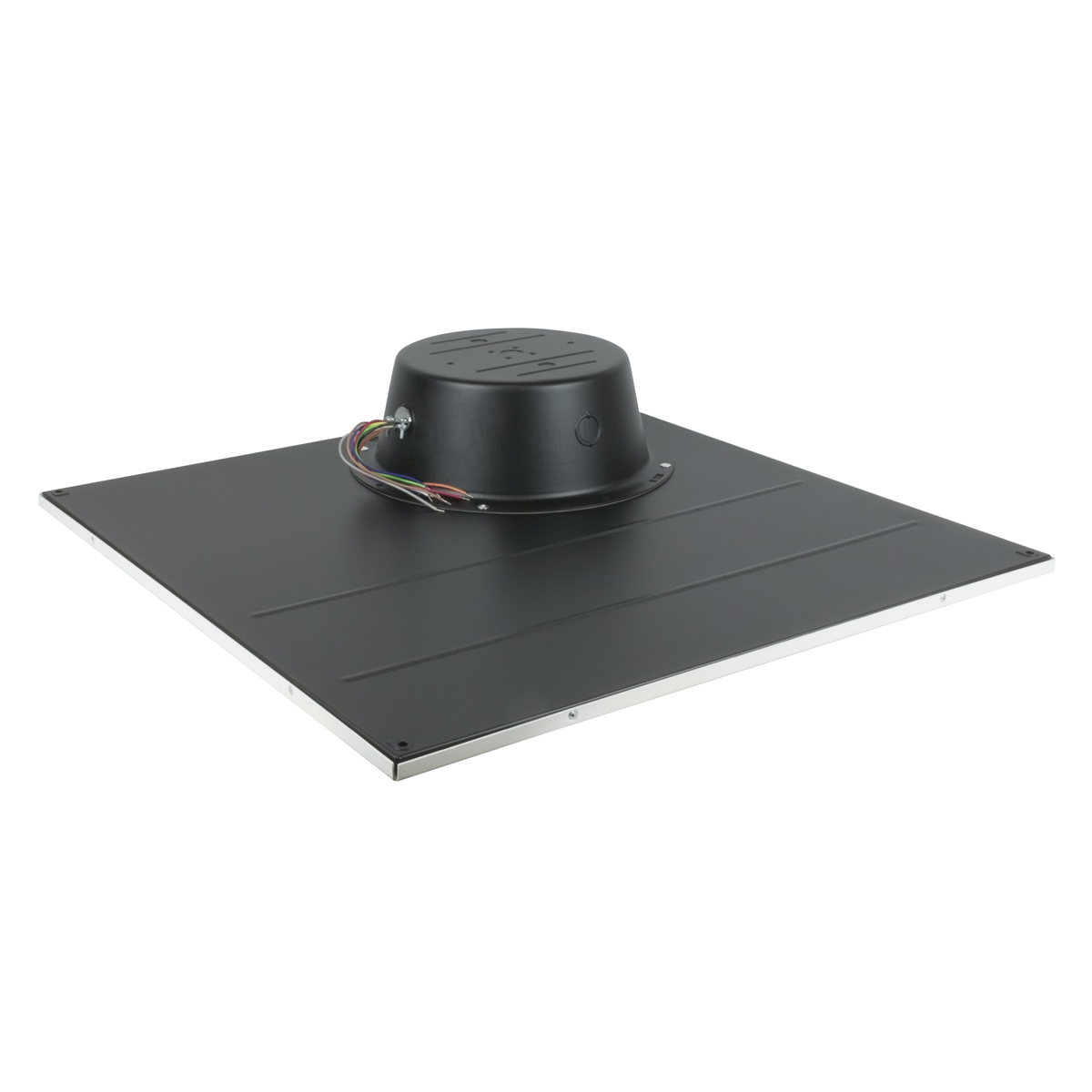

Enclosure (8XD4): .147 cu.ft. steel with speaker leads that exit through a metal clamp for fast connection. Black.
Mounting Aids: Restraint tabs.

Spec Sheet: 1385-LT281072BB
Revit Models: LT Series (Music/Paging)

Made in the U.S.A. with global components.
Note: Model is not third-party listed

The 2×2 ceiling tile speaker shall be Lowell Model No. LT2-810-72-BB. The 2’x2′ system shall directly replace a 2’x2′ ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a subplate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 inch dual cone with a power rating of 15W. It shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. The system shall include a steel backbox (.147 cu.ft.) with leads exiting through a metal clamp. The dual voltage transformer (25V/70V) shall feature primary taps at .25, .5, 1, 2 and 5W.
