Side 36" D Seismic Certified Gangable Rack

44U Seismic Gangable Rack

Name: 44U Seismic Gangable Rack
SKU: LSGR-4436
Price: 2921.00 USD
Availability: InStock

36"D x 23"W

$2,921.00 MSRP

Model LSGR-4436

Seismic-rated gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions, and including corner brackets in the base. Professional engineer certified for two categories of seismic qualifications: Life Safety/Essential Systems (Ip=1.5) and Anchorage by code (Ip=1.0). Includes recessed rear door with key lock.

Add to Favorites

Compare

Configurable top has 10U opening for 19 in. panels. Solid closure panels included.

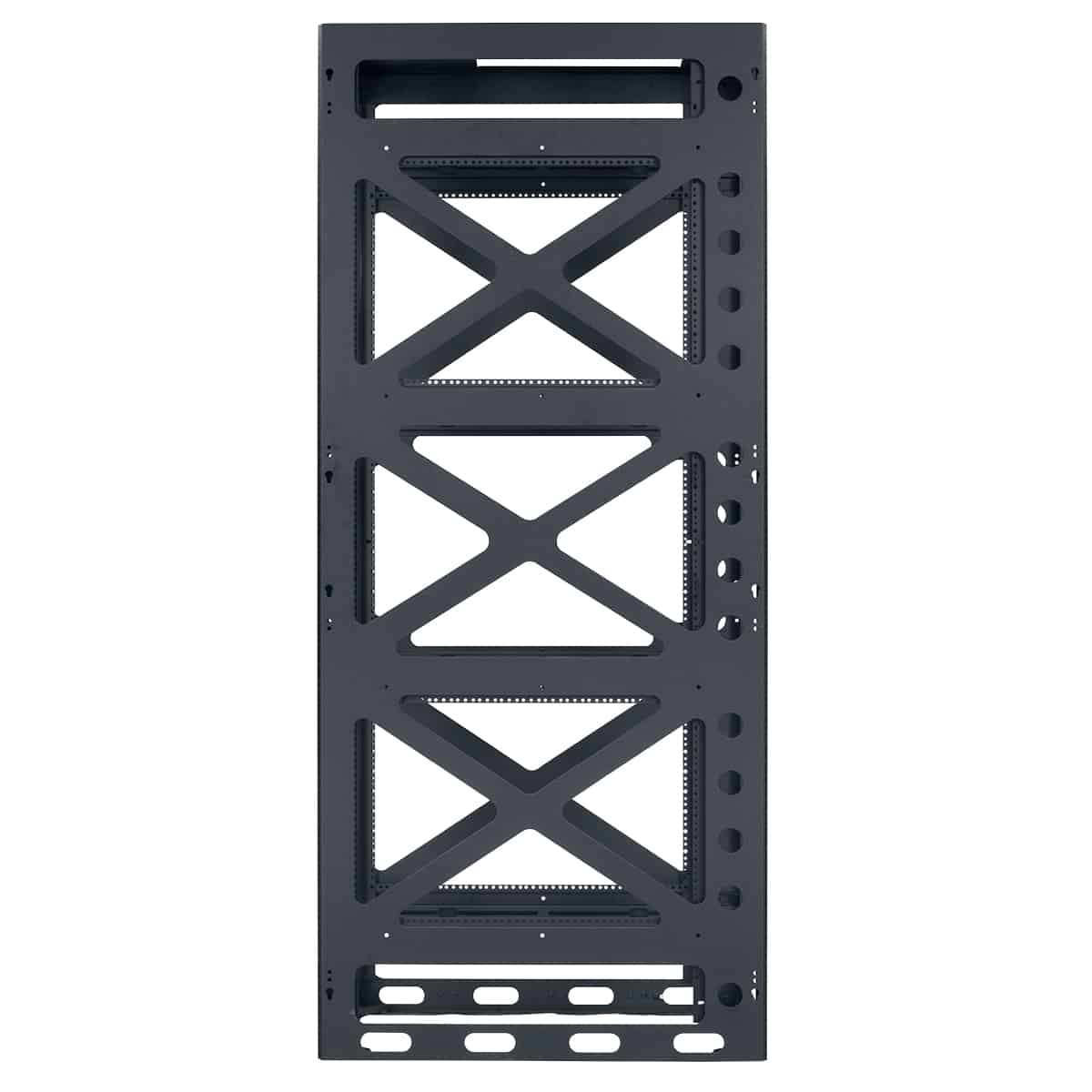

Open sides, X-frame construction, with multiple openings

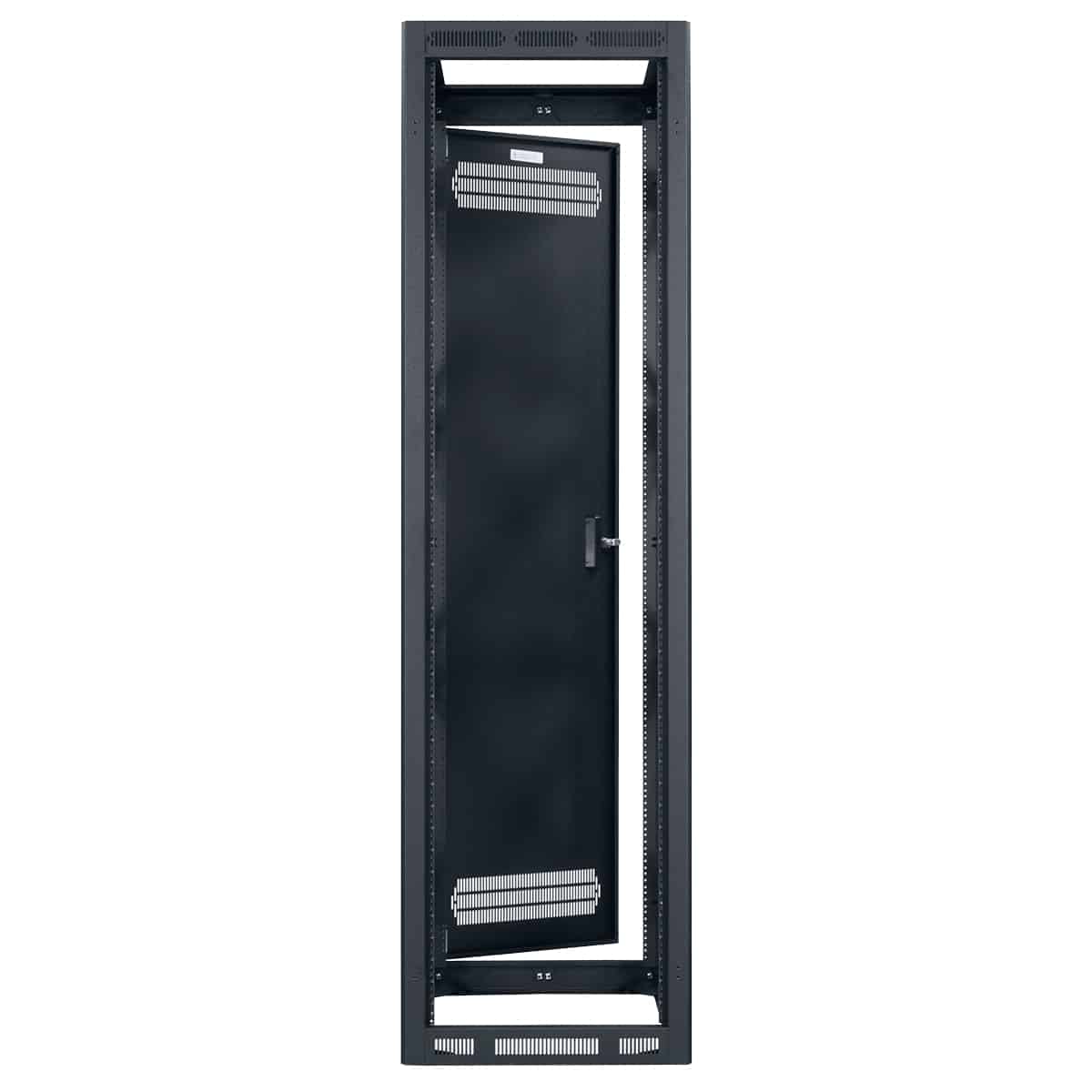

Open front (optional door)

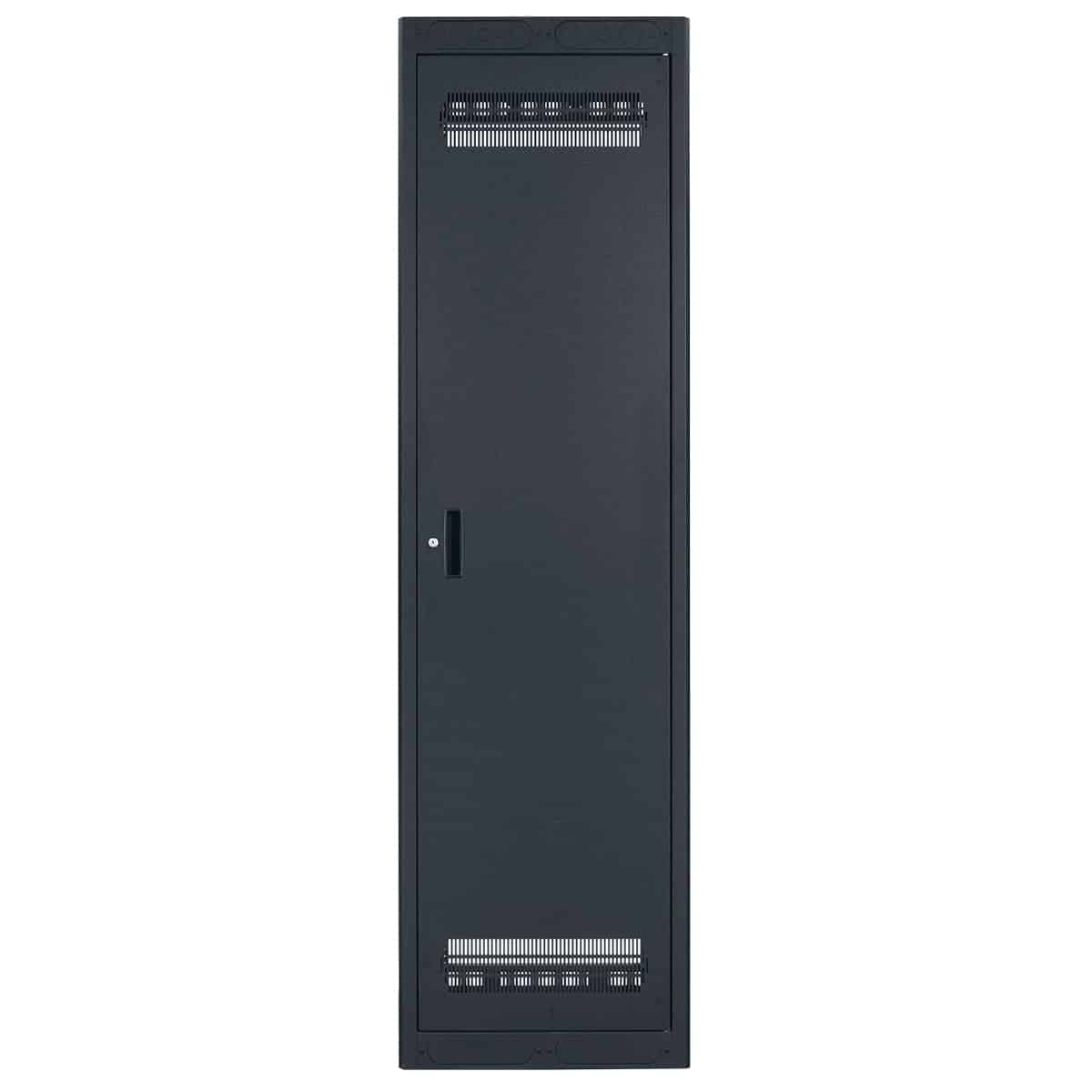

Rear door with top/bottom vents and key lock
Two-pair fully adjustable rails tapped 10-32 with RU scale
Cable Management: multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish
Includes P.E. Certified documentation

Rack Space: 44U
Height: 83.125 in.
Width: 23.06 in.
Depth: 36.00 in. (33.34 usable)
UL Listed load capacity: 3150 lbs.
Seismic-Certified load capacity: 900-1200 lbs. (see Technical Downloads)

Spec Sheet: 1490-LSGR4436
CAD drawings: LSGR-4436
International Building Code (2009 IBC)
California Building Code (2010 CBC)
California Office of Statewide Health Planning & Development (2010 OSHPD)

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.
P.E. Certified (Seismic Sec. 1613 — 2009 IBC, 2010 CBC; 2010 OSHPD)

The EIA/TIA/RoHS compliant, seismic-certified gangable rack shall be Lowell Model LSGR-4436 which shall include P.E. Certified documentation as specified in the 2009 International Building Code Section 1613, 2010 California Building Code Section 1613 and 2010 California’s Office of Statewide Health Planning and Development. Overall measurements shall be 83.125″H x 36″D x 23.06″W with panel space of 44 rack units. The rack shall include a recessed rear door with vents and key lock; top with 10U opening and compound knockouts; open base with grounding stud and holes for anchor bolts (not included); two pairs adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above rear door; blank project panels below rear door; and provisions to mount an optional surface-mount front door (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle textured powder epoxy finish. It shall be listed to UL 2416.

Thermal management
Cable management
Hardware
Front door: LFD-44 (solid) | LFD-44P (plexiglass) | LFD-44FV (full vent)
Side panels: SDP-4436
Rack rails: RRD-44 (44U)
