44U Seismic-rated Enclosed Rack

Name: 44U Seismic-rated Enclosed Rack
SKU: LSER-4427
Price: 1671.98 USD
Availability: InStock

27"D x 23"W

$1,671.98 MSRP

Model LSER-4427

The LSER seismic-certified standalone enclosure with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions and corner brackets in base. Professional engineer certified for two categories of seismic qualifications: Life Safety/Essential Systems (Ip=1.5) and Anchorage by code (Ip=1.0).

Add to Favorites

Compare

Configurable top with 7U opening for 19 in. panels (solid closure panels included)
Open base with corner weldments
Open front (optional door)

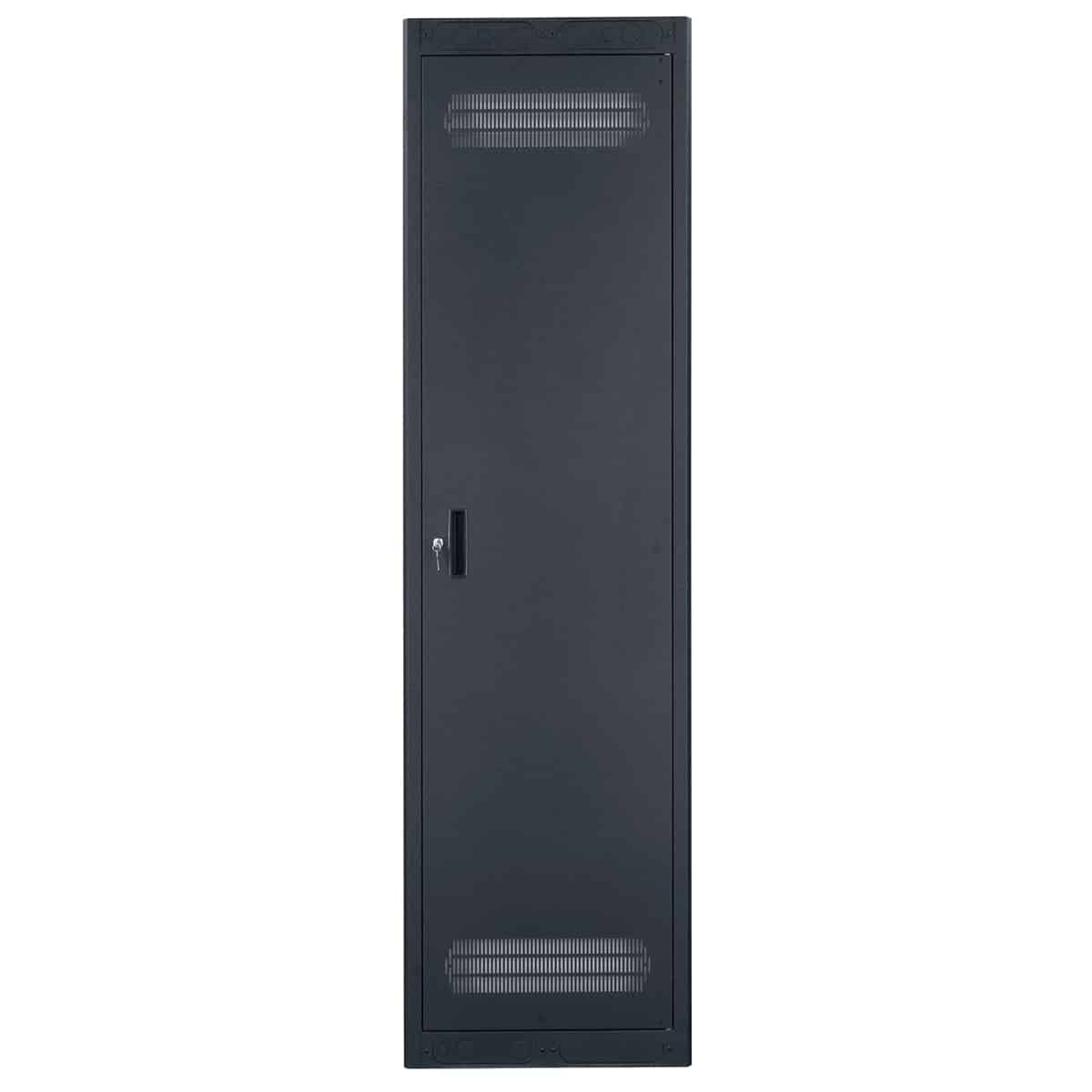

Recessed rear door with vents and key lock
One-pair fully adjustable rails tapped 10-32 (printed RU scale)
Cable Management: Multiple lacing points, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish
Includes P.E. Certified documentation

Rack Space: 44U
Height: 83.125 in.
Width: 23.06 in.
Depth: 27.00 in. (24.34 usable)
UL Listed load capacity: 3150 lbs.
Seismic-Certified load capacity: 900-1200 lbs. (See Technical Downloads)

Spec Sheet: 1481-LSER4427
CAD drawings: LSER-4427
International Building Code (2009 IBC)
California Building Code (2010 CBC)
California Office of Statewide Health Planning & Development (2010 OSHPD)

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.
P.E. Certified (Seismic Sec. 1613 — 2009 IBC, 2010 CBC, 2010 OSHPD)

The EIA/TIA/RoHS compliant floor rack shall be Lowell Model LSER-4427. Overall measurements shall be 83.125″H x 27″D x 23.06″W with panel space of 44 rack units. UL Listed load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock, welded side panels with vents, top with 7U opening and combination knockouts, open base with grounding stud and corner weldments, one pair adjustable front mounting rails with printed RU increments, combination knockout panels above rear door, blank panels below rear door, and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle textured powder epoxy finish. It shall be UL Listed to UL2416 and shall meet or exceed requirements for Category 1 (Anchorage) and Category 2 (Anchorage & Rack) as specified in International Building Code (IBC, 2009, section 1613), California Building Code (CBC, 2010, section 1613), and California Office of Statewide Health Planning and Development (OSHPD, 2010). The rack shall include P.E. certified documentation.

Thermal management:
Cable management
Hardware
Front door: LFD-44 (solid) | LFD-44P (plexiglass) | LFD-44FV (full vent)
Rack rails: RRD-44 (44U)
