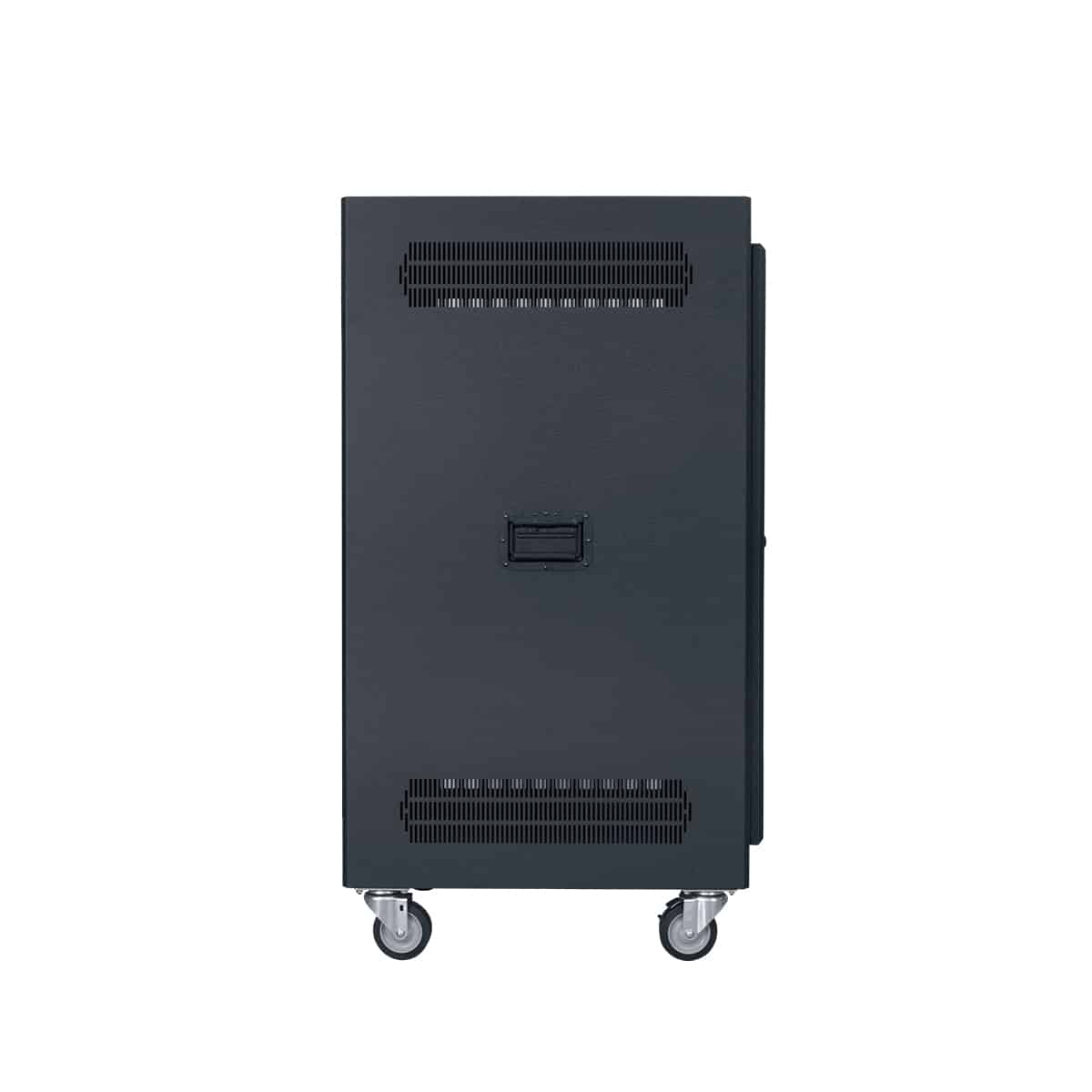

21U Portable Rack w/Solid Front Door

Name: 21U Portable Rack w/Solid Front Door
SKU: LPR-2127
Price: 1389.72 USD
Availability: InStock

27"D x 23"W

$1,389.72 MSRP

Model LPR-2127

The fully welded mobile rack is 16-gauge steel construction with 14-gauge base, reinforced at all load-bearing junctions. The practical design includes a solid steel front door with key lock. It's well-suited to mount and secure electronics in educational, institutional and professional settings.

Add to Favorites

Compare

Solid steel top and base with 4 heavy duty swivel casters
Welded sides with top/bottom vents, recessed handles
Solid steel front door with key lock (vents above/below door)
Steel rear door with top/bottom vents, key lock
One pair adjustable mounting rails tapped 10-32
Removable knockout panels in rear with combination knockouts
Black wrinkle textured powder epoxy finish

Rack Space: 21U
Height: 42.875 in. (without casters)
Width: 23.06 in.
Depth: 27.00 in. (24.34 usable)
Load Capacity: 900 lbs.

Spec Sheet: 1532-LPR2127
CAD drawings: LPR-2127

EIA/TIA compliant
RoHS compliant
UL 2416 Listed
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA compliant, UL 2416 Listed, 19″ portable equipment rack shall be Lowell Model No. LPR-2127, which shall be constructed of 16-gauge U.S. steel with 14-gauge steel bottom, reinforced at all load-bearing junctures. It shall measure 42.875″H (without casters) x 27″D x 23.06″W and provide 21 rack units of panel space. It shall include one-pair swivel and one-pair swivel/locking casters which shall be field installed and increase rack height 5.13″. Total load rating shall be 900 lbs. The rack frame shall have vents above and below the solid steel surface-mount front door, which shall have an integral handle and key lock. The rack shall feature vented side panels with recessed handles, vented recessed rear door with key lock and one-pair of adjustable mounting rails tapped 10-32. The rear shall feature removable knockout panels above and below the door with knockouts for BNC wireless antenna (0.5″), compound knockouts for conduit (.75–.50″ and 1.5–1.0″), and a blank project panel. Finish shall be black wrinkle textured powder epoxy.

Thermal management
Cable management
Hardware
Rack rails: RRD-21 (21U)
Rear knockout panel for NEUTRIK®* connectors: KOP-N
