10U Pull-Out Rack

Name: 10U Pull-Out Rack
SKU: LPOR2-1019
Price: 859.46 USD
Availability: InStock

19"D X 19"W

$859.46 MSRP

Model LPOR2-1019

An ideal rack to mount in cabinets or millwork, the LPOR pull-out rack has a top section that slides forward on rails into the base, to provide easy access to equipment and cables. The 14-gauge steel base and 11-gauge corner post rails have a smooth black powder epoxy finish. Includes a front security panel that secures with screws. Ships unassembled.

Add to Favorites

Compare

11-gauge steel corner post mounting rails tapped 10-32 (10U front, 7U rear)
14-gauge steel base
Two bottom rail slides (for loads to 125 lbs.)
Three cable lacing bars
Front security panel screws into position
Smooth black powder epoxy finish

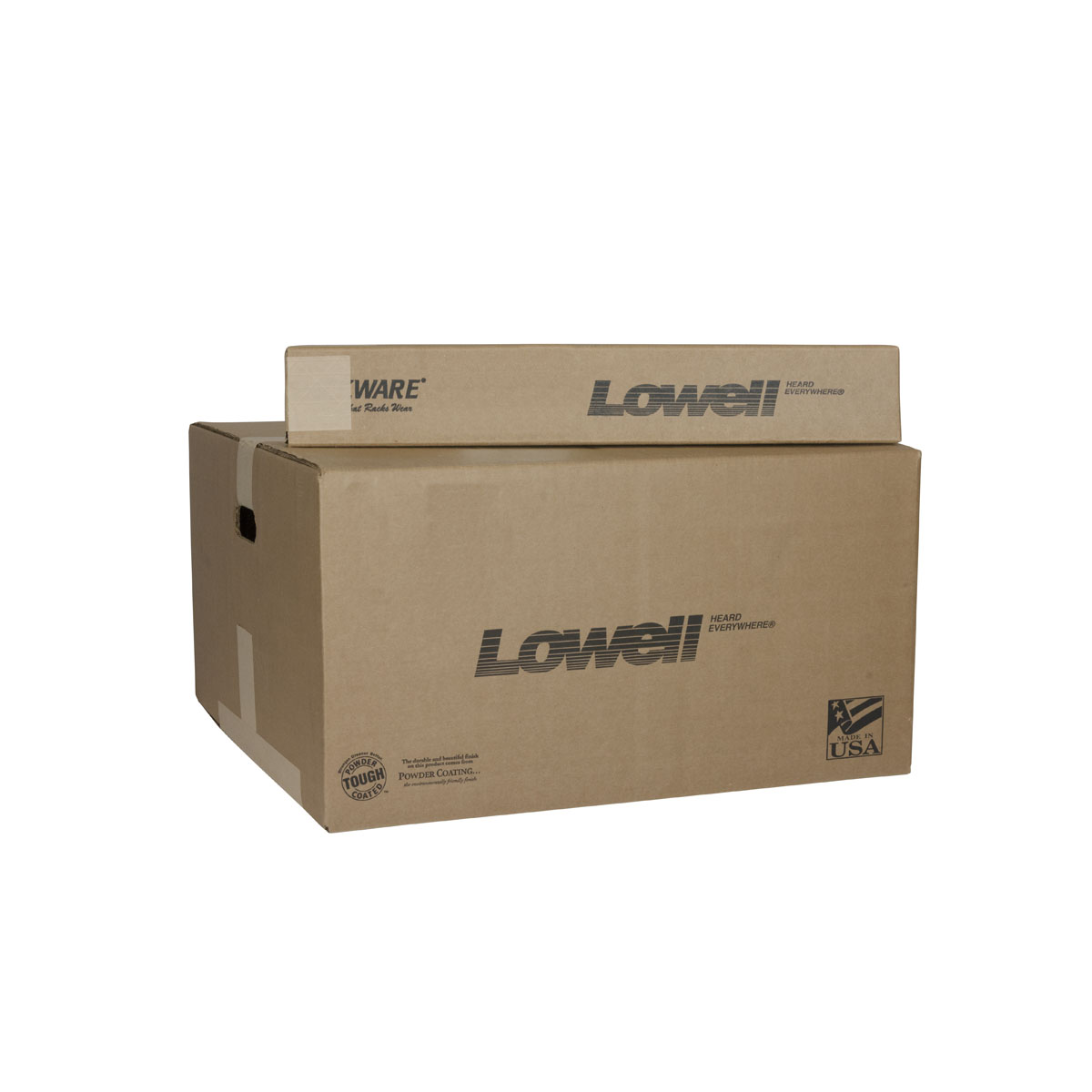

Ships unassembled (two cartons)

Rack Space: 10U
Height: 19.37 in.
Width: 19.06 in.
Depth: 19.22 in.
Load Capacity: 125 lbs.

Spec Sheet: 1653-LPOR21019
CAD drawings: LPOR2-1019

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The rack for built-in use shall be Lowell Model LPOR2-1019 which shall measure 19.06”W x 19.22”D x 19.37”H and provide 10 rack units of panel space (10U front rails, 7U rear rails). The rack shall be made with certified U.S. steel and feature a 14-gauge steel base and 11-gauge steel mounting rails tapped 10-32. The base shall feature two heavy duty rails which shall allow the rack to slide forward while supporting a load up to 125 lbs. The rack shall include three cable lacing bars in the rear and a front security panel which shall mount with screws to deter slide-out access to equipment as needed for security. The rack shall have a smooth black powder epoxy finish and ship unassembled in two cartons.
