Plastic Screw-mount Grille

Name: Plastic Screw-mount Grille
SKU: LO8-P
Price: 10.60 USD
Availability: InStock

For 8 inch driver

$10.60 MSRP

Model LO8-P

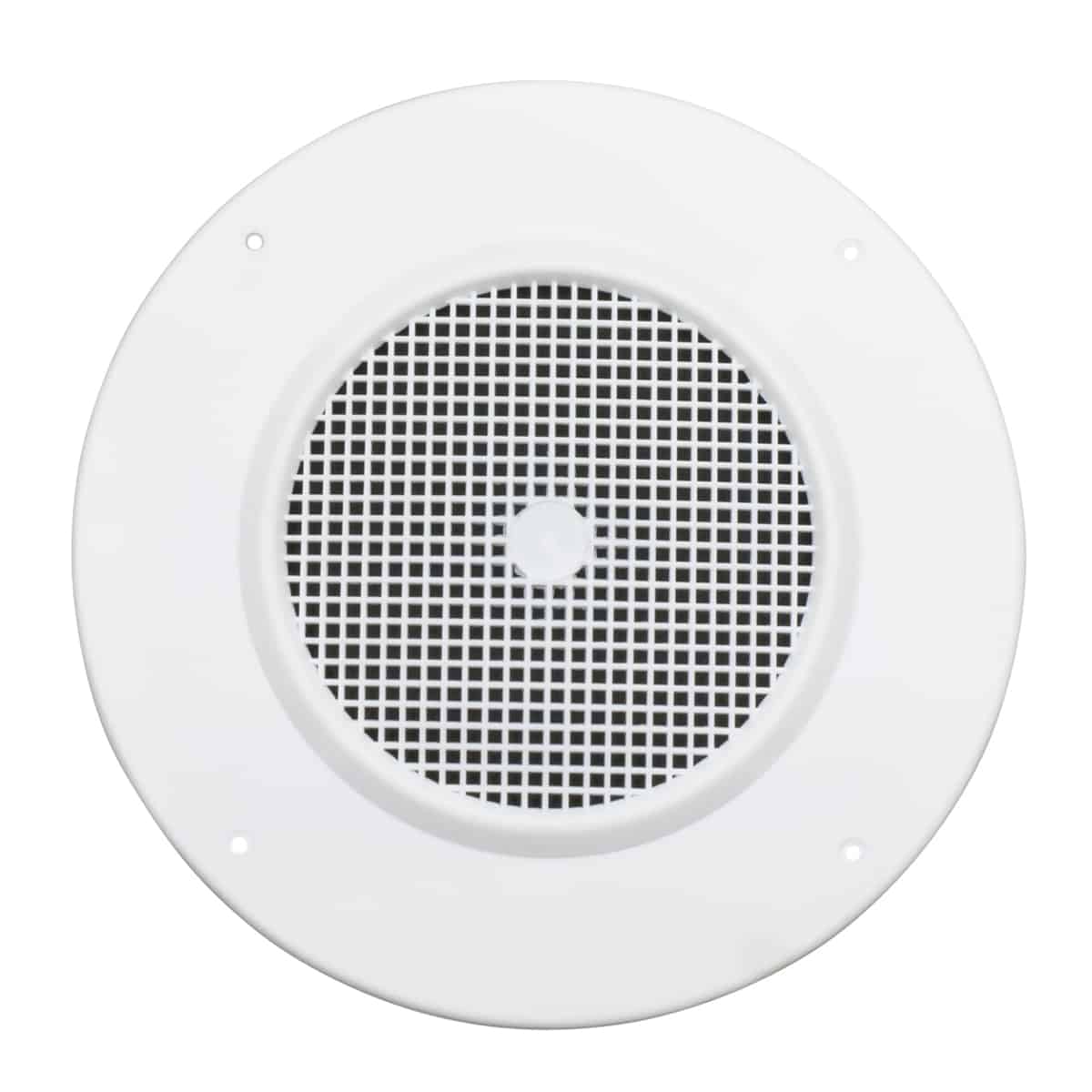

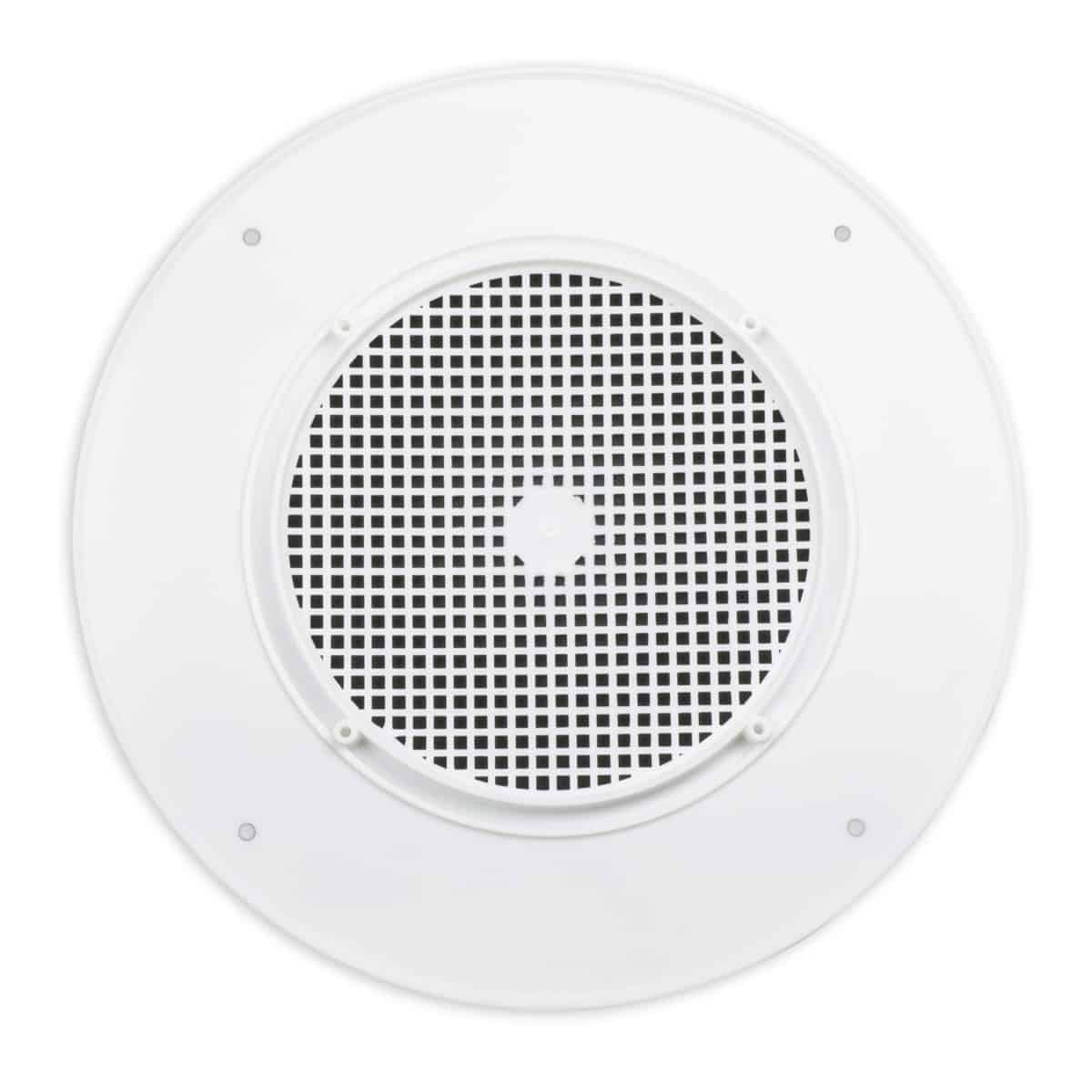

High impact polystyrene plastic speaker grille with flush trim ring, round interior rim and honeycomb center provides 60% open area for maximum sound transmission. For use with 8 inch driver.

Add to Favorites

Compare

Style: Screw-mount
Material: High-impact polystyrene plastic. White.
Mounting Bolt Circle: 11.25 in. diameter
Overall Dimensions: 12.625 in. diameter
Mounting Projection: 0.437 in.
Mounting Provisions: 4 screws (white), 4 bosses/screws

Spec Sheet: 1682-LO8P

Made in the U.S.A.

The plastic speaker grille for 8 inch speakers shall be Lowell Model LO8-P. The grille shall be molded high-impact, polystyrene plastic with a flush trim ring and a round honeycomb perforation pattern. The grille diameter shall be 12.625 in. with a mounting projection from the ceiling of 0.437 in. The grille shall have four concealed screw bosses spaced at 90-degree intervals for mounting the specified 8 in. speaker using self-tapping screws provided. It shall also have four 0.25 in. holes spaced at 90 degree intervals on a 11.25 in. bolt circle for mounting specified backbox or mounting ring using white screws provided. Model LO8-P shall be white plastic suitable for painting.

Backboxes: CP84, CP87, CP810, DX108, XCP84, XCP84-S, XCP87, XCP810, 8XD4, 8PSBX, BME84, BME87, 8XD4-S, 8XD4-P
Tile-Bridges: LBS8, LBS8-CP, LBS8-RI

Drivers (8 in.): 810, 8A50, 8C10MRB, CT830A
