35U Host Rack

Name: 35U Host Rack
SKU: LHR-3542
Price: 1800.00 USD
Availability: InStock

42"D x 24"W

$1,800.00 MSRP

Model LHR-3542

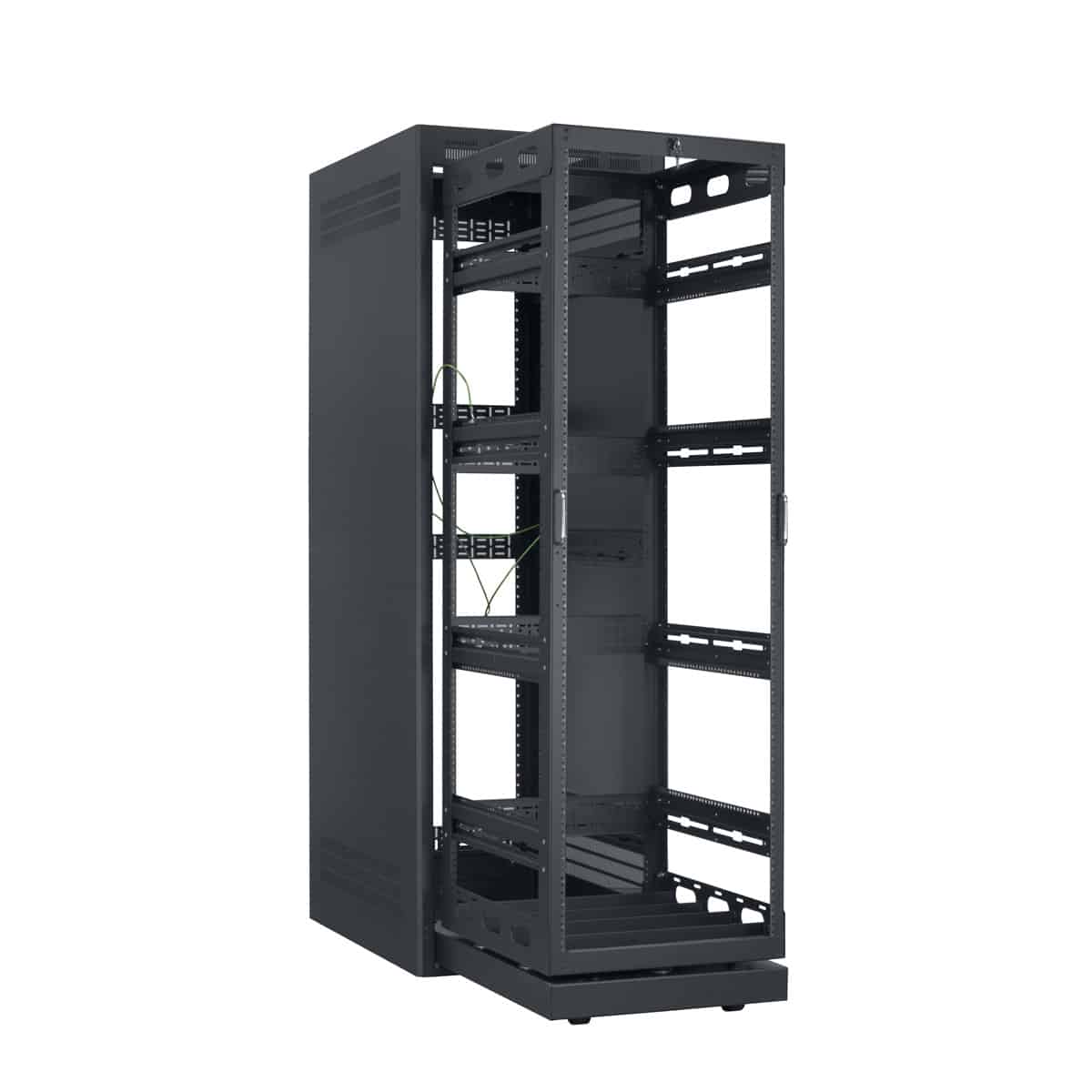

Standalone floor rack features two parts---an exterior cabinet with welded sides and an interior rollout/rotating rack that can be disengaged for shop wiring. Fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions. (Note: Retired size — limited availability)

Add to Favorites

Compare

Configurable top with 10U opening. Solid closure panels included.
Welded sides with vents
Open front and back (optional door and rear access cover)
Open base
Green ground wire (cabinet to interior rack)
Four lacing panels
Side supports for optional accessories
Pilot Point screws with captive washers
Provisions for anchoring
Beveled corners
Black wrinkle powder epoxy finish

69.45 in. H (44U)
34 in. D (36 in. usable space allows equipment to extend 2 in. beyond rack depth)
Maximum rollout 35.00 in. (77.875 in. overall rollout depth)
Corner post mounting rails tapped 10-32 with RU increments marked
Inner platform base with casters and stainless steel ball transfers
Four lacing panels
Installation: Allow 3.5 inch minimum clearance on both sides for rotation

Rack Space: 35U
Height (Exterior Cabinet): 73.27 in.
Width (Exterior Cabinet): 24.00 in.
Depth (Exterior Cabinet): 42.875 in. (36 usable)
Load Capacity: 750 lbs.

Spec Sheet: 1674-LHR3542
Revit models: LHR Series

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The two-part host style rack shall be Lowell Model LHR-3542 which shall be made in the U.S.A. with certified U.S. steel and have overall measurements of 73.27”H x 24.00”W x42.875”D with panel space of 35 rack units and useable depth of 36.00”. It shall be comprised of an external welded steel cabinet and an internal pull-out rack that is connected to an inner platform caster base with stainless steel ball transfers capable of supporting 750 lbs. The external cabinet shall have vented sides, open front, open back, four rear lacing panels, 10U EIA top opening with solid closure panels, and top knockouts for conduit and wireless antennas. It shall have a black wrinkle powder epoxy finish, provisions for anchoring, and a ground wire to the internal rack. The internal rack shall be a steel assembly with corner post mounting rails tapped 10-32, four rear lacing panels, and side/rear braces. It shall be mounted to the caster base and pull-out smoothly from the cabinet to provide free rotation to rear connections. The internal rack/caster base assembly shall be capable of disengaging from the external cabinet for shop wiring and testing.

Thermal management
Cable management
Hardware
Front door: LHR-FD35 (solid) | LHR-FD35P (plexiglass)
Rear access cover: LHR-RAC35
Rear rails: LHR-RRT-35 (35U)
