35U Host Rack

Name: 35U Host Rack
SKU: LHR-3532
Price: 2737.34 USD
Availability: InStock

32"D x 24"W

$2,737.34 MSRP

Model LHR-3532

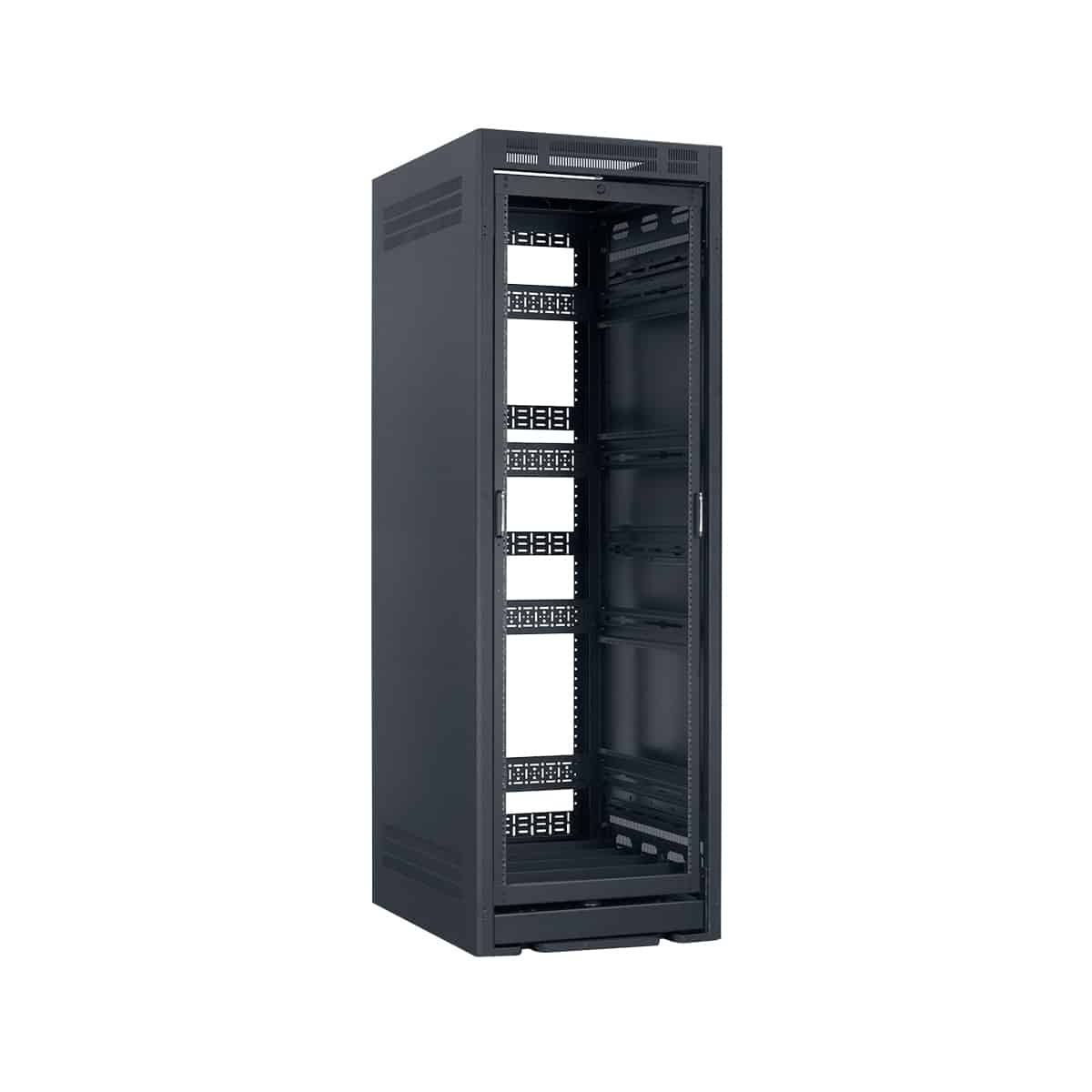

The LHR two-part rack includes a fully welded cabinet and an interior rollout rack that rotates to access equipment and connections, a design that’s well suited for back-to-back or against-the-wall installations. The inner rack and its platform base can disengage from the cabinet for shop wiring.

Add to Favorites

Compare

Configurable top with 10U opening. Solid closure panels included.
Welded sides with vents
Open front and back (optional door and rear access cover)
Open base
Green ground wire (cabinet to interior rack)
Four lacing panels
Side supports for optional accessories
Pilot Point screws with captive washers
Provisions for anchoring
Beveled corners
Black wrinkle textured powder epoxy finish
Corner post mounting rails tapped 10-32 with RU increments marked
Inner platform base with casters and stainless steel ball transfers
Lacing panels
Installation: Allow 3.5 in. minimum clearance on both sides (for rotation)

Rack Space: 35U
Height (Exterior Cabinet): 73.27 in.
Width (Exterior Cabinet): 24.00 in.
Depth (Exterior Cabinet): 32.875 in. (26.00 usable)
Interior Rack Depth: 24 in. (26 in. useable allows equipment to extend 2 in. beyond rack)
Maximum rollout 25.00 in. (57.875 in. overall rollout depth)
Load capacity 750 lbs.

Spec Sheet: 1672-LHR3532
CAD drawings: LHR-3532
Revit models: LHR Series

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The two-part host style rack shall be Lowell Model LHR-3532 which shall be made in the U.S.A. with certified U.S. steel and have overall measurements of 73.27″H x 24.00″W x 32.875″D with panel space of 35 rack units and useable depth of 26.00″. It shall be comprised of an external welded steel cabinet and an internal pull-out rack that is connected to an inner platform caster base with stainless steel ball transfers capable of supporting 750 lbs. The external cabinet shall have vented sides, open front, open back, four rear lacing panels, 10U EIA top opening with solid closure panels, and top knockouts for conduit and wireless antennas. It shall have a black wrinkle powder epoxy finish, provisions for anchoring, and a ground wire to the internal rack. The internal rack shall be a steel assembly with corner post mounting rails tapped 10-32, four rear lacing panels, and side/rear braces. It shall be mounted to the caster base and pull-out smoothly from the cabinet to provide free rotation to rear connections. The internal rack/caster base assembly shall be capable of disengaging from the external cabinet for shop wiring and testing.

Thermal management
Cable management
Hardware
Front door: LHR-FD35 (solid) | LHR-FD35P (plexiglass)
Rear access cover (opens from top): LHR-RAC35
Rear rails: LHR-RRT-35 (35U)
