12U Half-width Rack

Name: 12U Half-width Rack
SKU: LHFR-1214
Price: 413.20 USD
Availability: InStock

14"D x 10.7"W

$413.20 MSRP

Model LHFR-1214

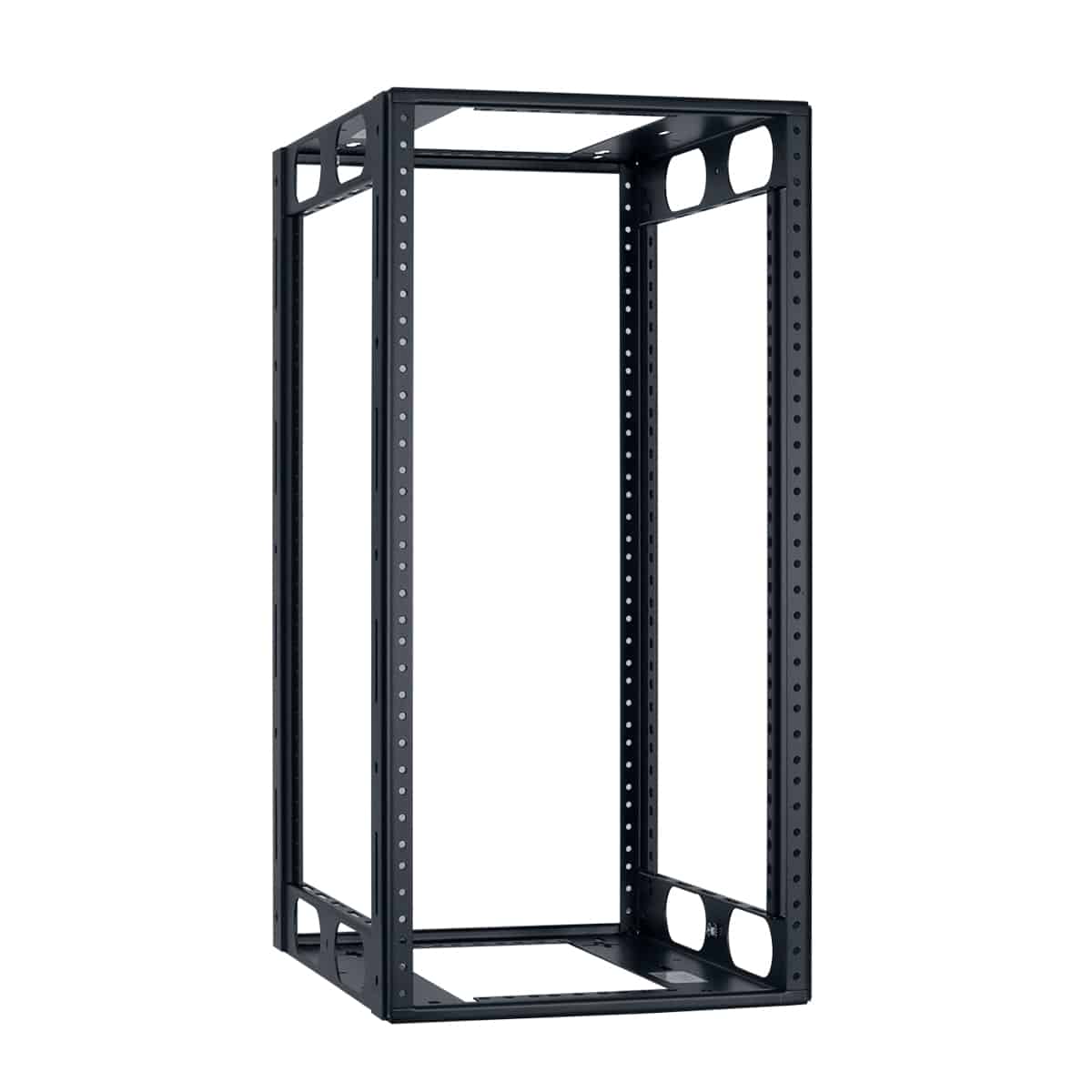

Fully welded steel open frame for half-rack systems and non-standard electronics has a unique design that allows equipment to mount in front, back, or sides. Includes multiple slots and holes for cable management.

Add to Favorites

Compare

16-gauge steel frame
Fixed mounting rails tapped 10-32 on front/back/sides
Multiple holes/slots for cable management
Grounding studs
Smooth black powder epoxy finish
Ships ready to install

Rack Space: 12U
Height: 21.94 in.
Width: 10.69 in.
Depth: 14.00 in.
Load Capacity: 125 lbs.

Spec Sheet: 1526-LHFR1214
CAD drawings: LHFR-1214

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The half-width rack shall be Lowell Model LHFR-1214. Dimensions shall be 21.94 in. high x 14 in. deep x 10.69 in. wide with 12U panel space. The rack shall be welded, certified US steel construction with 16-gauge top/bottom and 11-gauge front, rear, side, top, and bottom fixed rails tapped 10-32 on EIA spacing. The rack shall include top mounting holes to enable installation underneath a desk or counter, and multiple holes for cable and wire management. Finish shall be smooth black powder epoxy.

Hardware
HALF-RACK FAN PANEL: FDC4-1HR
HALF-RACK UTILITY SHELF: UVSH Series
HALF-RACK BLANK PANEL: SEPH Series
HALF-RACK VENTED PANEL: SVSPH Series
