15W Re-entrant Horn

Name: 15W Re-entrant Horn
SKU: LH-15TA
Price: 219.60 USD
Availability: InStock

IP66 option

$219.60 MSRP

Model LH-15TA

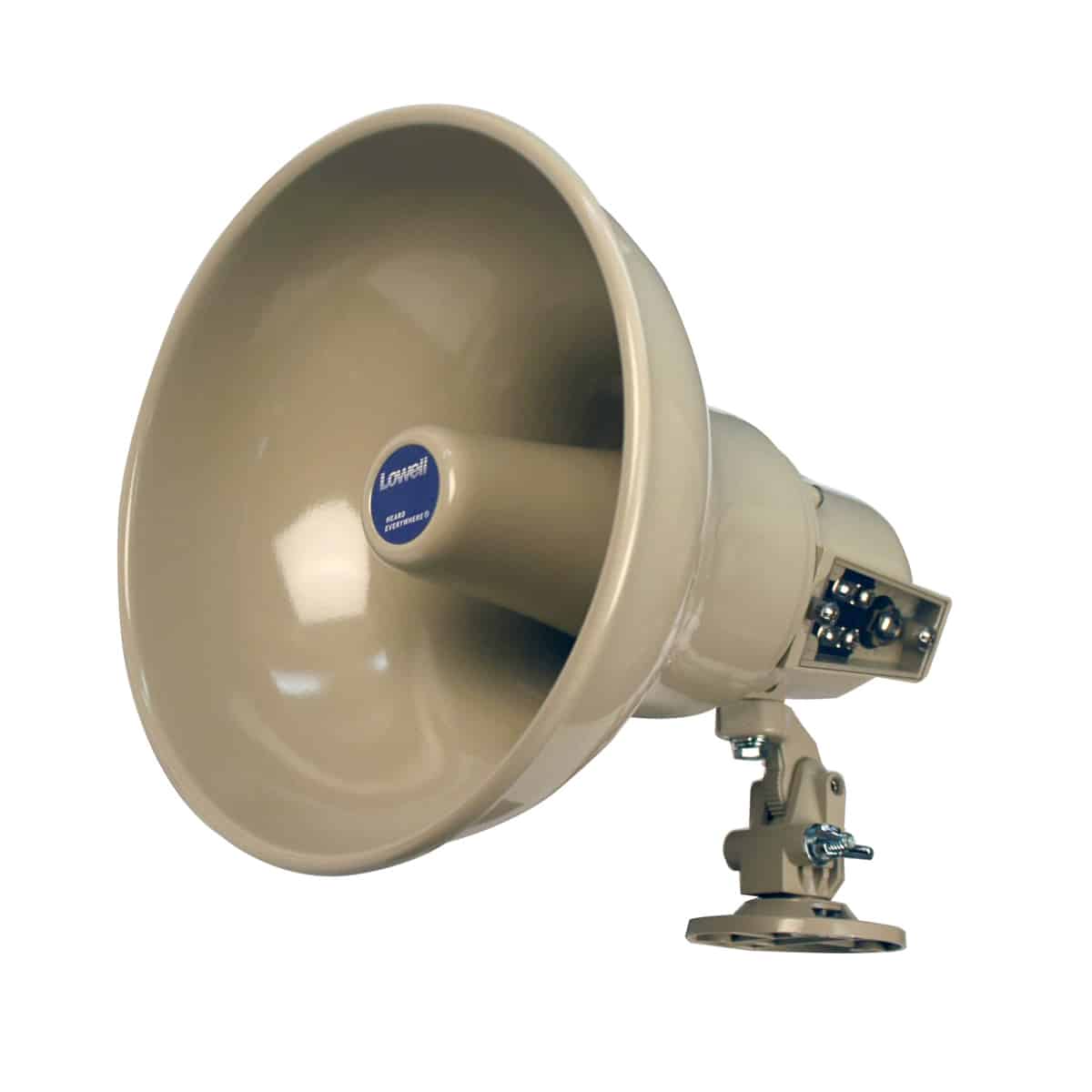

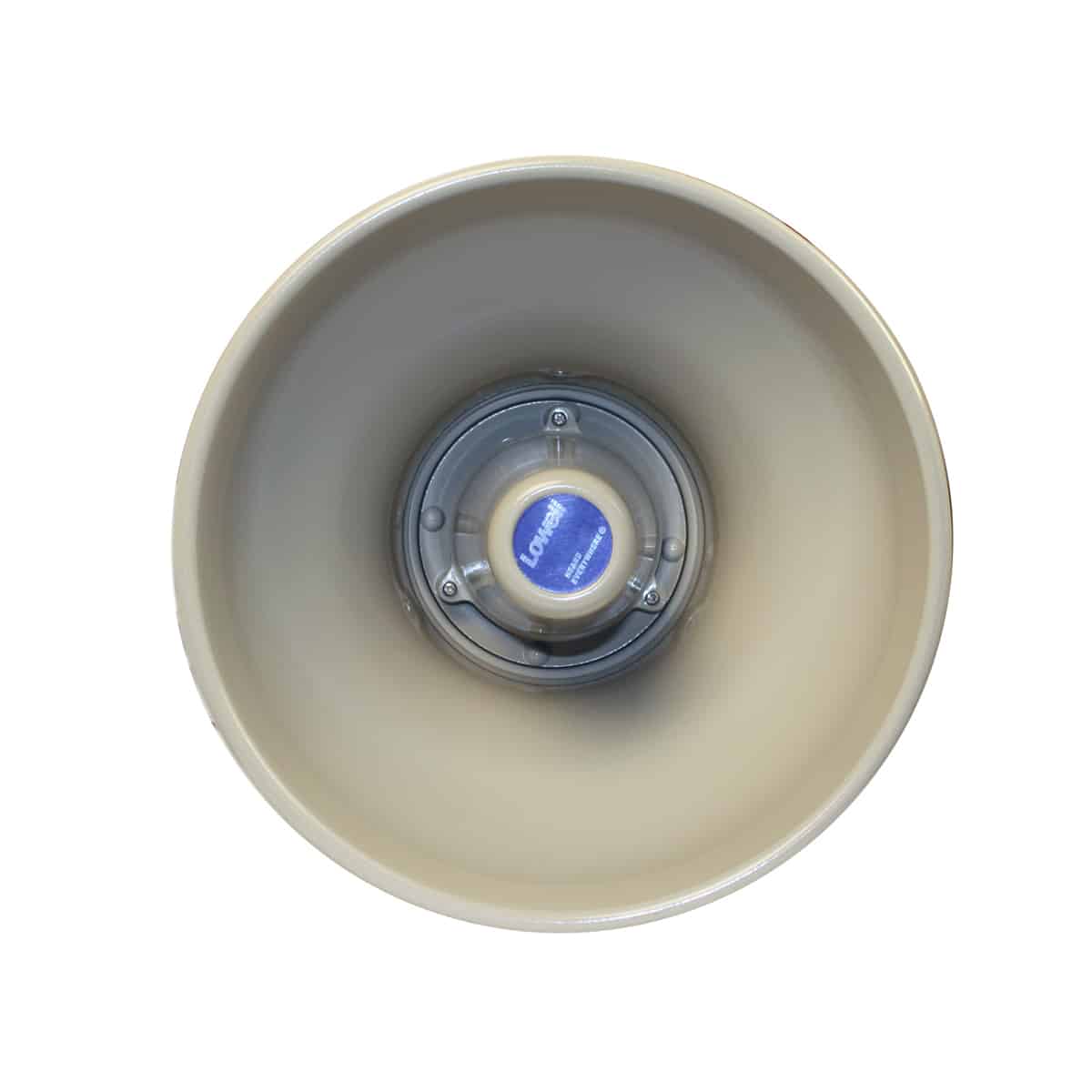

Double re-entrant horn with high efficiency 15W compression driver for clear voice paging and tone signaling is designed for indoor or outdoor use. It's made for applications requiring signaling or public address with high intelligibility such as schools, recreational facilities, warehouses, distribution centers, parking facilities and commercial buildings. All-metal construction with beige epoxy finish. Optional wiring compartment cover for IP66 rating.

Add to Favorites

Compare

Performance: Clear loud paging and tone signaling
Driver: 15W compression

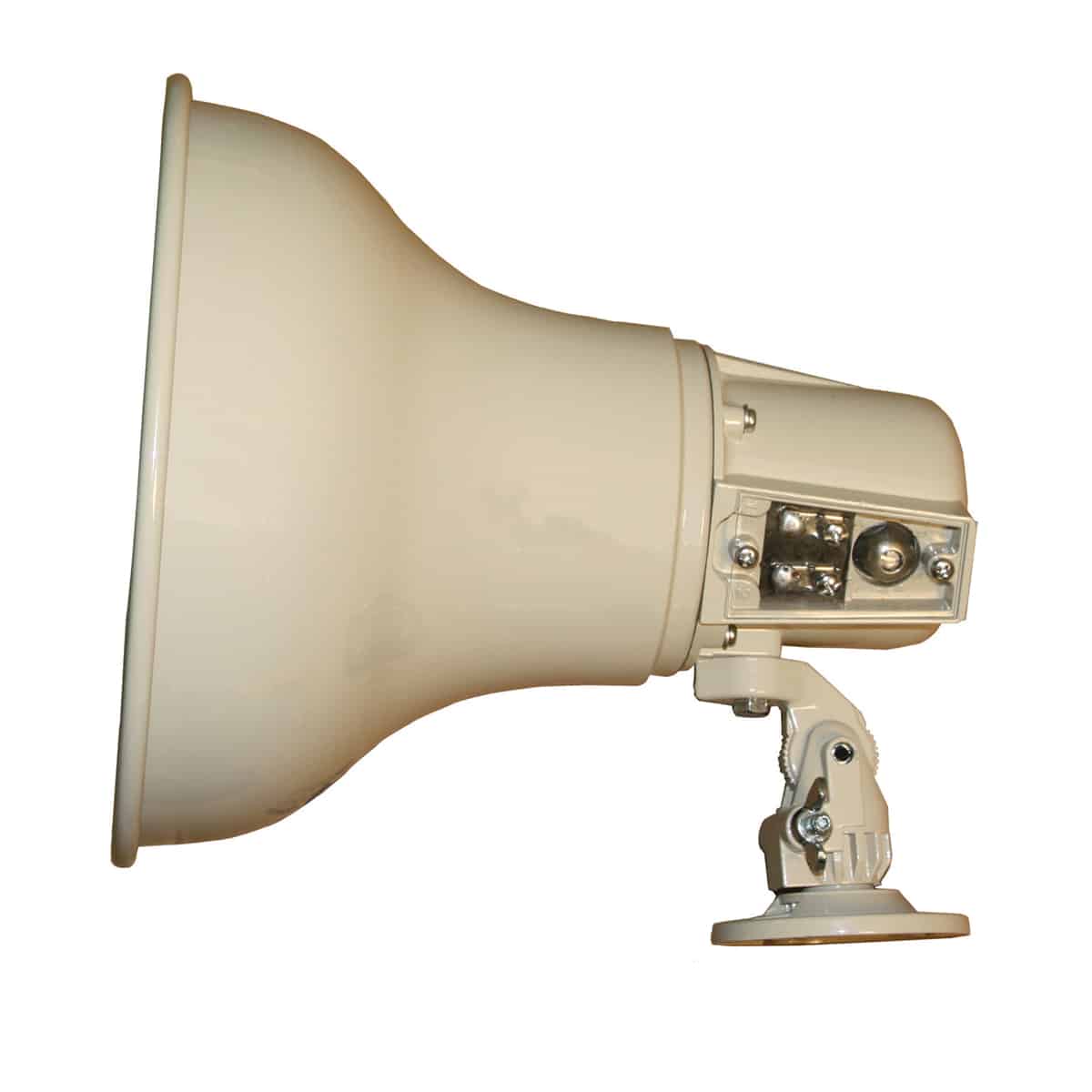

Transformer: For 25V, 70V or 100V systems. Screwdriver-adjustable tap selector and screw terminal connections in rear. Integral strain relief and plastic cover.
Enclosure: Weather-resistant assembly is all-metal construction with durable beige epoxy finish.
Mounting Aids: Universal swivel mounting bracket
Ships ready for installation

Diameter: 8.94 in
Depth: 9.38 in.
Installation: Indoor/outdoor, surface-mount with two-wire hook-up to rear access screw terminals
Operating Temperature Range: -40˚F to 158˚F
Average Sensitivity (1W/1M): 112.2dB

Spec Sheet: 1169-LH15TA

RoHS
IP66 rated (IEC 60529) for water/dust-resistance when optional wiring compartment cover is added (see options below)

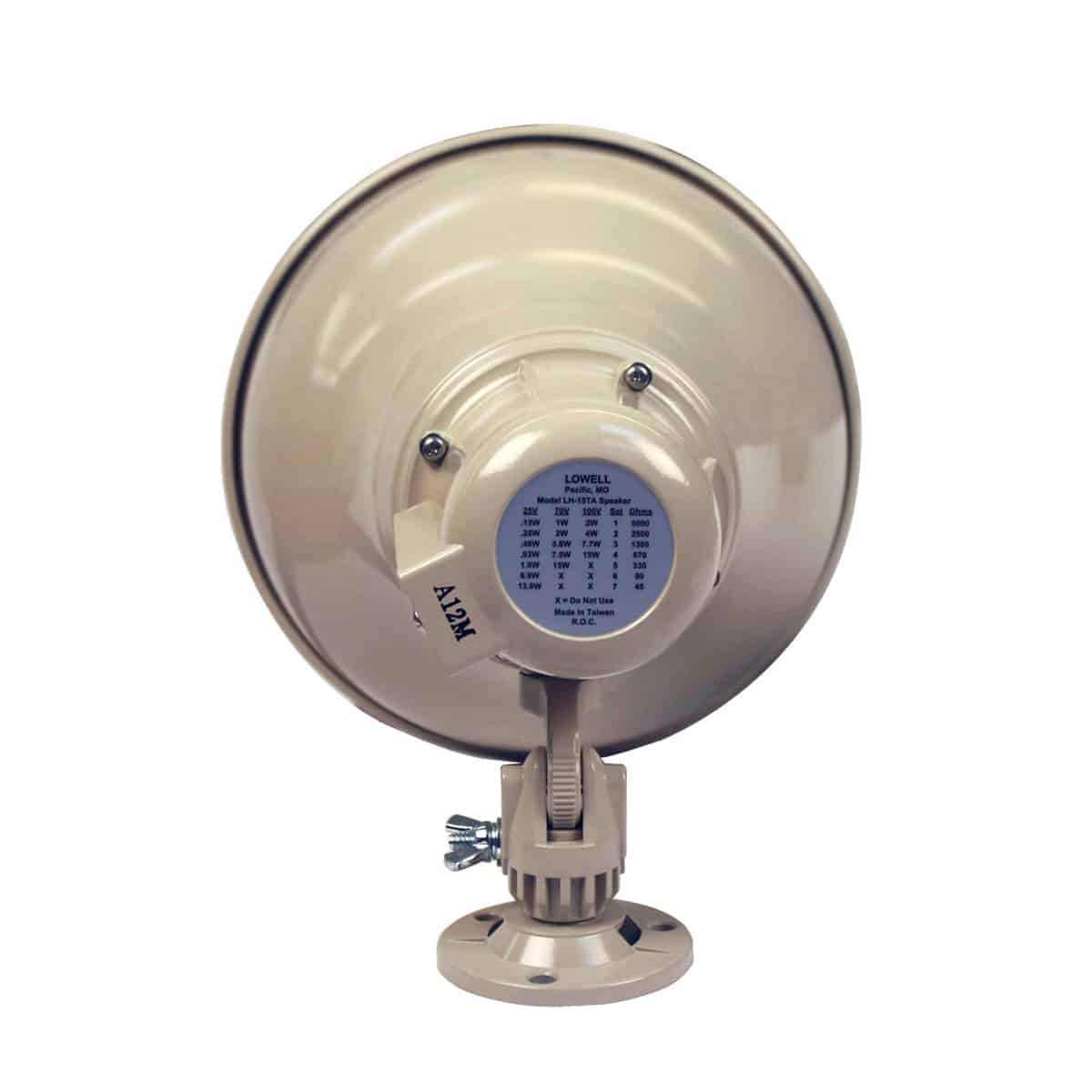

The horn shall be Lowell Model LH-15TA, which shall be a double reentrant design with a high efficiency 15W compression driver, round bell and universal swivel-style base. Power rating shall be 15 watts continuous. Frequency response shall be 537Hz-4.5kHz (±6dB) with a sensitivity of 112.2dB log average (1W/1M) 124.0dB maximum SPL (calculated based on power rating and measured sensitivity). Dispersion shall be 50 degrees conical (2kHz Octave Band). Impedance shall be 5000, 2500, 1300, 670, 330, 90, 45 ohms. Horn shall include a 25/70/100V transformer with screwdriver selectable taps. Taps for 25V use shall be: .13, .25, .48, .93, 1.9, 6.9, and 13.9W. Taps for 70V use shall be: 1, 2, 3.8, 7.5, and 15W. Taps for 100V use shall be: 2, 4, 7.7 and 15W. Transformer connections shall be protected by a plastic cover with strain relief. The horn assembly shall measure 8.94 in. dia. x 9.38 in. deep and shall be weather-resistant metal construction painted in corrosion-resistant beige epoxy.

LHA-15C: Wiring compartment cover threaded conduit fitting (for IP66 rating)
LHA-15G: Wiring compartment cover waterproof grommet strain relief for cable (for IP66 rating)
