54U Gangable Tall Rack “Less Rear Door”

Name: 54U Gangable Tall Rack "Less Rear Door"
SKU: LGTR-5436-LRD
Price: 4852.00 USD
Availability: InStock

36"D x 22"W

$4,852.00 MSRP

Model LGTR-5436-LRD

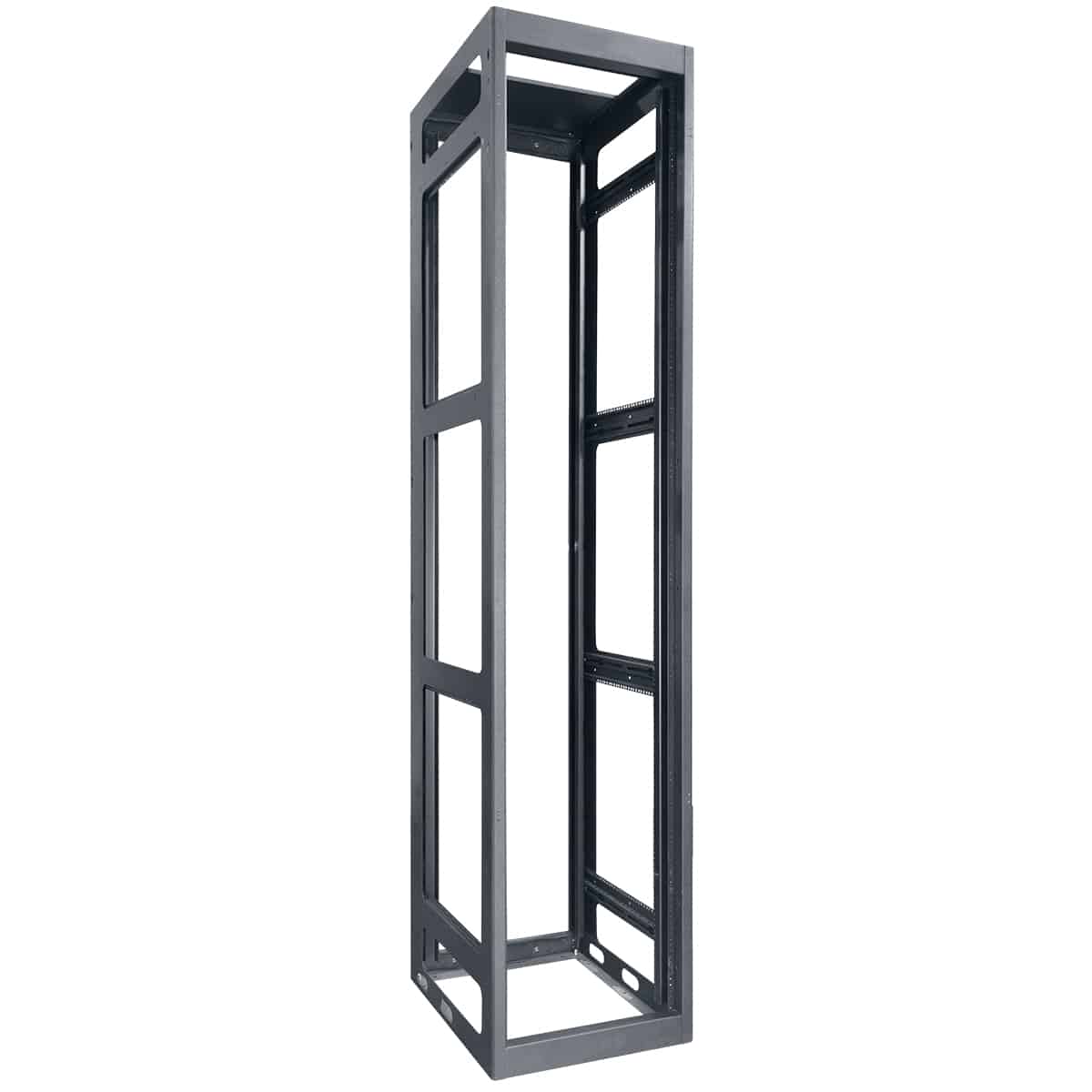

Take advantage of high ceilings by mounting more equipment in vertical space via this 54U open frame rack. The gangable rack is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions. Made in the U.S.A. with certified U.S. steel for strength and durability, the rack features adjustable rails. This model does not include any doors.

Add to Favorites

Compare

Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
Open sides, front, back (optional doors)
Two pairs of fully adjustable rails tapped 10-32 with printed RU scale
Cable Management: multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 54U
Height: 100.625 in.
Width: 22.00 in.
Depth: 36.00 in. (33.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 1238-LGTR5436
CAD drawings: LGTR-5436
Revit Models: LGTR Series

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model No. LGTR-5436-LRD, which shall measure 22″W x 36″D x 100.62″H (33.34″ useable depth x 54U useable height). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at load-bearing junctions and have a black wrinkle textured powder epoxy finish. The rack shall include two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring plus BNC knockouts for UHF/VHF antennas. Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels included as shipping stiffeners or optional 19″W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers.
