40U Gangable Rack

Name: 40U Gangable Rack
SKU: LGNR-4036
Price: 1000.00 USD
Availability: InStock

36"D x 22"W

$1,000.00 MSRP

Model LGNR-4036

The LGNR is a fully welded, certified U.S. steel gangable rack with 16-gauge frame, seamless side frame construction, and 14-gauge top and base, reinforced at load-bearing junctions for strength equivalent to 11-gauge steel. Overall width is slightly narrow at 22 inches. This model includes a reversible rear door with key lock.

Add to Favorites

Compare

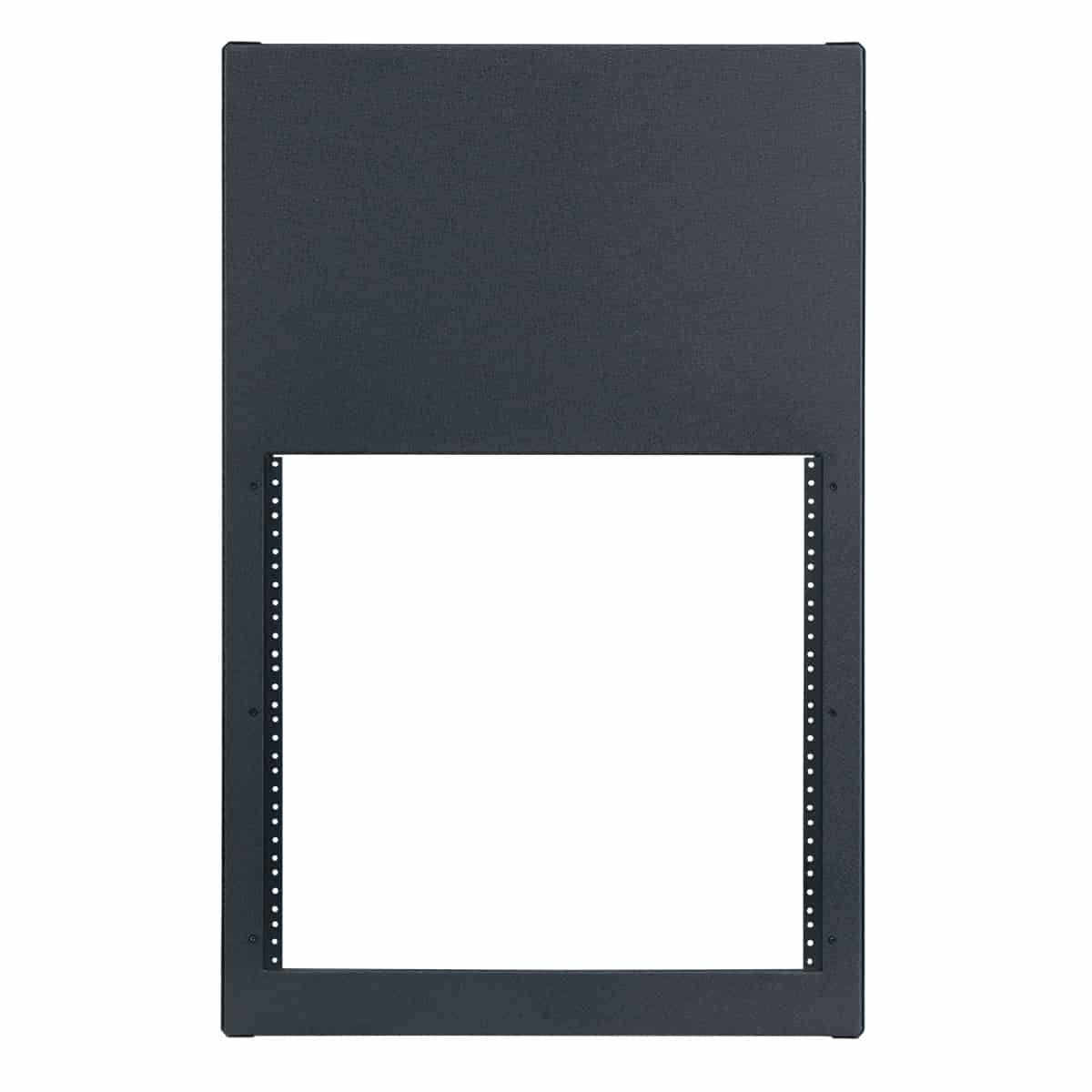

Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
Open sides and front (optional door)
Recessed solid steel rear door with handle and keyed lock
Two pair fully adjustable rails tapped 10-32 with printed RU scale
Cable Management: Multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 40U
Height: 76.125 in.
Width: 22.00 in.
Depth: 36.00 in. (33.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 1233-LGNR4036
CAD drawings: LGNR-4036
Revit Models: LGNR Series

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model LGNR-4036, which shall measure 22″W x 36″D x 76.125″H (40U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and black wrinkle textured powder epoxy finish. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels included as shipping stiffeners or optional accessories. The base shall include a grounding stud and provisions to accept optional leg levelers or anchor bolts (not included).

Thermal management
Cable management
Hardware (grounding bar, etc.)
Front door: LFD-40 (solid) | LFD-40P (plexiglass) | LFD-40FV (full vent)
Side panels: SDP-4036
Rack rails: RRN-40 (40U)
Base: LMNB-36 (36″D mobile)
