44U Enclosed Floor Rack

Name: 44U Enclosed Floor Rack
SKU: LER-4427
Price: 1263.66 USD
Availability: InStock

27"D x 23"W

$1,263.66 MSRP

Model LER-4427

The LER Series standalone, enclosed floor rack features adjustable rails that can be repositioned deeper into the rack as needed to mount equipment. Made in the U.S.A. with certified U.S. steel, the fully welded 16-gauge steel enclosure with 14-gauge base is reinforced at all load-bearing junctions for robust support (strength equivalent to 11-gauge steel). Includes rear door with vents and key lock.

Add to Favorites

Compare

Configurable top with 7U opening (solid closure panels included)
Welded sides with vents

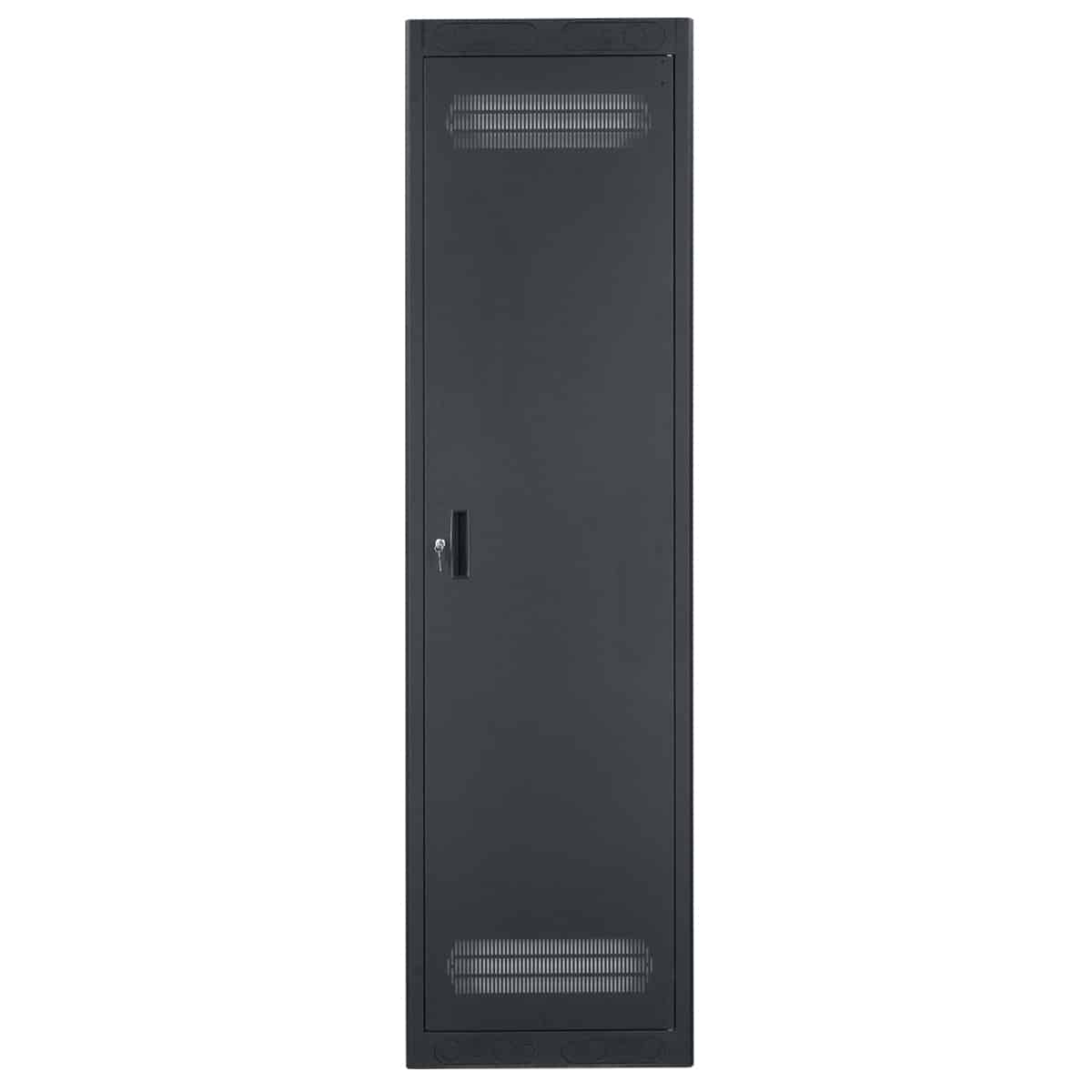

Recessed rear door with vents and key lock
44U adjustable front rails tapped 10-32
Multiple lacing points, laser-cut knockout panels
Pilot Point screws with captive washers
Grounding stud
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 44U
Height: 83.125 in.
Width: 23.06 in.
Depth: 27.00 in. (24.34 usable)
Load Capacity: 3150 lbs.

Rack Spec Sheet: 1474-LER4427
Accessory Bundle Spec: 1689-LER4427BAV
CAD drawings: LER-4427
Revit Models: LER Series

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA/RoHS compliant, standalone floor rack shall be Lowell Model LER-4427. Overall measurements shall be 83.125″H x 27″D x 23.06″W with panel space of 44 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock, welded side panels with vents, top with 7U opening and combination knockouts, open base with grounding stud, one pair adjustable front mounting rails with printed RU increments, laser-cut combination knockouts above and below rear door, and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle textured powder epoxy finish. It shall be UL Listed to UL2416.

Thermal management
Cable management
Front door: LFD-44 (solid) | LFD-44P (plexiglass) | LFD-44FV (full vent)
Additional Rails: RRD-44 (44U)
Base: LMB-27 (27″D mobile) | LSB-27 (27″D sta.) | LSSB-27 (27″D shallow sta.)
