24U Enclosed Rack (less door)

Name: 24U Enclosed Rack (less door)
SKU: LER-2432-LRD
Price: 1421.98 USD
Availability: InStock

32"D x 23"W

$1,421.98 MSRP

Model LER-2432

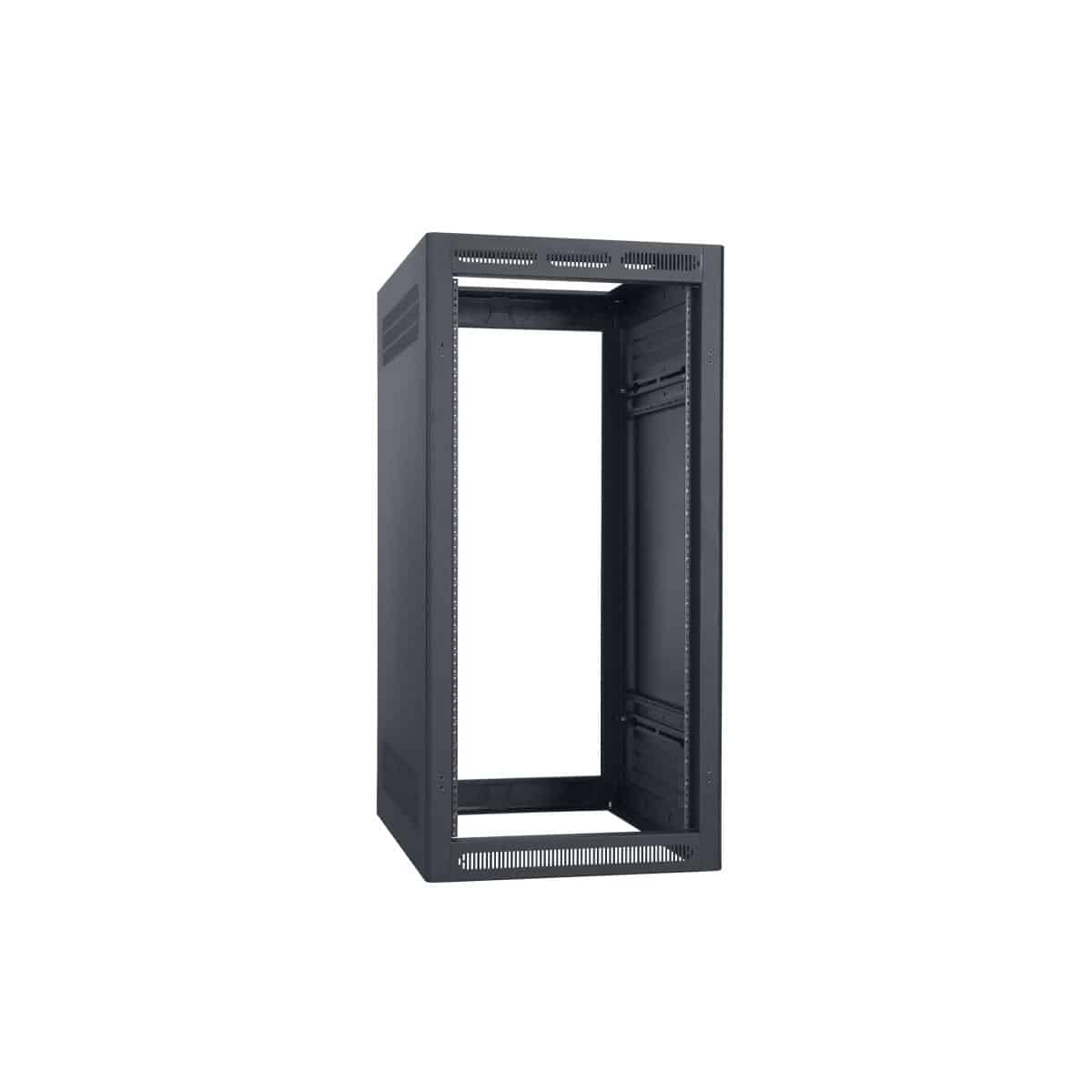

The LER Series standalone, enclosed floor rack features adjustable rails that can be repositioned deeper into the rack as needed to mount equipment. Made in the U.S.A. with certified U.S. steel, the fully welded 16-gauge steel enclosure with 14-gauge base is reinforced at all load-bearing junctions for robust support (strength equivalent to 11-gauge steel). This model does not include any doors.

Add to Favorites

Compare

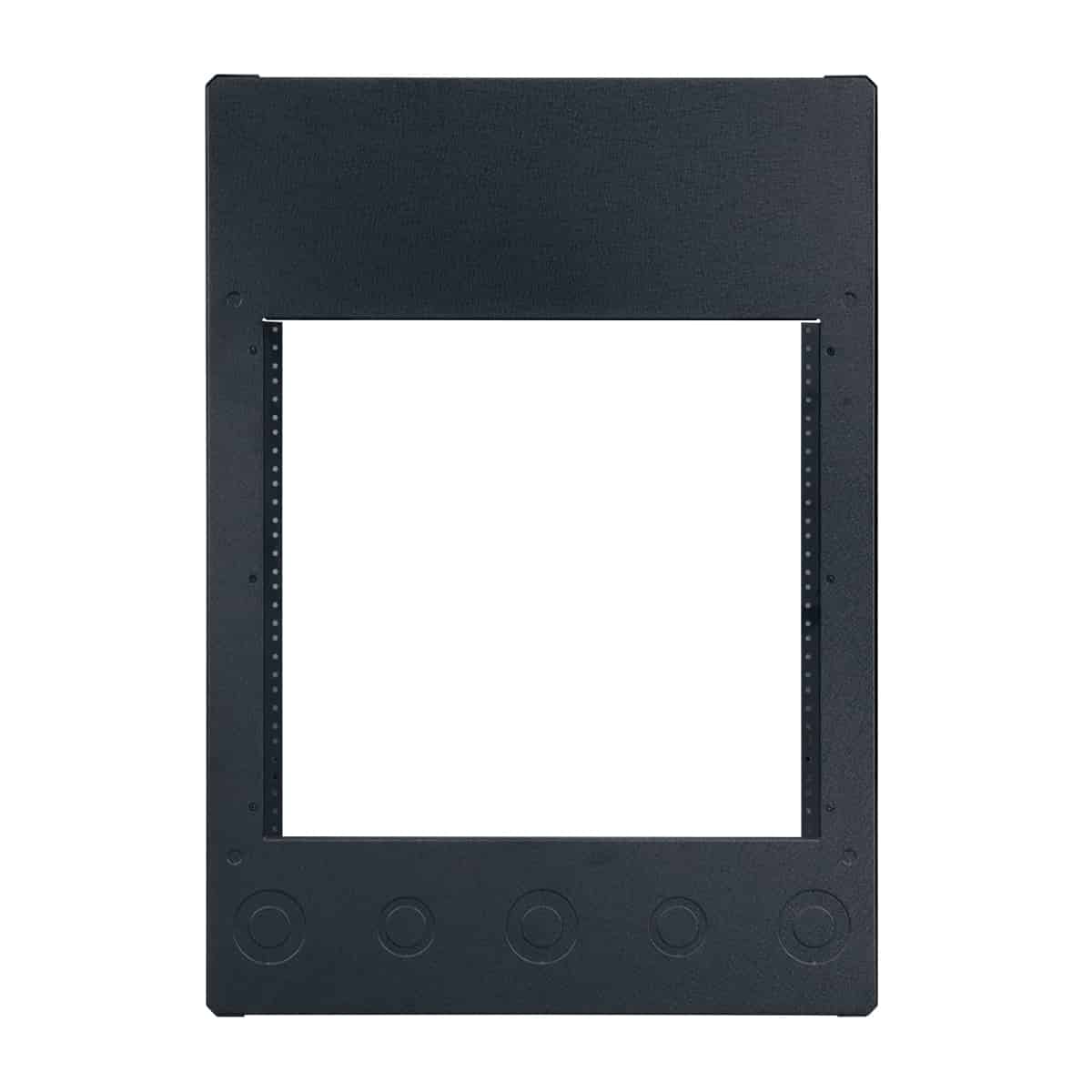

Configurable top with 10U opening for 19 in. panels (solid closure panels included)

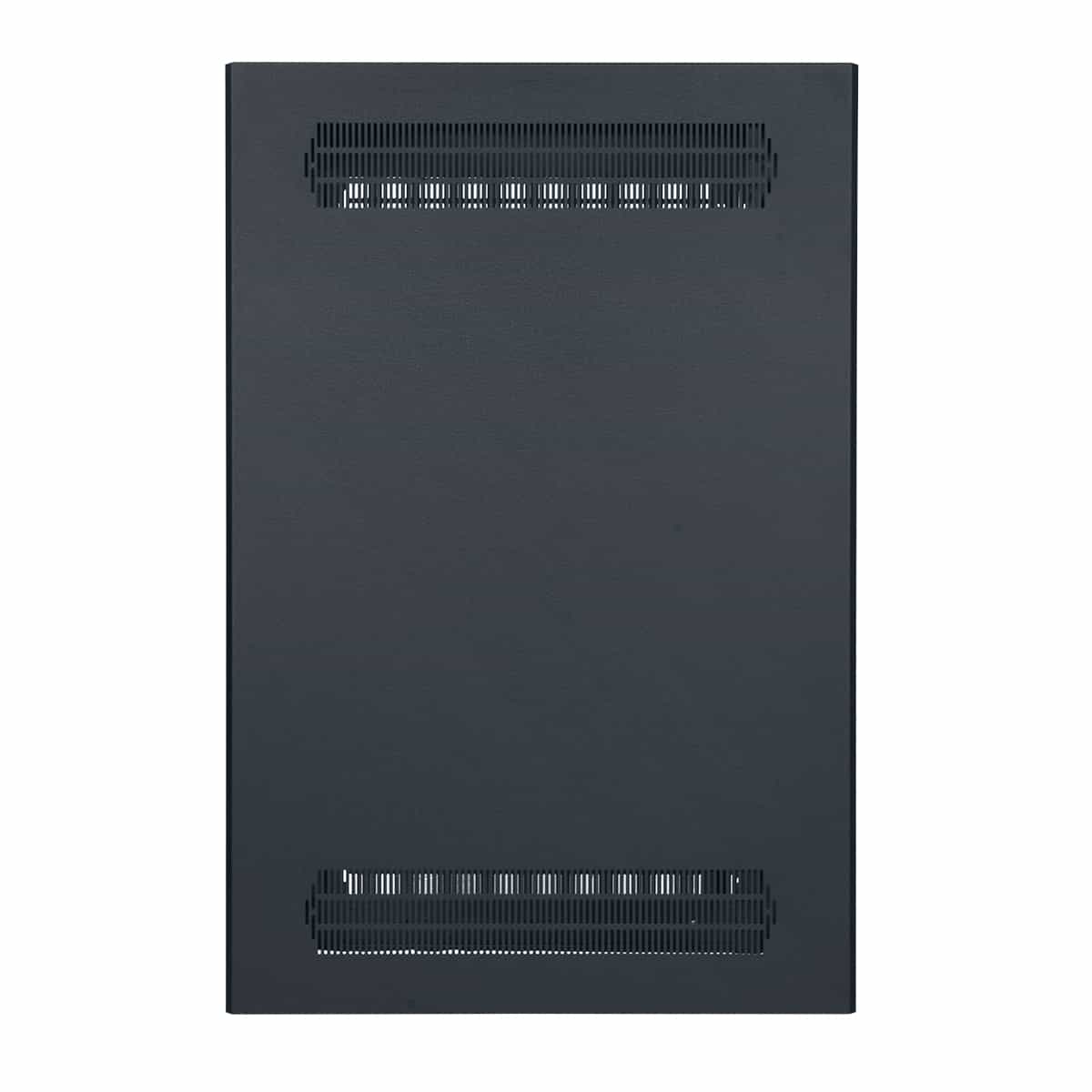

Welded sides with vents
Open front and back (optional doors)
Two-pairs fully adjustable rails tapped 10-32 (printed RU scale)
Cable Management: multiple lacing points, laser-cut knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 24U
Height: 48.125 in.
Width: 23.06 in.
Depth: 32.00 in. (29.34 usable)
Load Capacity: 800 lbs.

Spec Sheet: 1475-LER2432
CAD drawings: LER-2432
Revit Models: LER Series

EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA/RoHS compliant, stand-alone floor rack shall be Lowell Model No. LER-2432-LRD. Overall measurements shall be 48.125″H x 32″D x 23.06″W with panel space of 24 rack units. Load capacity shall be 800 lbs. The rack shall include welded side panels with vents, top with 10U opening and combination knockouts, open base with grounding stud, two pair adjustable mounting rails with printed RU scale, laser-cut combination knockouts above and below rear door, and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle textured powder epoxy finish. It shall be UL Listed to UL2416.

Thermal management:
Cable management
Hardware (leg levelers, grounding bar, etc.)
Front door: LFD-24 (solid) | LFD-24P (plexiglass) | LFD-24FV (full vent)
Rack rails: RRD-24 (24U)
Base: LMB-32 (32″D mobile) | LSB-32 (32″D stationary)
