12U Sloped-front Desk Rack

Name: 12U Sloped-front Desk Rack
SKU: LDSR-1218
Price: 552.54 USD
Availability: InStock

18"D x 21"W

$552.54 MSRP

Model LDSR-1218

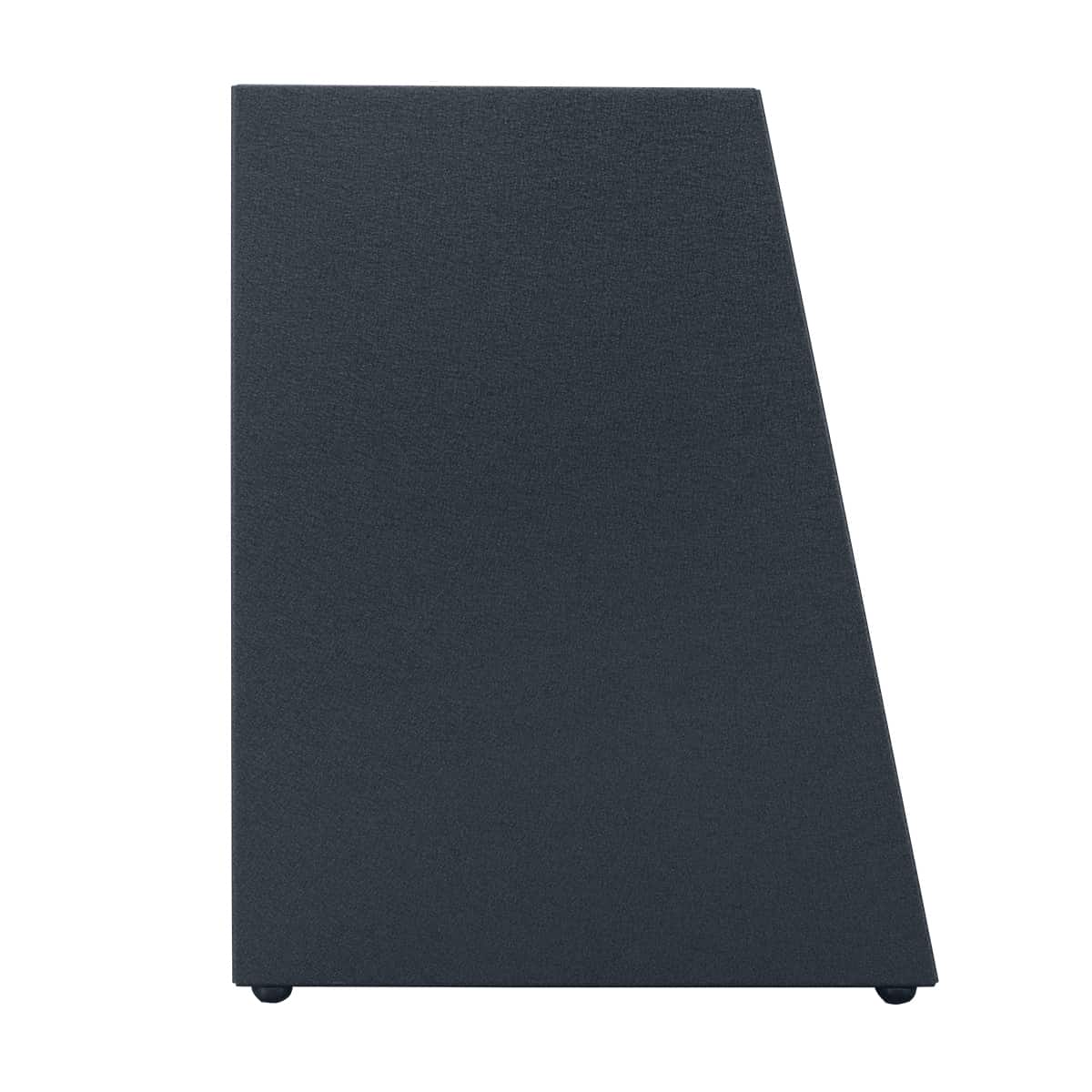

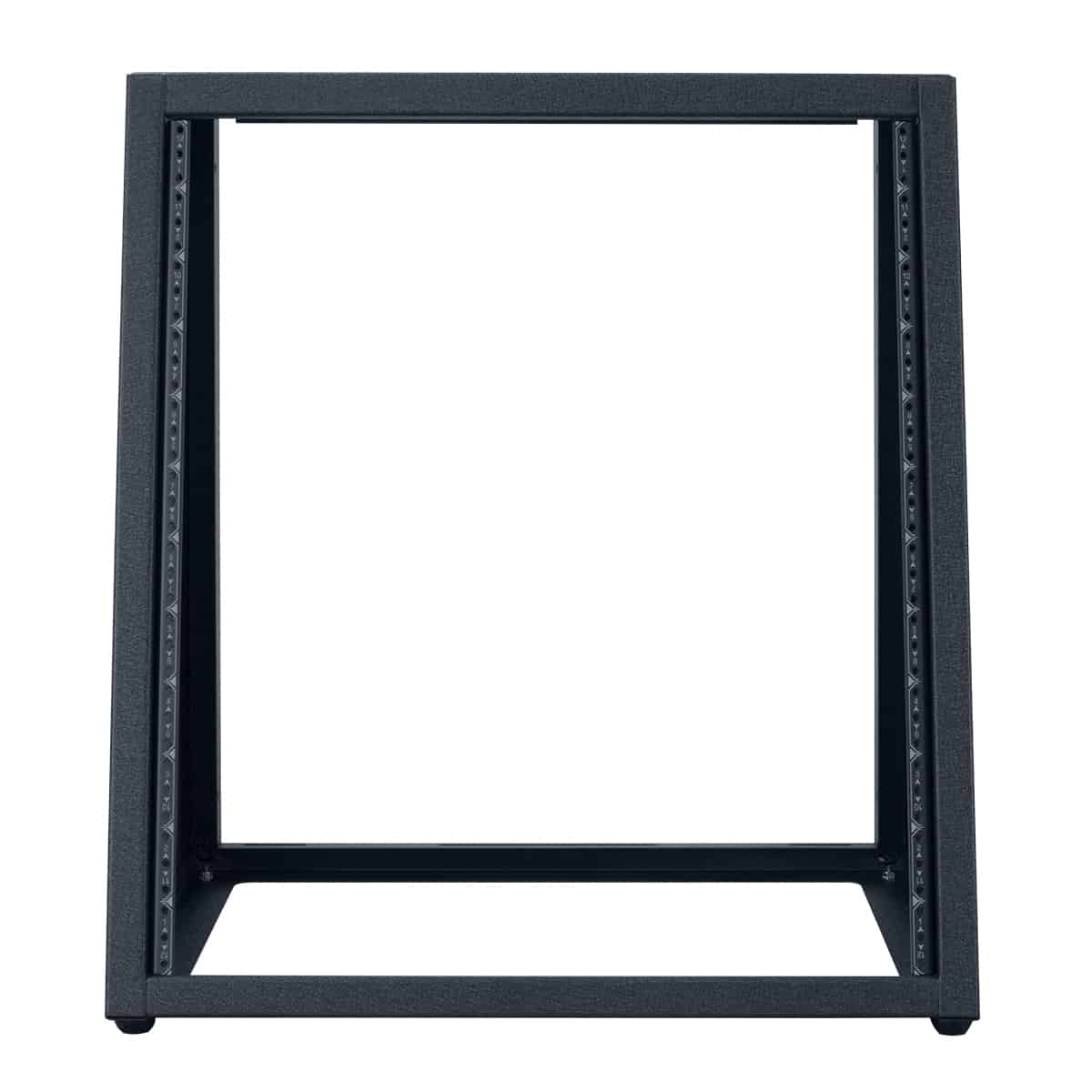

The desktop rack features a sloped front for easy viewing of equipment and controls from a seated position. Includes rubber feet.

Add to Favorites

Compare

Welded 16 gauge steel with 12 degree sloped front
One pair fixed-position mounting rails tapped 10-32, printed RU scale

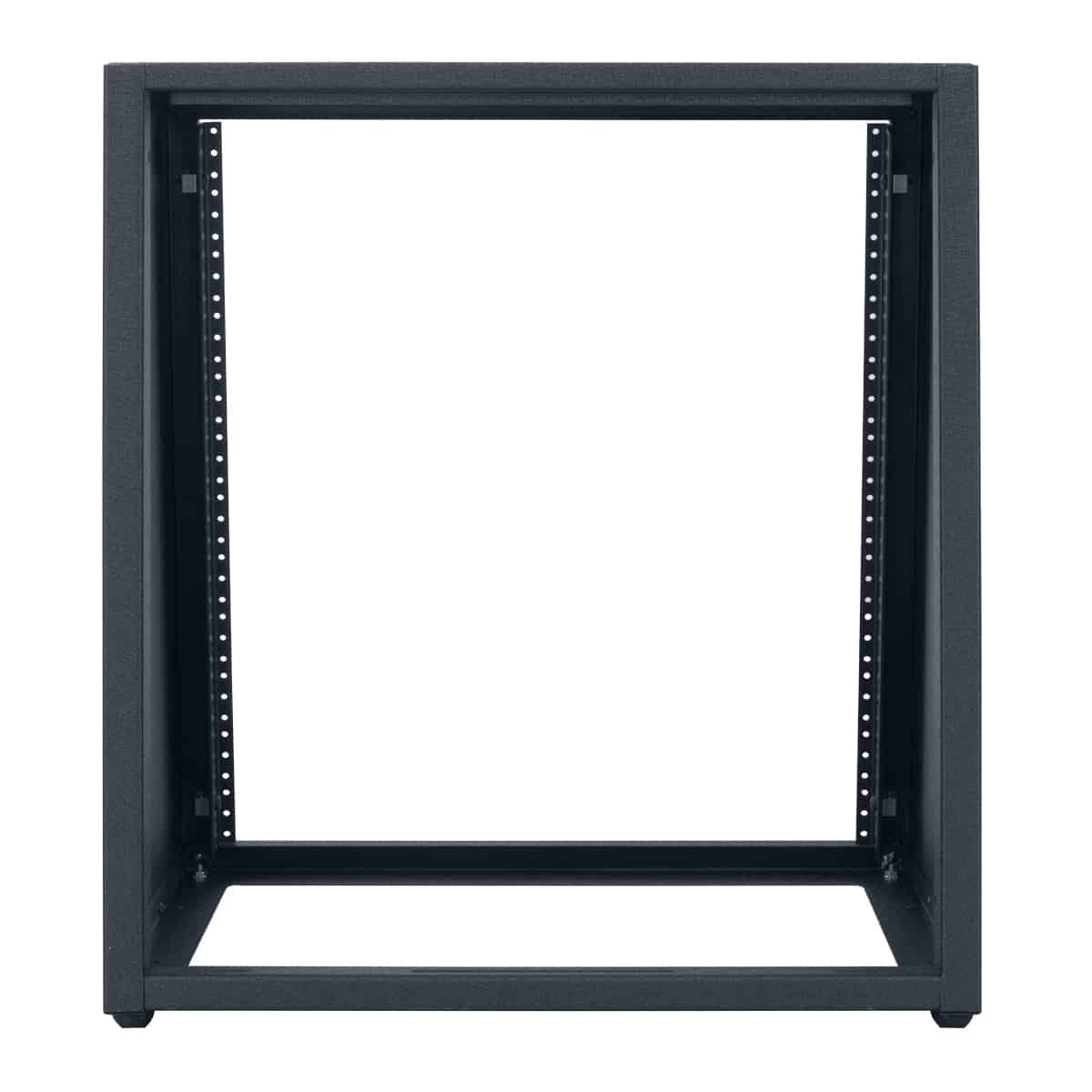

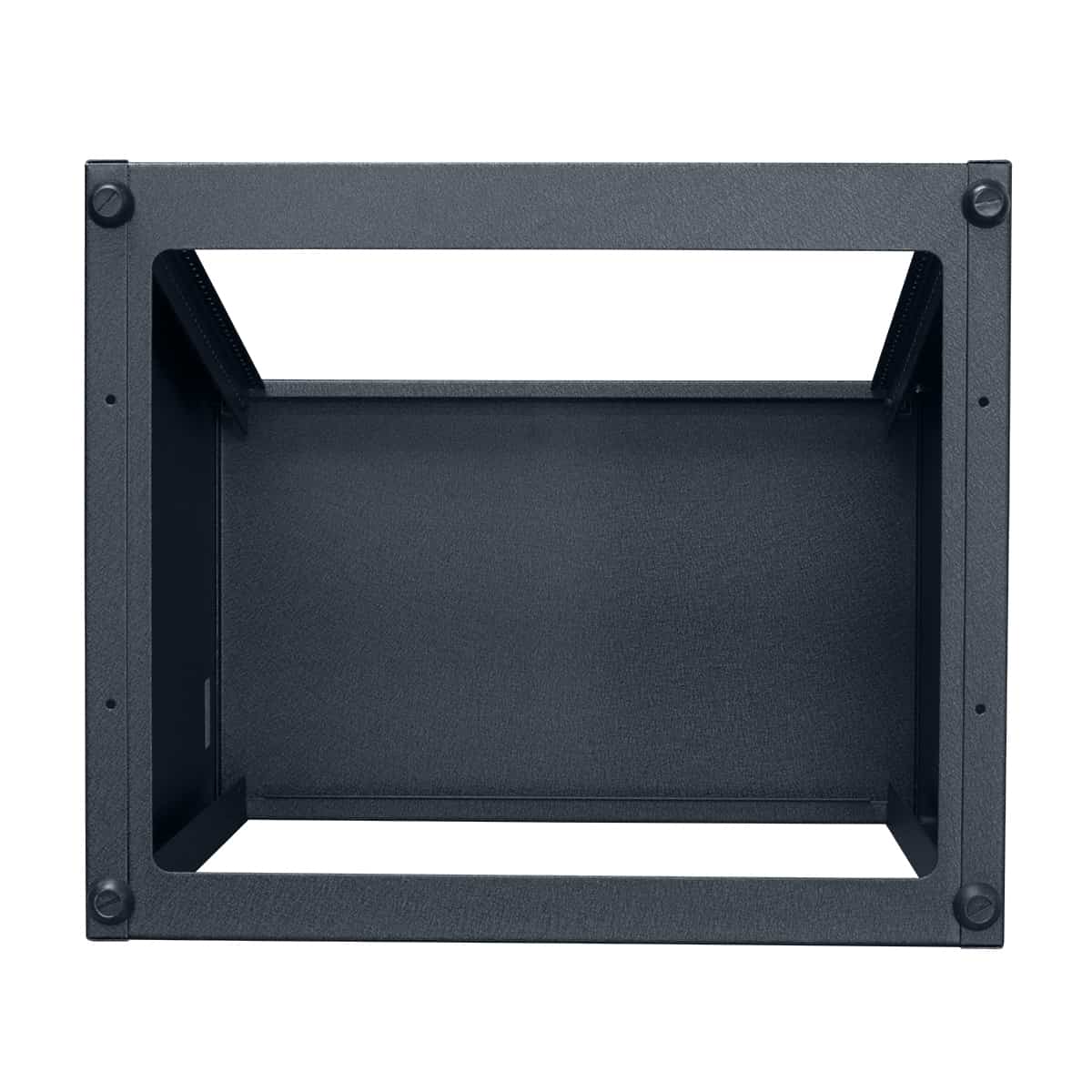

Open front, back, base
Black wrinkle textured powder epoxy finish
Rubber feet (.5”H)
Suitable for UPS shipping

Rack Space: 12U
Height: 22.77 in.
Width: 21.10 in.
Depth: 18.00 in.

Spec Sheet: 1666-LDSR1218
CAD Drawings: LDSR-1218

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The rack for desktop use shall be Lowell Model LDSR-1218, which shall feature a 12 degree sloped front and measure 21.10”W x 18”D (at the base) x 22.77”H and provide 12 rack units of panel space. The welded assembly shall be 16-gauge steel with a black wrinkle powder epoxy finish. It shall include one pair fixed position front mounting rails tapped 10-32 and a set of protective rubber feet which shall increase overall rack height 0.5”.

Thermal management
Cable management
Hardware
Rear access cover: LDTR-RAC12
Rack rails: RRTF-12
Protective runner kit: PRK
