42U Designer Rack

Name: 42U Designer Rack
SKU: LDR-4224
Price: 1560.00 USD
Availability: InStock

24"D x 22"W

$1,560.00 MSRP

Model LDR-4224

An elegant steel equipment rack designed to fit in with the high-end decor of executive boardrooms and home theaters, the LDR features a tempered glass door and charcoal grey textured finish. It provides easy access to equipment with removable side panels and a rear door that opens from the top. To save set-up time, this rack can also be ordered in a pre-configured version with fans, shelves and blank panels, and swivel casters for maneuvering. For the pre-configured version, see the LCDR Configured Designer Rack Series.

Add to Favorites

Compare

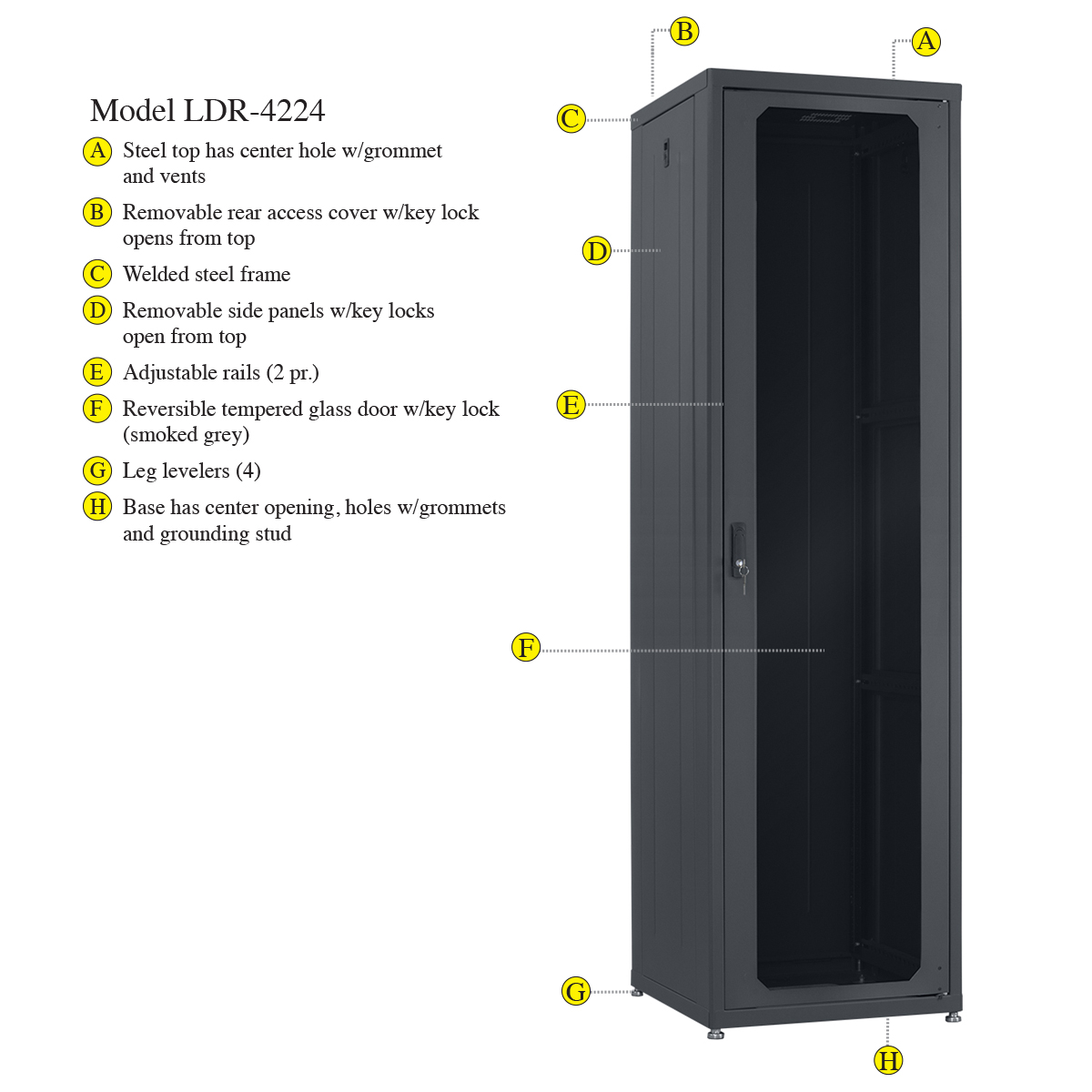

Solid top with vents and cable entry port
Base with open center and cable entry ports

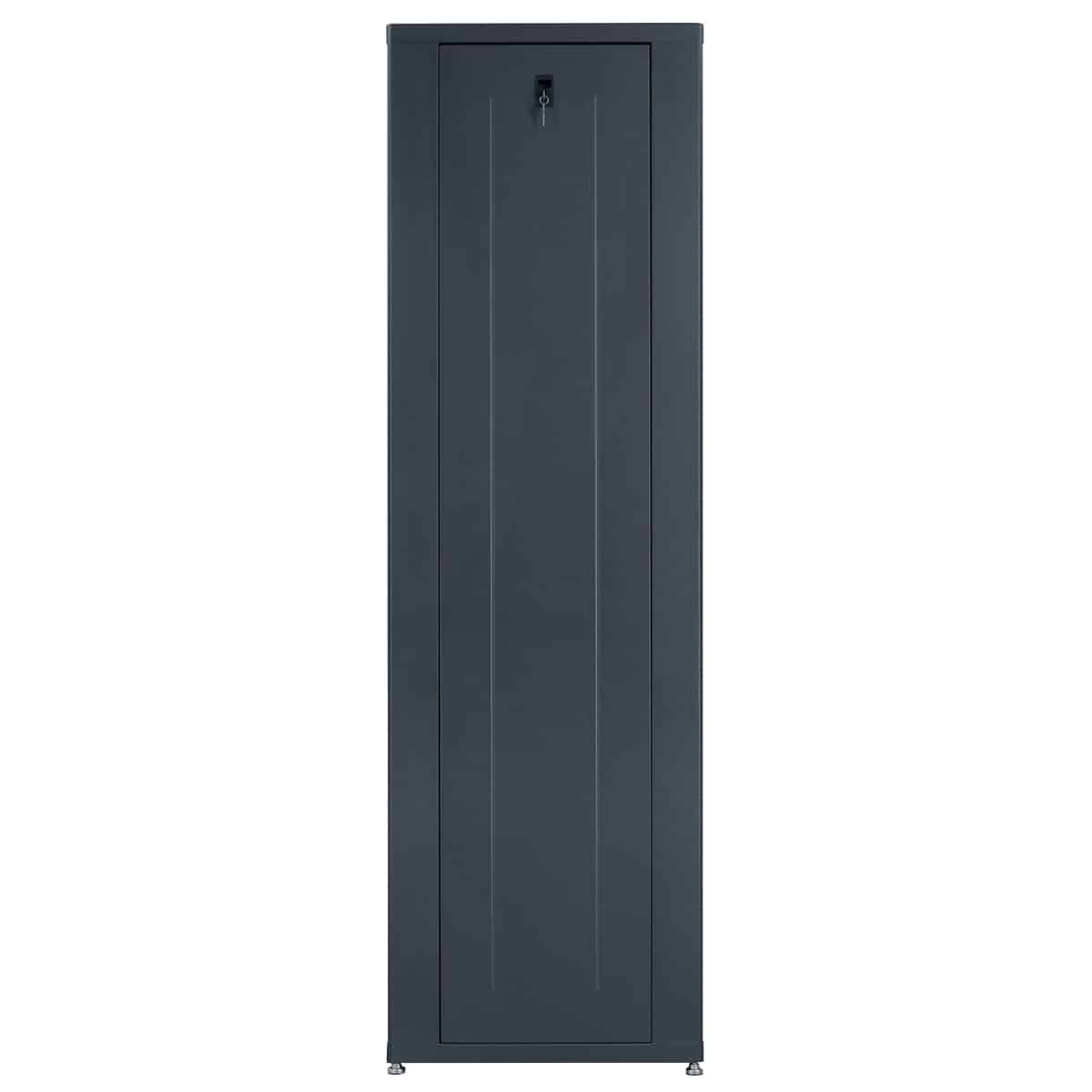

Removable side access covers with key locks (opens from top)

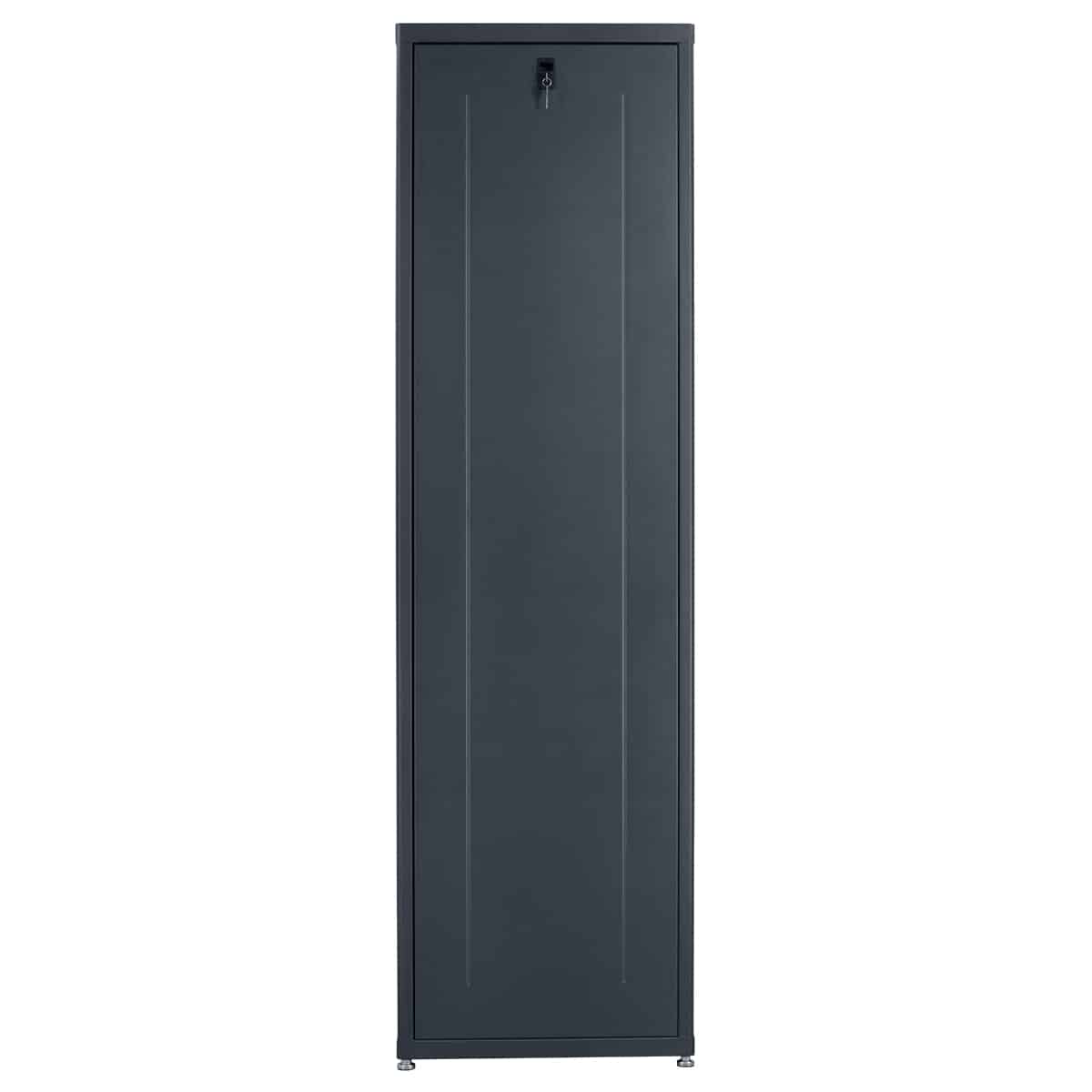

Rear access cover with key lock (opens from top)

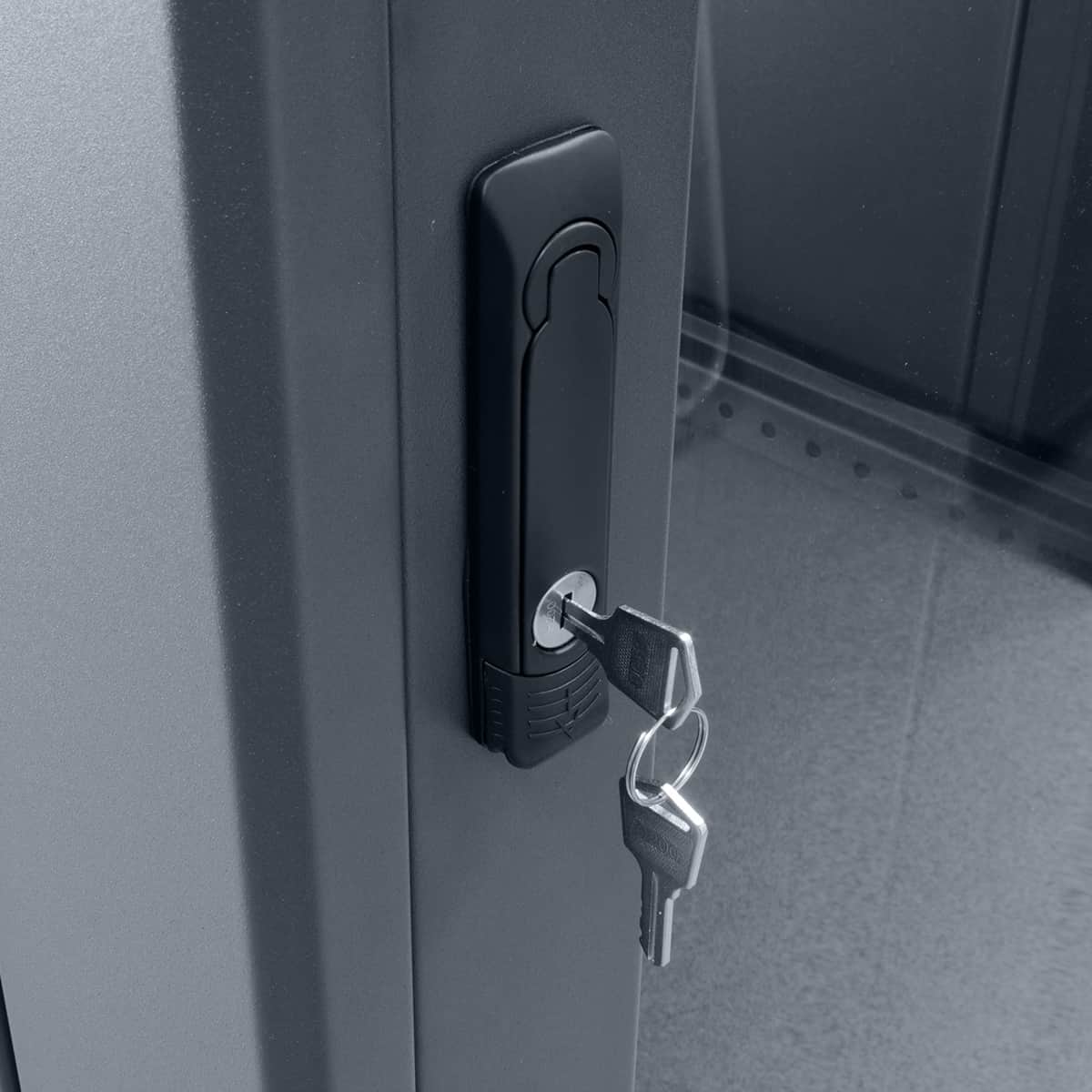

Smoked grey tempered glass front door with key lock
Two-pair fully adjustable rails tapped 10-32 with printed RU scale
Grounding stud
Leg levelers
Beveled corners
Charcoal Grey textured powder epoxy finish
Pilot Point screws with captive washers

Rack Space: 42U
Height: 77.68 in.
Width: 22.31 in.
Depth: 24.00 in.
Load Capacity: 1200 lbs.

Spec Sheet: 1549-LDR4224
CAD drawings: LDR-4224

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA compliant 19″ equipment rack shall be Lowell Model No. LDR-4224 which shall measure 22.31″W x 24.00″D x 77.68″. The rack shall have 42U panel space and 1200 lbs. load capacity. Construction shall be fully welded 16-gauge steel with 16.gauge top/base reinforced at load-bearing junctions and finished with a charcoal grey textured coating. It shall include a smoked grey tempered glass front door with key lock, recessed rear access cover with key lock, removable side panels with locks, two pairs of 11-gauge steel rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing, steel top with 2 vents and a hole with grommet for cable access. The base shall feature a center opening, 2 holes with grommets for rear cable access, grounding stud and 4 leg levelers.
