42U Configured Designer Rack

Name: 42U Configured Designer Rack
SKU: LCDR-4224
Price: 2340.00 USD
Availability: InStock

24"D x 22"W

$2,340.00 MSRP

Model LCDR-4224

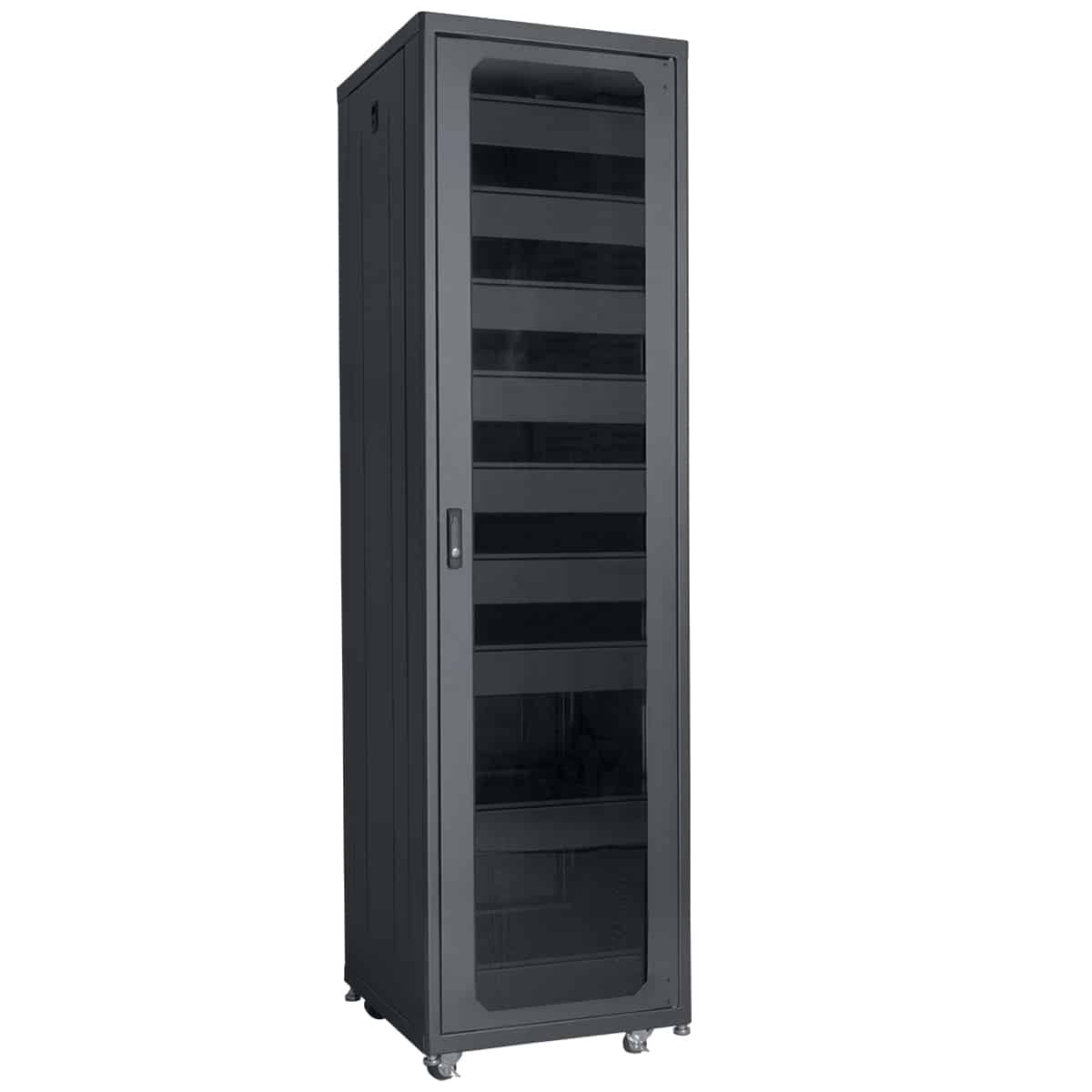

An elegant steel equipment rack with textured, charcoal grey finish, beveled edges and tempered glass door is ideal for use in the high-end decor of executive boardrooms and home theaters. The LCDR provides easy access to equipment with removable side panels and rear access cover (door that opens from the top). It's pre-configured with fans, shelves, blank panels and swivel casters. The rack can be purchased without the added accessories under model LDR-4224.

Add to Favorites

Compare

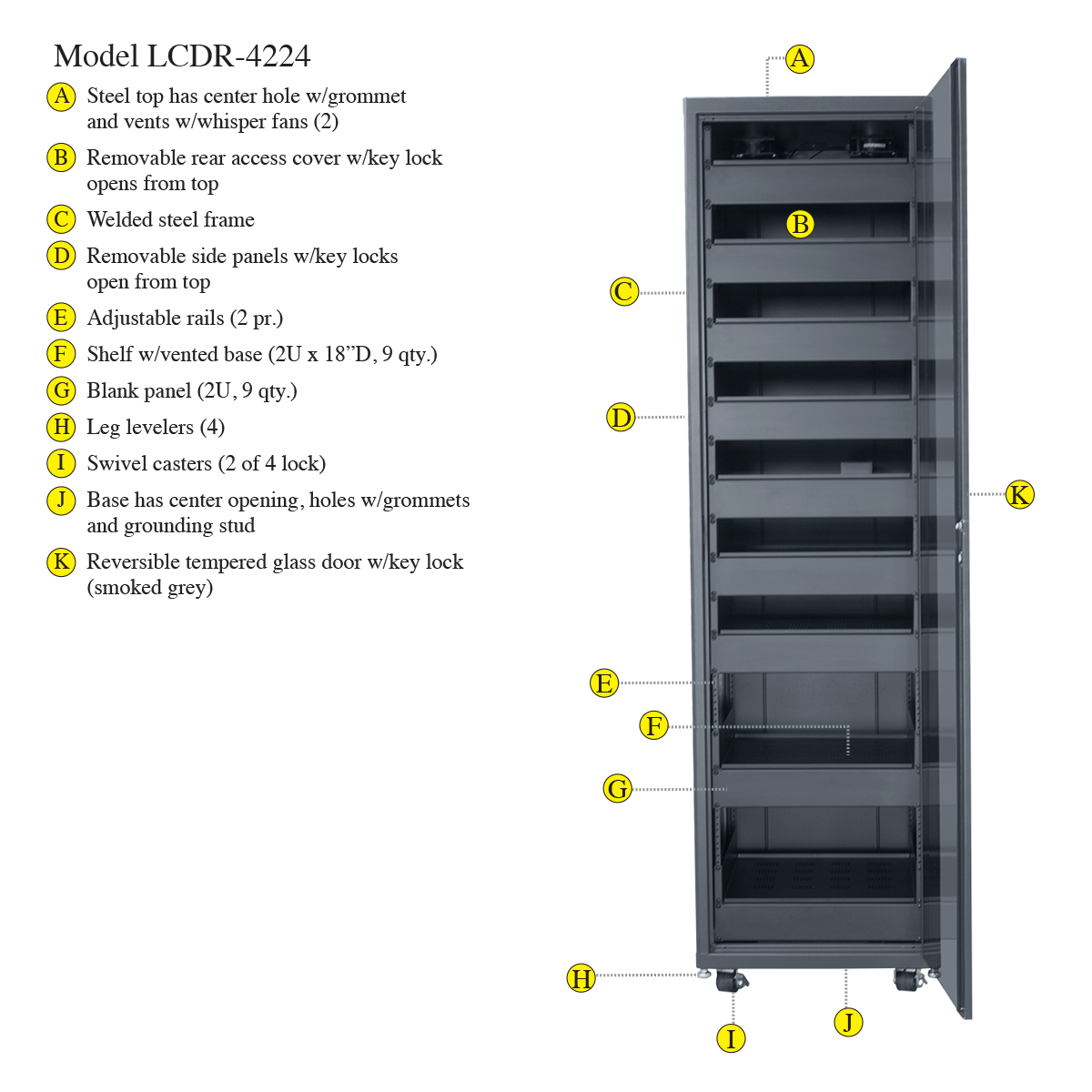

Solid top with vents and cable entry port
Base with open center and cable entry ports
Removable side access covers with key locks (opens from top)
Rear access cover with key lock (opens from top)
Smoked grey tempered glass front door with key lock
Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
Pilot Point screws with captive washers
Grounding stud
Beveled corners
Charcoal Grey textured powder epoxy finish
Swivel casters
Leg levelers
Vented shelves (9)
Blank panels (9)
Whisper fans in top vents (2)

Rack Space: 42U
Overall Height: 77.68 in. (80.43 in. with casters)
Overall Width: 22.31 in.
Overall Depth: 24.00 in.
Load capacity 1200 lbs.

Spec Sheet: 1461-LCDR4224
CAD drawings: LCDR-4224

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA compliant 19″ equipment rack shall be Lowell Model No. LCDR-4224 which shall measure 22.31″W x 24.00″D x 80.43″H (with casters). The rack shall have 42U panel space and 1200 lbs. load capacity. Construction shall be fully welded 16-gauge steel with 16-ga. top/base reinforced at load-bearing junctions and finished with a charcoal grey textured coating. It shall include a smoked grey tempered glass front door with key lock, recessed rear access cover with key lock, removable side panels with locks, two pairs of 11-gauge steel rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing, steel top with 2 vents and a hole with grommet for cable access, nine (2U x 18″D) shelves with vents, and nine (2U) blank panels. The base shall feature a center opening, 2 holes with grommets for rear cable access, a grounding stud, 4 casters (2 locking) and 4 leg levelers.
