Tile Bridge

Name: Tile Bridge
SKU: LBS8CP
Price: 19.20 USD
Availability: InStock

For 8 in. speaker

$19.20 MSRP

Model LBS8-CP

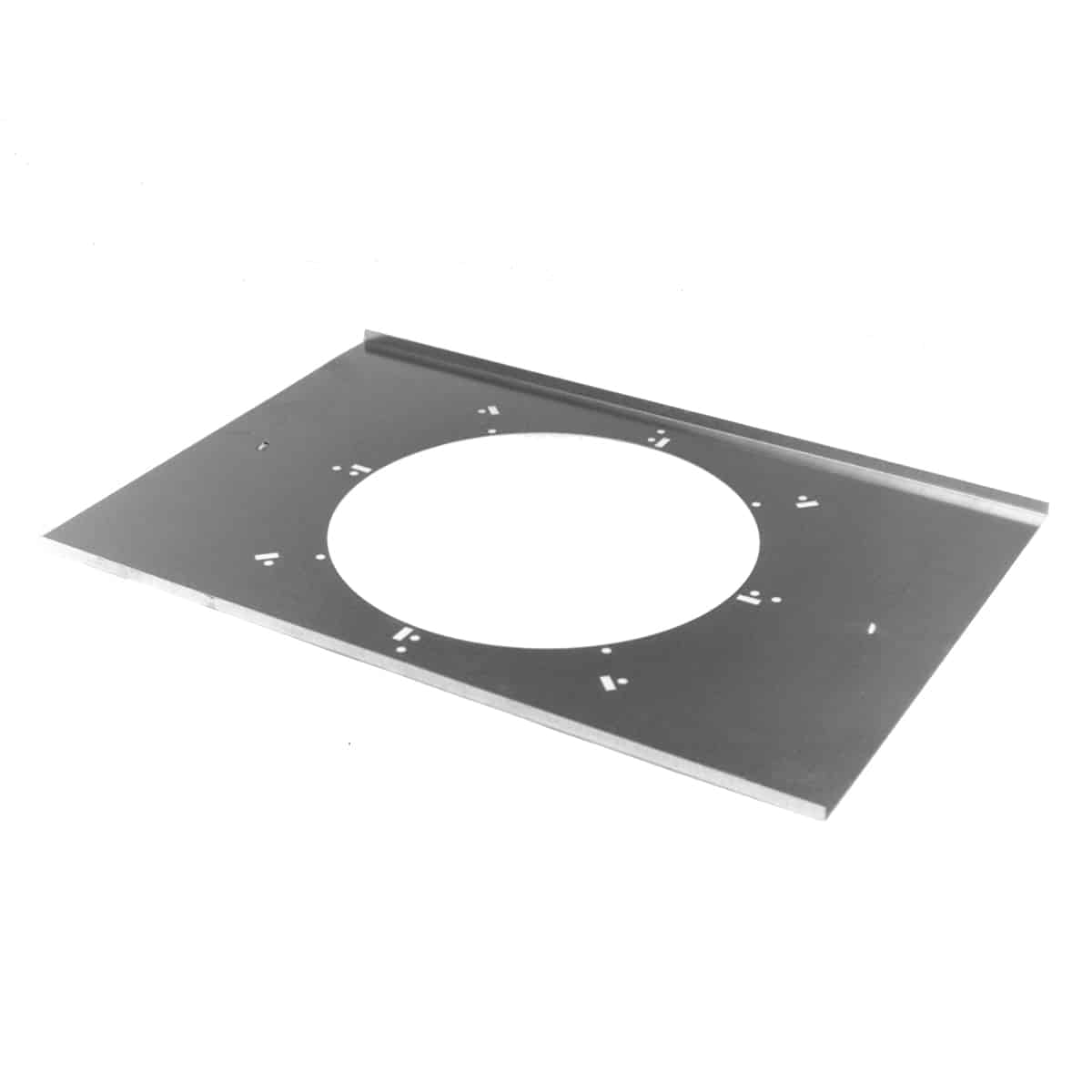

A tile bridge is often required by local building codes for safety reasons as well as for improved aesthetics in suspended 2'x2' or 2'x4' tile ceilings. It distributes the speaker's weight to the ceiling support structure, reducing the likelihood of tiles sagging under the weight of heavy speakers.

Add to Favorites

Compare

Formed construction, lightweight, rigid support
22-gauge galvanized steel
23.75 in. x 16.25 in.
12.00 in. diameter opening
Wire-tie points for seismic anchoring where required by code
For Driver Size: 8 inch
For Grille Type: Screw-mount
Backbox Requirements: Required

Spec Sheet: 1421-LBS8CP

Made in the U.S.A.

The tile bridge shall be Lowell Model LBS8-CP, which shall be formed 22-gauge galvanized steel construction engineered to support and distribute the weight of an 8″ speaker assembly to the ceiling support system in a 2’x2′ or 2’x4′ suspended ceiling. The tile bridge shall include provisions for seismic anchoring where required by code.
