100W (3dB step) Mono Attenuator with key

Name: 100W (3dB step) Mono Attenuator with key
SKU: KL100-DSB
Price: 107.00 USD
Availability: InStock

With wall plate

$107.00 MSRP

Model KL100-DSB

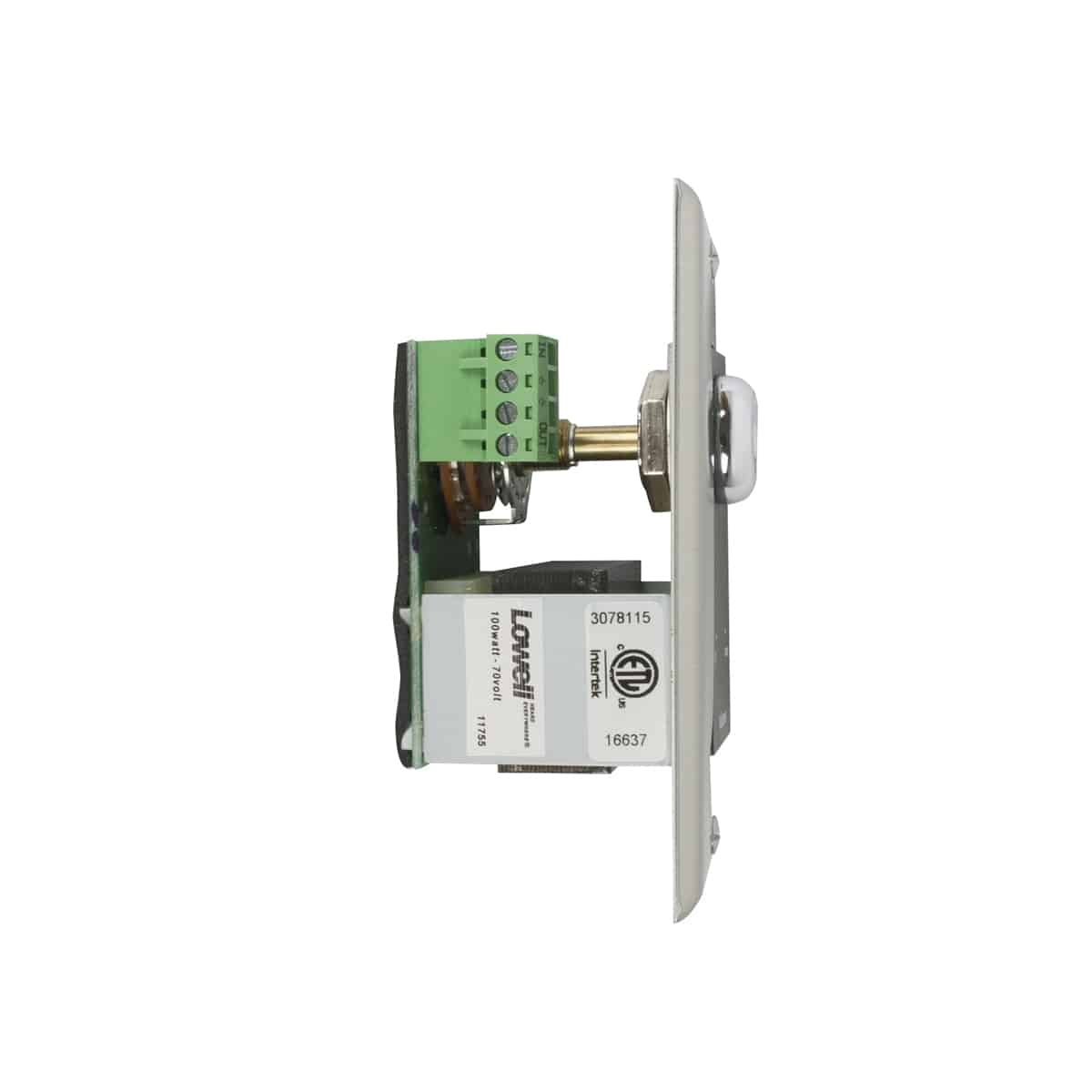

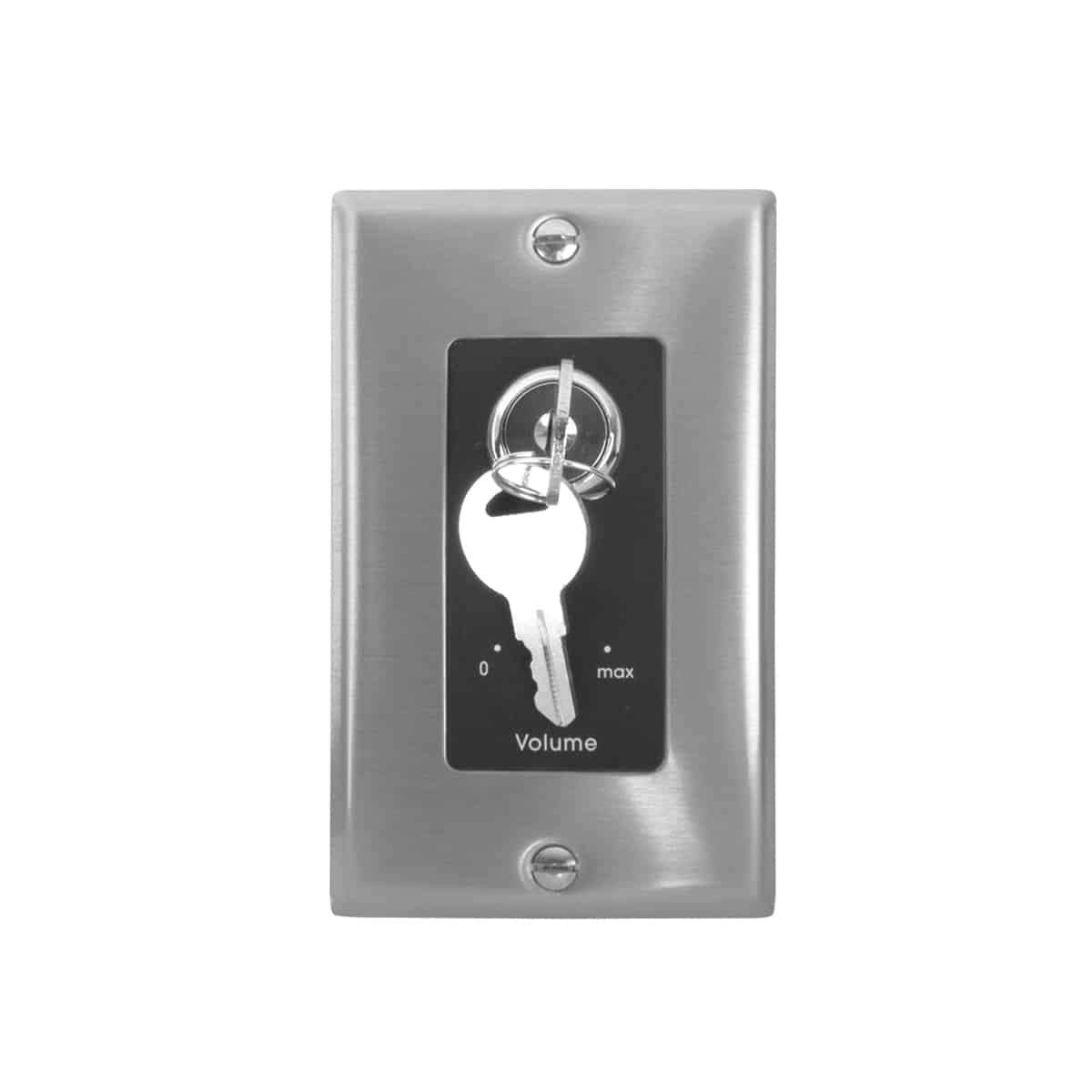

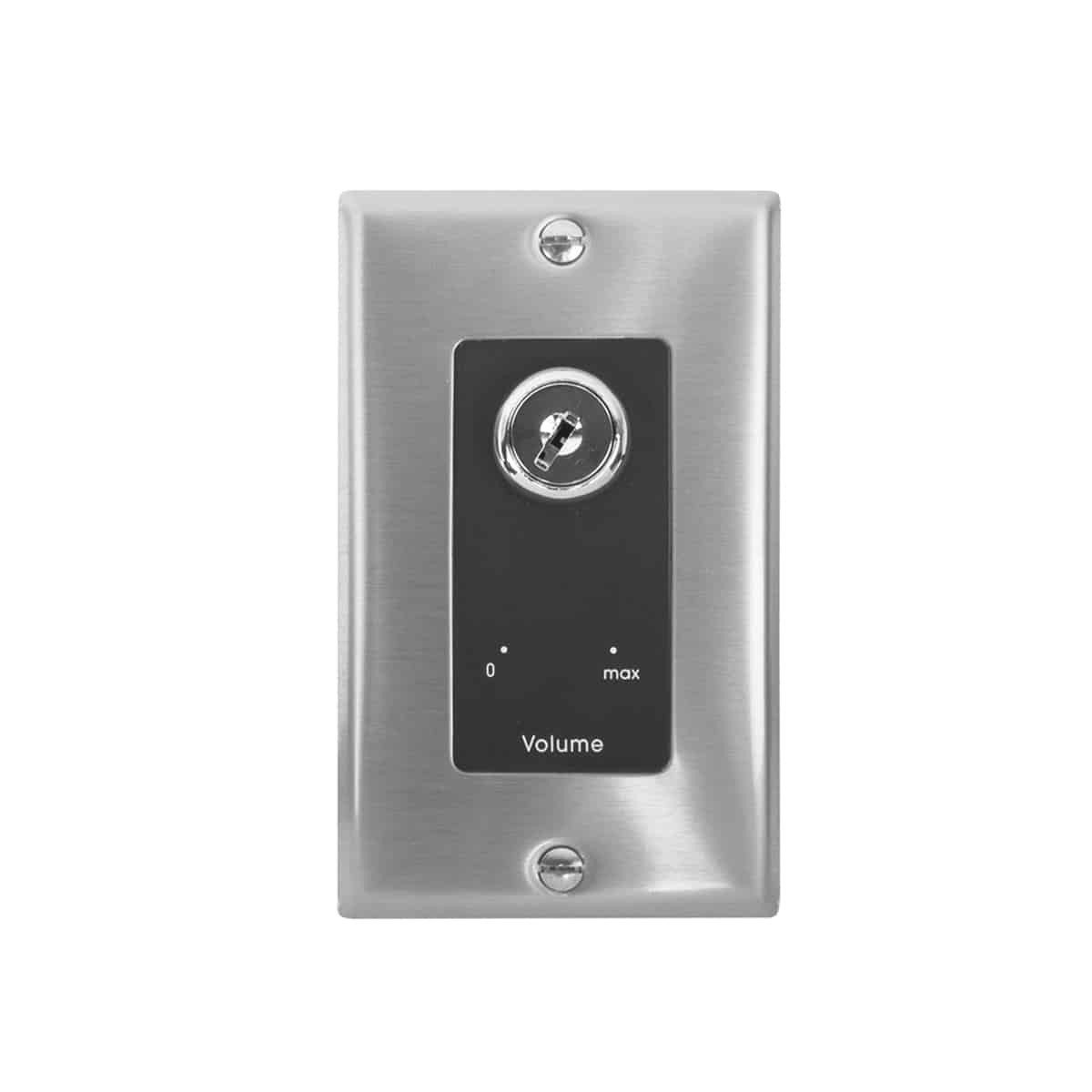

100W mono autoformer attenuator-style volume control with key switch and one-gang wall plate. Patented design secures volume settings for critical paging and emergency systems. For single or multiple speaker lines.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25/70/100V speaker line
Activation: Key
Volume Positions: 0-10
Two steps of 6dB each before off
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Stainless Steel & Black
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2246-KL100DSB

Made in the U.S.A. with global components
ETL Listed

The volume control shall be Lowell Model KL100-DSB with 100W power rating, 3dB per step attenuation, and switch positions 10- Off. It shall feature Phoenix style plug-in screw termination strips for pre-wire with capacity up to 14-gauge. It shall include a one-gang decorator style wall plate with stainless steel and black finish. Volume adjustment shall be controlled by a key.

P1X: Surface-mount wall box, 1-gang
KL-ANP2: Adaptor plate retrofits to fit a 2-gang box
