iMount®
8 inch (100W) Coaxial Speaker

Name: iMount® <br> 8 inch (100W) Coaxial Speaker
SKU: IM8PTS1002SW
Price: 910.00 USD
Availability: InStock

Includes driver, transformer, enclosure, grille

$910.00 MSRP

Model IM8P-TS100-2SW

The iMount® high performance loudspeaker provides quality sound distribution of foreground or background music in all kinds of commercial venues. It's ideal for high ceiling/high energy applications like clubs and bars, sporting facilities, concourses, hotel ballrooms, transportation terminals, convention centers, and exhibit halls. The i-Mount is designed to hang, bolt, or suspend and is suitable for open ceilings or recessed applications.

Add to Favorites

Compare

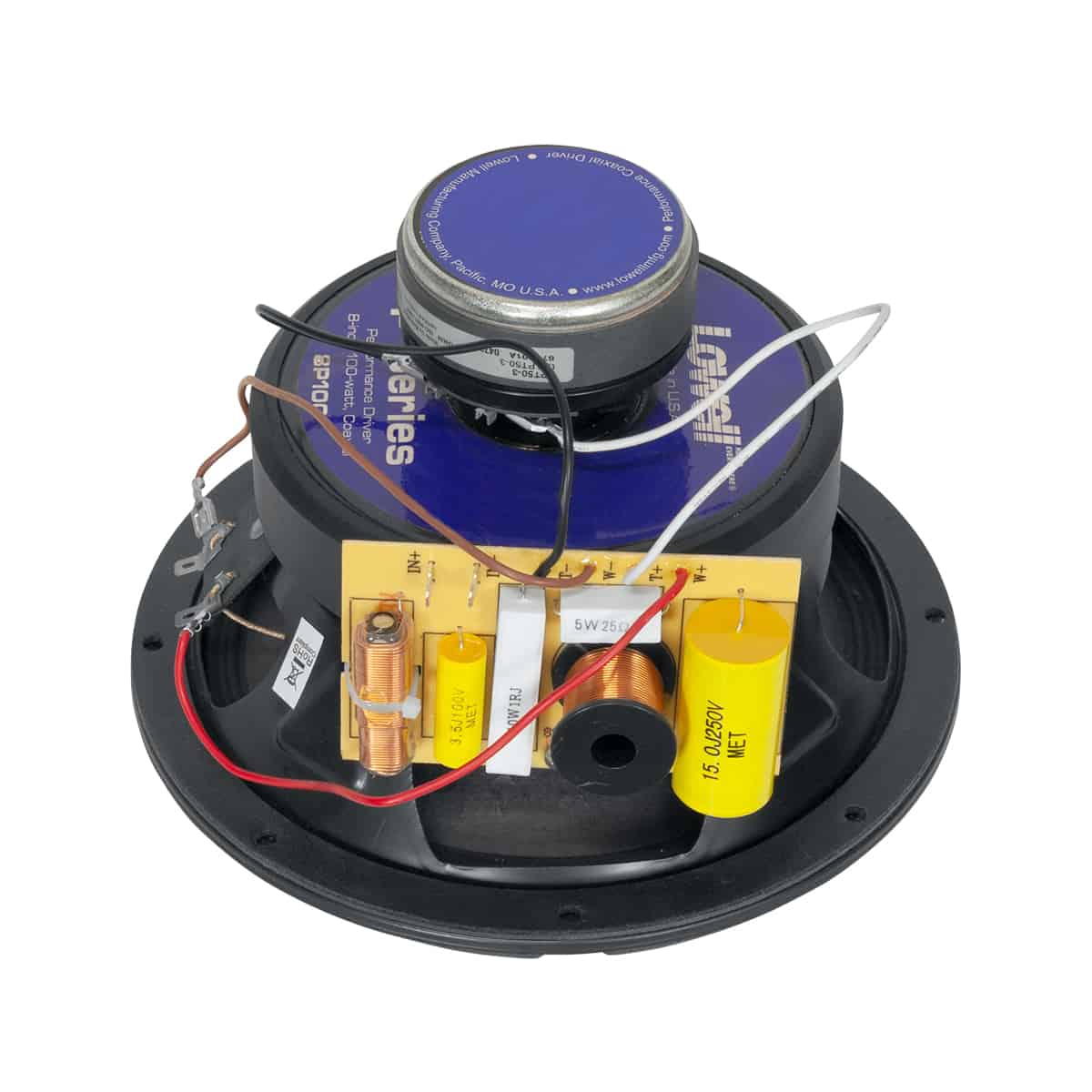

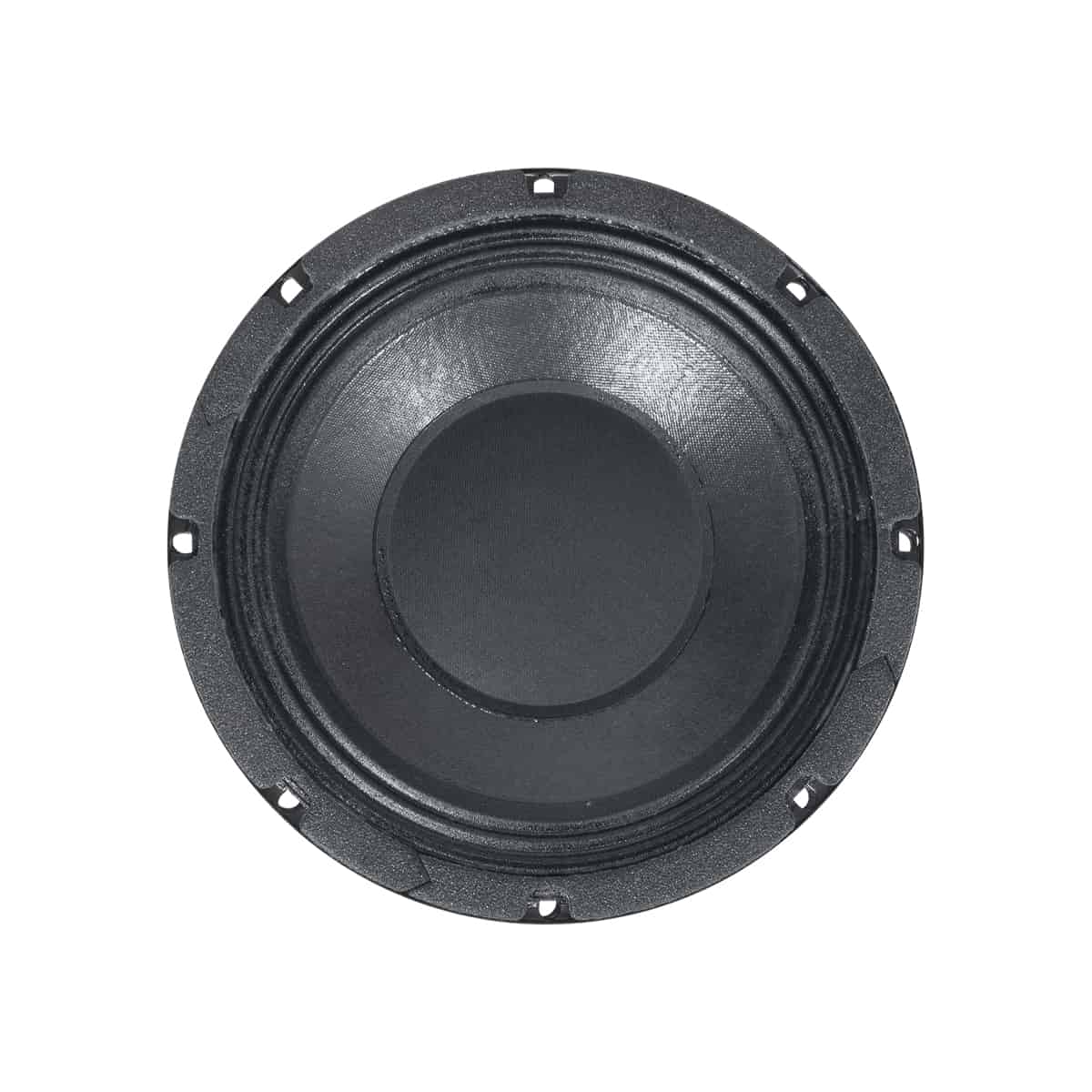

Driver (8P100): 8 in. (8ohm) 100W driver with robust motor structure, 38 oz. magnet, 2 in. voice coil and coaxially mounted high frequency compression driver for high power handling with excellent efficiency. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille. See the driver spec sheet for more information.
Transformer (TLS-10070): 70V 100 transformer for superior music fidelity in 70V distributed applications. The 20/20 AudioVisionTM transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is behind the grille. Note: Lowell 20/20 AudioVision™ transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.

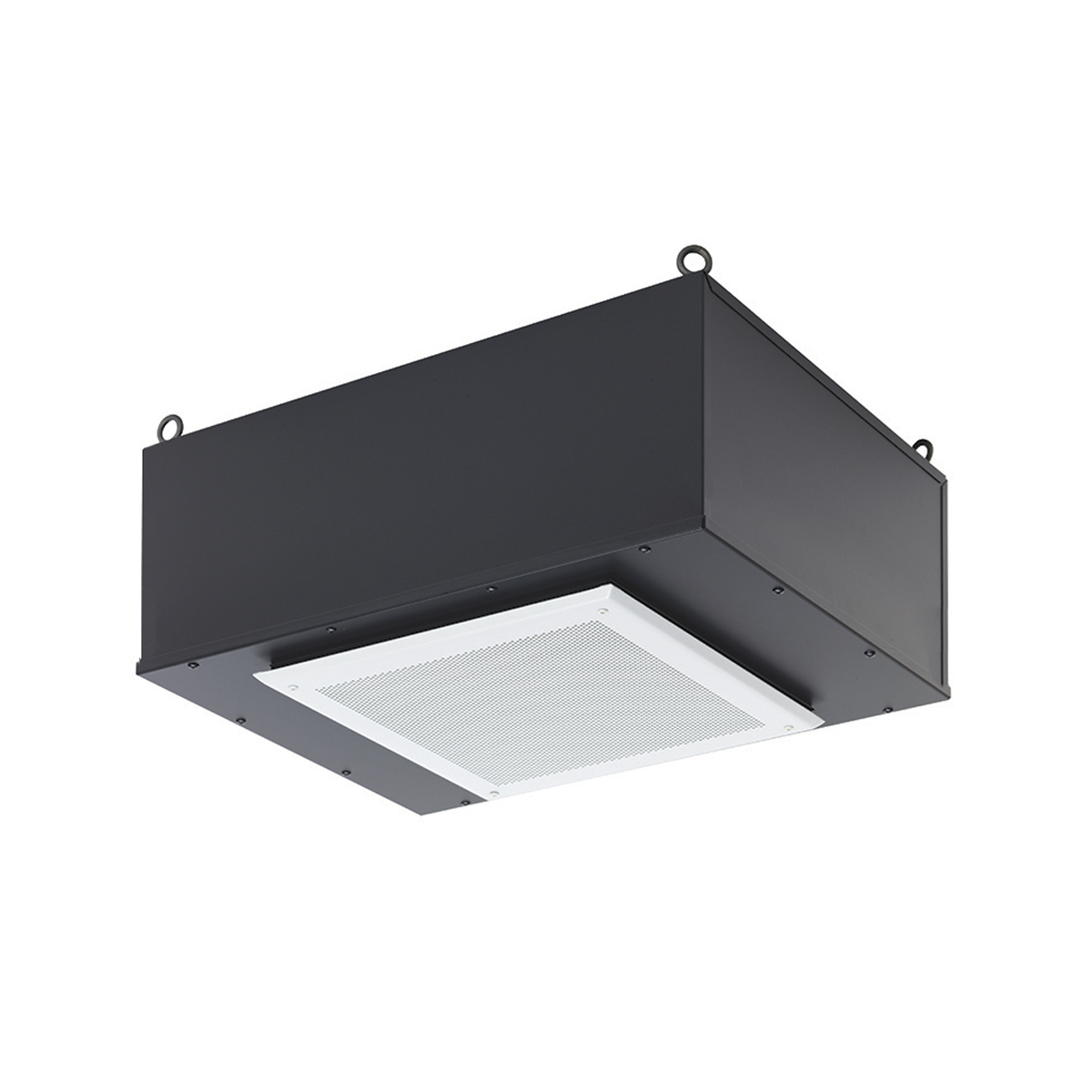

Grille: Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.

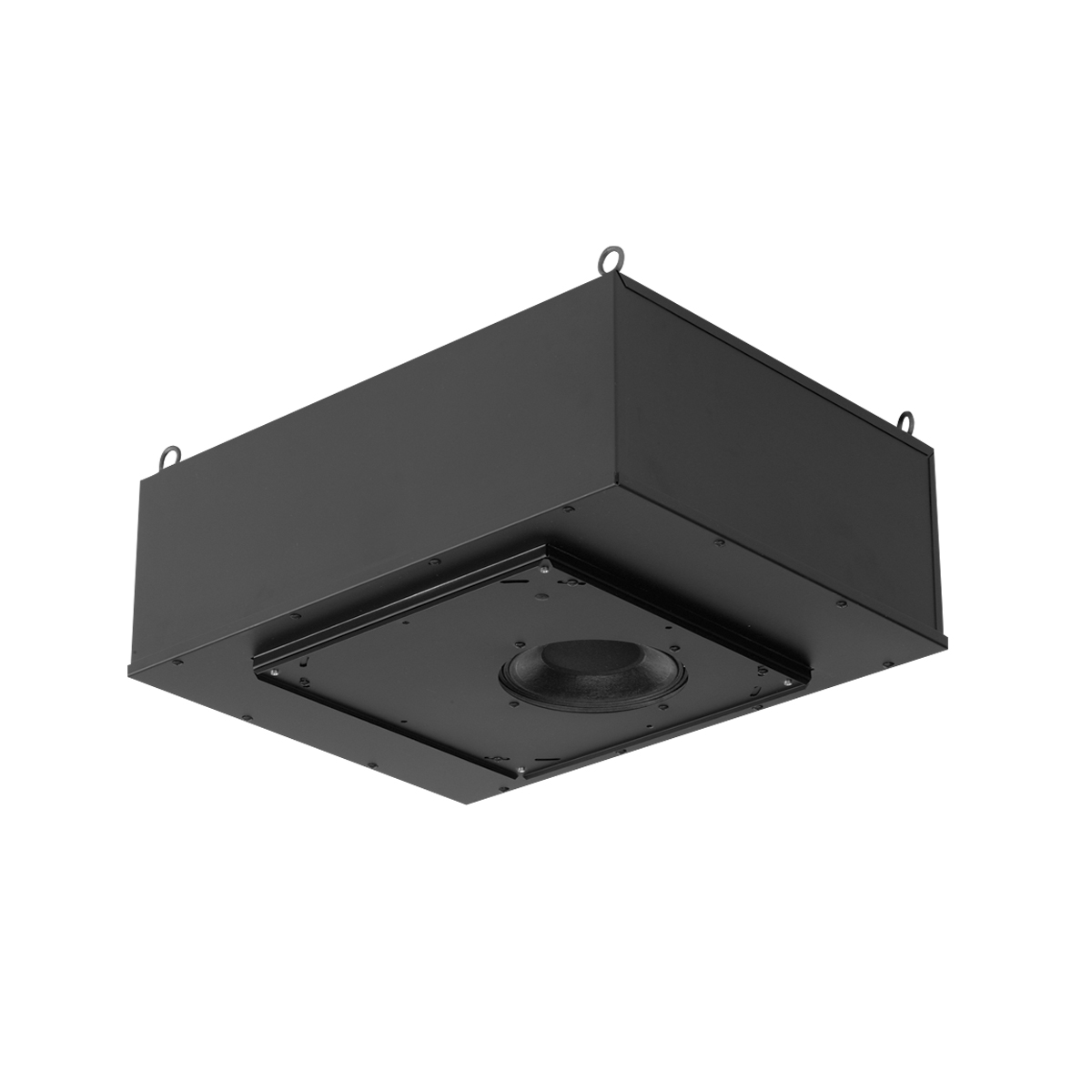

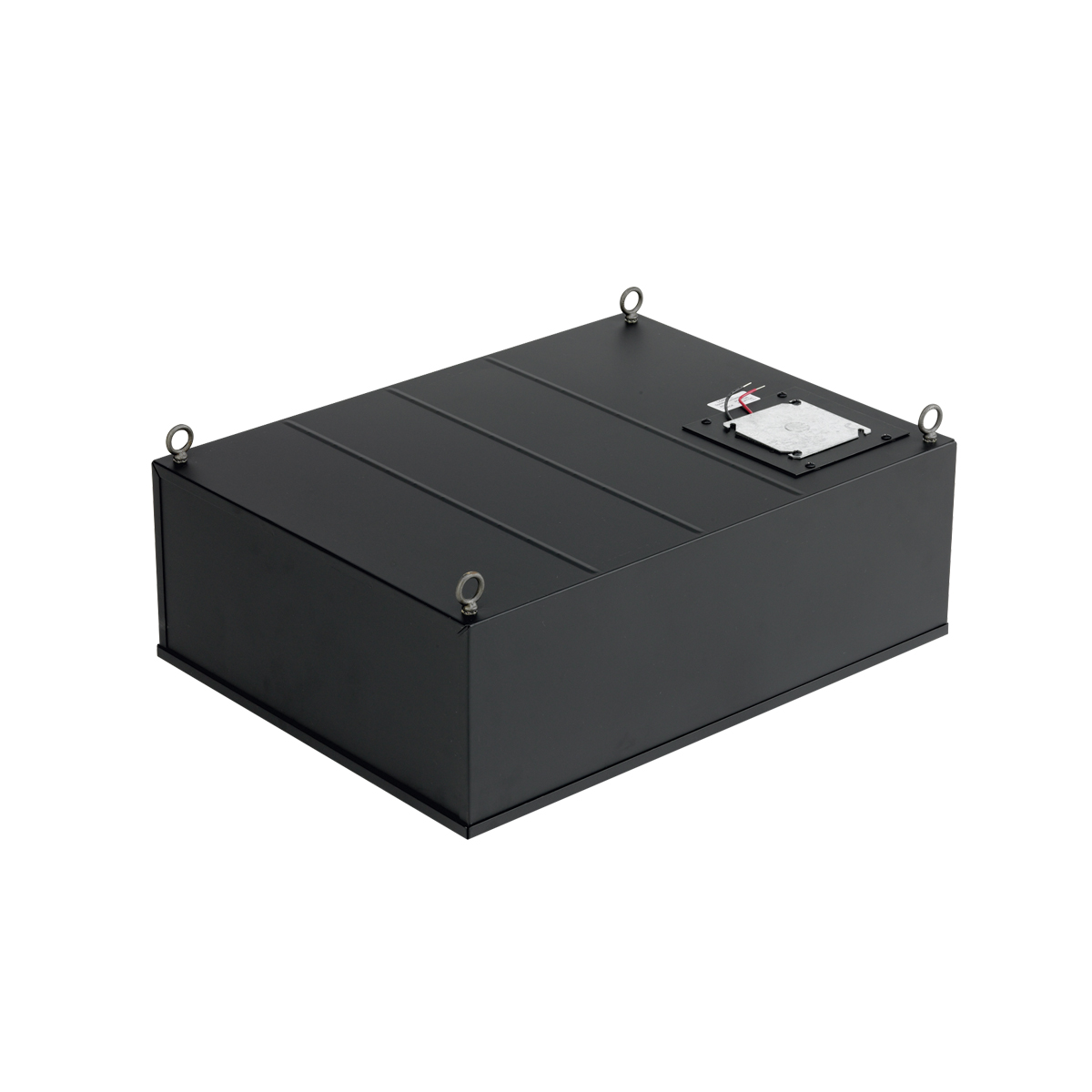

Enclosure: 2 cu.ft. precision-formed steel enclosure (23.937 in. x 18.19 in. x 8.19 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.–20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish.

Spec Sheet: 1821-IM8PTS1002SW
Instructions: Install-iMR
Revit Models: IM Series (Pro Sound)

Certified U.S. steel (grille, enclosure)
Made in U.S.A. with global components

The 100W flown rectangular speaker for suspended installation shall be Lowell iMount® Model IM8P-TS100-2SW which shall feature an 8 in. (8 ohm) 100W driver mounted in a black steel acoustic enclosure (23.937 in. x 18.19 in. x 8.19 in., 2 cu.ft. volume) with anti-vibration ribs, sound-stop board, 1-1/2 inch thick acoustic lining, and forged 1/4 inch-20 eyebolts screwed into mounting nuts for suspended installation using flyware by others. It shall include a perforated steel architectural grille with white finish. System frequency response shall be 50Hz–17.0kHz (±6dB) and 48Hz–20kHz (±7.1dB) with average sensitivity of 92.3dB @1W/1M. Dispersion shall be 80 degrees conical @2kHz octave measured 6dB down. The system shall have a driver with 38 oz. magnet, 2 in. voice coil, and coaxially mounted high frequency compression driver. It shall include a 70V 100W transformer with tap selector switch behind the grille.
