iMount®
12 inch (250W) Coaxial Speaker
Includes driver, transformer, enclosure, grille
$1,447.00 MSRP
$1,447.00 MSRP

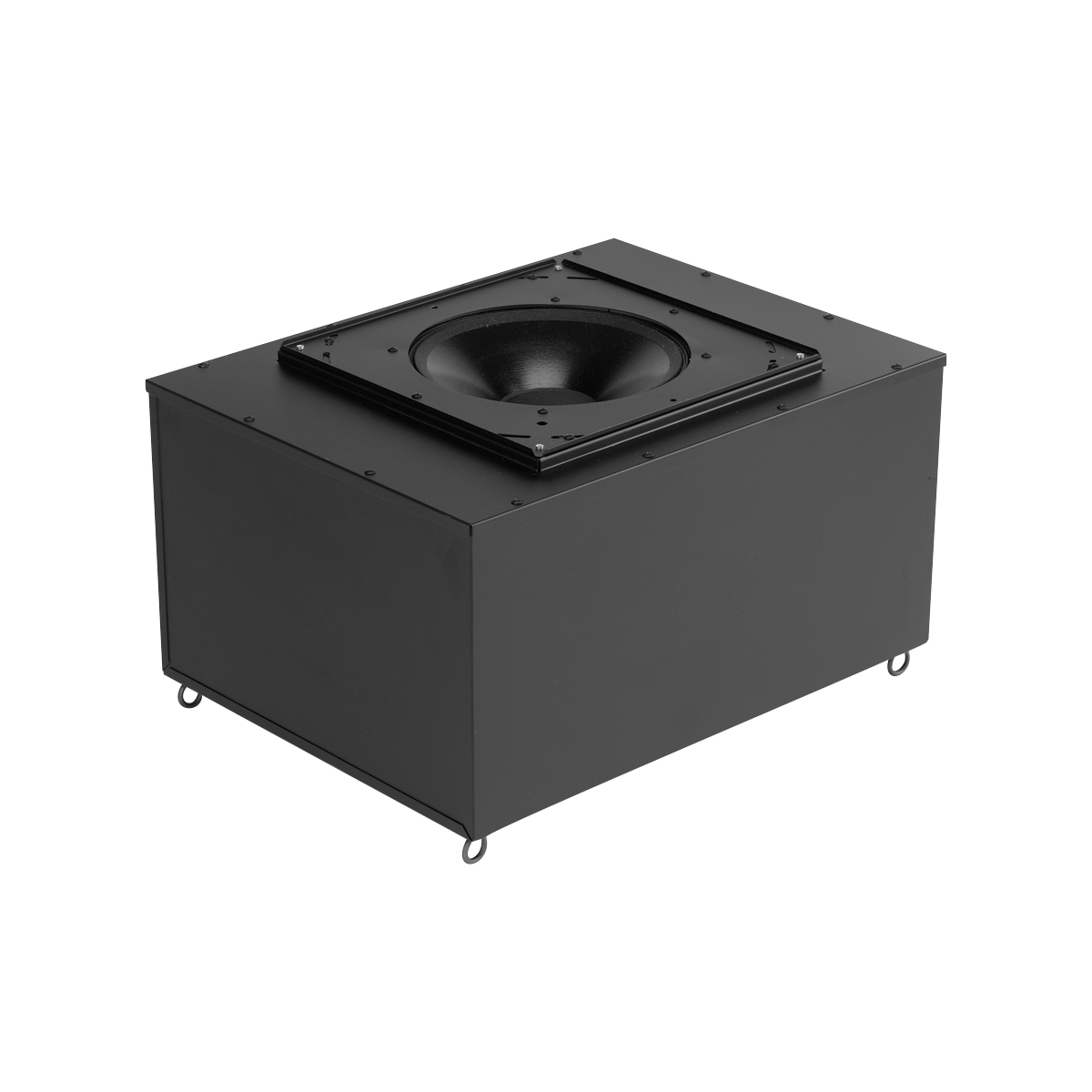

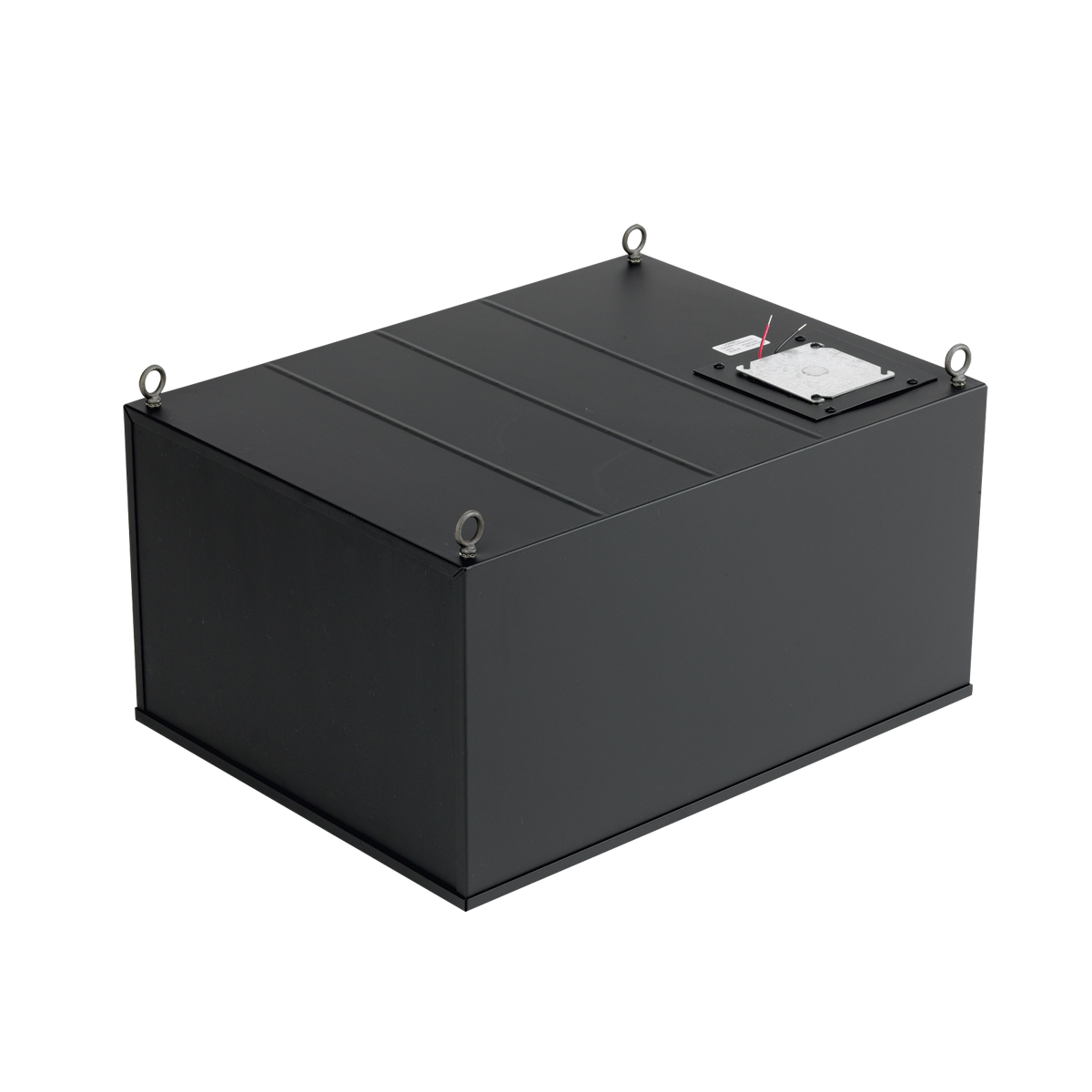

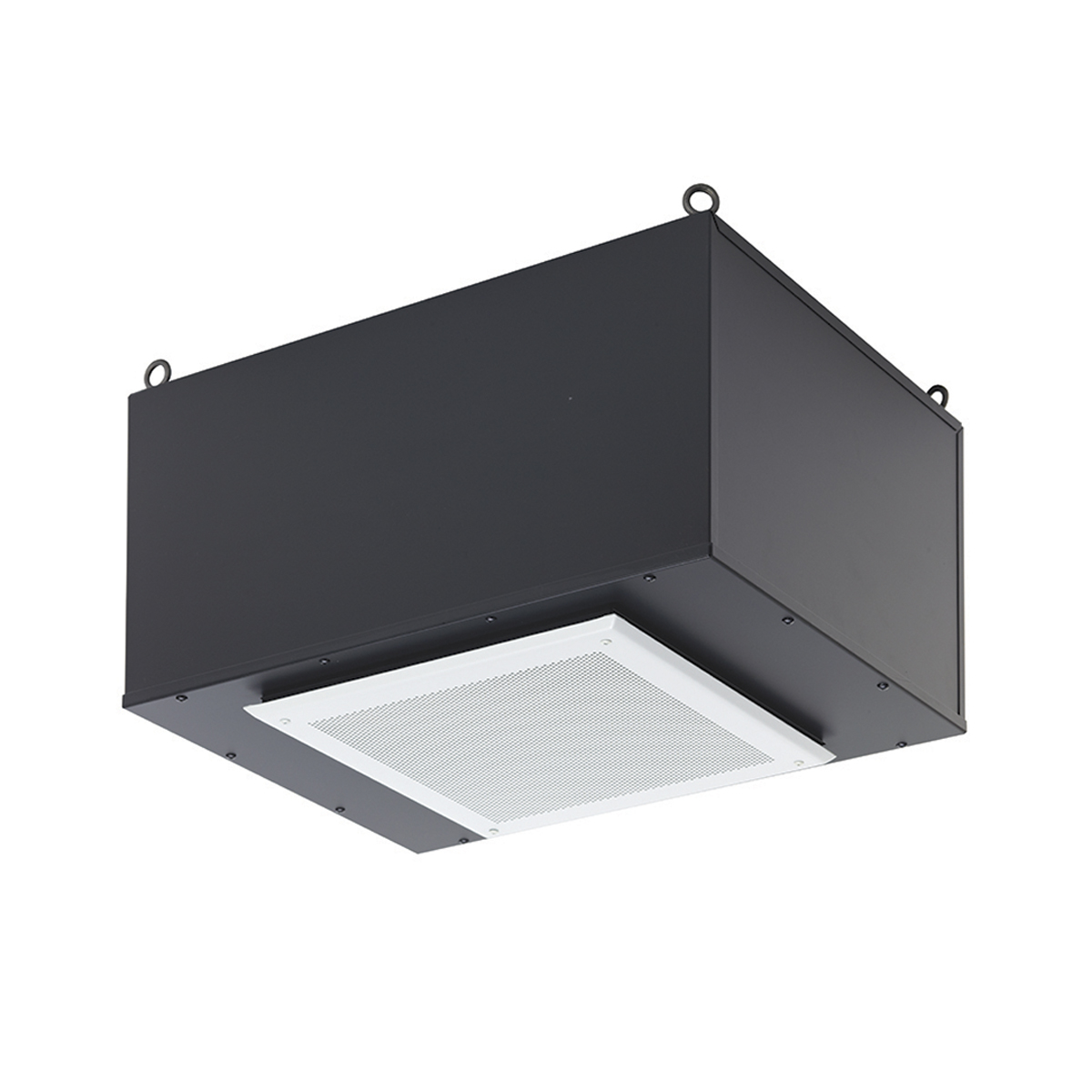

The speaker for suspended installation shall be Lowell iMount® Model IM12Q-TS100-3SW which shall feature a 12 in. (8 ohm) 250W driver mounted in a black steel acoustic enclosure (23.94 in. x 18.19 in. x 12 in., 3 cu.ft. volume) with anti-vibration ribs, sound-stop board, 1-1/2 inch thick acoustic lining, and forged 1/4 inch- 20 eyebolts screwed into mounting nuts for suspended installation (using flyware by others). It shall include a perforated steel architectural grille with white finish. System frequency response shall be 73Hz–16kHz (±6dB) and 45Hz–20kHZ (±9.5dB) with average sensitivity of 100.1dB @1W/1M. Dispersion shall be 80 degrees conical @2kHz octave measured 6dB down. The system shall have a driver with 77oz. magnet and 4 inch edge-wound aluminum voice coil; and a 5.3 in. mylar dome tweeter with 42oz. magnet and 1.75 in. voice coil. The speaker shall include a wired 70V 100W transformer with screwdriver-adjustable tap selections accessible behind the grille.
