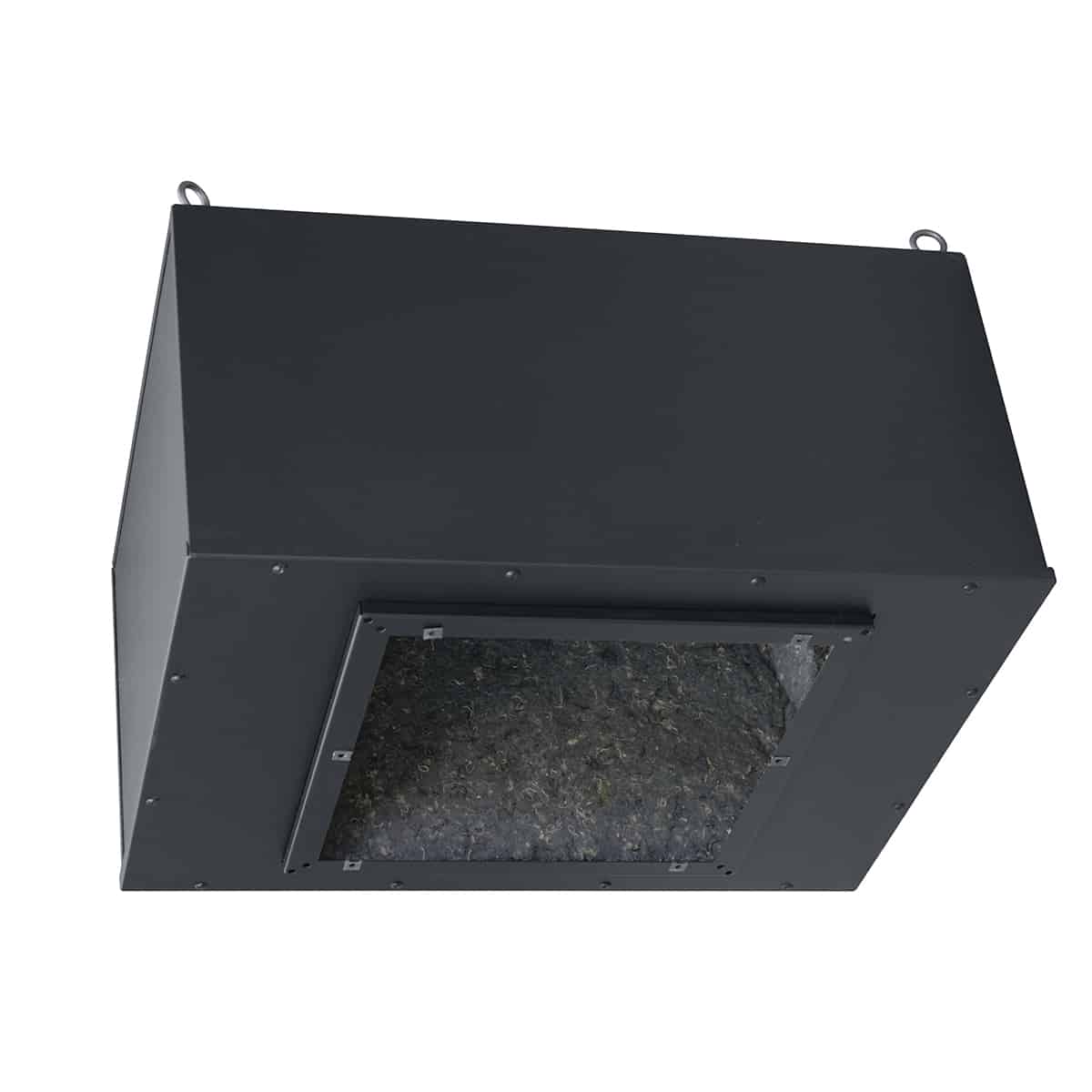

Recessed or Flown Acoustic Enclosure for 12 inch driver

Name: Recessed or Flown Acoustic Enclosure for 12 inch driver
SKU: IBOX-3
Price: 430.78 USD
Availability: InStock

For screw-mount grille

$430.78 MSRP

Model IBOX-3

The large acoustic enclosure is engineered for distributed speaker systems requiring sound reinforcement of the highest quality. The IBOX-3 combines the benefits of a large metal enclosure with the acoustic characteristics associated with a 3/4" plywood box, allowing a 12 inch speaker to operate at its optimum loading level to provide the system with improved low frequency response.

Add to Favorites

Compare

Material: Welded unitized 18-gauge steel with damping to minimize acoustical and mechanical resonance
Finish: Black
Size: 23.75 in. x 18.00 in.
Depth: 12.11 in.
Volume: 3 cu.ft.
Acoustical Treatment: Sound board and 1.5 in. batting
Mounting Aids: 8-32 screw retaining U-clips, 1/4-20 forged eyebolts
For Grille Type: Screw-mount

Spec Sheet: 1846-IBOX3
Instructions: Install IBOX

Made in U.S.A.
Certified U.S. steel

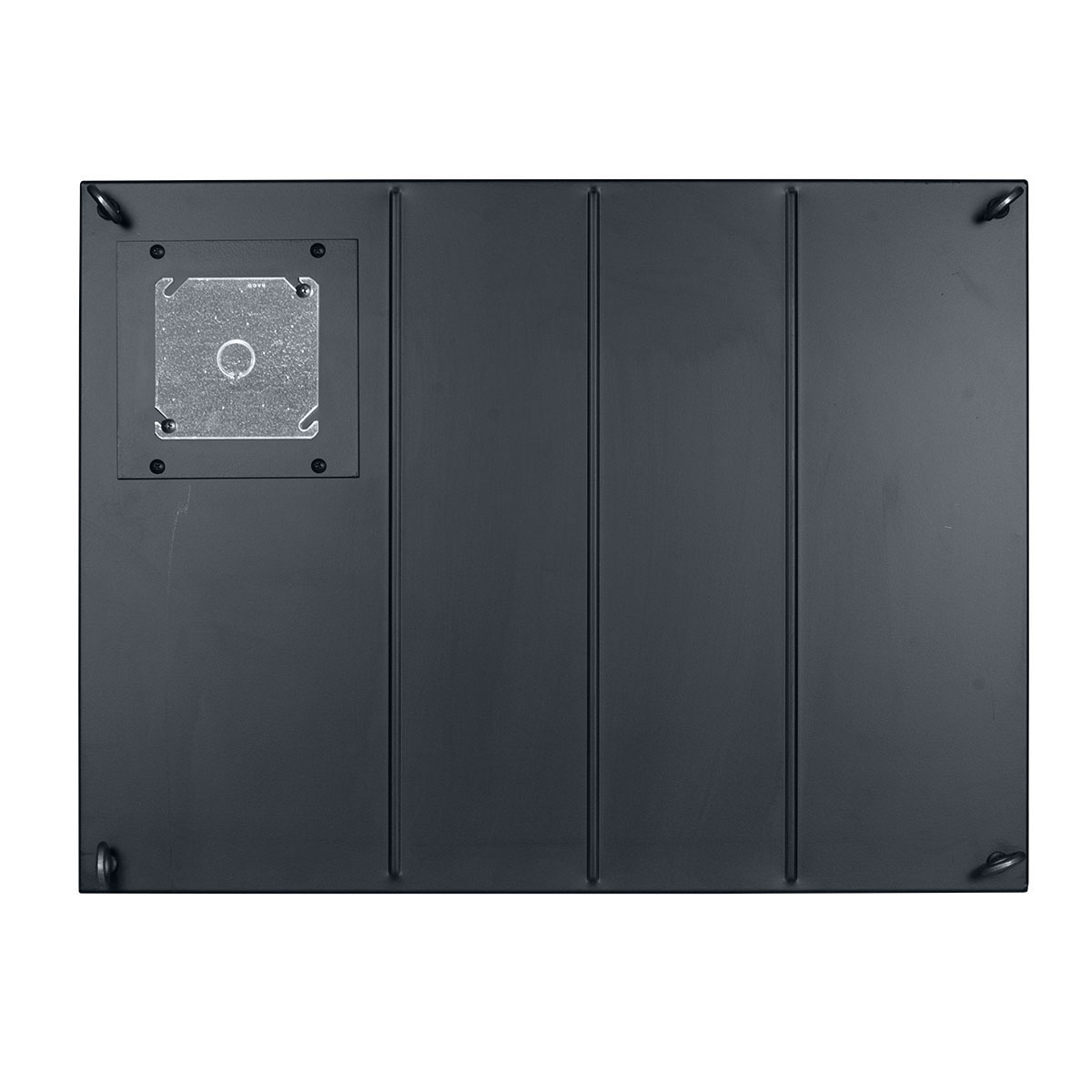

The recessed acoustic enclosure for 12″ speakers shall be Lowell model IBOX-3, which shall be fabricated of 18-gauge steel heavily damped to minimize acoustic and mechanical resonance. Inner walls shall be lined with 0.5″ thick acoustic fiberboard and 1.5″ thick acoustic lining. The backbox shall measure 23.75″ x 18.00″ x 12.11″ with internal volume of 3 cu.ft. It shall include four 1/4-20 eyebolts in rear. The enclosure shall be made in the U.S.A.

Screw-Mount Grille: FW-12, FW-12Q
Driver (12 in.): 12P150, 12Q250
