Steel Torsion Grille

Name: Steel Torsion Grille
SKU: FW-8T
Price: 110.20 USD
Availability: InStock

For 8 inch driver

$110.20 MSRP

Model FW-8T

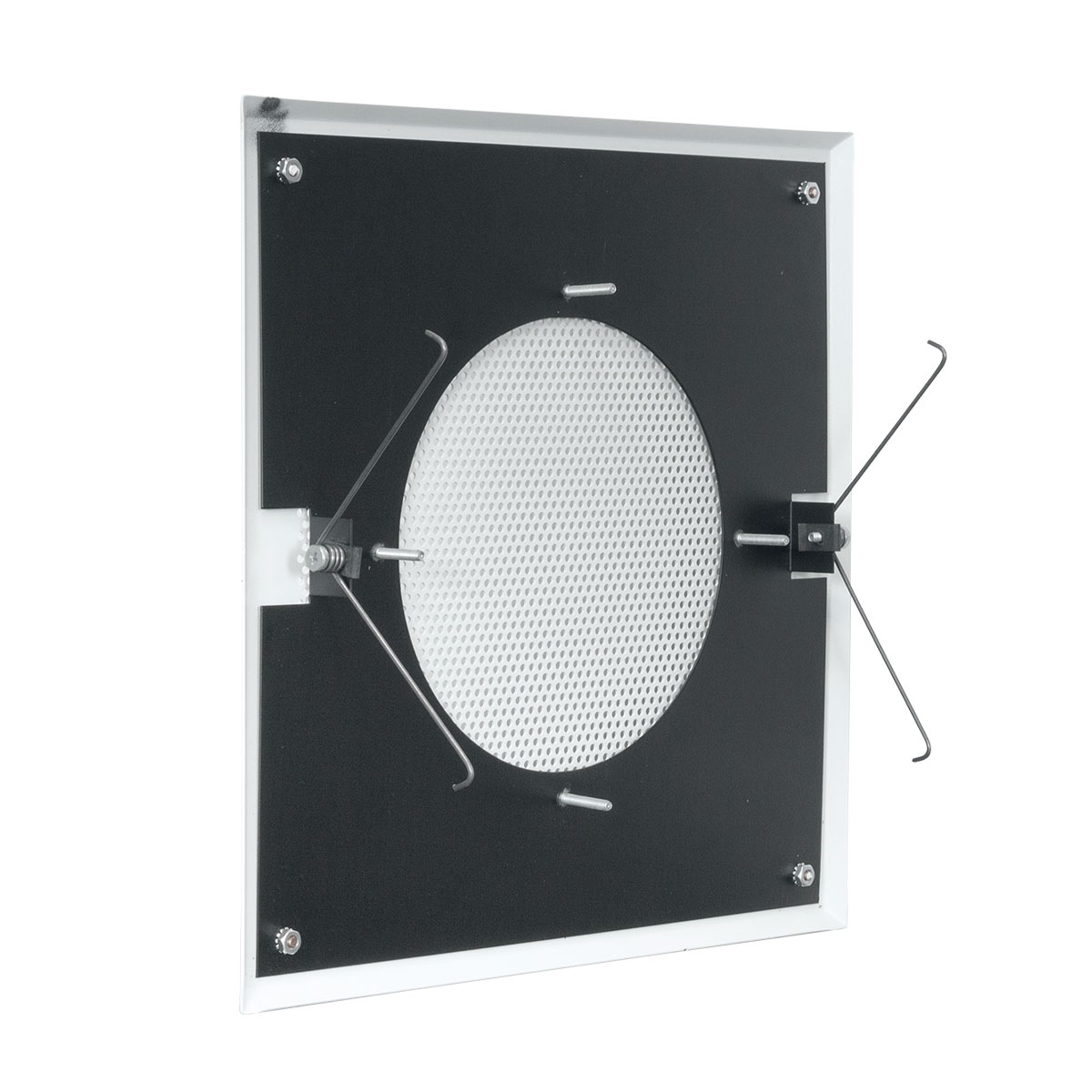

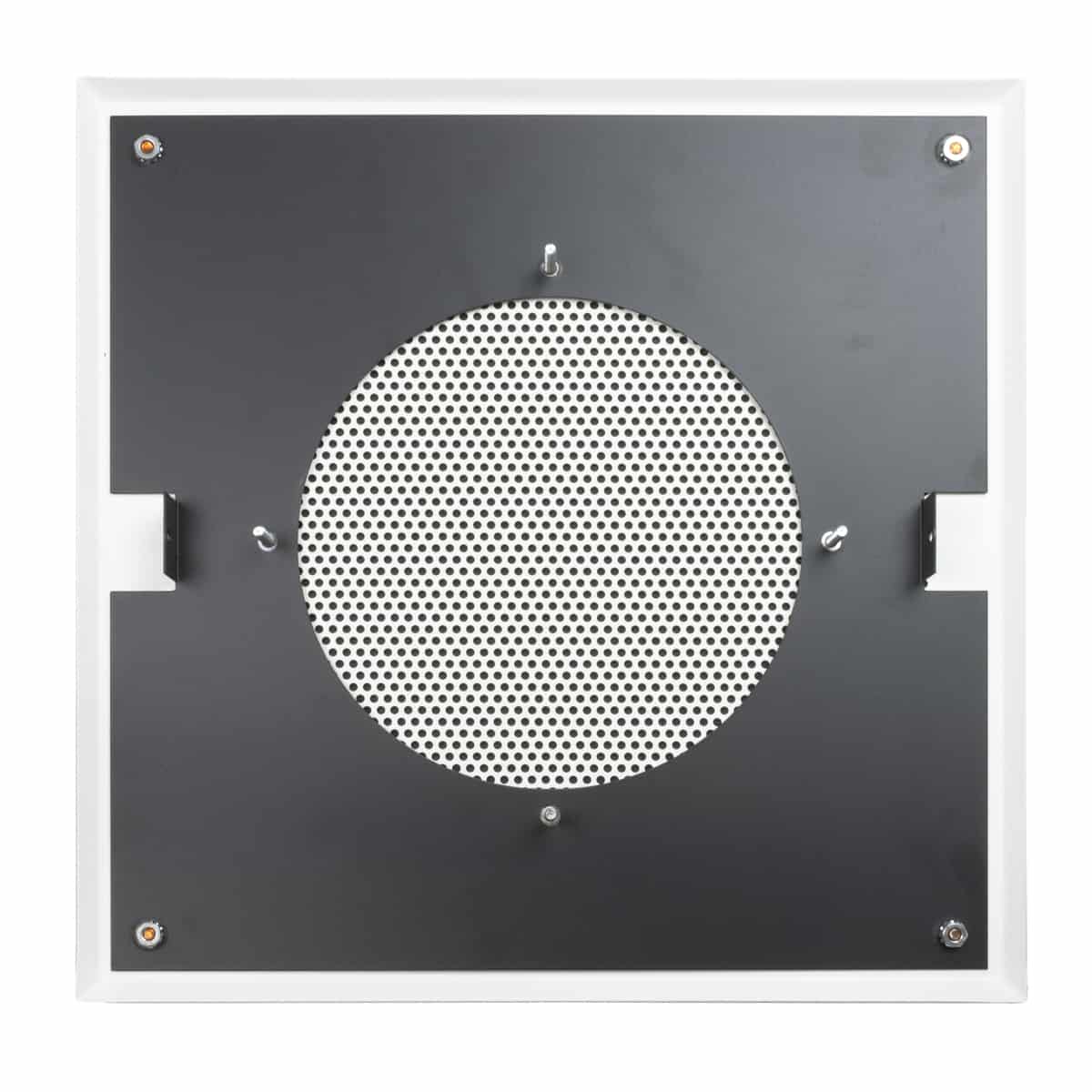

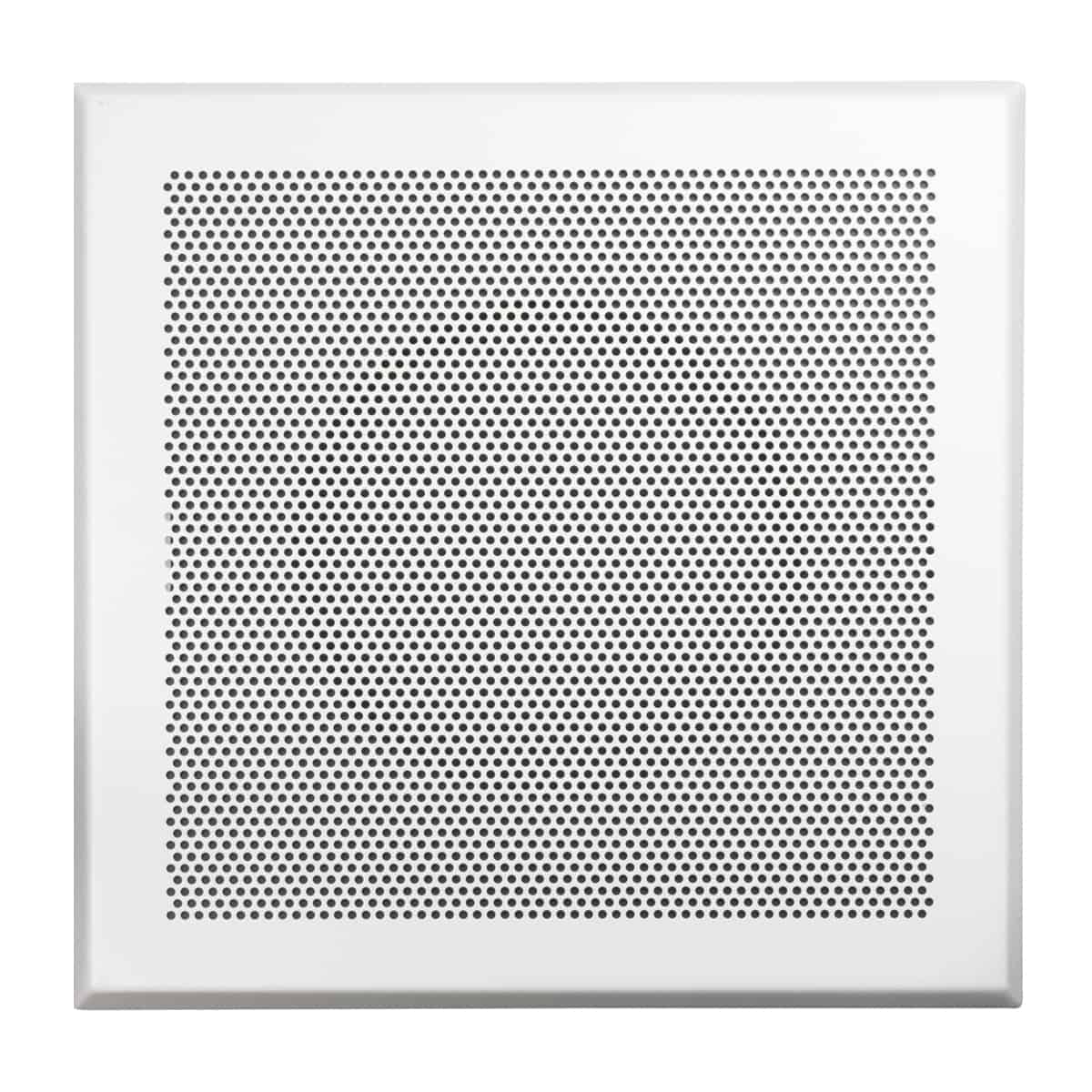

Square grille with sub-plate and torsion springs is made for use with an 8 inch speaker assembly weighing less than 3.5 lbs. and Lowell backbox RE1175-T (order separately).

Add to Favorites

Compare

Style: Torsion
Material: 18-gauge one-piece perforated steel with separate 21-gauge steel subplate
Finish: White, beveled edge
Size: 13.00 in. square
Mounting Projection: 0.313 in.
Mounting Provisions: Torsion bracket spring devices accommodate a variety of ceiling depths, welded studs w/nuts

Spec Sheet: 1643-FW8T

Made in U.S.A.
Certified U.S. steel

The square torsion speaker grille for 8 inch driverss shall be Lowell Model FW-8T. It shall be 18-gauge steel with perforated center and beveled frame, separate subplate with welded speaker studs and torsion bracket/spring devices for backbox installation. The grille shall be 13 in. square with mounting projection of 0.313 in. The grille shall be finished in white powder epoxy.

Drivers (8 in.): 810, 8C10MRB, CT830A
Recessed Backbox: RE1175-T
Support Rails: SS24, SS30
