Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: FW-12Q
Price: 186.00 USD
Availability: InStock

For 12 inch driver

$186.00 MSRP

Model FW-12Q

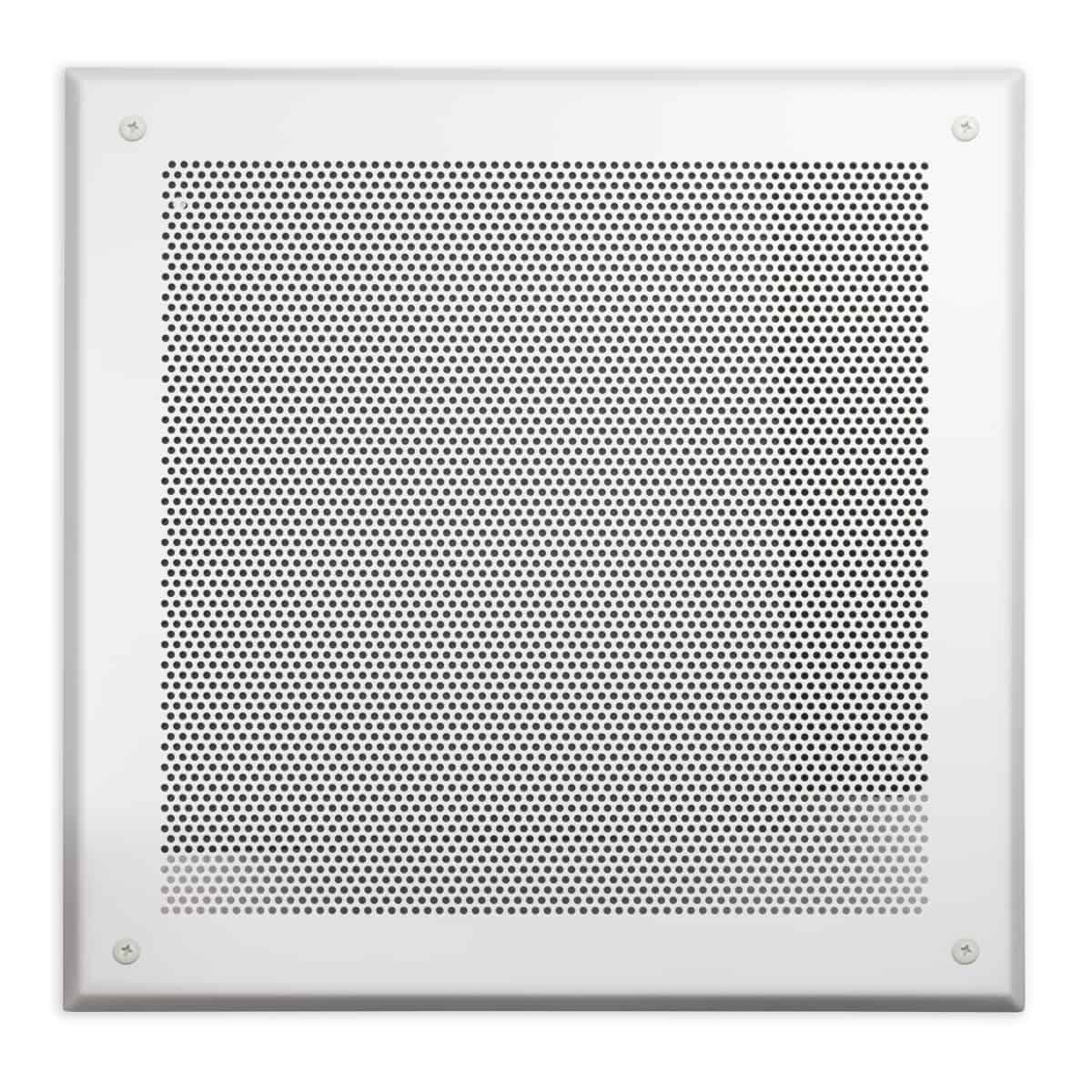

FW-12Q square speaker grille with ported subplate is engineered for use with Lowell driver 12Q250 and DX Series backbox (order separately).

Add to Favorites

Compare

Style: Screw-mount

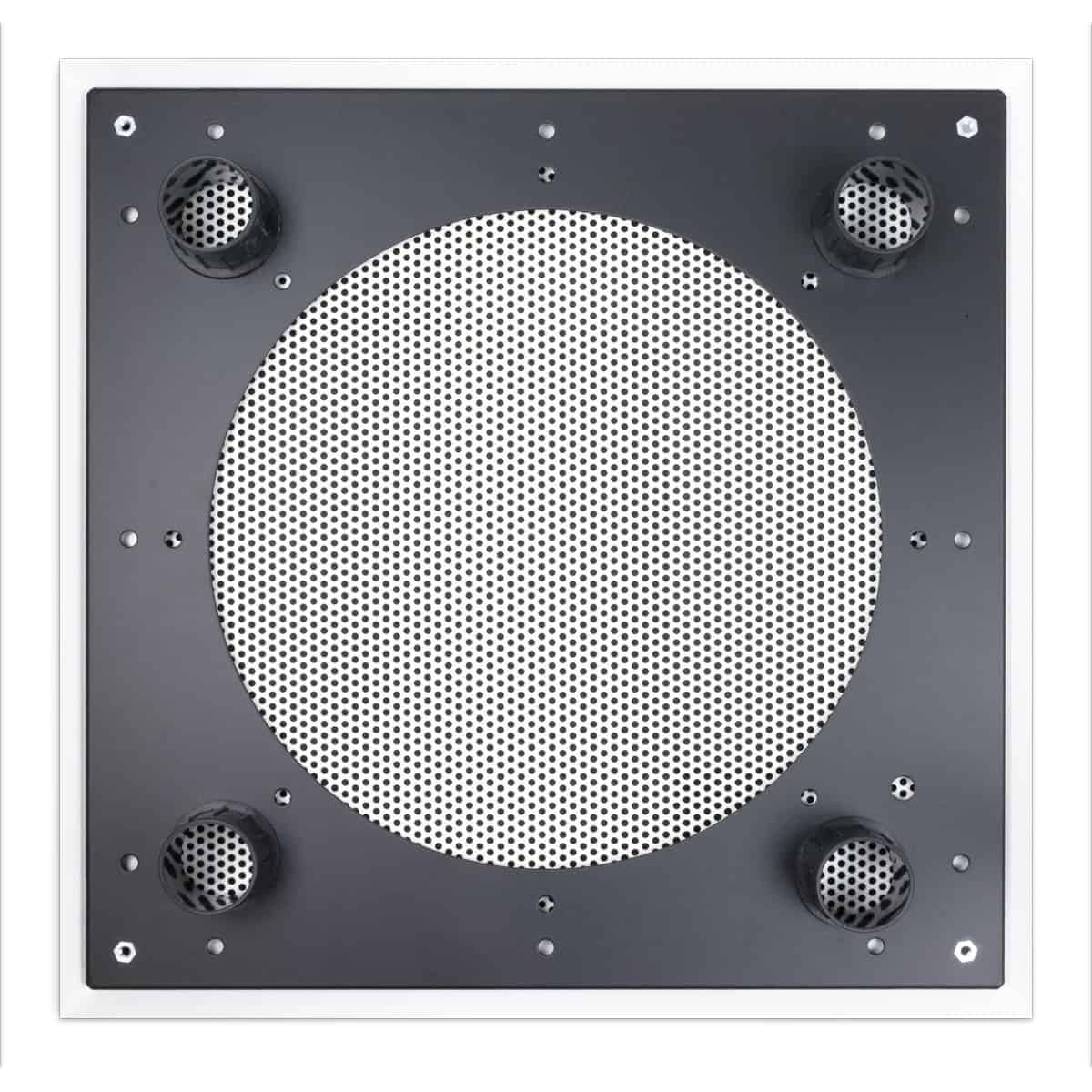

Material: 18-gauge one-piece perforated steel grille, 20-gauge steel ported subplate
Finish: White grille with beveled edges, black subplate
Size: 15.25 in. square
Mounting Projection: 0.375 in.
Mounting Provisions: 4 screws (white), ported subplate with screws

Spec Sheet: 1681-FW12Q

Made in the U.S.A.
Certified U.S. steel

The square speaker grille for 12 in. driver Model 12Q250 (ordered separately) shall be Lowell Model FW-12Q. It shall be one-piece 18-gauge steel with a perforated center and beveled frame. The grille shall include a 20-gauge steel ported subplate and mounting hardware. The grille shall be 15.25 in. square with mounting projection of 0.375 inches. The ported subplate shall include provisions for mounting 12 in. driver Model 12Q250 (11.625 in. dia. bolt pattern) and for mounting the driver/subplate assembly to specified Lowell backbox. The subplate shall be finished in black powder epoxy and the grille shall be finished in white powder epoxy. The grille shall be non-loadbearing and mount to the specified backbox using four 8-32 x 3/8 in. white screws.

Recessed Backbox: IBOX-2, IBOX-3
Driver (12 in.): 12Q250
Support Rails: SS48
