Turbo Fan Panels

$576.86 – $625.68 MSRP

FT1 Series

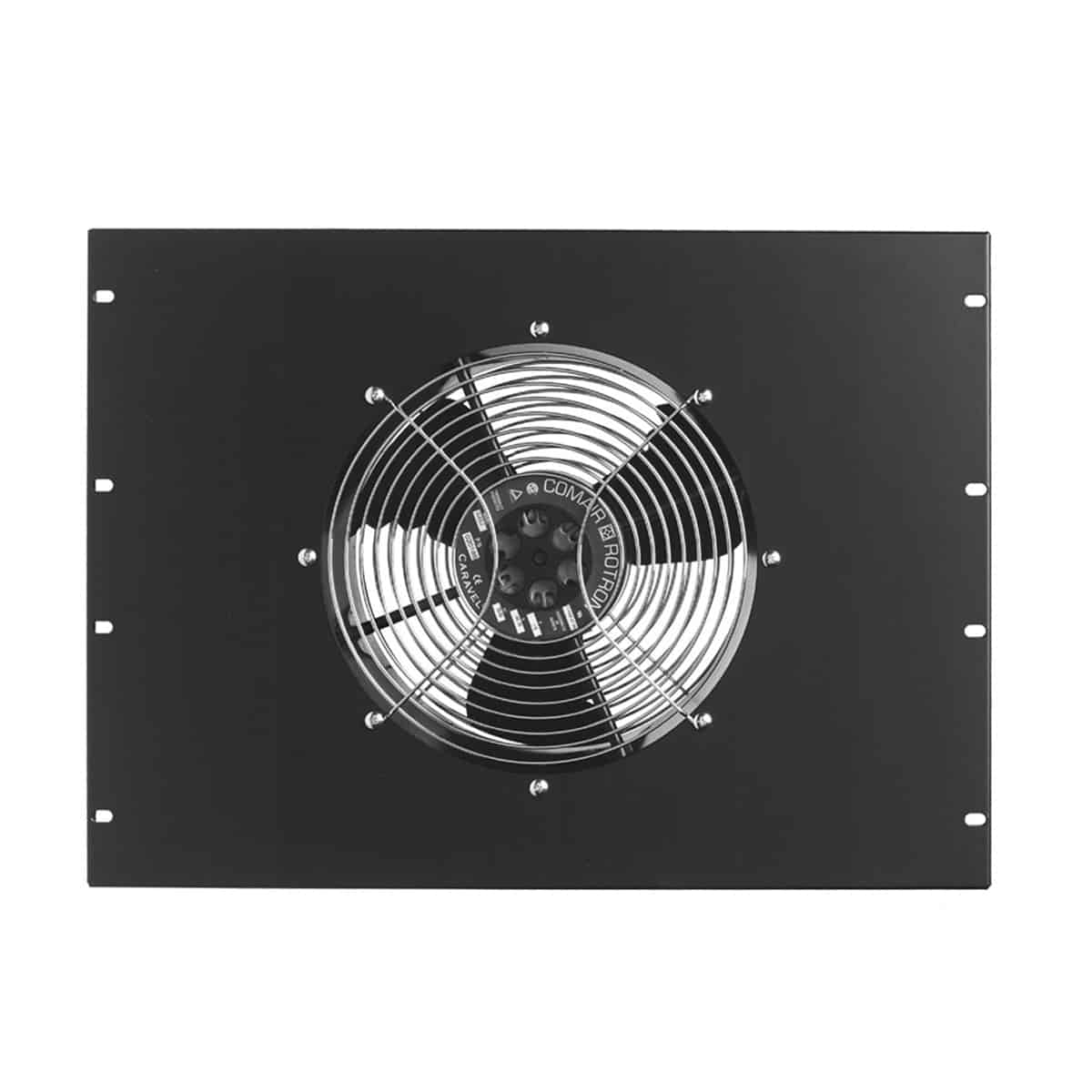

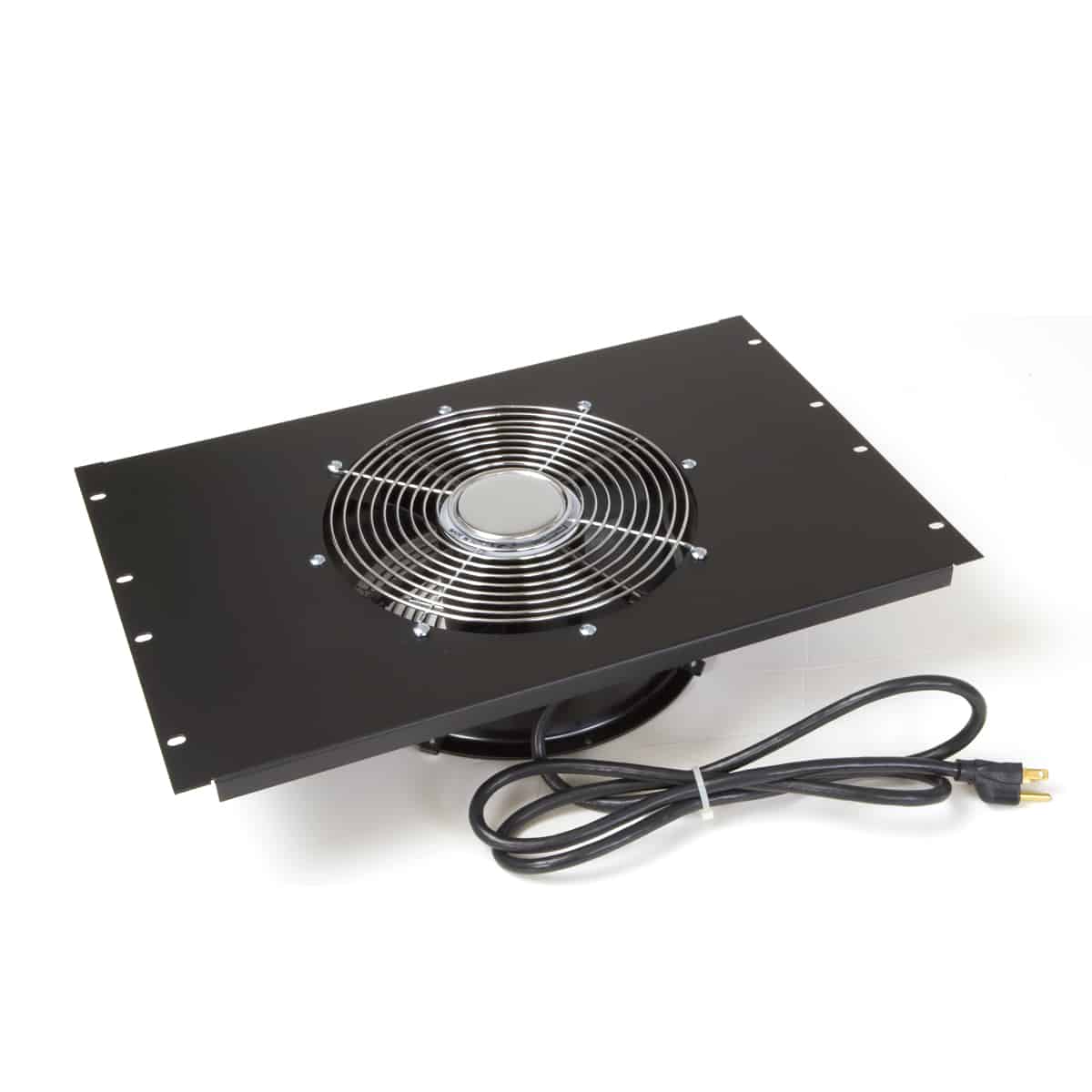

19 inch x 7U rackmount fan panel has a single turbo fan. The large 10 in. diameter fan is available with a standard cord or cord with built-in thermostat to control fan operation. There's also a version without a plug for Europe (installer adds plug).

Cord Style

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

16-gauge U.S. steel panel (19 in. x 7U)
One (10 in. dia.) tubeaxial fan
Operates on 115 VAC 50/60 Hz
Operating Temperature Range: –22 to 140 degrees F
Airflow Rating: 550 cfm
Noise Rating: 50.8 dBA
Power Required: 61 watts
Choose standard 6 ft. standard cord with plug, green cord with thermostat probe and plug, or cord without plug (for Europe)

Spec Sheet for panel with cord and plug: 1054-FT17
Spec Sheet for panel with cord and plug with thermostat probe: 2260-FT17T
Spec Sheet for panel with cord (no plug): 1145-FT17E

Made in the U.S.A. with global components

The fan panel for 19″ rackmount installation shall be Lowell Model __________. The assembly shall be 16-gauge U.S. steel finished in black powder epoxy paint with a mounted 10″ x 3.5″D tubeaxial fan, which shall include front and rear fan guards. The fan shall provide 550 cfm airflow and have a 50.8 dBA noise rating. The unit shall include a 6-ft. cord _______________ (with plug, without plug).
Model FT1-7T only: The cord shall be green and shall feature an integral thermostat probe to automatically control fan activation.
