18″D Flat-ship Shelf

Name: 18"D Flat-ship Shelf
SKU: FS18-20
Price: 142.20 USD
Availability: InStock

8"H x 18"W

$142.20 MSRP

Model FS18-20

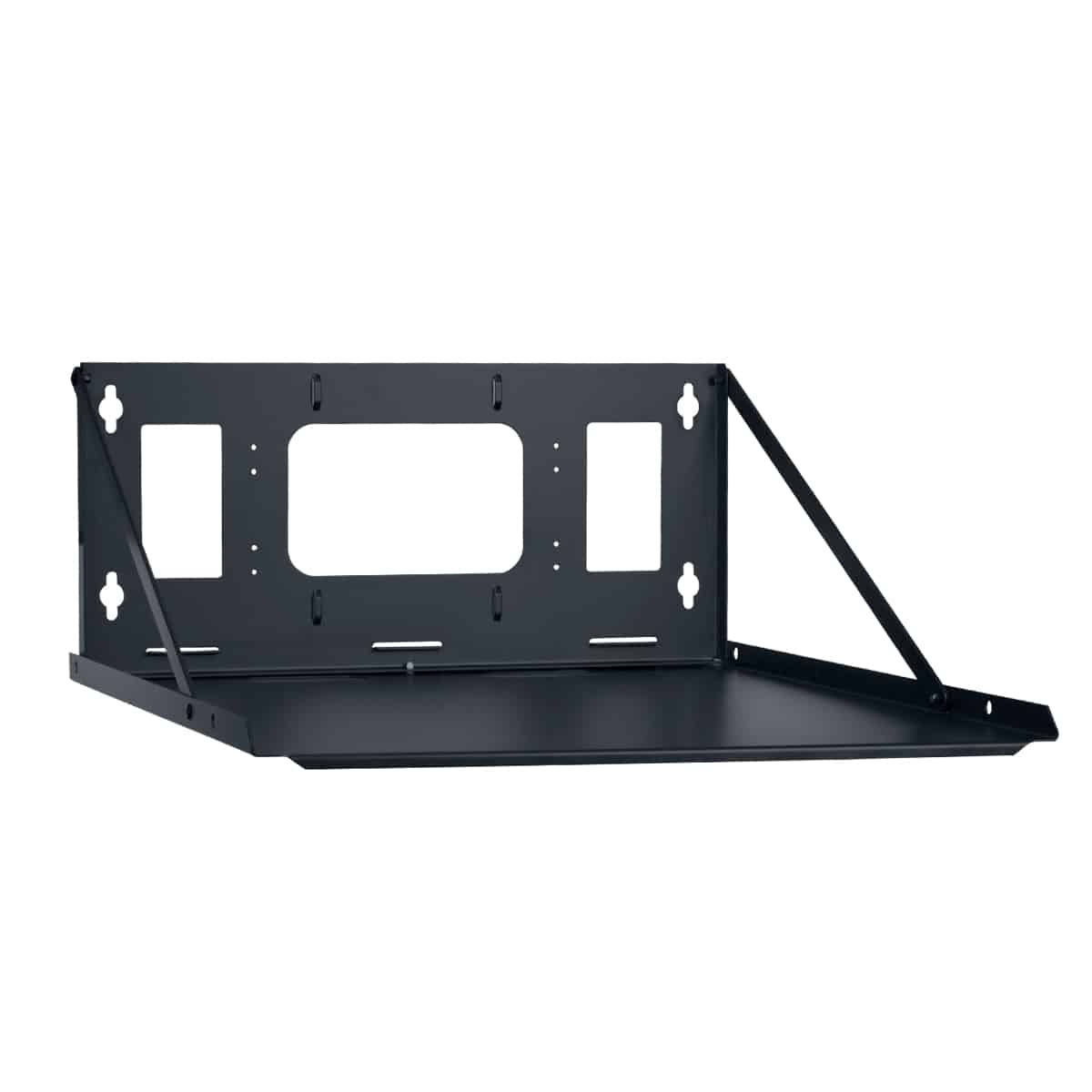

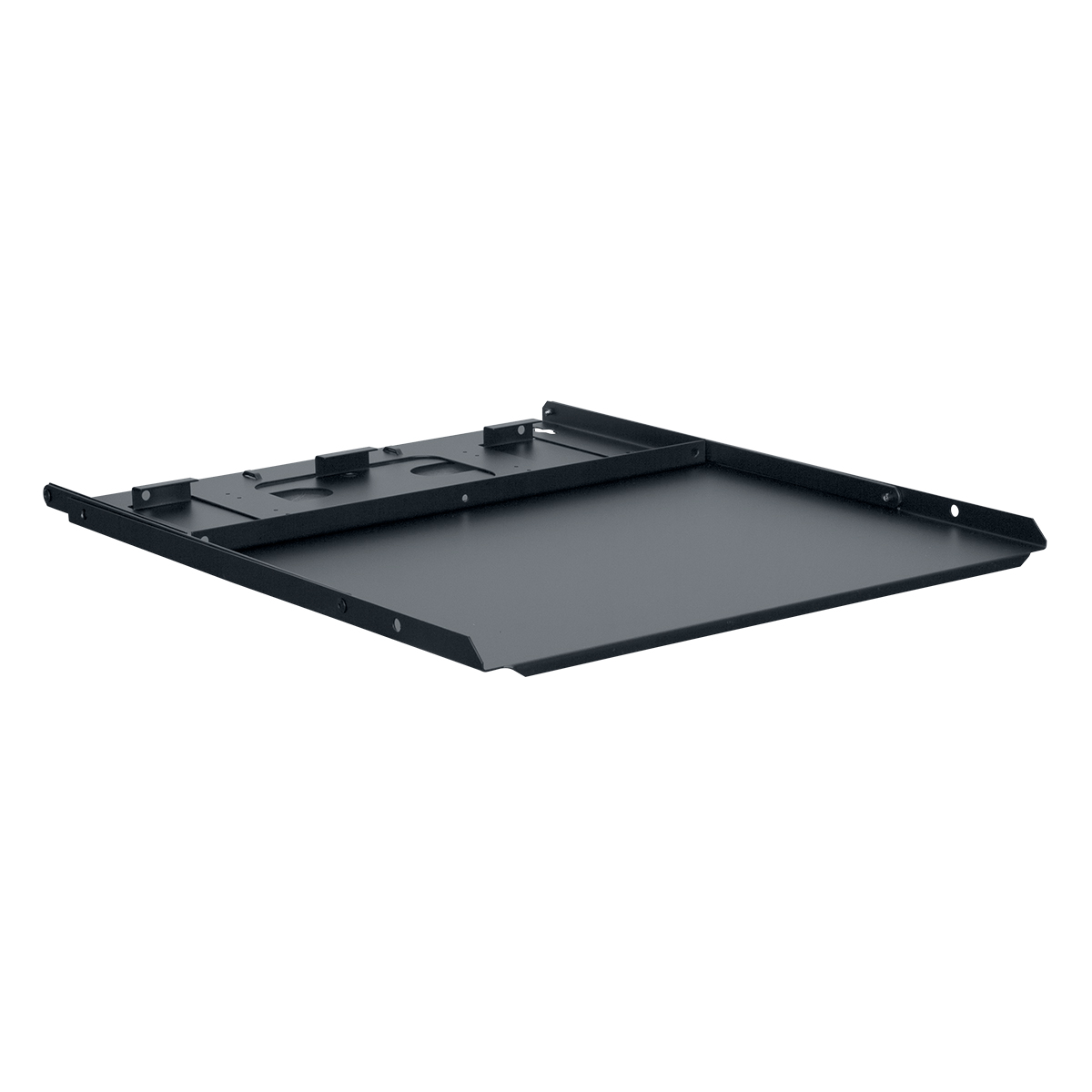

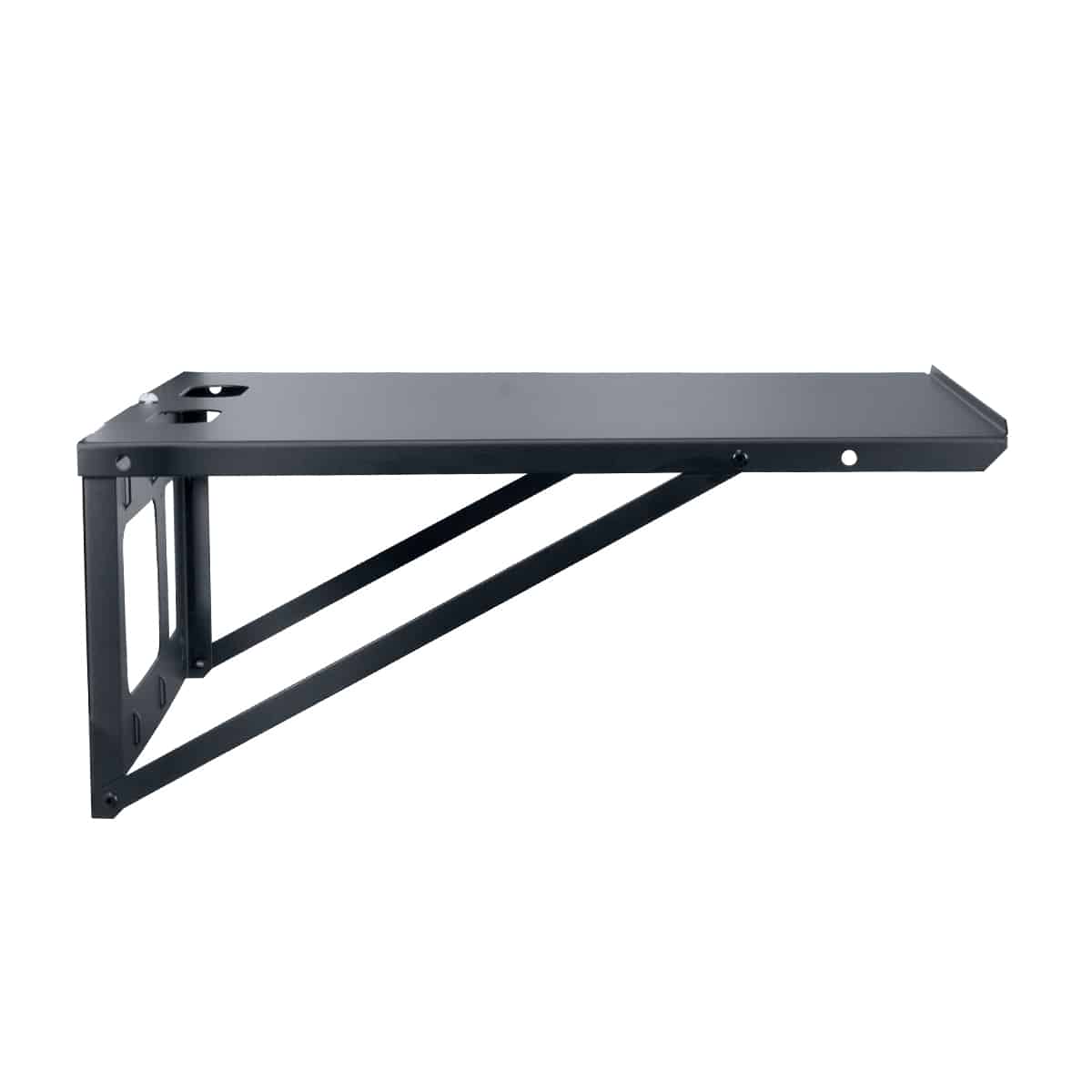

Steel wall shelf folds flat for efficient shipping and warehousing, then unfolds to the service position for quick installation with flanges that insert into rear panel cutouts. Mounts with equipment platform up or down.

Add to Favorites

Compare

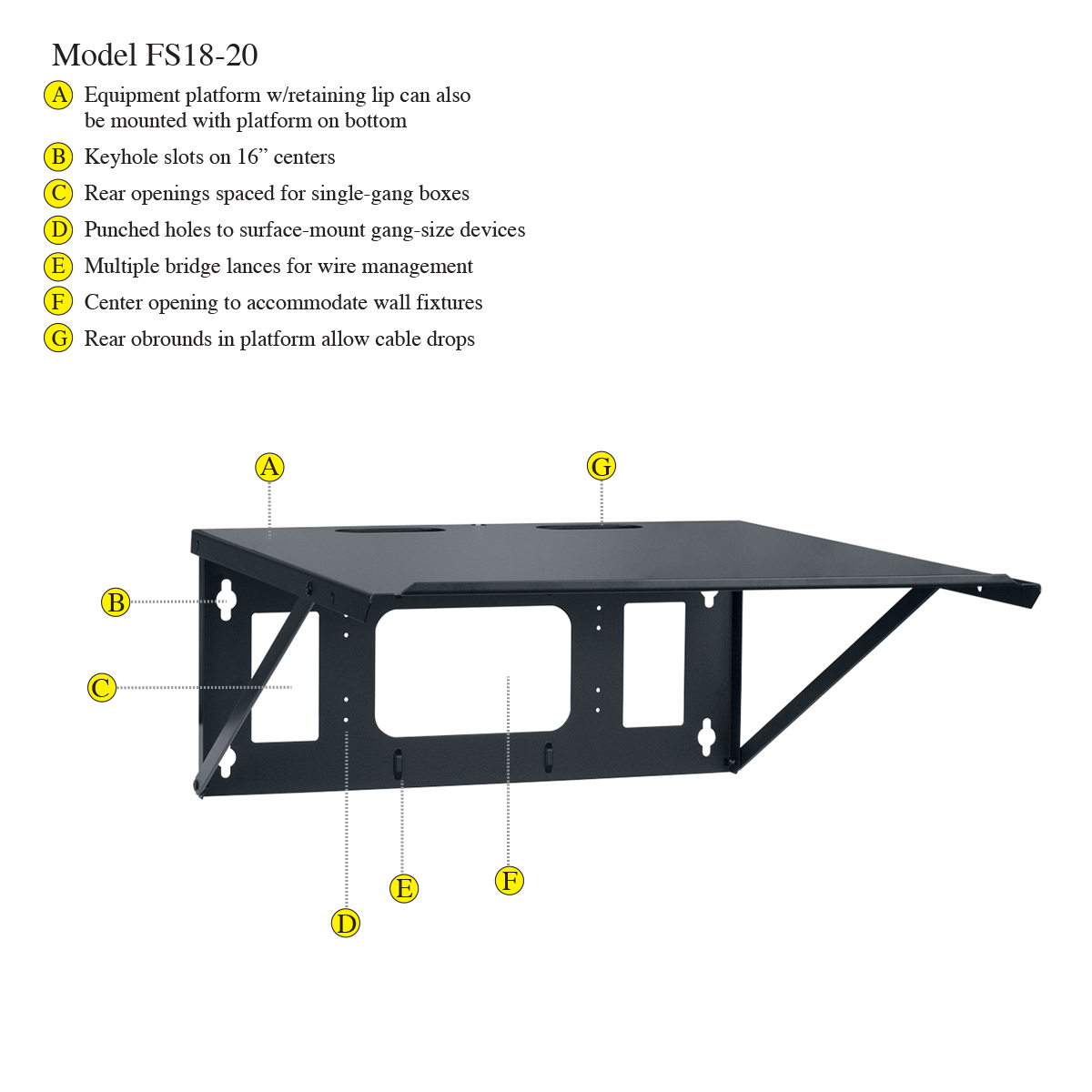

16-gauge steel
Keyhole mounting slots on 16 in. stud centers

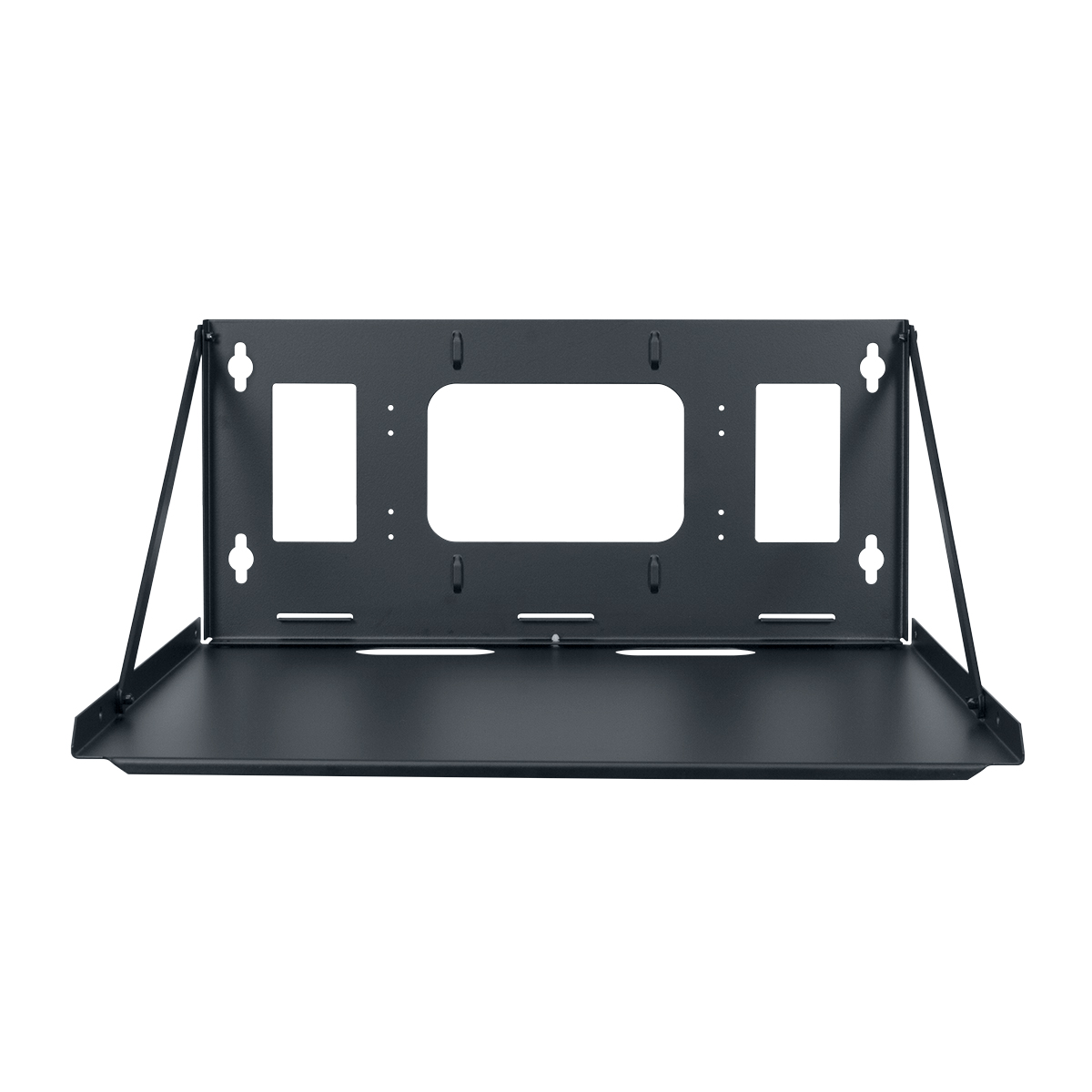

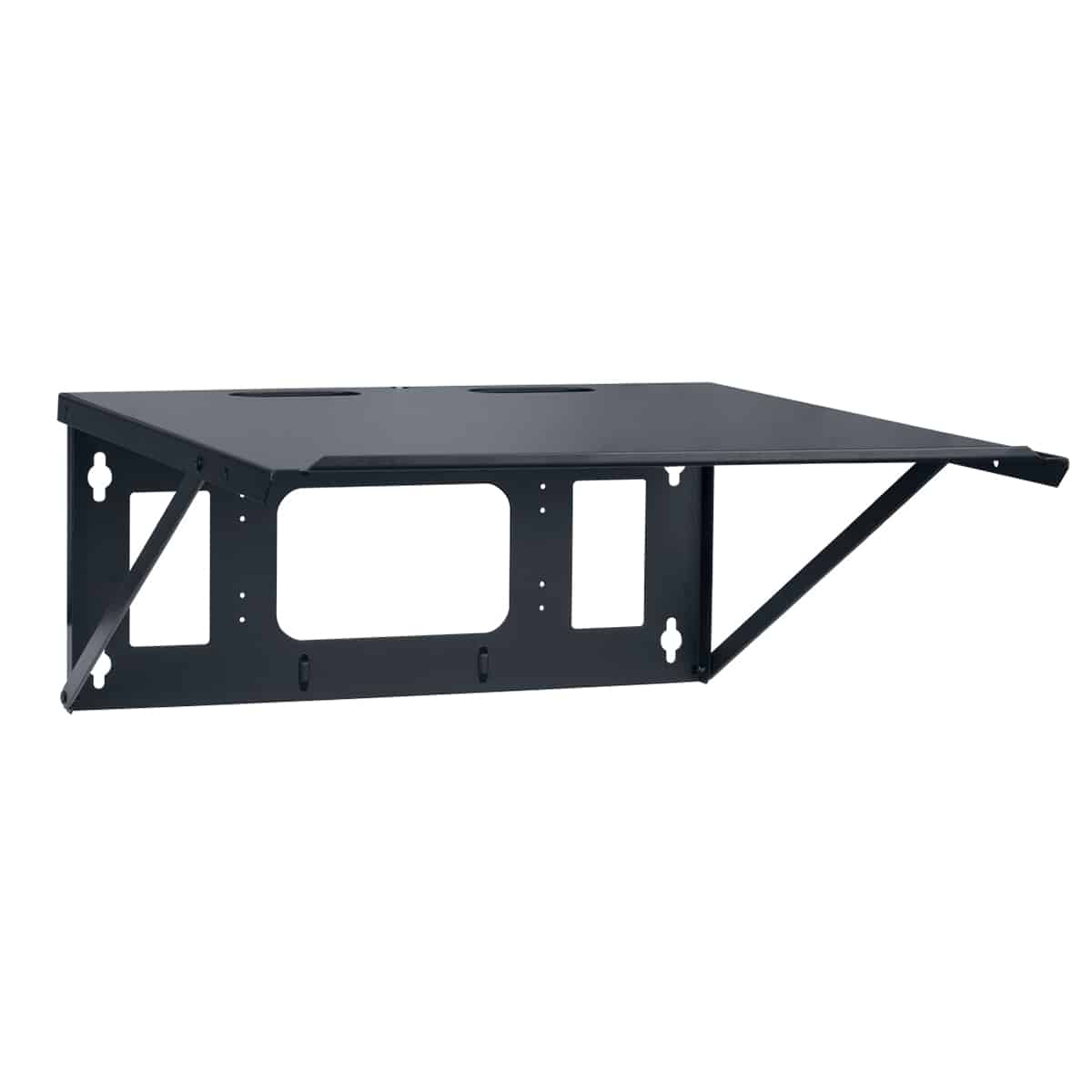

Install with equipment platform on top or bottom.

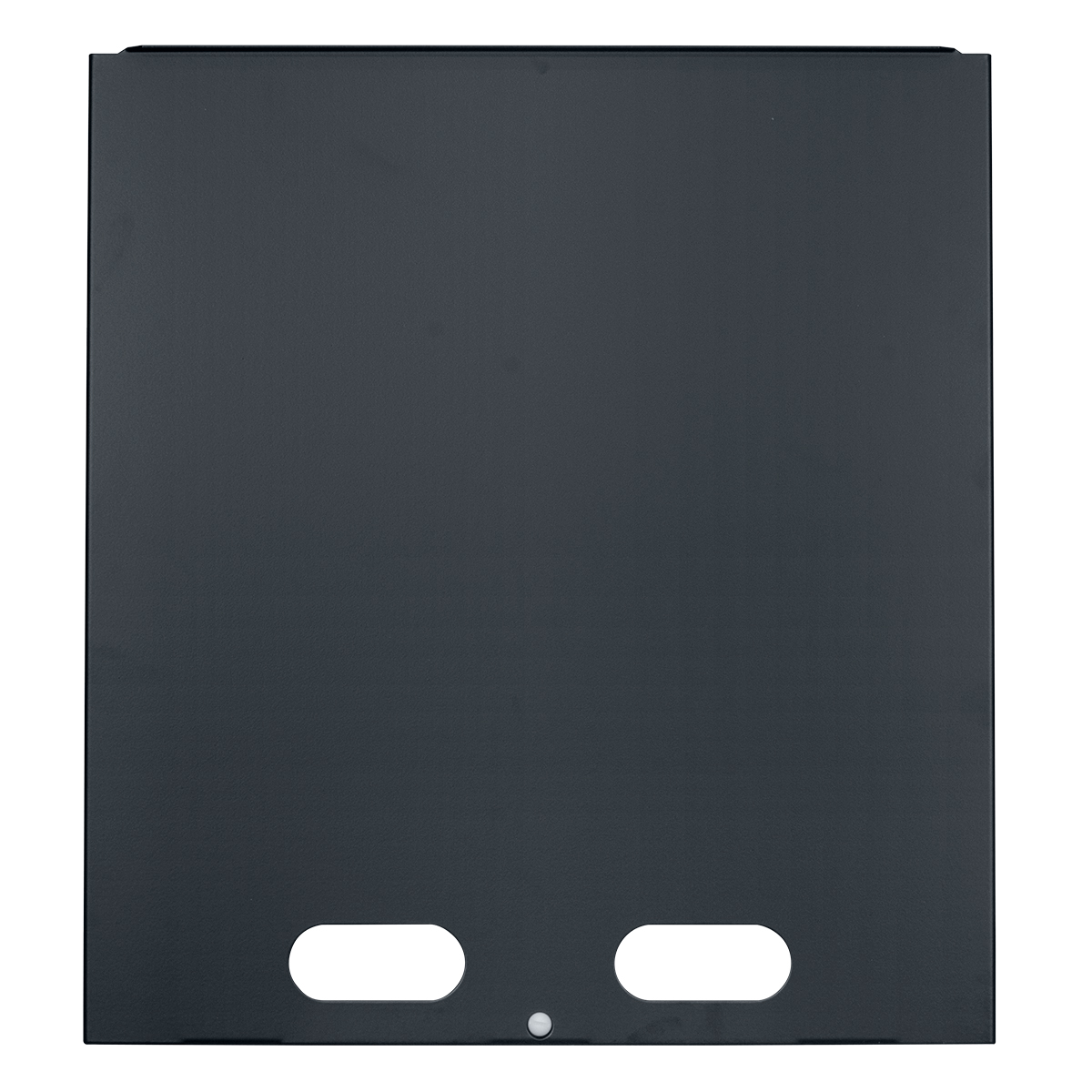

Two oblong cutouts (2.5 in. x 1.25 in.) for cable drop-down

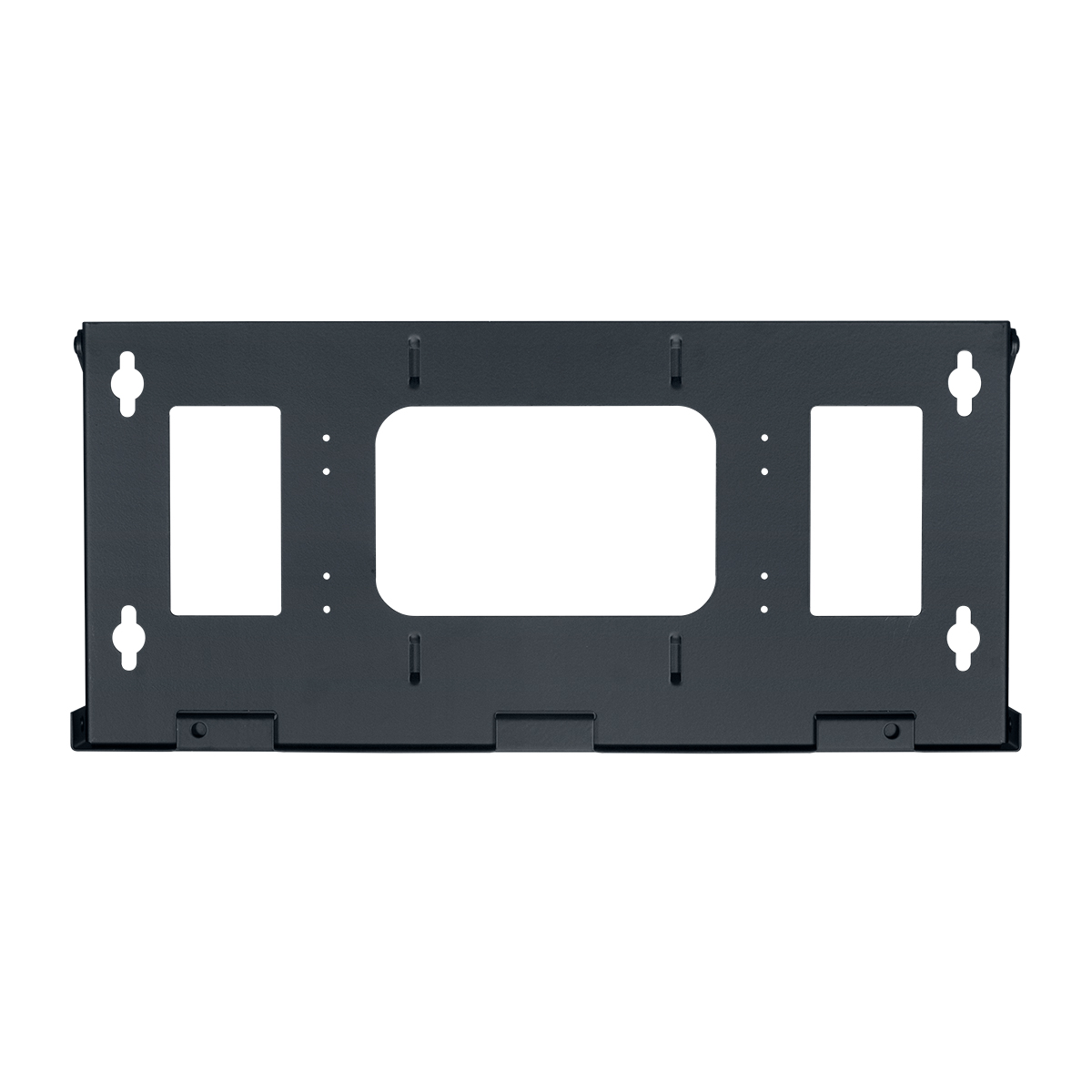

Large center cutout in back for placement over existing wall fixtures. Other openings in back are spaced for single gang, stud-mounted conduit boxes.
Pre-punched mounting holes in back for easy installation of surface-mounted gang-size accessories
Multiple bridge lances for cable management
Front retaining lip, flanged for strength
Smooth powder epoxy finish

Height: 8.24 in.
Width: 18.22 in.
Depth: 20 in.
Load Capacity: 100 lbs.

Spec Sheet (20″D): 1314-FS1820

Certified U.S. steel
Made in Missouri, U.S.A.

The wall-mount shelf shall be Lowell Model FS18-20 which shall fold out to measure 18.22″W x 20″D x 8.24″H in the service position. It shall support up to 100 lbs. when properly mounted (hardware by others) using keyhole mounting slots on 16″ centers. The rear shall have a large center opening to accommodate an existing wall fixture or wires and side openings spaced to accommodate single-gang stud-mounted conduit boxes. It shall also be pre-punched for mounting accessories or lacing cable. The equipment platform shall have a retaining lip and two oblong cutouts (2.5″ x 1.25″) for cable drop-down. The unit shall feature a black powder epoxy finish.
